Metso was formed in 1999 through the merger of Rauma Corporation and Valmet. Its minerals business combined with Outotec in 2020, and the company adopted the Metso name in 2023. Its equipment portfolio covers grinding, crushing, mineral processing and material handling, including installations from several legacy brands.
Explore Metso Equipment
METSO · Mining Equipment Directory
Metso Mining Equipment and Legacy Models
Identify Metso grinding, crushing and mineral processing equipment by range, then check models, drawing references and dedicated wear and spare parts.
Company History
Metso History and Mining Equipment
- 1999 Metso Formed
- 2020 Minerals Business Combined with Outotec
- 2023 Metso Name Adopted
- 2025 Metso Completed the Acquisition of Swiss Tower Mills Minerals
Legacy Brands
Brands and Installations Within the Metso Portfolio
Search by the original brand name to find equipment ranges and legacy installations.
Nordberg Crushing equipment and legacy installations →
Lokomo Legacy mobile crushing brand →
Svedala Legacy crushing and screening brand →
Allis-Chalmers Legacy crushing equipment brand →
Bergeaud Legacy French crushing equipment brand →
Outotec Mineral processing and beneficiation technology →
McCloskey Mobile crushing and screening equipment →
Swiss Tower Mills HIGmill stirred grinding technology →
Equipment Series
Metso Equipment Ranges
Explore the grinding equipment below, followed by crushing and screening ranges. Select an equipment card for model-specific information.

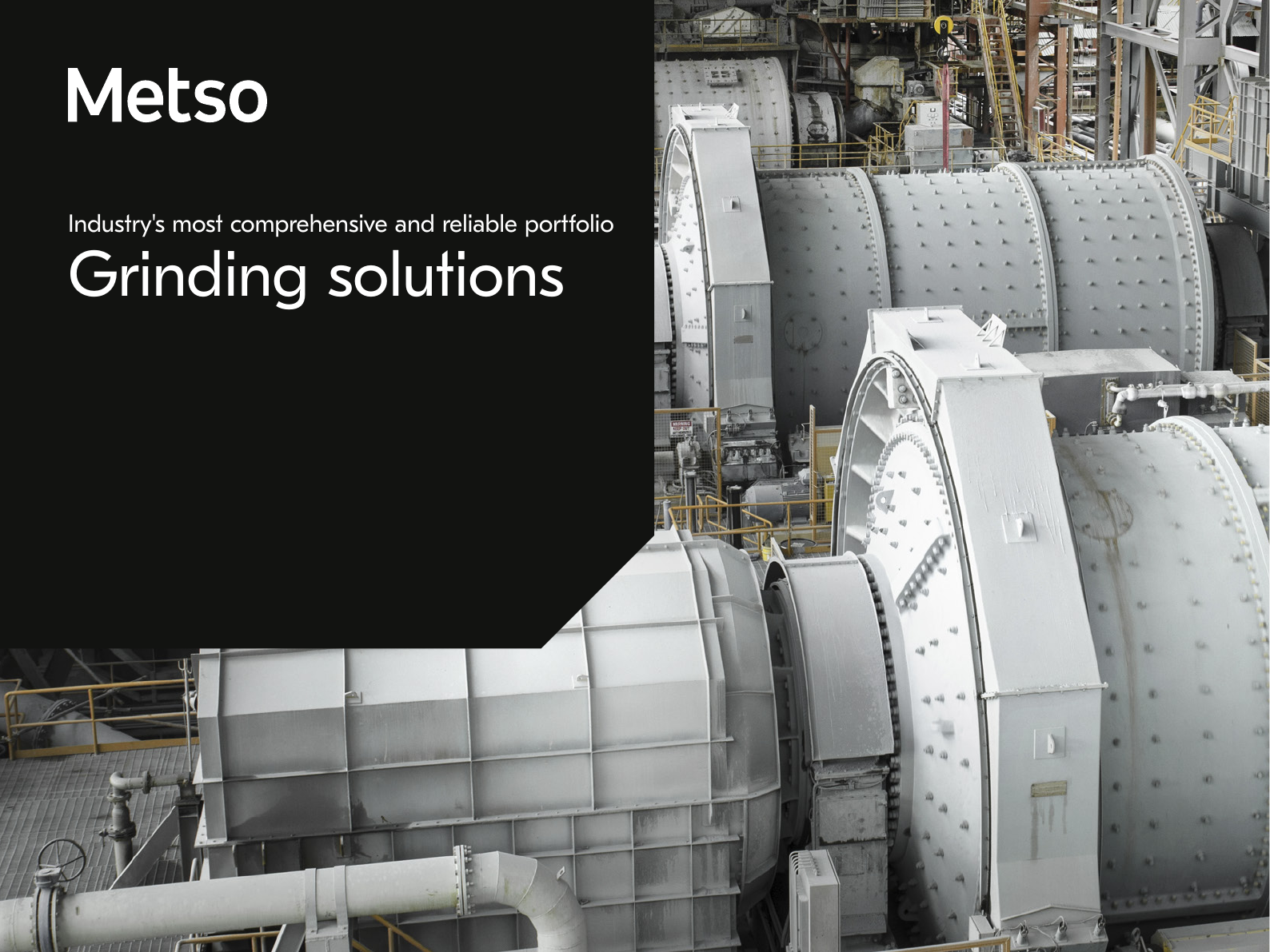

Grinding Equipment
Find tower mills, SAG mills, overflow mills and high-pressure grinding rolls.
00
HRC High Pressure Grinding Rolls
High pressure grinding roll
Equipment Range
View OEM Equipment Series →
01

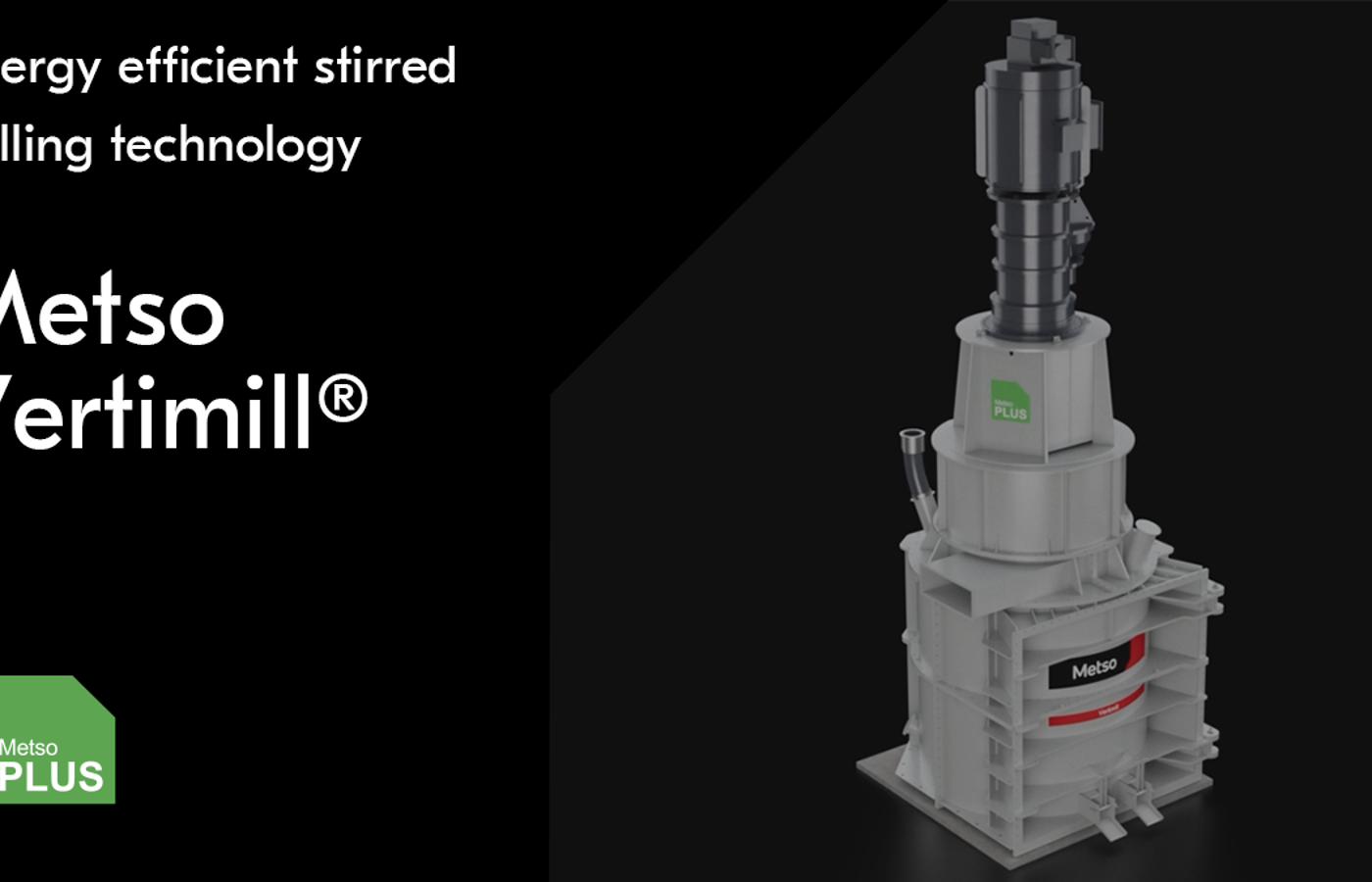

Vertimill Vertical Stirred Mills
Vertical stirred mill
Equipment Range
View OEM Equipment Series →
02
HIGmill High-Intensity Grinding Mill
High Intensity Grinding Mill
View OEM Equipment Series →
03
Select / Premier SAG Mills
Semi-autogenous grinding mill
31 Select standard sizes; project-specific Premier configurations
View OEM Equipment Series →
04
Overflow Ball Mills
Overflow ball mill
View OEM Equipment Series →
05
Rod Mills
Rod mill
View OEM Equipment Series →
06
Tower and Stirred Mills
Tower mill / stirred mill
Equipment Range
View OEM Equipment Series →
07
Apron Feeder
Apron feeder
View OEM Equipment Series →
08
Flotation Cells
Flotation cell
View OEM Equipment Series →Crushing and Screening Equipment
Explore cone crushers, impact crushers and other crushing and screening equipment.
09
Gyratory Crushers
Gyratory crusher
Equipment Range
View OEM Equipment Series →
10
Nordberg NP / NPe Series Impact Crushers
Horizontal shaft impact crushers
View OEM Equipment Series →
11
Vibrating Screens and Screening Equipment
GFF, UFS, BSE, GMF, ES, TSE, CVB and other ranges
View OEM Equipment Series →
12
Barmac B Series Vertical Shaft Impact Crushers
B6150SE, B7150SE, B9100SE
View OEM Equipment Series →
13
C Series Jaw Crushers
C Series Jaw Crushers
View OEM Equipment Series →
14
HP Series Cone Crushers
HP Series cone crusher
View OEM Equipment Series →
15
HPe Series Cone Crushers
HPe Series cone crusher
View OEM Equipment Series →
16
MP Series Cone Crushers
MP Series cone crusher
View OEM Equipment Series →
17
MX Multi-Action Cone Crushers
MX multi-action cone crusher
View OEM Equipment Series →
18
GP Series Cone Crushers
GP Series cone crusher
View OEM Equipment Series →Legacy Equipment Ranges
2 Ranges
Equipment Categories
Explore by Equipment Category
Use range pages for model-specific information. The category pages below group wear parts, structural spares and material options across equipment ranges.
Model Directory
Current and Legacy Models
Explore current product ranges and legacy installations by equipment family. Confirm the exact model, serial number and drawing reference from equipment records.
| Equipment Series | Models / Installation Range | Product Status |
|---|---|---|
| C Series Jaw Crushers | C80, C96, C106, C117, C120, C130, C150, C160, C200, C3054 | Current product series and installed base |
| Select / Premier SAG mills | 31 Select standard sizes: Ø3.80–9.00 m, EGL 1.90–7.50 m, 400–7,800 kW; Premier configurations are project-specific | Current Select range; Premier is project-specific |
| Select / Premier ball mills | Select standard sizes; identify Premier installations from project data sheets, general arrangement drawings and serial numbers | Current Select range; Premier is project-specific |
| Vertimill VTM | VTM-650-WB, 800-WB, 1000-WB, 1250-WB, 1500-WB, 3000-WB, 4500-C; additional legacy installations | Current and Historical Installations |
| HIGmill | Industrial installations up to 6,500 kW (current Metso product page); HIG3500/23000, HIG500/4000, HIG25, HIG5 | Current product and published installations |
| HRC / HRCe HPGR | HRC 8, HRC 800 and HRCe ranges; identify by full model and roll surface configuration (Metso HRC Series) | Current product series and installed base |
| Superior MKIII gyratory crusher | 42-65, 50-65, 54-75, 62-75, 60-89, 70-89, 60-110, 6275UG | Current product series and installed base |
| HP Series cone crusher | HP200, HP300, HP400, HP500, HP6, HP900 | Current product series and installed base |
| Nordberg NP / NPe HSI crusher | NP1415, NP1620, NP1110e, NP1213e, NP1315e, NP1520e, NP13, NP15, NP20 (Metso NP/NPe Series) | Current product series |
| Barmac B Series VSI | B5100SE, B6150SE, B7150SE, B9100SE (Metso application guide) | Current parts reference; confirm installed model and rotor |
| Metso screening equipment | GFF, UFS, BSE, GMF, EF, MF, TS, FS, ES, LH, TSE, GLH, CVB, Compact CVB, RF | Current and historical ranges; confirm the exact installed series |
| HPe Series cone crusher | HP200e, HP350e, HP450e, HP600e, HP800e, HP900e (Metso HPe Series) | Current product series |
| GP Series cone crusher | GP100, GP220, GP330, GP500S, GP550, GP7 (Metso GP brochure) | Current product series and installed base |
| MP Series cone crusher | MP800, MP1000, MP1250, MP2500, MP3000 (Metso MP Series) | Current product and supported installed base; confirm exact configuration |
| MX Series multi-action cone crusher | MX3, MX4 (Metso 2019 brochure) | Published installed base; current product status requires confirmation |
| Symons and Omnicone installed base | Symons 2–7 ft families; Omnicone 937/1144/1352/1560 | Legacy Installation |
| Vertimill installed-base wear-part family | VTM-15-WB through VTM-4500-C; includes W/WB/LS historical variants | Installation Reference |
Send the Brand, Equipment Range, Model or Drawing Number
Identify the installation for technical assessment and quotation of its dedicated wear and spare parts.
Manufacturing Services in China
From Technical Assessment to Finished-Part Delivery
ANRANST provides customers worldwide with engineering assessment, production at certified foundries to drawing, quality control and finished-part delivery for custom wear parts and industrial spares, with scope to support other custom industrial parts.
Drawing and Engineering Review
We review mating surfaces and interface dimensions and assess material, heat treatment and manufacturing feasibility.
Material and Heat-Treatment Specification
Material grades and heat-treatment processes are specified order by order, confirmed in the technical agreement and tracked through production.
Quality Control
Drawing confirmation, material and process control, production tracking, inspection and acceptance coordination.
Finished-Part Delivery
We coordinate manufacturing, quality confirmation, packaging and delivery of complete finished parts in a workable, closed-loop supply process.
Provide the existing model, drawings, drawing or part numbers, materials or operating conditions so we can identify the appropriate technical review and supply route.
