01
Vertimill VTM
Vertical stirred mill
Published models include VTM-650-WB, 800-WB, 1000-WB, 1250-WB, 1500-WB, 3000-WB and 4500-C.
Explore Vertimill VTM →Metso Stirred Mill Equipment
Identify whether the installation is a Vertimill VTM or HIGmill, then explore its models, wear parts, mechanical spares, materials and drawing-based quotation options.
OEM Equipment Category
Two Equipment Ranges with Dedicated Parts Information
Choose Vertimill or HIGmill to find the relevant models, part positions, materials and model details. Their different mill designs require separate parts identification.
2Equipment Ranges
VertimillGravity-induced Vertical Stirred Mill
HIGmillHigh-intensity Grinding Mill
1Legacy Installation Directory
Equipment Series
Select the Equipment Design
Each equipment page provides models, wear parts, mechanical spares, materials, maintenance tools and quotation options.
02

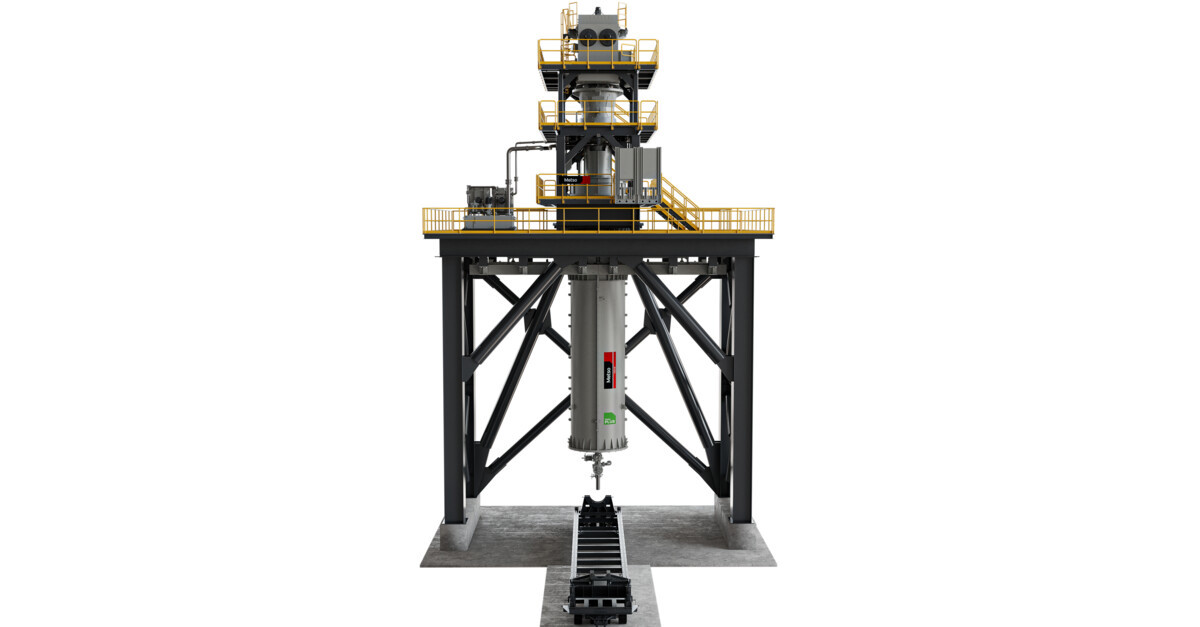

HIGmill
High intensity grinding mill
Current industrial models and published HIG3500/23000, HIG500/4000, HIG25 and HIG5 designations.
Explore HIGmill →
03
Vertimill Legacy Installations
Installed-base reference
Identify aftermarket requirements for legacy W, WB, LS and other installations. Confirm the full model, serial number, drawing and drawing before selecting parts.
Explore Legacy Installations →Identification Scope
Published Models and Equipment Information
Use this table to select the equipment range. Part manufacturing and quotation require details of the specific installation.
| Equipment Series | Published Model or Range | Equipment Information |
|---|---|---|
| Vertimill VTM | VTM-650-WB, 800-WB, 1000-WB, 1250-WB, 1500-WB, 3000-WB, 4500-C | <a href="/oem/metso/vertimill-vtm/">Models, Liners and Spare Parts</a> |
| HIGmill | The <a href="https://www.metso.com/portfolio/higmill-high-intensity-grinding-mill/" rel="noopener noreferrer" target="_blank">current Metso product page</a> lists industrial installations up to 6,500 kW; HIG3500/23000 and HIG500/4000 are published installations, while HIG25 and HIG5 are published pilot/test designations | <a href="/oem/metso/higmill/">Models, Grinding Stages and Spare Parts</a> |
| Vertimill Legacy Installation | Legacy W, WB, LS and other variants; confirm against the full model and installation records | <a href="/oem/metso/vertimill-installed-base-wear-part-family/">Legacy Installation Directory</a> |
Metso
Component Location Diagram
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Agitator shaft | Central shaft inside SMD grinding chamber | Stirred Media Detritor (SMD) |
| 2 | Agitator arm | Horizontal agitator arm in grinding chamber | Stirred Media Detritor (SMD) |
| 3 | Grinding chamber shell | Outer shell of SMD grinding chamber | Stirred Media Detritor (SMD) |
| 4 | Drive motor | Drive motor at top of SMD | Stirred Media Detritor (SMD) |
FAQ
Frequently asked questions
Which Metso stirred mill ranges are listed?
This directory covers the separate Vertimill VTM and HIGmill equipment ranges, with an additional directory for legacy Vertimill installations.
Can Vertimill and HIGmill use the same parts?
Equipment category alone is insufficient. Check the range, full model, serial number, installation position, drawing and revision separately.
Where can I explore parts and materials?
Open the relevant Vertimill or HIGmill equipment page, then explore wear parts, mechanical spares and material options.
