BANANA
BSE / MF / EF / TS / GMF Banana Screens
For high-throughput classification, with elliptical or linear motion and multi-slope decks depending on the series. Distinguish panels, liners and excitation systems by the specific series.
Metso Vibrating Screen Series
Choose banana, horizontal, inclined, ultrafine or flip-flow screens to review screening media, wear parts, load-bearing structures, fasteners, support parts, materials and quotation requirements.
OEM Equipment Series
Identify the Screen Series Before Selecting Media and Structural Spares
This page covers current series, published models and key dimensions, screening wear parts, and load-bearing and support spares relevant to supply. Manufacture and quotation still require the full model, serial number, drawing and installation drawings.
15Current OEM Series
GFF / UFSPublished Model Groups
7Screening Media and Liner Categories
4Structural and Support Spares
Standard Series, Models and Key Dimensions
Metso Vibrating Screen Identification Table
Where OEM literature provides only series capabilities, no model names are invented. Published GFF and UFS models and dimensions are listed separately for nameplate and installation checks.
| Series / Published Models | Design and Application | Key Dimensions or Capability |
|---|---|---|

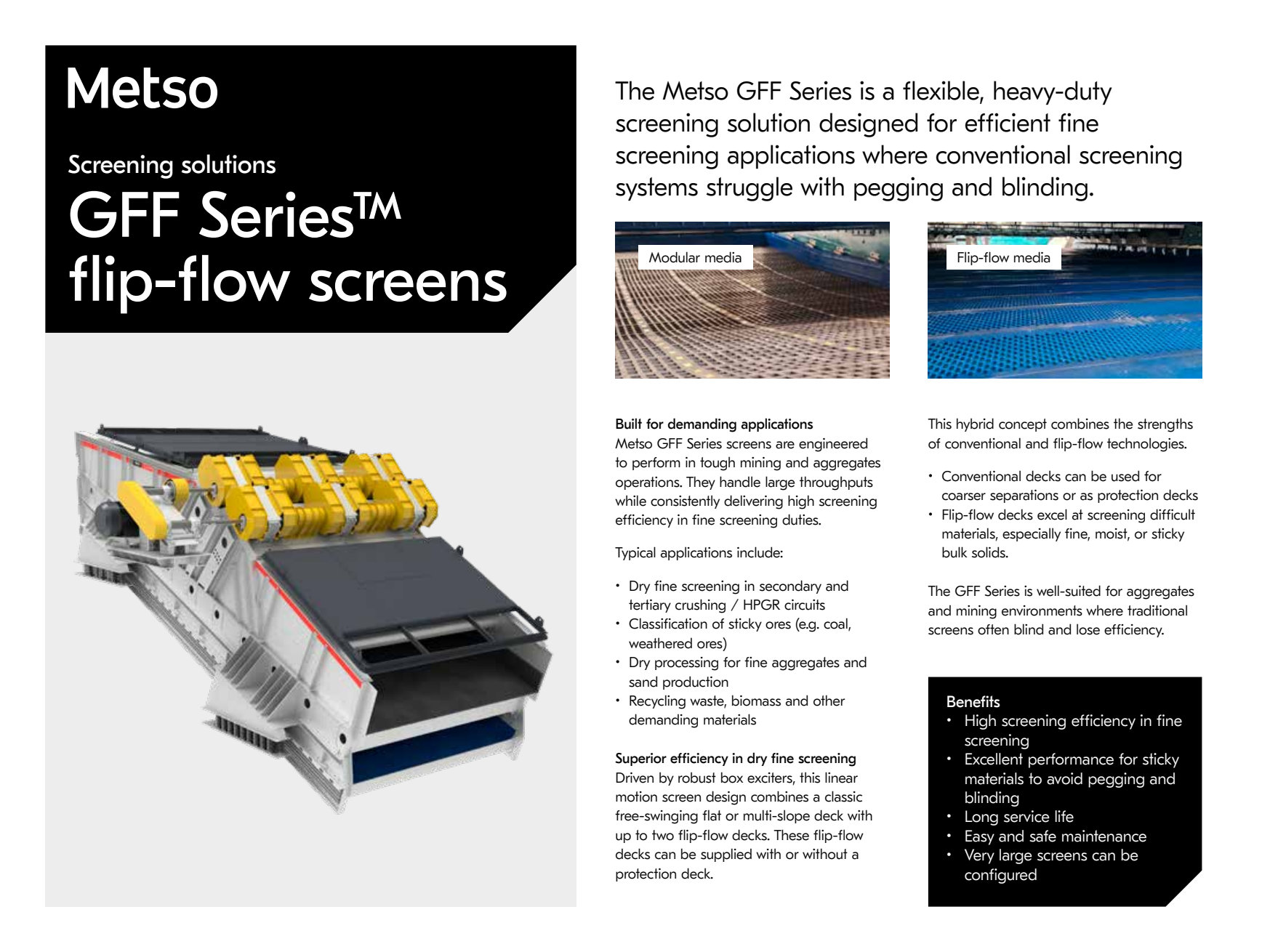

| GFF single deck: GFF1861-1, 2461-1, 3061-1, 3661-1, 3673-1, 3690-1, 42100-1 | Linear-motion flip-flow screen; conventional protection decks and flip-flow decks can be configured | Equipment width × length from 1.8 × 6.1 m to 4.2 × 10.0 m |
| GFF double deck: GFF1861-2, 2461-2, 3061-2, 3661-2, 3673-2, 3690-2, 42100-2, 42120-2, 48120-2 | Flat or multi-slope decks for fine, moist and blinding-prone materials | Equipment width × length from 1.8 × 6.1 m to 4.8 × 12.0 m |

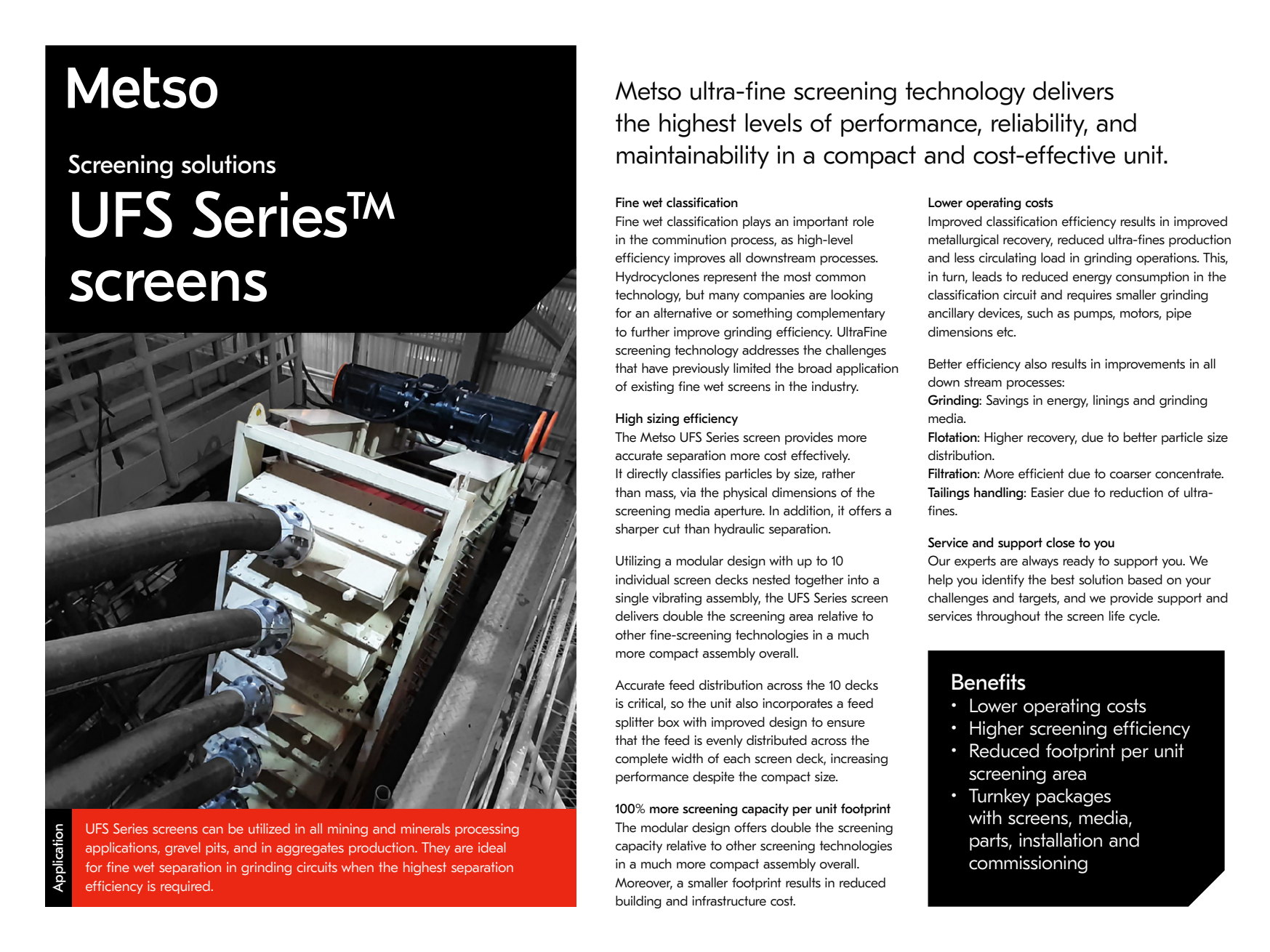

| UFS10, UFS8, UFS6, UFS4, UFS2 | Ultrafine wet screens with 10, 8, 6, 4 or 2 decks respectively | Screening areas 14 / 11.2 / 8.4 / 5.6 / 2.8 m²; screen body approximately 1.0 × 1.4 m |

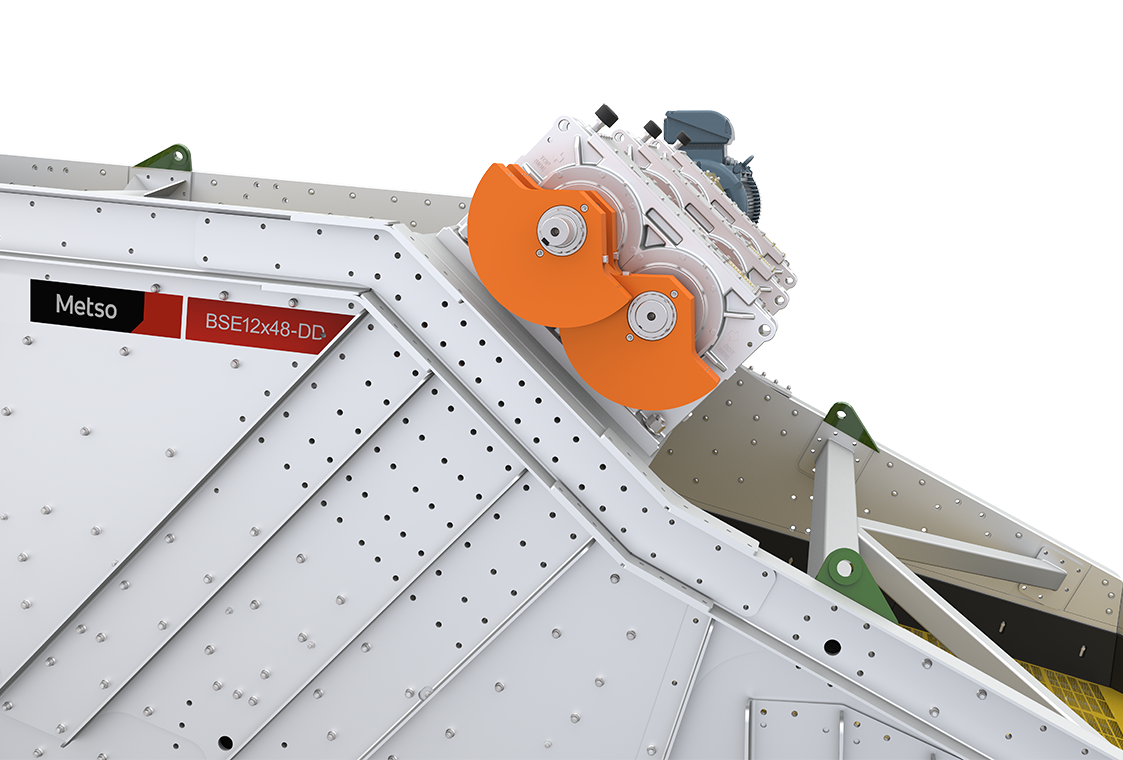

| BSE | Banana screen with elliptical motion and high-acceleration screening | Maximum size capability published by the OEM: approximately 3.6 × 14.6 m |
| GMF / GLH | Engineered banana / horizontal linear-motion screens with 1, 2 or 3 decks | OEM-published width capability up to 4.9 m |

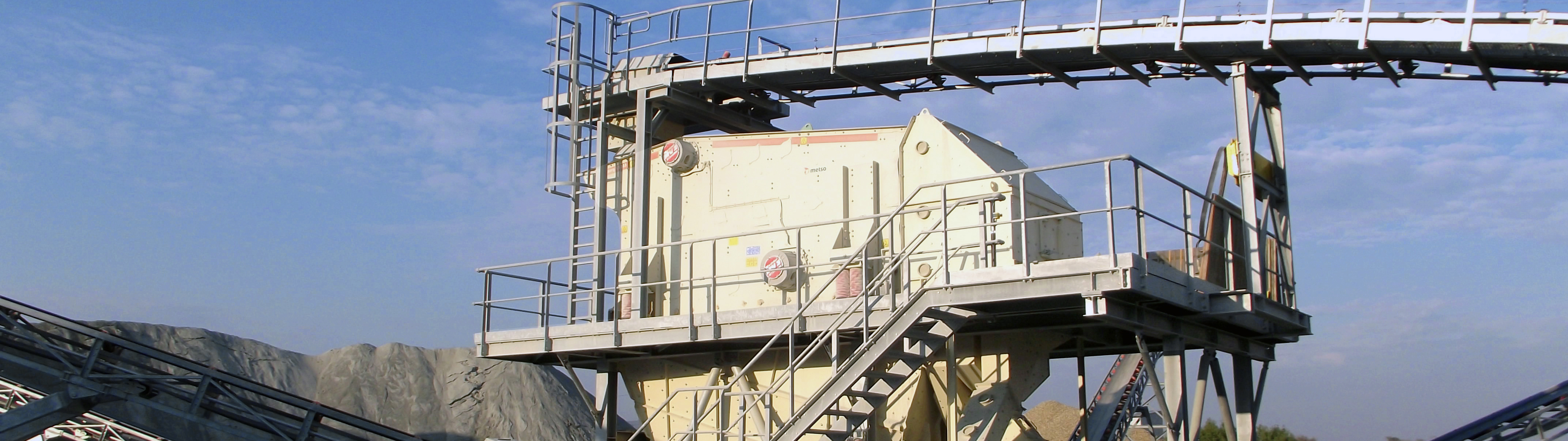

| ES (installation examples: ES302, ES403) / TSE | Horizontal elliptical-motion screens; TSE uses a compact three-shaft design | Published installation examples are not a complete model catalogue; verify parts by nameplate and serial number. |
| CVB / Compact CVB / RF | Inclined circular-motion screen series | OEM-published CVB installation angle range: 12°–22° |
| TS | Triple-slope banana screen | OEM-published deck slopes: 25° / 20° / 15° |
| EF / MF | Synchronised twin-drive elliptical-motion screen / mining banana screen | Identify by project configuration, decks, screening media and serial number. |
| FS / LH | Horizontal screen series | Identify by nameplate, full model, screen box and drive configuration. |
Scope of the records: GFF and UFS models come from original Metso product literature. ES302 and ES403 are published installation examples only and are not extrapolated into a complete catalogue. Interchangeability of media, exciters, bearings or structural parts still requires serial-number and drawing-reference checks. Original GFF Documentation · Original UFS Documentation
OEM Equipment Series
Identify Equipment by Motion and Screening Duty
Equipment images identify series, screen boxes, decks and drive layouts. Use the component and material sections below for spare-part selection.
HORIZONTAL

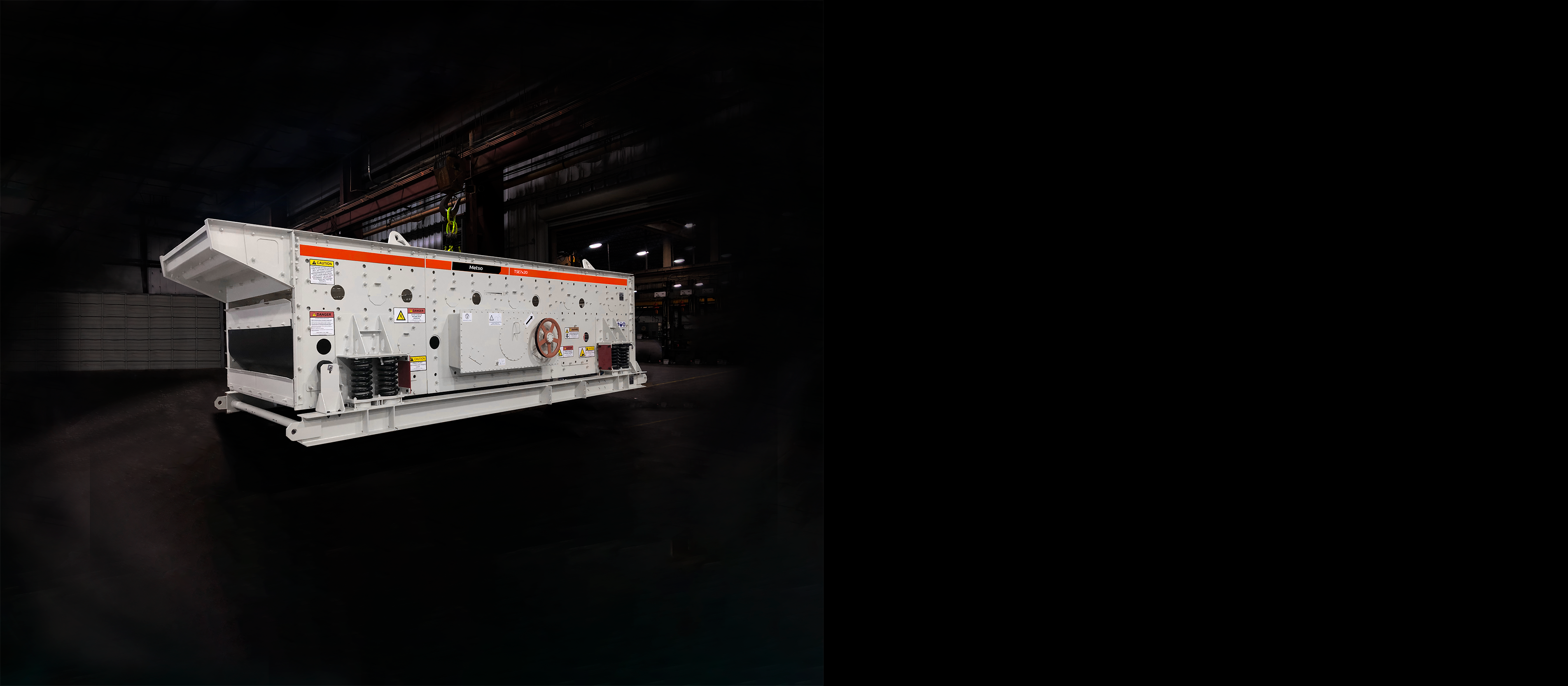

FS / ES / LH / TSE / GLH Horizontal Screens
Includes elliptical and linear-motion configurations. Check drive arrangement, shaft layout, decks, screening dimensions and support structure.
INCLINED

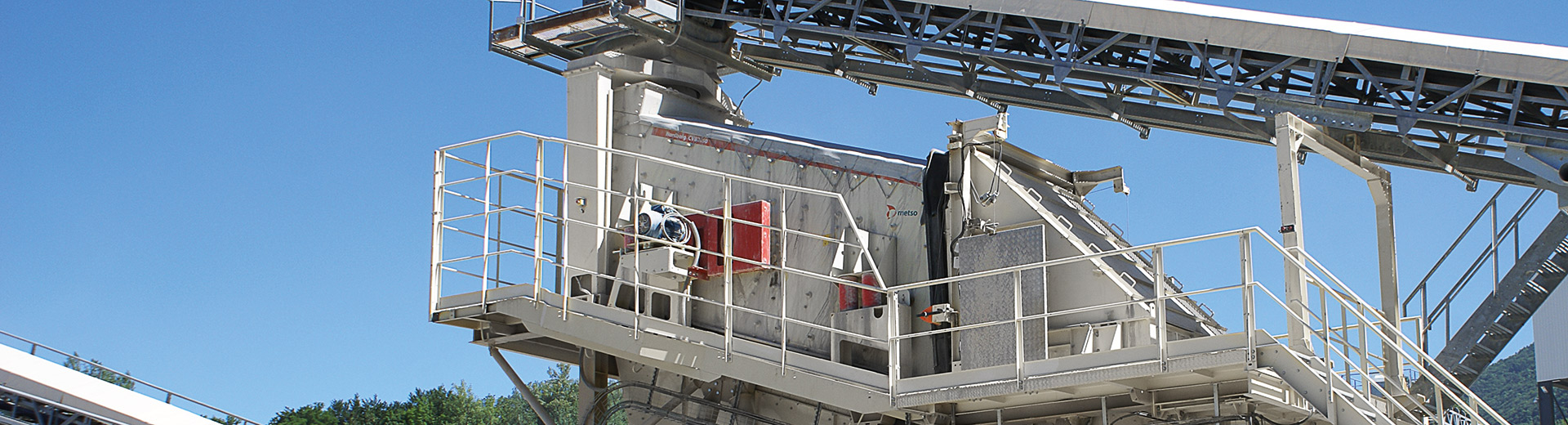

CVB / Compact CVB / RF Inclined Screens
Inclined circular-motion screens. Verify liners, media, vibrators and support parts against inclination, deck count and installed configuration.
FINE SCREENING

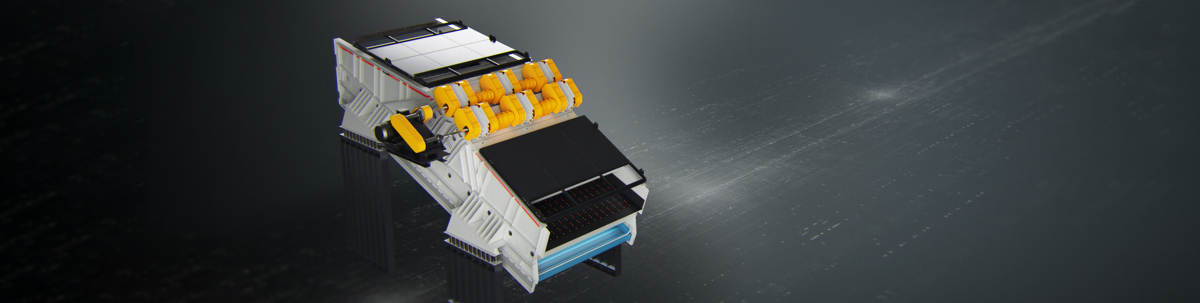

GFF Flip-Flow / UFS Ultrafine Wet Screens
GFF handles fine, moist or blinding-prone materials; UFS provides wet classification of fines at 0.075–1 mm. Their media materials and fastening systems must be distinguished.
Metso
Component Location Diagram
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Screen side plate | Bolted outer side plate of screen box |
Wear parts
Screening Media, Feed-Area and Discharge Wear Parts
Impact, sliding wear, blinding and corrosion vary between positions within one screen. Material links explain candidate options; general component pages support model- and drawing-based enquiries.
01
Woven Wire Mesh
Woven Wire Screen Mesh
Withstands material impact, screening friction and repeated bending. Select wire material and diameter, aperture shape, tension direction and hook edges for particle size, corrosion and blinding. The image identifies the category; confirm against the full Metso model, serial number, part drawing, installation dimensions and interfaces.
View the General Component Page →
02
Polyurethane Screen Panels
Polyurethane Screen Panel
Modular media for wet or dry screening. Open area, hardness, reinforcement, fastening and flow direction affect life; shape alone does not establish interchangeability. The image identifies the category; confirm against the full Metso model, serial number, part drawing, installation dimensions and interfaces.
View the General Component Page →
03
Modular Panels and Fastening Systems
Modular Screen Panel System
Panels, support frames and fasteners form the screening surface together. Check module dimensions, apertures, flow direction, locking profile and support spacing. The image identifies the category; confirm against the full Metso model, serial number, part drawing, installation dimensions and interfaces.
View the General Component Page →
04
Panel Clamping Strips and Cushion Rubber
Capping Rubber
Between media and supports, these provide clamping, vibration isolation and separation of metal surfaces. Confirm section, hardness and length for the beam and panel configuration. The image identifies the category; verify the full Metso model, serial number, drawing, installation dimensions and interfaces.
View the General Component Page →
05
Screen Box Side Liners
Side Plate Liner
Protect screen-box sides at feed and flow areas against particle erosion and local impact. Select wear plate, rubber or polyurethane for duty. The image identifies the category; verify the full Metso model, serial number, drawing, installation dimensions and interfaces.
View the General Component Page →
06
Feed Box Liners
Feed Box Liner
The feed box is a high-impact area exposed to falling material, sliding particles and turning flow. Confirm thickness, joints, fastening holes and materials against drop height and feed size. The image identifies the category; verify the full Metso model, serial number, drawing, dimensions and interfaces.
View the General Component Page →
07
Discharge Chute Liners
Discharge Chute Liner
At product discharge and transfer points, these resist continuous sliding wear, erosion and local impact. Select lining systems by particle size, speed, temperature and adhesion tendency. The image identifies the category; verify the full Metso model, serial number, drawing, dimensions and interfaces.
View the General Component Page →Spare parts
Load-Bearing, Fastening, Support and Bearing-Housing Spares
Verify spares by deck, load, fits, vibration, mounting interfaces and serial number. Exciter and bearing models without reliable images or drawing are not presented as confirmed configurations.
01
Screen Deck Support Frames
Deck Frame / Crossmember
Support panels and transfer dynamic loads to the screen box. Check deck count, beam spacing, connection holes, weld design, fatigue requirements and corrosion protection. The image identifies the category; verify the full Metso model, serial number, drawing, dimensions and interfaces.
View the General Component Page →
02
Tension Rails, Wedges and Fasteners
Tension Rail / Wedge / Fastener
Maintain tension and position of tensioned mesh. Rail profile, hole spacing, wedge angle, bolt grade and orientation must match the box and media. The image identifies the category; verify the full Metso model, serial number, drawing, dimensions and interfaces.
View the General Component Page →
03
Bearing Housings and Support Bushings
Bearing Housing / Support Liner
Locate vibrator or exciter shafts and transmit loads. Check bores, centres, fits, lubrication, seals and mounting surfaces together. The image identifies the category; verify the full Metso model, serial number, drawing, dimensions and interfaces.
View the General Component Page →
04
Support Springs and Buffers
Support Spring / Buffer
Isolate dynamic loads and maintain the screen's operating position. Confirm free height, stiffness, wire diameter, spring groups and rubber buffers as an installed set. The image identifies the category; verify the full Metso model, serial number, drawing, dimensions and interfaces.
View the General Component Page →FAQ
Frequently asked questions
What information is needed to quote Metso screen panels?
Provide the full screen model, serial number, deck position, panel or mesh drawing, module dimensions, aperture shape and size, current material, fastening method and duty.
Are panels of the same dimensions interchangeable?
Length and width alone are insufficient. Check module profile, apertures, flow direction, fastening system, support-beam spacing, deck and drawing.
How are exciters and bearings identified?
Provide the full screen model, serial number, vibrator or bearing nameplate, position, shaft configuration, current-part photographs and model details. The screen series alone is insufficient.
