Use published BQR cell ranges and project models to check drawings, materials and supply for rotors, stators, tank liners, launders, level valves, shafts and drives.

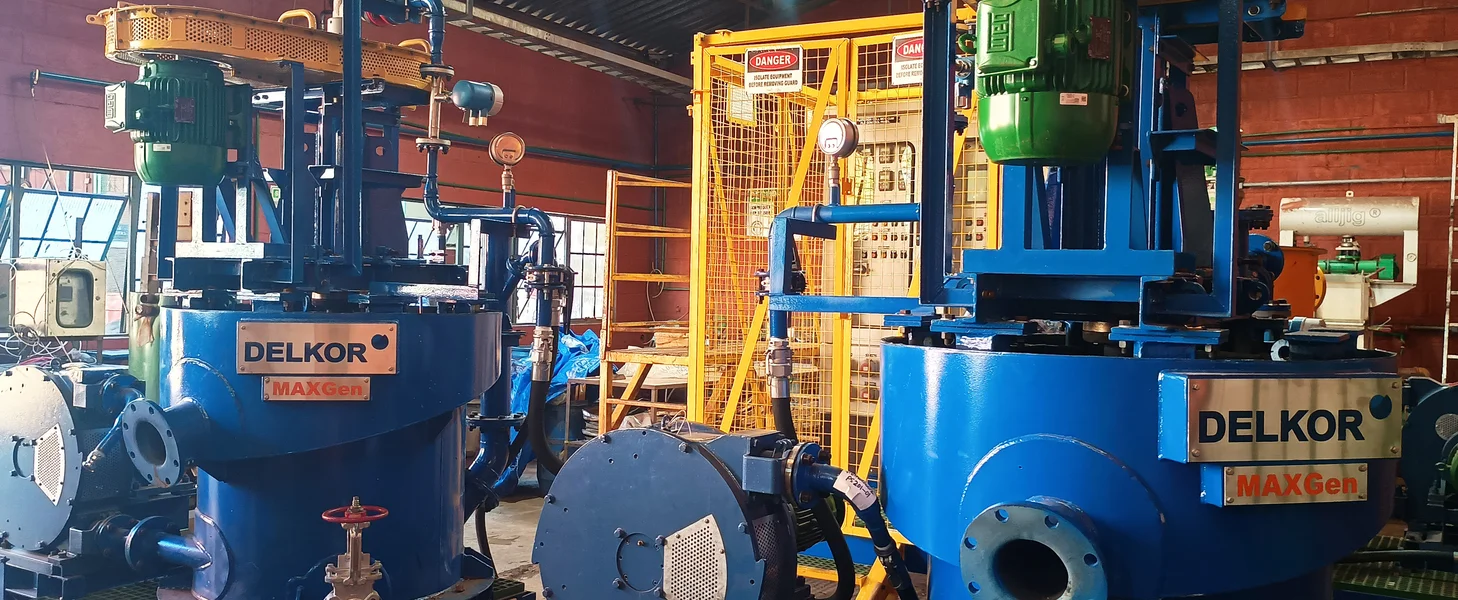

DELKOR BQR cells serve rougher, scavenger, cleaner and recleaner stages. Current manufacturer information describes MAXGen™ rotor/stator combinations, customized launders and froth crowders, internal/external dart-valve level control, and segmented stators and crowders for large cells. Enquiries must confirm full BQR model, volume, project or serial number, internal position, rotor/stator design, launders, valves, liners, shafts, drive and drawing revision.
Only cell ranges, models and project combinations traceable to current DELKOR product and project pages are listed. Equal BQR model names, similar volumes or the same ore type do not establish direct interchangeability of rotors, stators, shafts, liners, launders, valves or drives.
| Published model / range | Published dimensions or quantities | Project and identification details | Product status |
|---|---|---|---|

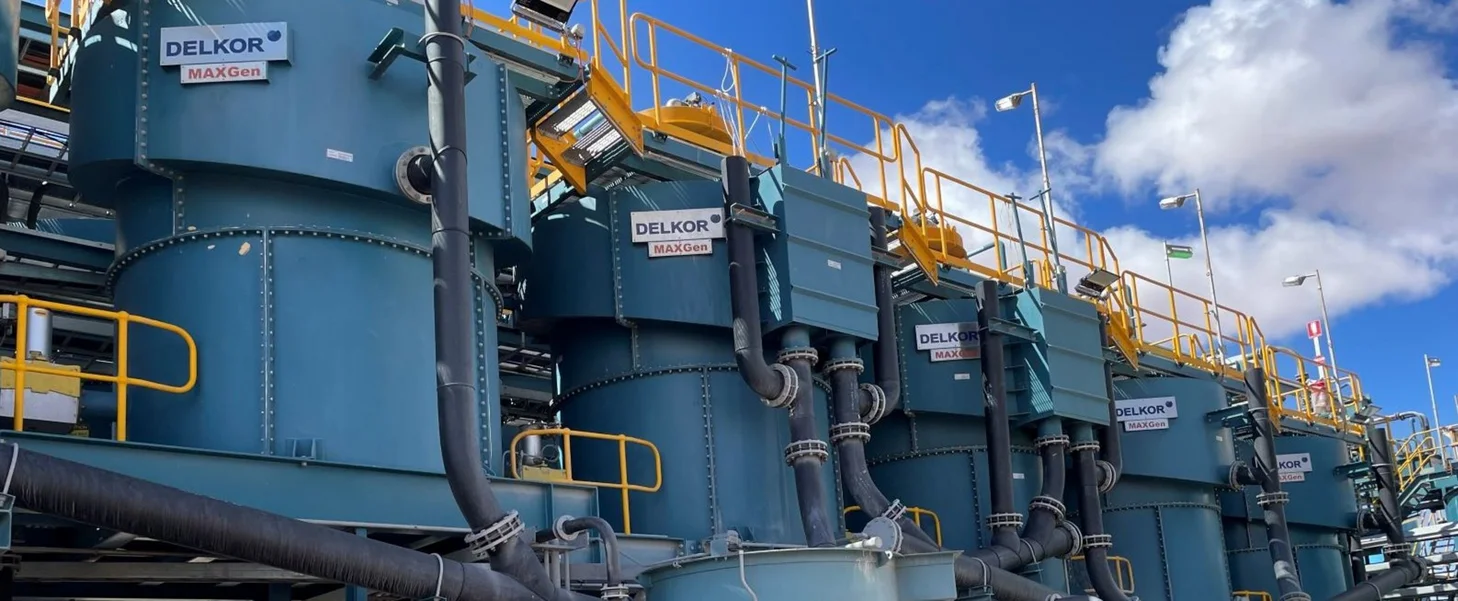

| DELKOR BQR product range | Individual cell volume 0.5–300 m³ | Current product page: confirm MAXGen™ rotor/stator, launders/crowders and level control against the flotation circuit and cell design | Current product range |
| BQR 400 | 3 × BQR 400; each published as 40 m³ | Iron Mountain Project, USA; check cell revision, mechanism, rotor/stator, liners and drive drawings | Manufacturer-published project |

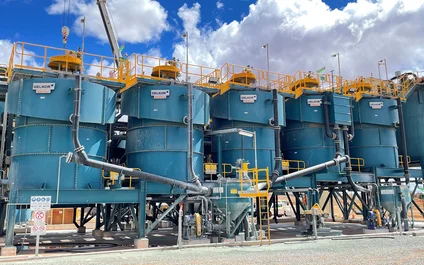

| BQR 500 / BQR 200 | 5 × BQR 500; 6 × BQR 200 | Matilda Wiluna Gold Operation, Australia; dual-outlet froth boxes, dart plugs and adjustable froth lips are published project features | Project published in 2022 |

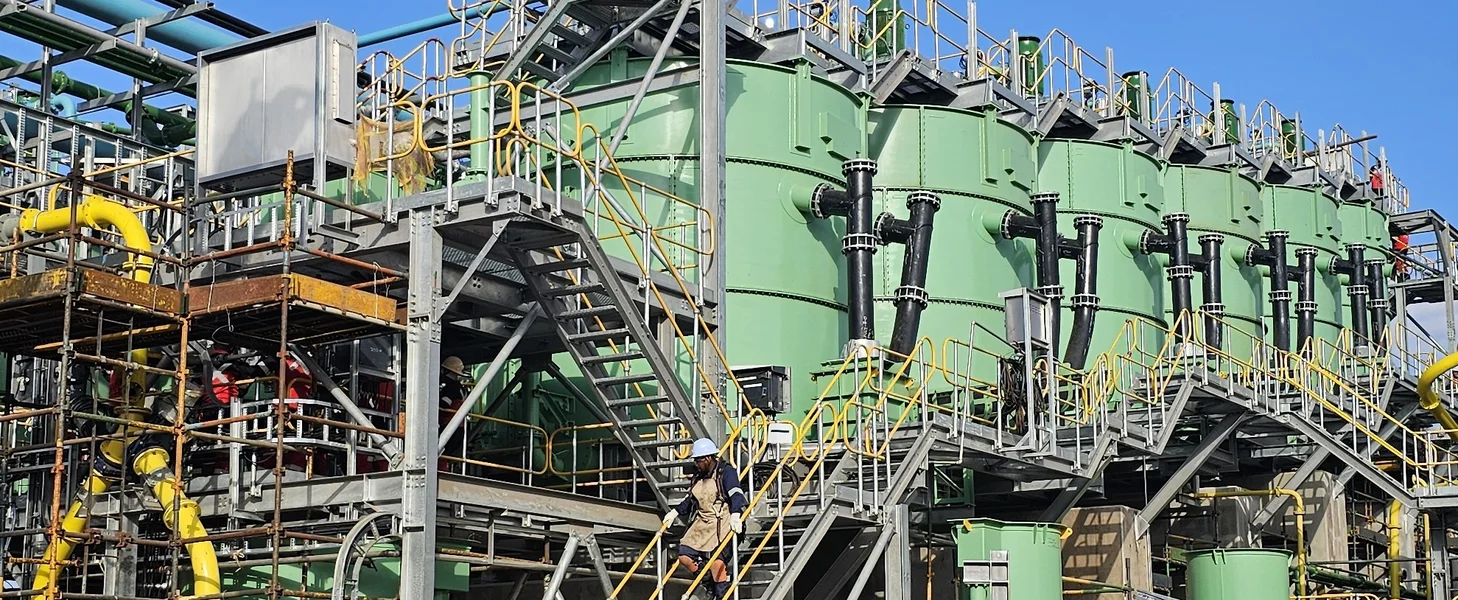

| BQR 700 / BQR 500 | 5 × BQR 700; 9 × BQR 500 | South African PGM project with larger mechanisms; confirm specific spares against project drawings | Project published in 2025 |
| BQR 300 / BQR 200 / BQR 100 | 4 × BQR 300; 10 × BQR 200; 9 × BQR 100 | Lead-zinc polymetallic project in Bosnia and Herzegovina; models, cell counts and ore type are installation identifiers only | Project published in 2024 |
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to | |
|---|---|---|---|---|
| 1 | Rotary union | Orange rotary union at top | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 2 | Drive motor | Black vertical drive motor above platform | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 3 | Dart valve actuator | Red valve actuator at upper right | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 4 | Froth crowder | Grey inverted cone at froth surface | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 5 | Upper support frame | Visible blue support beam at upper right rim | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 6 | Flotation tank | Visible blue tank wall at right cut edge | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 7 | Rotor shaft | Grey vertical rotor shaft at centre | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 8 | Dart valve shaft | Vertical valve shaft at right | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 9 |  | Stator | Yellow diamond-profile stator at tank floor | DELKOR BQR with MAXGen (OEM design family, specification not specified) |
| 10 |  | Rotor | Visible orange rotor blades inside stator | DELKOR BQR with MAXGen (OEM design family, specification not specified) |
| 11 | Manhole | Rectangular access opening on lower left wall | DELKOR BQR with MAXGen (OEM design family, specification not specified) | |
| 12 | Feed box | External feed box at left | DELKOR BQR with MAXGen (OEM design family, specification not specified) |
| Component |
|---|
| Froth launder |
Current manufacturer information describes MAXGen™ rotor/stator combinations, segmented stators and crowders, and peripheral, radial or combined launders. Confirm wear parts by cell model, flotation stage, slurry, size, concentration, chemical medium, speed, structure and drawings. One project's rubber lining or construction is not a fixed solution for all BQR cells.
MAXGen™ Rotor & Stator Assembly
The current page describes an improved rotor/stator combination and segmented stators for large cells. Check rotor diameter, blade/hub design, stator sections, holes, shaft ends, rotation, speed, installation height and old-part wear.
Open the shared component catalogue →Tank Liners, Feed-Zone & Bottom Protection
Identify tank liners, feed-box protection, lower manhole surrounds and high-wear areas. Manufacturer project records mention rubber lining, but actual construction, thickness, material and drawing require the specific tank and service conditions.
View the common part page →Launders, Froth Lips & Segmented Crowders
Published launders may be peripheral, radial or combined, with customized crowders; large cells may use segmented crowders. Check launder type, froth lip, sections, supports, connections, cleaning and froth-flow direction.
View the common part page →BQR transmission, level-control and structural parts require specific cell, project and drawing checks. Current information describes internal/external dart valves, bottom manholes for internal-part removal, modular walkways, individual-cell bypass and optional bolted tanks, but no complete OEM spare-number table.
Rotor Shaft, Bushings, Bearings & Drive Interface
Confirm BQR model, cell volume, shaft ends, rotor design, bushings, bearings, seals, gearbox, motor, coupling, mounting base and rotation. Shafts are commonly matched with the rotor/stator set.
View the common part page →
Internal / External Dart Valves & Level-Control Parts
The current page lists internal and external dart valves; the Wiluna project describes dart plugs and dual-outlet froth-discharge boxes. Check valve body, plug, actuator, seals, piping, interfaces, control logic and cell-stage position.
View the common spare-parts catalogue →Tank Sections, Manholes & Structural Connections
The current page offers optional bolted tanks and bottom manholes for removing internal parts. Provide general arrangement, sections, flanges, bolts, access doors, manholes, sealing faces, welding and acceptance requirements.
View the common spare-parts catalogue →Modular Walkways, Cell Bypass & Maintenance Interfaces
Modular walkways support flexible maintenance layouts, and individual-cell bypass enables faster servicing. Check platforms, handrails, bypass piping, flanges, valves, access positions and safety standards against the project.
View the common spare-parts catalogue →Provide full BQR model, project or serial number, cell volume, flotation stage, rotor/stator, launders/crowders, valves, liners, shafts, drive, drawing, used-part photos, key interfaces, material and slurry conditions.
Not without checking. Flotation stage, mechanism revision, tank, launders, liners, shafts, drives, modifications and drawing revisions may differ. Confirm installation records and actual interfaces.
Provide full model, project number, serial number, cell volume, flotation stage, rotor/stator, launders, valves, liners, shafts, drawings, used-part photos, material and slurry conditions for consulting, sourcing, quality control and finished-part delivery.
