Start with the brand, equipment series and installed machine, then explore wear parts, drive and structural spares, materials and processes, drawing review, quality control and finished-part delivery.
This page covers equipment series and models, part locations, materials and processes, drawing review and inquiry options. Before manufacture or quotation, confirm drawing, dimensions and tooling suitability against the complete model and drawings.
The model table assists with machine identification. Manufacture and quotation require the nameplate, complete model, serial number, drawing, general arrangement and drawing revision.
| Series / Model | Equipment Range and Identification | Equipment History and Identification |
|---|---|---|
| sizer and roll crusher | project-specific primary/secondary/tertiary sizers | Current Series |
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Tooth segment | Bolted tooth segment on near crushing roll | X-TREME Class Primary Sizer (OEM pictured configuration; exact specification not specified) |
| 2 | Crushing roll | Upper crushing roll in open chamber | X-TREME Class Primary Sizer (OEM pictured configuration; exact specification not specified) |
| 3 | Frame | Blue box-section supporting frame | X-TREME Class Primary Sizer (OEM pictured configuration; exact specification not specified) |
| 4 | Drive motor | Exposed motor at rear right | X-TREME Class Primary Sizer (OEM pictured configuration; exact specification not specified) |
| 5 | Coupling guard | Yellow coupling guard in front of motor | X-TREME Class Primary Sizer (OEM pictured configuration; exact specification not specified) |
These cards describe common toothed roll crusher / sizer parts, candidate materials and the technical review process. Suitability must be checked against the specific TAKRAF model and drawings.
Crusher Tooth / Segment
A common toothed roll crusher / sizer wear part.Confirm its location, profile, hole pattern, material and model application against the equipment drawing.Candidate materials: ZGMn18Cr2 manganese steel / high-chromium white iron / bimetallic composite.
View General Part Details →Tooth Segment Bolt
A common toothed roll crusher / sizer wear part.Confirm its location, profile, hole pattern, material and model application against the equipment drawing.Candidate material: 42CrMo alloy steel.
View General Part Details →Side Liner / End Plate
A common toothed roll crusher / sizer wear part.Confirm its location, profile, hole pattern, material and model application against the equipment drawing.Candidate materials: manganese steel / Hardox 500.
View General Part Details →Bottom Liner / Base Plate
A common toothed roll crusher / sizer wear part.Confirm its location, profile, hole pattern, material and model application against the equipment drawing.Candidate materials: Hardox 500 / manganese steel.
View General Part Details →
Scraper / Cleaner
A common toothed roll crusher / sizer wear part.Confirm its location, profile, hole pattern, material and model application against the equipment drawing.Candidate material: abrasion-resistant steel plate.
View General Part Details →Identify gears, shafts, sleeves, bearings, seals, hydraulic parts, supports and connectors for drawing review. Listed OEM drawing or part references relate to identified parts and require confirmation against your machine.
Roll Shaft
A common toothed roll crusher / sizer structural or drive part.Confirm interfaces, tolerances, material and model application against the equipment drawing.Candidate materials: 42CrMo / 40CrNiMo.
View General Part Details →Gear / Drive Gearbox
A common toothed roll crusher / sizer structural or drive part.Confirm interfaces, tolerances, material and model application against the equipment drawing.Candidate material: carburized and hardened alloy steel.
View General Part Details →

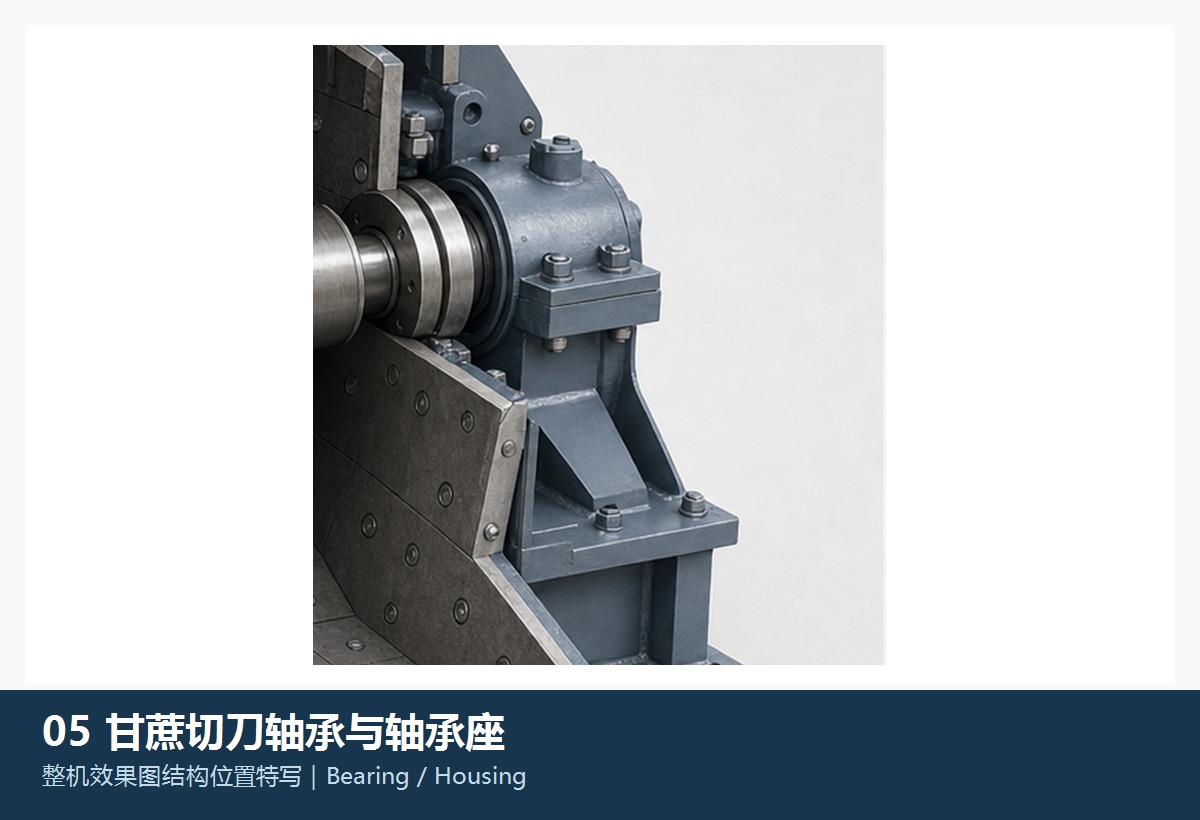

Bearing / Bearing Housing
A common toothed roll crusher / sizer structural or drive part.Confirm interfaces, tolerances, material and model application against the equipment drawing.Candidate materials: bearing steel / cast steel.
View General Part Details →Hydraulic Coupling
A common toothed roll crusher / sizer structural or drive part.Confirm interfaces, tolerances, material and model application against the equipment drawing.Candidate materials: aluminum alloy / steel.
View General Part Details →Provide the complete model, serial number, drawing revision, installation position, photographs of the current part, material and operating conditions.
No. General images help identify the part category. Manufacture requires agreed drawings, dimensions, interfaces, materials and acceptance criteria.
Start with the nameplate, general arrangement drawing, installation position, used-part photographs and key dimensions. We can then assess the feasibility of dimensional inspection, material evaluation and manufacture to drawing.
Provide the complete model, serial number, nameplate, installation position, photographs of the current part, drawings, material and operating conditions. We use these to identify the part, assess materials, organize production at certified foundries, coordinate quality control and arrange finished-part delivery.
Or contact us directly: +86 156 3797 3199
zzx@anranst.com
ANRANST provides customers worldwide with engineering assessment, production at certified foundries to the customer technical requirements, quality control and finished-part delivery for custom wear parts and industrial spares, with scope to support other custom industrial parts.
We review mating surfaces and interface dimensions and assess material, heat treatment and manufacturing feasibility.
Material grades and heat-treatment processes are specified order by order, stated in the technical agreement and tracked through production.
Drawing confirmation, material and process control, production tracking, inspection and acceptance coordination.
We coordinate manufacturing, quality confirmation, packaging and delivery of complete finished parts in a workable, closed-loop supply process.
Provide the existing model, drawings, drawing, materials or operating conditions so we can identify the appropriate technical review and supply route.
