HAZEMAG HRC Double Roll Crushers

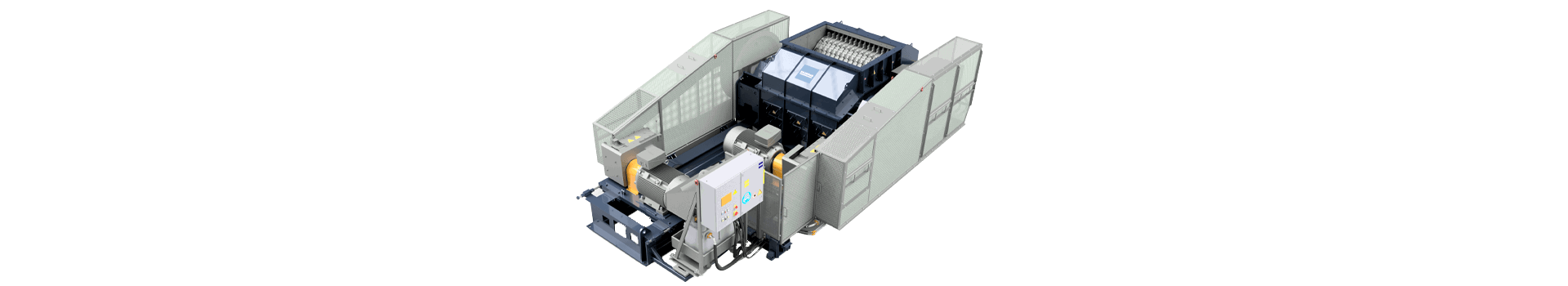

HAZEMAG HRC Official Graphics for Use Identification Fixed rollers, floating roll Power Transmission Locations and maintenance positions.

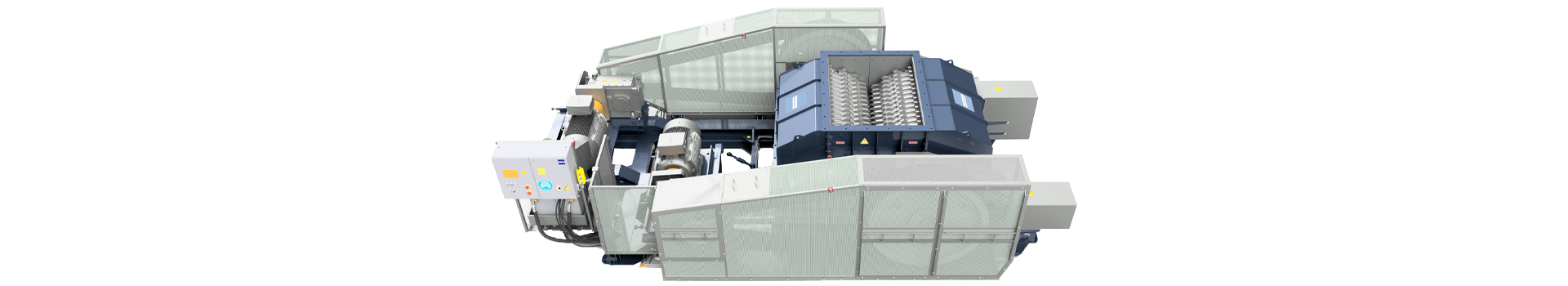

HAZEMAG HRC Official sloppy view for Identification Double rolls, interchangeable tooth segments and crushing cavity maintenance areas.

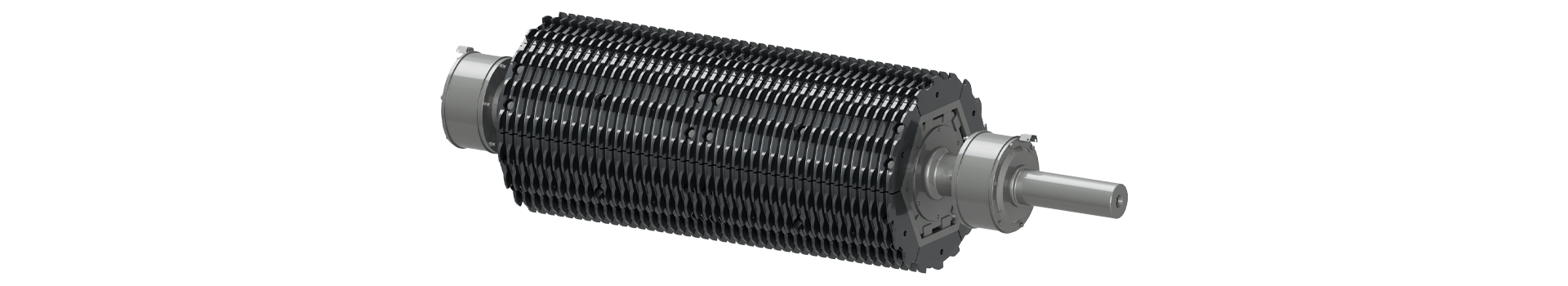

HAZEMAG HRC official crushing rollers; Tooth Profile, number of teeth and roller diameters with width model Changes in application.

OEM Equipment Details

19 a Official model and wear parts, shaft and hydraulic protection in the same closed loop

This page only retains models, roller diameter and roll width of the HRC installed identification system as well AS Spare parts supply. Before manufacturing it is necessary to identify fixed rolling/floatable Roll position with a nameplate (complete model), serial number(r) or general arrangement drawing-drawing numbers; fixer wheeled railings for pinhole shape - rotord direction & transmission interface).

19 Current Public HRC model

200–3,100 Maximum official capacity t/h

225–500 Maximum official feed mm

WB Officials Declare History Series

Standard Models and Key Dimensions

HAZEMAG HRC Standard Models and Key Dimensions

Tables used below HAZEMAG Current HRC Official Technology Data and by 05, 06, 08, 10, 12 Series Collected; History WB Just as old Installation Identification Entrance.

Series and Standard Models	Processing volume / maximum feed	Roller diameter / roll width	spare parts Key checks
HRC 05：0505, 0507, 0510	200 – 400 t/h max feed 225 mm	Roller diameter 520 mm; Roller width 510 – 1,020 mm	Small axis, toothing segment Material scraping Tools and Power Transmission Interfaces
HRC 06：0605, 0607, 0610, 0616, 0620	300 – 1,200 t/h max feed 300 mm	Roller diameter 680 mm; Roller width 510 – 2,040 mm	Fixed rollers/float roll, tooth stripes bearing housing Hydraulics Protection
HRC 08：0810, 0816, 0820	750 – 1,550 t/h max feed 400 mm	Roller diameter 850 mm; Roller width 1,020 – 2,040 mm	Length of the roller, stalking lineage Material scraping Devices and drives Configuration
HRC 10：1010, 1016, 1020	850 – 1,750 t/h max feed 400 mm	Official Rolls Wide 1,020 – 2,040 mm	complete model, Roll body diameters and floating roller bodies Interfaces Dimensions
HRC 12：1210, 1216, 1220, 1225, 1230	1,050 – 3,100 t/h max feed 500 mm	Roller diameter 1,280 mm; Roller width 1,050 – 3,050 mm	Large Roll Shafts stalking, shaking arms. hydraulic cylinder and Power Transmission Bottom of the earth
History Series: WB	Legacy Installation Capacity and size by specific Model Confirmation	Cannot use the current HRC Sizes directly substitute	United Nations nameplate, serial number, general arrangement drawing, drawing number Verification of current and existing items

Processing volume, roller diameter and roll width are used for series start-ups. The tooth shape of the model is still different from that number indentation / floating rolling position as well AS transmission configurations can not be directly made into size sizes

Wear Parts

Rolls of crush wear parts, Housing Liners With the purifiers

The five types of tissue according to the interchangeable segments, roller shells and side linesrs; materials are only used as operating conditions for initial screenings that will eventually be confirmed by drawings or old items.

Cancellable slit segments

Replaceable Crushing Segment

The HRC multi-dimensional roller installation can replace the broken tooth segment; it is determined by application and must be matched with fixed or floating rolls, modelling of a rolling width.

Material Selection: The original factory public page does not give the uniform material label; by materials impact, abrasion and stickiness of dental root section with an initial figure from shock-resistant alloy steels or manganese bars.

Impact-Resistant Alloy Steel Manganese Steel Composite Wear-Resistant Materials

View Part Details →

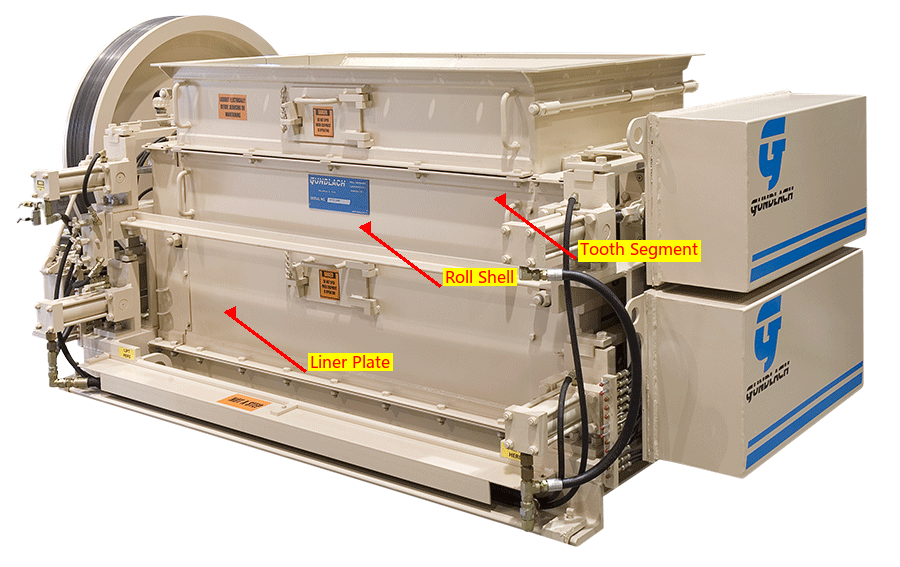

Roller shell and tooth segment Mounting Physiology

Roll Shell & Segment Carrier

As a dent segment Mounting and the load of torque transmission Construction The roller diameter, the roll width shall be checked; Mounting Interfaces, Splits Construction, keys or blossoming bonds and endpoint connections with dynamic balance requirements.

Material Selection: Mothers materials, forging or casting routes; heat treatment, welding restrictions and NDT Confirm by full picture.

Large loaders and Specialty Alloys

View Part Details →

side liners and Side Guard

Side Liner & Side Plate

Protects the side walls of the crushing chamber and the roller end adjacent area, control material escape. The actual outlines; thicknesses of holes in line with blocks to fixed direction HRC model and the roll width changes.

Material Selection: By extrusion, sliding wear and local shock selection wear-resistant steel plate or casting wear parts Confidentialized in drawings and current items.

Quenched and Tempered Wear Plate Manganese Steel

View Part Details →

Base Liners Abrasion plate with the fallout area

Bottom Liner & Discharge Wear Plate

HRC — The protective rollers are located near the grind area, substrate and repair cover. Card using a regular full-frame map shows an installation zone that is still confirmed by machine drawings for specific blocks of cards in this case

Material Selection: Often from Quenched and Tempered Wear Plate or composite wear-resistant plates are filtered and determined by drop impact, sliding distances.

Quenched and Tempered Wear Plate Composite wear-resistant plates

View Part Details →

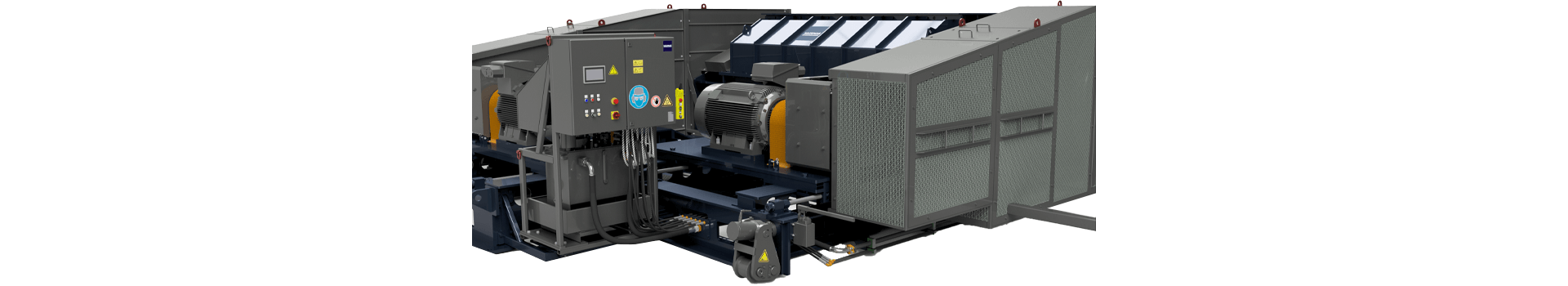

Adaptable Material scraping Handling and cleaning scrapers

Adjustable Scraper & Cleaner Blade

For cleaning the roller surface adhesives and keeping a breakage zone smooth. The original factory clear scraper can be adjusted separately, it must check positioning; gap clearance of bladed edge to corral structure with adjustment structures

Material Selection: Scraper materials by wet materials, abrasive material Working edge Impact and remediability options wear-resistant steel plate Or a smelting solution.

Wear-Resistant Steel Plate Hardfacing and Repair

View Part Details →

Spare Parts

Roll Shafts, and the bonding Power Transmission Protection with Floating Rolls spare parts

Fixed roller/float Roll Shafts, bearing housing, Belt Power Transmission Connectivity, shaft hydraulic protection and clearance adjustment parts are fully installed Interfaces Check the Mating System.

Fixed Rolls and Floating Roll Shafts Total cum

Fixed & Floating Roll Shaft Assembly

Fixed rollers and floating roll bearing different tie-ups Function. Reconciliation of roller positions, shaft end and roll widths shall be required; bearing Locations, sealing and Power Transmission Connections.

Material Selection: Axle axis Forged Alloy Steel, heat treatment Mechanical performance, ultrasound detection and key couplings are confirmed by axis charting with load.

Axle class Alloy Steels for Drive Parts

View Part Details →

bearing, bearing housing Conflict with the end

Bearing, Housing & End Seal

The slinging double roller shaft and allows floating roll to be deducted according design. Card chart is used for general part identification; bearing model, gap hole positional holes with terminal cover sealant & lube must confirm by installer

Material Selection: bearing by nameplate or the maintenance of data confirmation; bearing housing, the terminal cover and seals are confirmed according to drawings; processing accuracy: temperature.

bearing housing With the Big Construction s Seals and Engineering Plastics

View Part Details →

Drive, speed and connection aggregate

Drive, Gearbox & Coupling Assembly

The drive is mounted on the base of a connection to your host; floating roller drives motion with shackle arms and maintains belt tension. Converging motor, transmission / deceleration interface (Switch), coupling device or rotational position

Material Selection: gear axis, wheeled couplings and strong connector parts respectively according to torque. heat treatment, Co-operation and Protection Requests for confirmation.

gear axis and interconnections alloy steel

View Part Details →

Floating Rolling Arms, hydraulic cylinder axis with torque

Floating Roll Rocker, Cylinder & Torsion Shaft

The floating roller is mounted on the swinging arm, and girded by a hydraulic tank; both sides of shafts are kept in parallel through their twisted spindle to allow unbreakable passes.

Material Selection: Squeezing arms, pins, the torque shafts and tanks of each type are charged with load-bearing pressure. heat treatment Acknowledges with the collaboration.

High-strength shaft and alloy steel Hydraulic Seal Materials

View Part Details →

$HAZEMAG HRC Official map of the fractured gap area$

A gap adjustment, wedge and gasket

Gap Adjustment Wedge & Shim

Used to set or correct the fractured gap and compensate for crushing Tool Abrasion. The adjustment mode, position and thickness combinations should be reconciled to the pressure surface of a system with its limits Interfaces.

Material Selection: The adjustment parts focus on size stability, pressure strength and surface Hardness and anti-smoking, hydraulic or sensing parts according to the complete System parameters Confirmation.

Highly Strength Adjustments alloy steel

View Part Details →

Only know HRC 0610 Can we directly determine the broken tooth section?

Cannot. It is also necessary to confirm the position of fixed roller or floating roll, dent segment Tooth Profile.The number of teeth, the rotational serial number and drawing number; model It is used only to narrow the scope of check-outs.

Floating Roll hydraulic cylinder Can we only be replaced by the shape?

No. must be checked at the same time cylinder diameter, rod radius and strokes Mounting ear shafts, pressure and shake arms Interfaces synchronized relations on both sides and Seal configuration.

Why this page is not published HAZEMAG OEM Part Number ？

The current data does not provide a directory number that is publicly available, traceable and compatible with the specific model location. No numbers supported by an index or drawing are published outside of this list as well in install records /

HAZEMAG HRC Double Roll Crushers

19 a Official model and wear parts, shaft and hydraulic protection in the same closed loop

HAZEMAG HRC Standard Models and Key Dimensions

Rolls of crush wear parts, Housing Liners With the purifiers

Cancellable slit segments

Roller shell and tooth segment Mounting Physiology

side liners and Side Guard

Base Liners Abrasion plate with the fallout area

Adaptable Material scraping Handling and cleaning scrapers

Roll Shafts, and the bonding Power Transmission Protection with Floating Rolls spare parts

Fixed Rolls and Floating Roll Shafts Total cum

bearing, bearing housing Conflict with the end

Drive, speed and connection aggregate

Floating Rolling Arms, hydraulic cylinder axis with torque

A gap adjustment, wedge and gasket

Only know HRC 0610 Can we directly determine the broken tooth section?

Floating Roll hydraulic cylinder Can we only be replaced by the shape?

Why this page is not published HAZEMAG OEM Part Number ？

Submission HRC complete model, roller diameter roll widths and rolling positions drawing number Or old ones
