Brand and History
From EPR's industrial roots to HAZEMAG equipment today
Company history and ownership help identify nameplates, production periods and equipment origins. They do not imply that ANRANST is the OEM or an authorised agent. Spare parts require confirmation of the full model, serial number, drawing number and revision, and physical interfaces.
Key Equipment
Find equipment models, wear parts and spare parts by core series
Open the equipment cards to identify series and models, then check part positions, materials, drawing numbers and manufacturing requirements.
Core crushing equipment
Impact Crusher
HPI / HPI-H / HSI / HTI / HPC
Primary, secondary, tertiary and compound impactor series. Check blow bars, impact plates, grinding paths, rotors, main shafts, bearings and hydraulic adjustment parts on the equipment page.
View OEM Equipment Details →
Mining and raw material crushing
Toothed Roll Crushers / Sizers
HCS Center Sizer / HSS Side Sizer
HCS primary and secondary center sizers and HSS side sizers. Check tooth segments, roll shafts, side plates, bearings and drives on the equipment page.
View OEM Equipment Details →
Roll crushing equipment
Roll Crushers and Roll Mills
HRC Roll Crusher / HRM Roll Mill
HRC toothed roll crushers and HRM smooth-roll equipment. Check roll bodies, crushing tooth segments, scrapers, bearings, drives and hydraulic relief mechanisms on the equipment page.
View OEM Equipment Details →
Crushing and fine grinding equipment

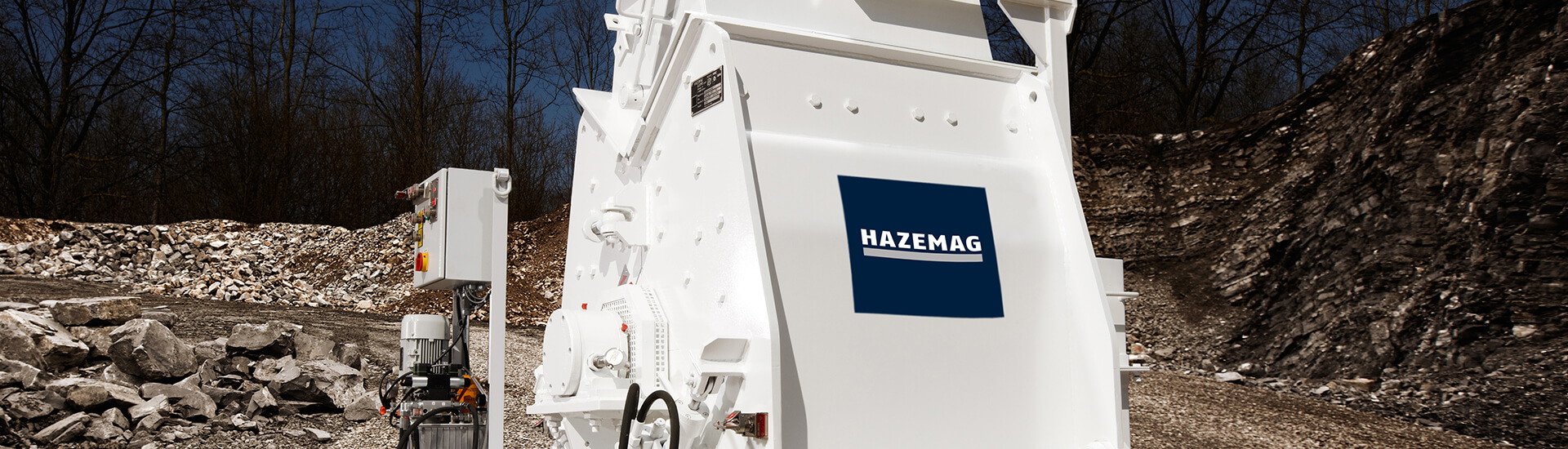

Hammer Crushers and Hammer Mills
HDS / HUM / HNM / HUV
Double-shaft hammer crushers, hammer mills and Unirotor Vario series. Check hammers, hammer pins, grates, housing liners and rotor parts on the equipment page.
View OEM Equipment Details →
Feeding and conveying equipment
Heavy-duty Apron and Chain Feeders
HAF Apron Feeder / HCF Chain Feeder
HAF and HCF feeding equipment. Check pans, chains, sprockets, guide rails, rollers, drive shafts and receiving-zone wear liners on the equipment page.
View OEM Equipment Details →Current and Legacy Installations
Series, models and key dimensions for current and legacy installations
The table lists series and models supported by HAZEMAG's website or archived manufacturer literature. Series names do not replace full model designations. Confirm interchangeability using serial numbers, rotor or roll dimensions and drawings.
| Equipment Series | Model / Configuration | Key Identification Criteria | Product Status |
|---|---|---|---|
| HPI primary impact crushers | HPI 1622, 1822, 2022, 2025, 2030, 2225, 2230, 2530 | Rotor diameters of 1,640–2,500 mm and widths of 2,250–3,020 mm; check grinding-path configuration, feed opening and drawings | Current manufacturer-listed models |
| Other impact crushers | HPI-H, HSI, HTI, HPC; HHI 1515, 1518, 1521, 1525 | Check crushing stage, rotor dimensions, blow-bar retention, impact apron structure and installation drawings | Current series / documented legacy models |
| HCS / HSS sizers | HCS primary center sizers, HCS secondary center sizers and HSS side sizers | Check center or side sizing arrangement, roll diameter and length, tooth profile, discharge gap and drive configuration | Current Product Series |
| HRC roll crushers | HRC 0505, 0507, 0510, 0605, 0607, 0610, 0616, 0620, 0810, 0816, 0820, 1010, 1016, 1020, 1210, 1216, 1220, 1225, 1230 | Roll diameters of 520–1,280 mm and widths of 510–3,050 mm; check tooth segments, roll bodies, gap and drawings | Current manufacturer-listed models |
| Hammer Crushers and Hammer Mills | HDS, HUM, HNM; HUV 1013, 1020, 1412, 1417, 1622, 1626, 1630, 1634 | Check rotor diameter and width, hammer arrangement, hammer pins, grates and housing liner drawings | Current series / documented manufacturer manuals |
| HAF Apron Feeder | HAF 10100, 12100, 14106, 14133, 16106, 16133, 18106, 18116, 20115, 20116, 22116, 25115, 25142 | Nominal widths of 1,000–2,500 mm and centre distances of 10,000–13,300 mm; check chain types D3–D8 and drawings | Current manufacturer-listed models |
Part Identification and Supply
Connect HAZEMAG installations with parts, materials and delivery
Identify the equipment series here, then confirm models, structures, part positions and known drawing numbers on equipment pages. General part and material pages explain duties, failure modes, processing and inspection requirements for technical review and quotation.
