ANRANST manufactures and supplies RollSizer tooth plates (segments) through a complete process control chain; this page also keeps legacy model, dimension and spare identification. The former Mining Technologies business became part of FLS in 2022.
ANRANST manufactures RollSizer tooth plates (segments) through the full process from proofing to finished acceptance, with process gates and complete documentation—not a model catalogue alone. RollSizer applies shear and tension at low speed and high torque; CenterSizer crushes between the rolls; SideSizer crushes between roll teeth and side combs. This page also identifies legacy wear parts and spares; project configurations do not establish universal interchangeability.
ANRANST manufactures and accepts RollSizer tooth plates (segments) through the full process below: early proofing and metal tooling, lost-foam shell making and firing, casting, cleaning and annealing, rough and finish machining, material-appropriate NDT and approved repair, heat treatment with hardness and toughness checks, then finished inspection, gauge fit and trial assembly. Steps are verifiable, inspection is traceable, and documents are kept complete; supply still follows the installed drawing, serial identity and duty conditions. Standard work, process records and open results are how process control is practiced—not empty management slogans.

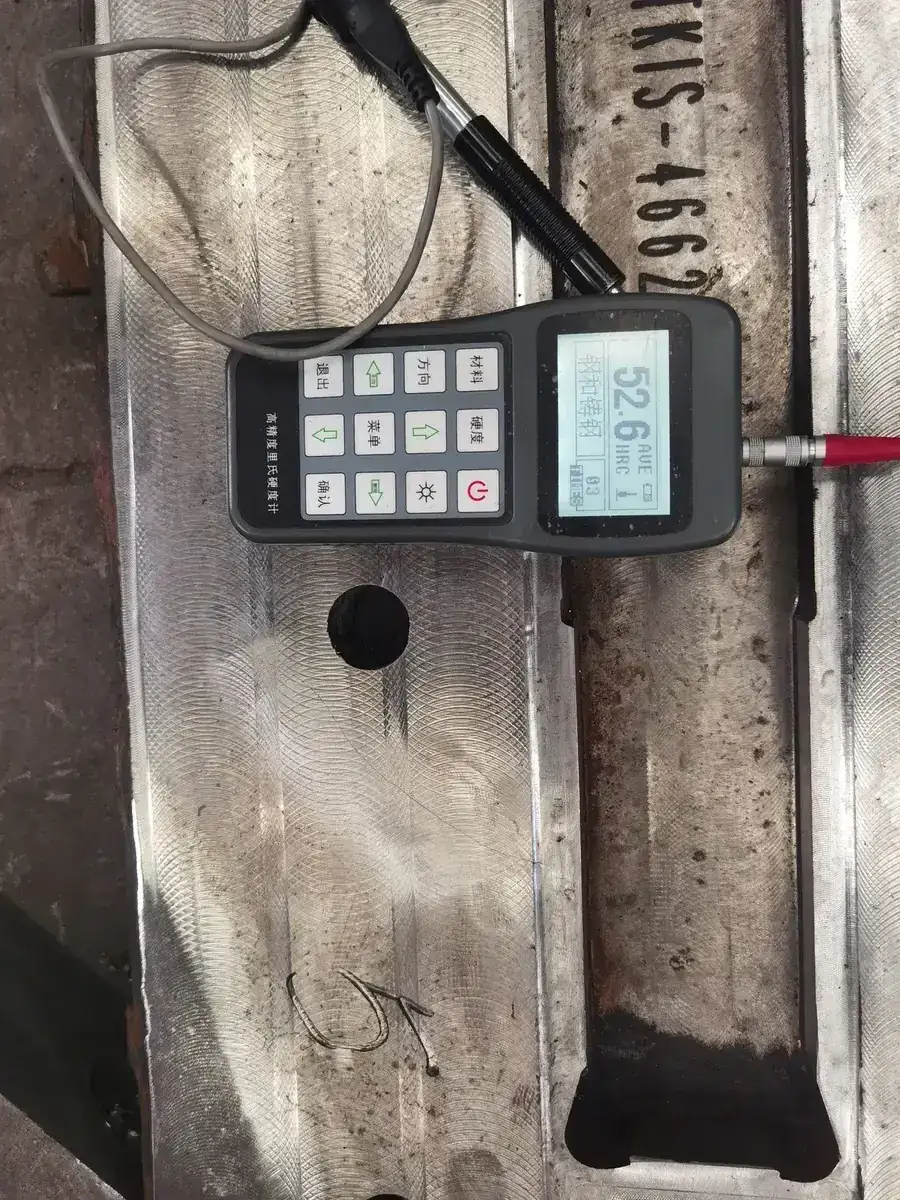

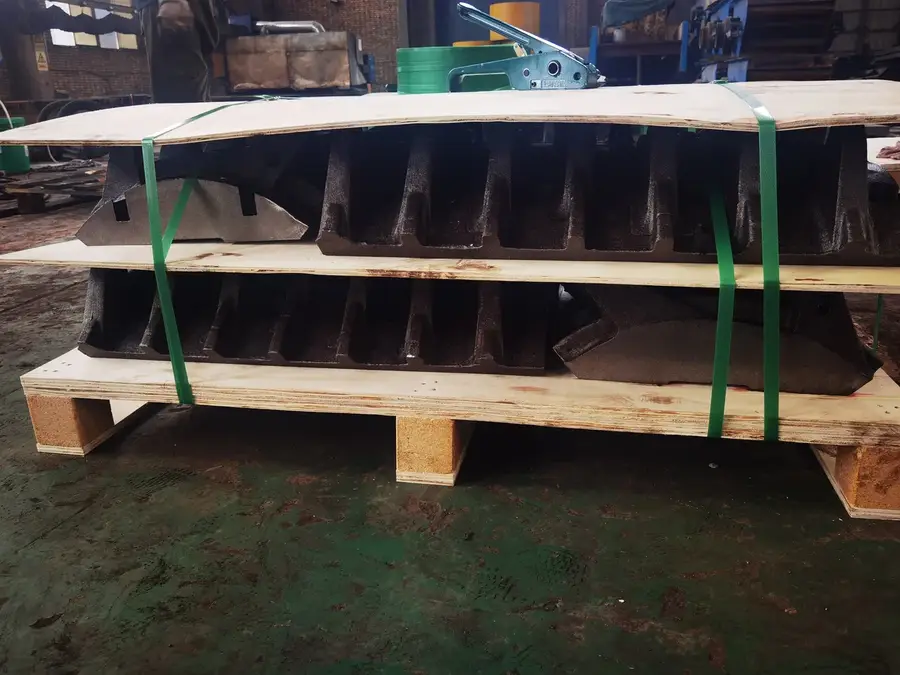

NDT methods follow material, microstructure, thickness, surface condition and discontinuity type: MT for suitable ferromagnetic materials; PT for applicable surface-breaking discontinuities; UT/RT to approved procedures, reference standards, coverage and acceptance levels. Photos below are from ANRANST tooth-plate production. Workshop hardness checks and segment machining archives can be reviewed together with heat-treatment hardness sampling and installed-base identification.
The table follows the historical thyssenkrupp RollSizers brochure and DRS 1000 × 3000 C data sheet. Capacity, power, feed and weight depend on material, tooth profile, Center/Side arrangement and project configuration; the note states the historical example conditions and is not a performance guarantee.
| Series / model | Nominal roll spacing / common roll lengths | Historical maximum-feed examples | Capacity / installed-power examples |
|---|---|---|---|
| DRS 500 | 500 mm / 1000–2000 mm | Approx. 480–650 mm (SideSizer approx. 200 mm) | Up to approx. 1500 t/h / 55–220 kW |
| DRS 660 | 660 mm / 1500–3000 mm | Approx. 650–850 mm (SideSizer approx. 300 mm) | Up to approx. 2500 t/h / 160–500 kW |
| DRS 800 | 800 mm / 1500–3000 mm | Approx. 750–1050 mm | Up to approx. 3500 t/h / 200–630 kW |
| DRS 1000 | 1000 mm / 2000–3000 mm | Approx. 950–1300 mm | Up to approx. 5000 t/h / 250–700 kW |
| DRS 1250 | 1250 mm / 2000–3000 mm | Approx. 1200–1600 mm | Up to approx. 7500 t/h / 450–800 kW |
| DRS 1500 | 1500 mm / 3000–4000 mm | Approx. 1400–2000 mm | Up to approx. 10000 t/h / 750–1200 kW |
| DRS 1000 × 3000 C (B) | 1000 mm / 3000 mm | Feed opening 3000 × 2280 mm (project example) | Coal/lignite; up to approx. 3000 t/h; 2 × 200 or 2 × 250 kW; machine envelope 6600 × 3740 × 1625 mm |
Historical brochure examples use medium-hard limestone, about 50% fines in the feed, a 5:1 reduction ratio and an example bulk density of 1.6 t/m³. Maximum feed depends on tooth configuration. Do not treat the table as a performance guarantee for other duties.
The DRS 1000×3000 C(B) row is a project data-sheet example: keep feed opening, machine envelope and capacity/power as separate fields, and do not read them as the brochure maximum-feed column used above.
Series numbers and roll length support preliminary identification only. Before manufacture confirm the full model suffix, serial number, tooth profile and rows, breaker-bar option, drive arrangement and drawing revision.

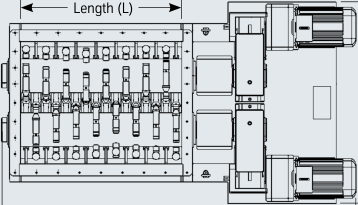

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Toothed rolls | Central twin-roll tooth rows | DRS CenterSizer |
| 2 | Drive motor | Front drive module | DRS CenterSizer |
| 3 | Gear reducer | Between the motor and roll shaft | DRS CenterSizer |
| 4 | Coupling | Motor-to-reducer connection | DRS CenterSizer |
Identify tooth segments, rings, breaker bars, side combs, liners and fasteners separately. Each card links to the corresponding component and material pages.

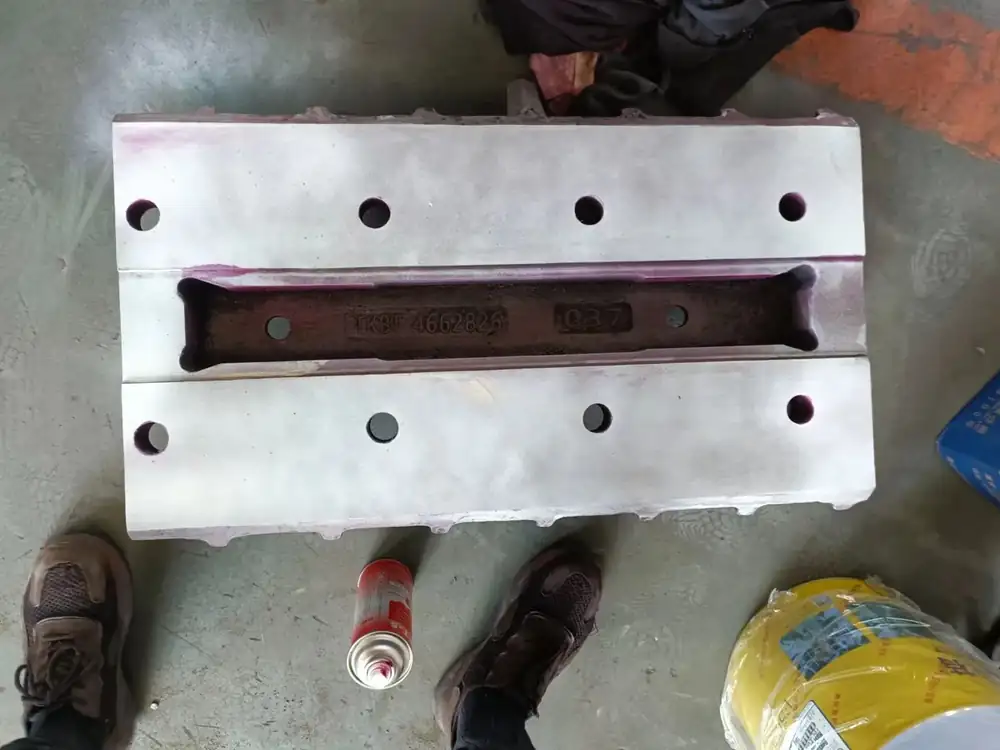

Replaceable Tooth Pick / Tooth Segment

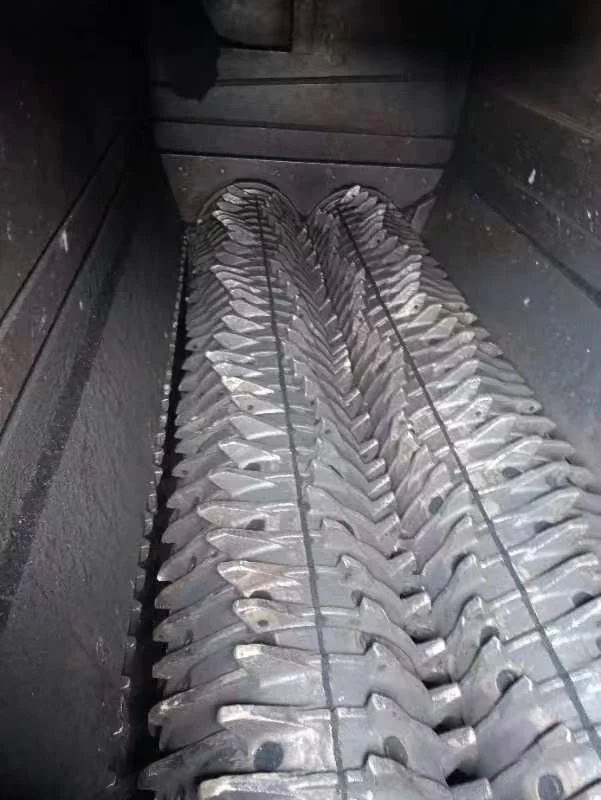

Teeth surround both rolls; profile, row count, axial position and roll spacing determine gripping and discharge. Confirm CenterSizer/SideSizer, full model, tooth sequence and installed drawings.
View the common part page →Replaceable Tooth Ring
CenterSizer may use complete tooth rings or individual replaceable blocks. Check diameter, axial width, interfaces, rotation direction and tooth arrangement together.
View the common part page →Breaker Bar

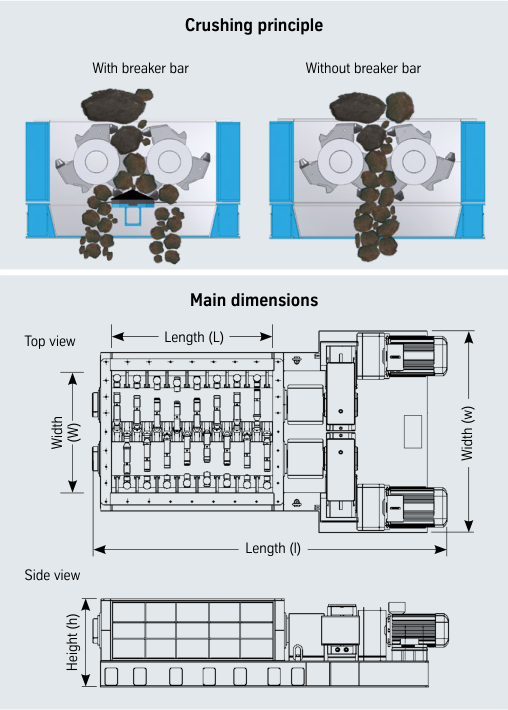

DRS CenterSizer can have a height-adjustable breaker bar to increase reduction and control product size. Confirm whether it is fitted and its installed height.
View the common part page →
Side Crushing Comb / Cleaner
SideSizer teeth and adjustable side combs form the discharge gap. Confirm tooth profile, comb position, gaps and fixing holes against the installed arrangement.
View the common part page →
Side Liner / Wear Protection Plate
Housing and chamber liners protect structures and maintain working clearances. Confirm CenterSizer/SideSizer layout, thickness, holes and edge profile.
View the common part page →Tooth Segment Fastener
Fasteners clamp and locate tooth blocks, rings or mounting bases under cyclic impact and vibration. Confirm thread, head, strength grade, preload and locking together.
View the common part page →Drive components are separate from wear parts. Confirm shafts, bearing housings, gearboxes and synchronizing systems against installed interfaces, loads and drawings.

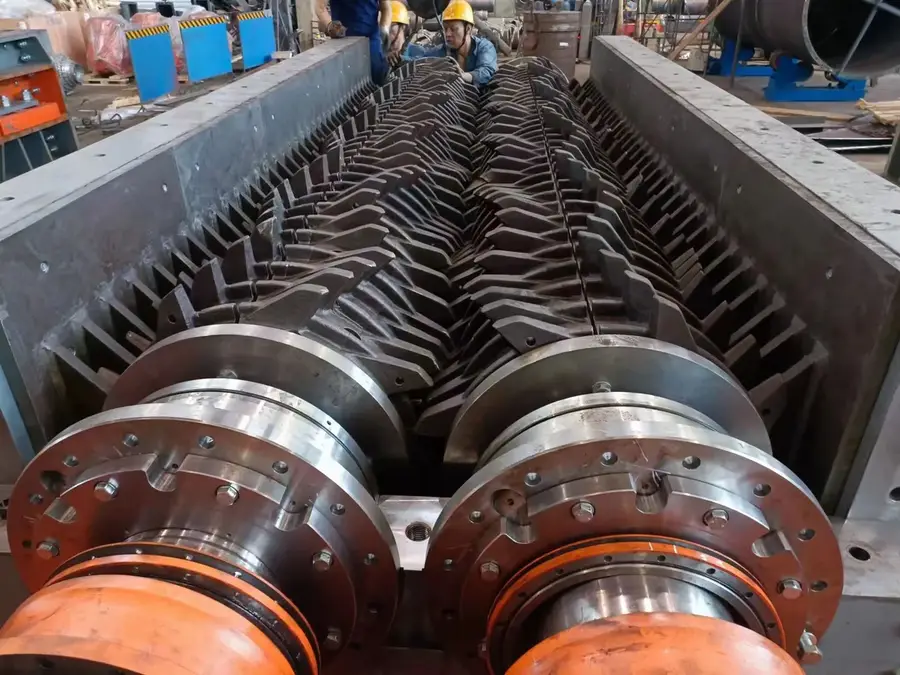

Crushing Roll Shaft Assembly
Includes the shaft, segment mounting zones, end connections and bearing seats. Confirm spacing, length, tooth profile, shaft position, rotation direction and complete shafting drawings.
View the common part page →

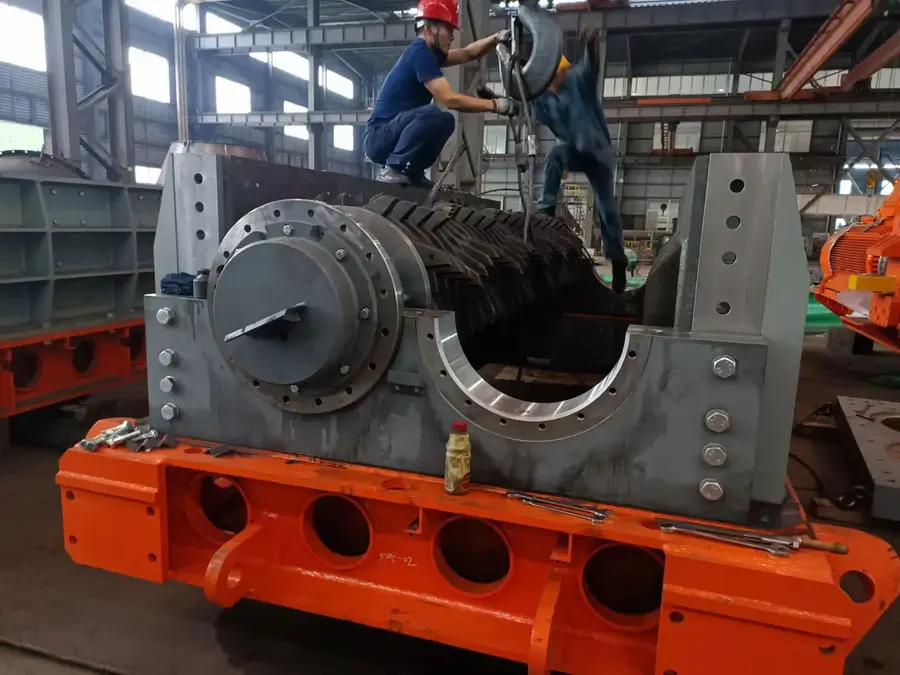

Bearing & Bearing Housing
These carry radial and axial loads from low-speed, high-torque shafts. Check bearing type, clearance, housing bore, labyrinth seals, lubrication passages and mounting side together.
View the common part page →Heavy-Duty Gearbox
OEM DRS documentation uses custom heavy-duty gearboxes with synchronized single-drive or twin-drive arrangements. Confirm ratio, input/output interfaces, side and lubrication before quotation.
View the common part page →Drive Connection & Synchronizing Stage
DRS configurations may use one drive with a synchronizing stage or two independent drives. Identify shafts, couplings, synchronizing gears and guards from the actual layout.
View the common part page →Legacy models and dimensions follow thyssenkrupp RollSizers manuals and data sheets; current succession follows thyssenkrupp and FLS official announcements and the FLS RollSizer page.
No. Confirm roll length, C/S arrangement, row count, profile, breaker bar, shaft position, serial number and drawing revision.
Not entirely. CenterSizer mainly crushes between the rolls; SideSizer forms the working gap between teeth and side combs. Check segments, side liners and fixings separately.
This page records thyssenkrupp Mining Technologies installations from before 2022. The business joined FLS in 2022, so both legacy nameplate identity and current succession must be retained.
Yes. ANRANST manufactures and accepts tooth plates (segments) through early proofing, metal tooling and lost-foam work, casting/cleaning/annealing, rough and finish machining, material-appropriate NDT and approved repair, heat treatment with hardness/toughness checks, and finished inspection with applicable NDT, gauge fit and trial assembly. Supply still follows the installed drawing, serial identity, duty conditions and single-point responsibility.
Provide model suffix, serial number, Center/Side arrangement, tooth rows, breaker-bar option, drawings, photos, materials and duty. We coordinate identification, material assessment, manufacture, quality control and delivery.
Or contact us directly: +86 156 3797 3199
zzx@anranst.com
ANRANST provides customers worldwide with engineering assessment, production at certified foundries to the customer technical requirements, quality control and finished-part delivery for custom wear parts and industrial spares, with scope to support other custom industrial parts.
We review mating surfaces and interface dimensions and assess material, heat treatment and manufacturing feasibility.
Material grades and heat-treatment processes are specified order by order, stated in the technical agreement and tracked through production.
Drawing confirmation, material and process control, production tracking, inspection and acceptance coordination.
We coordinate manufacturing, quality confirmation, packaging and delivery of complete finished parts in a workable, closed-loop supply process.
Provide the equipment brand, complete model and serial number, part name, part number or drawing number, drawing revision, quantity, material requirements and duty. If identifiers are unavailable, send photographs and key dimensions.
