The name of the "ring" parts Can you be the same? materials Manufacturing ？

The belt gear is not.The strap bearing transmission, the wheel band carrying a tie and shaft shoulder wear; it has to be carried out by sub rings or grinding ring control process with nozzles as well: sealing loop shall bear medium isolation according both equipment function (load), wornness of device - drawing).

Large ring-shaped pieces RFQ What information do you need?

OEMs and complete models, aggregate number or part numbers; overall structure of the unit/part line structures: internal & external diameter radii to cross section lines (internal) as well in connection with bore systems), materials for heat treatment. Operating load-to speed is required by temperature - wear resistance are needed from accessories that have failed records on old items such a function.

Large rings & functional rings

Large Rings and Functional Ring Parts

girth gear, wheel belts and bearing rings. Process ring & resistance Grinding Ring

The "ring parts" are geometrical classifications, not functional. Millgirth gear fitting wheel belt crusher bearing ring and brake shaft rings with the force of abrasion loop in VSI anvil circle as well AS pumps wear-resistant bands is completely different material requirements to return specific equipment for installation position confirmation

Construction -, and the Sponsor Wheel belts, girdle rings and filler ring Shell Connecting Ring

Power Transmission Rings of the Piece mill girth gear Other Big Sub-paragraphs Tooth Profile Rings of the Piece

Process and wear-resistant Grinding Ring, Dam Ring, Nozzles Rings, rings and hooks Feed Eye Ring and Stator Ring

Identification requirements Function, loads and Speed, Temperatures and wearability Interfaces and drawing number

rotary kiln Wheels are large girdle parts; Construction, Couplings and Rolling-Road Shell interface Determining the payload transfer

Category: Classification boundaries

Confirm First Why is it a "ring"?

Also a large ring, the girth gear to control teething shape and segment interfaces as well in rodage; wheels must be controlled by roller tracks or elliptical dimensions of heat expansion & bearing. Mill rings are directly facing shockes (extrusion) Or mineral wear with grinding loopers - an oak wheel that is not even able for its own purpose but also has been used on it at all times during this period.

The sealing ring is in Seals, scrolling or sliding bearings in Bearings and Bushes.This page is focused on the shoulder Construction, Power Transmission Craftsmanship and wear-resistant Function The ring shapepieces and the unified entrance with their respective single page.

Function Identity Power Transmission, the positioning and directionage; Grinding Protecting or seals

Structural identification Whole, flaps and segments of weldings forged or composite substrate

Interfaces Identity Inner and external diameters, cross-sectional surfaces of holes in the porcelain lineage Tooth Profile, keys and matching

Supply Identity OEM, complete model, the total number of part number, Materials and inspection Borders

Construction, and the Consumables Power Transmission Rings of the Piece

Large payloads, Geometry Accuracy and field connection control

The segmentation, transporting and assembly of the large diameter ring parts are part or parcels.

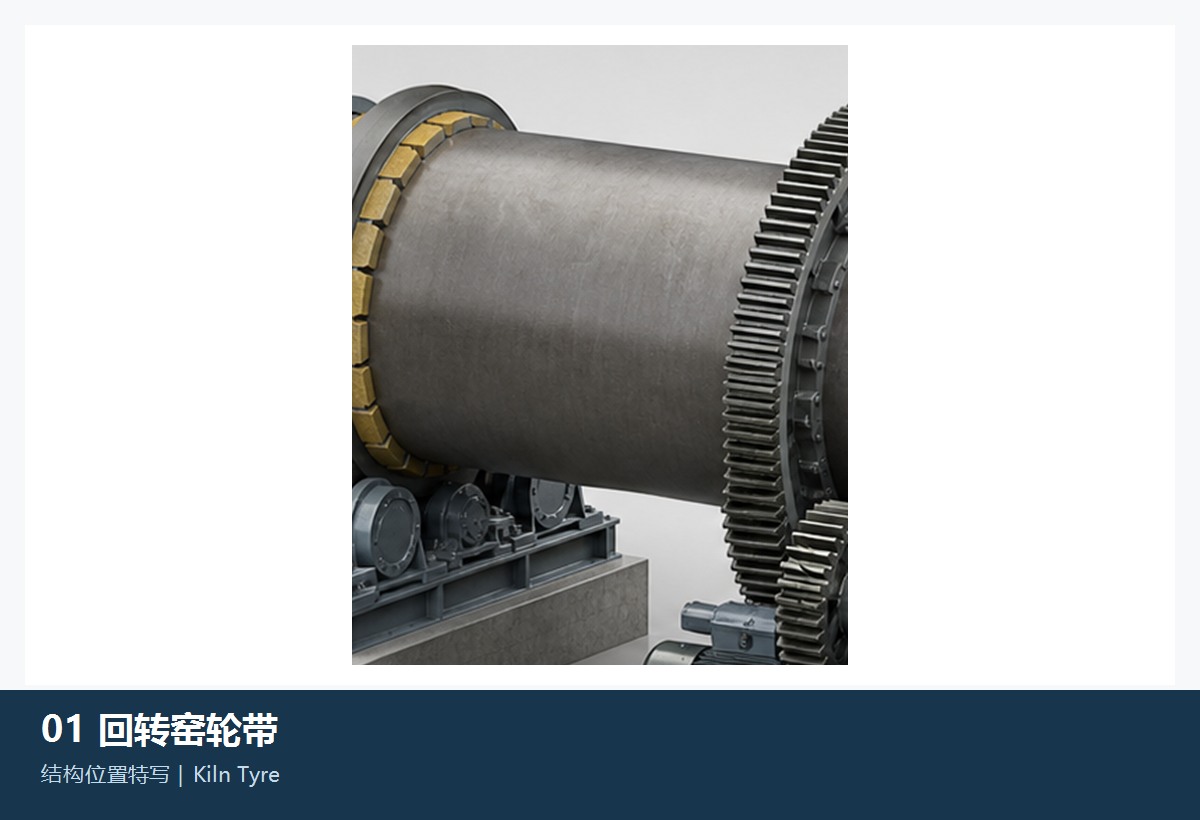

rotary kiln Wheels

kilns Shell Cargo Transfers support roller. Nuclear outer diameter, width and rollers; Shell interface, Heat Condition, elliptical degree and axillary position.

mill girth gear

s pinion Torque inlet Mill Shells; the number of modulus, teeth numbers and pressure angle. Interfaces Convulsions, radial beat and meshing.

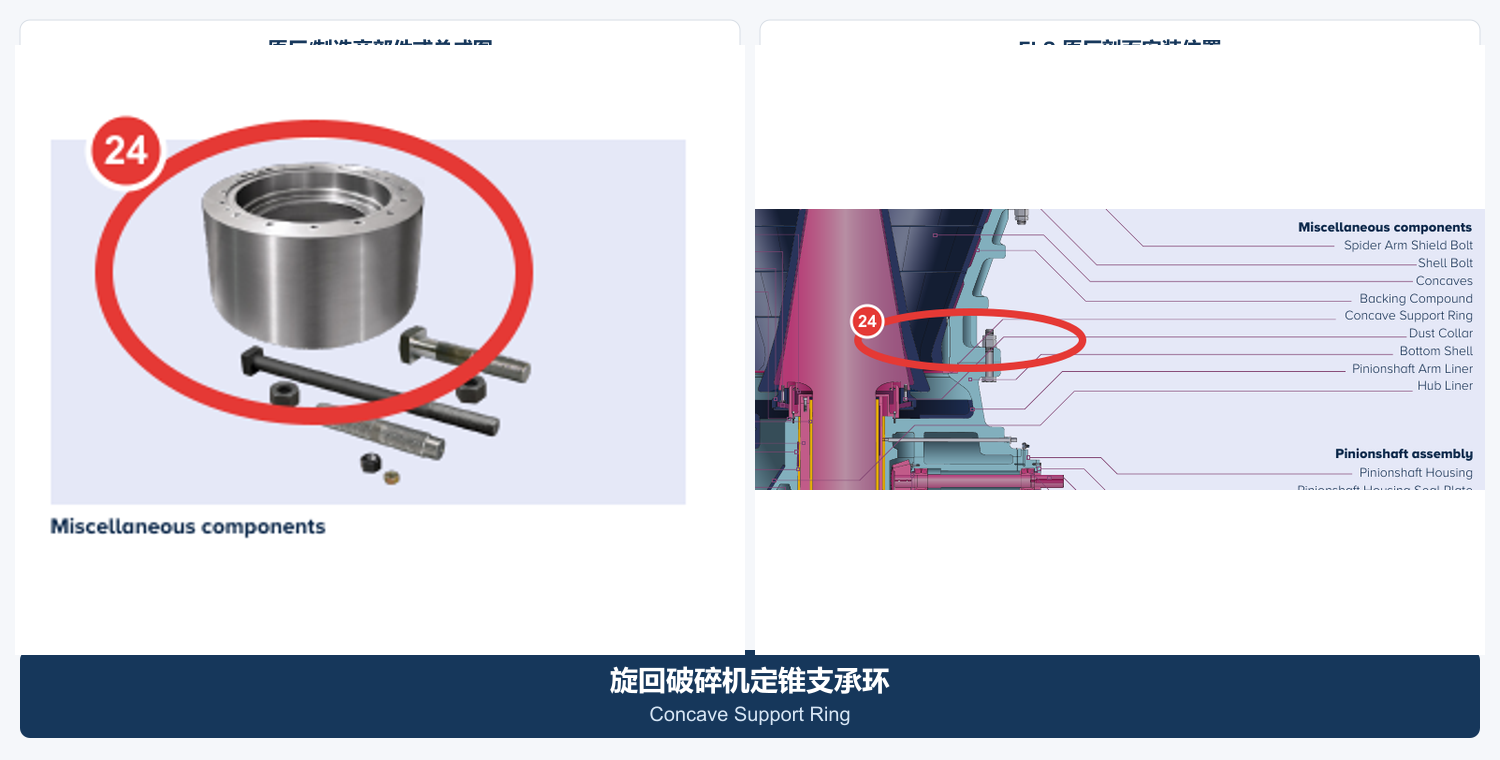

Gyratory Crusher Concave support ring

Location and siding concave liner System; check-in Housing Grades, cone and steps / subdivision Interfaces, Filling Layers and Liners Revision.

mill Filling Rings

Filling liner system Or endpoint Part / Assembly Construction A gap; reconciliation Mounting Regions and Neighbouring Liners, sub-sections and holes systems. Pressurized & disassembly requirements

Process and wear-resistant Function Rings

Controlling feed bed, airflows and impact path Grinding Latch and pump infiltration

These ringpieces are directly involved in the process; Geometry Changes and wear will change Equipment Performance, not just appearance loss.

Milling Coal Machine Grinding Ring / Bowl Benefit

and grinding roller Forming extrusion Grinding Areas; reconciliation mill model, Contours and sub-paragraph grinding roller Matching, sizing and Wear-Resistant Materials System.

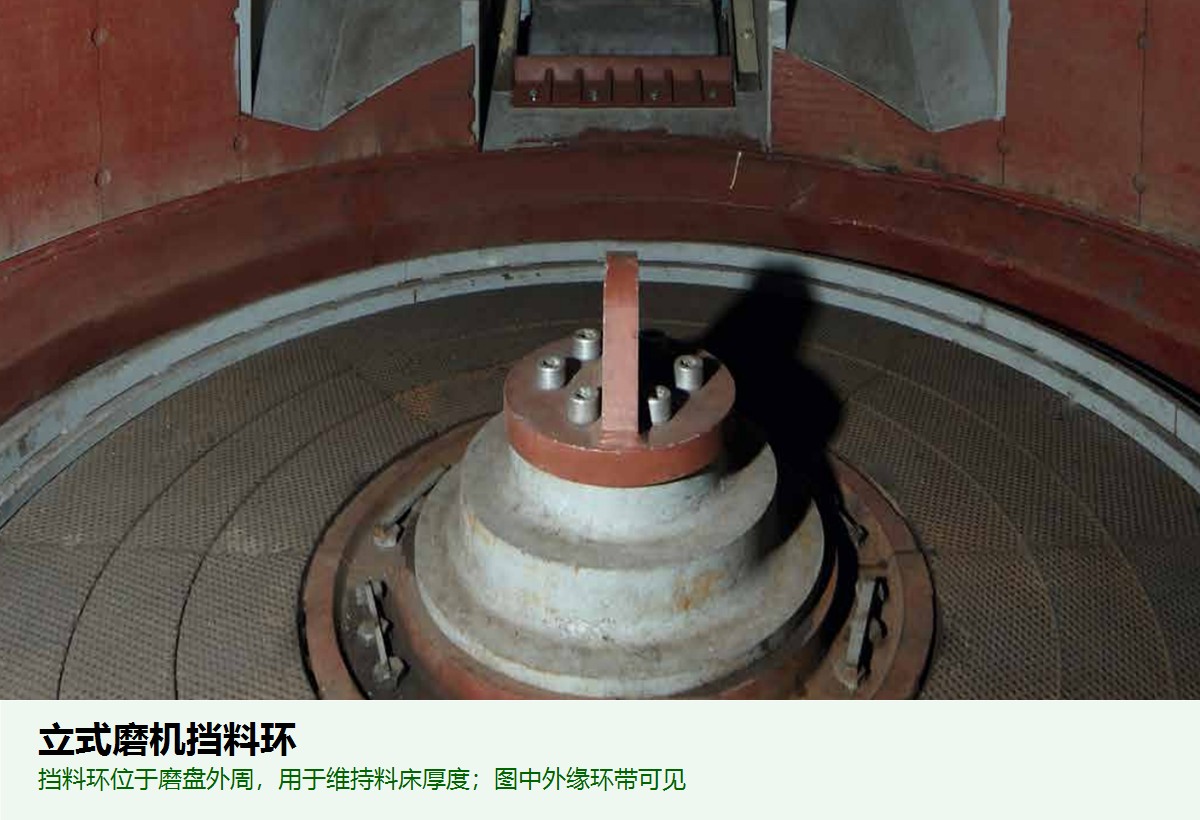

Lili Mill Dam Ring

Controls grinding table Fringe feed bed and overflow conditions; check-in grinding table Changes in the process after diameter, high ring size and segmentation.

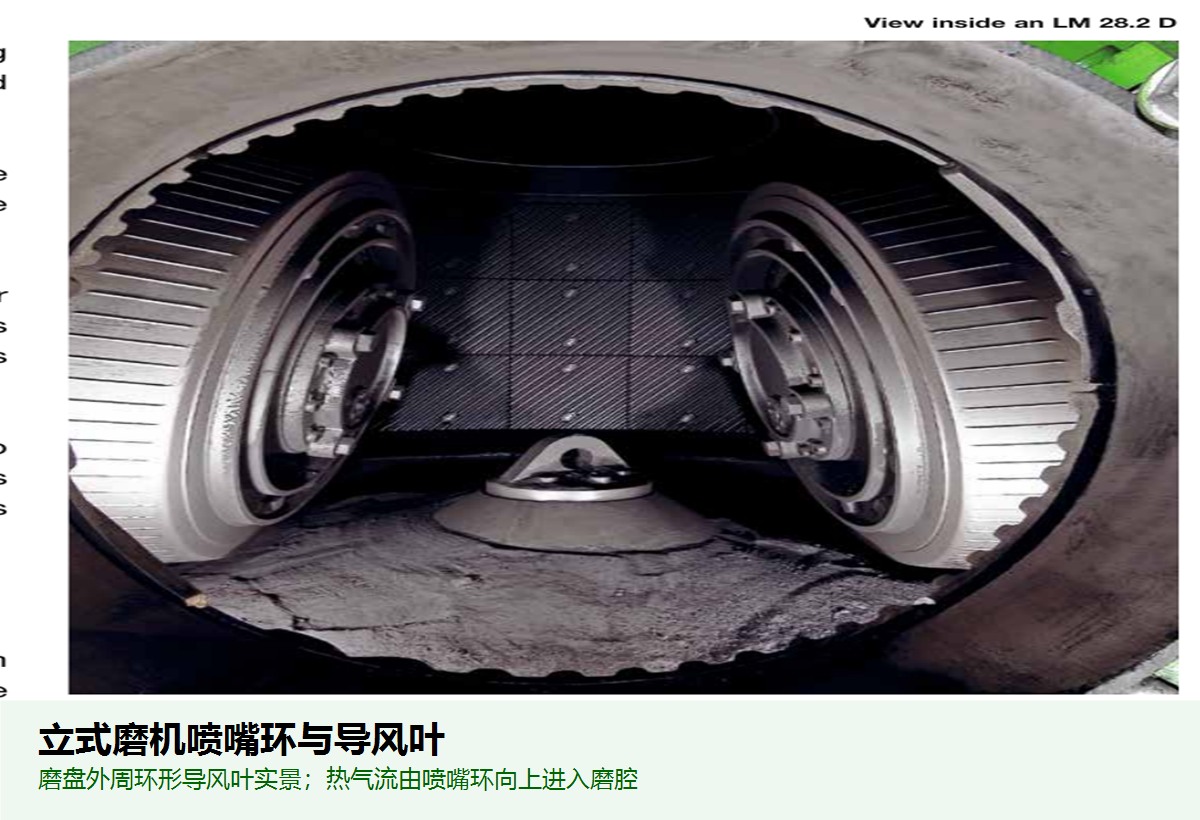

Lili Mill Nozzles Rings / Winding Leaf

Formation grinding table The surrounding airflow channel and withstands wiping; the direction of gas flow is checked, Blade Angle, gaps and granularity.

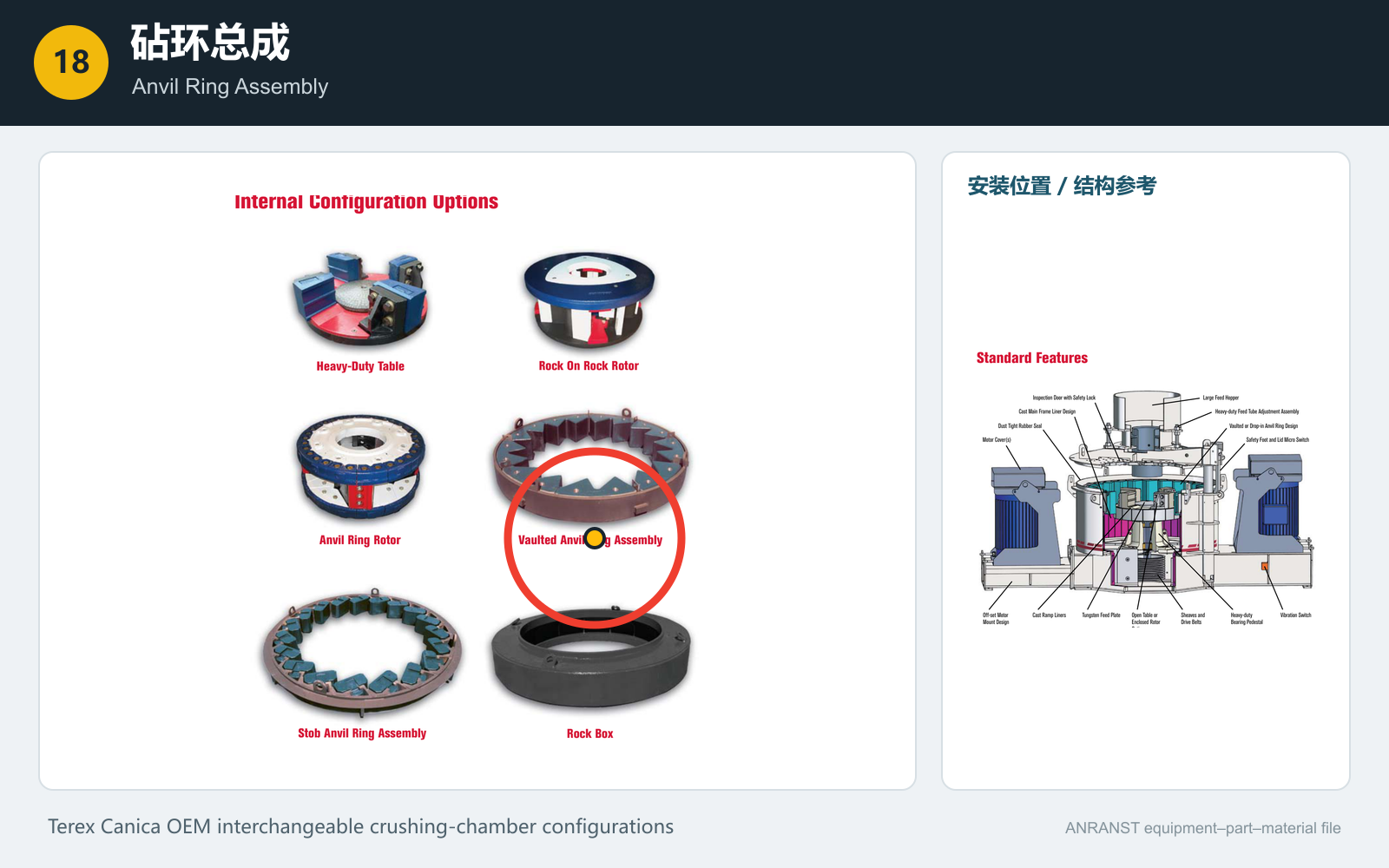

VSI Anvil Ring Assembly

Location of the lap Anvil and withstand high-speed material impact reversal; check the diameter of rotors, Anvil Quantity, the gaps and Mounting Directions.

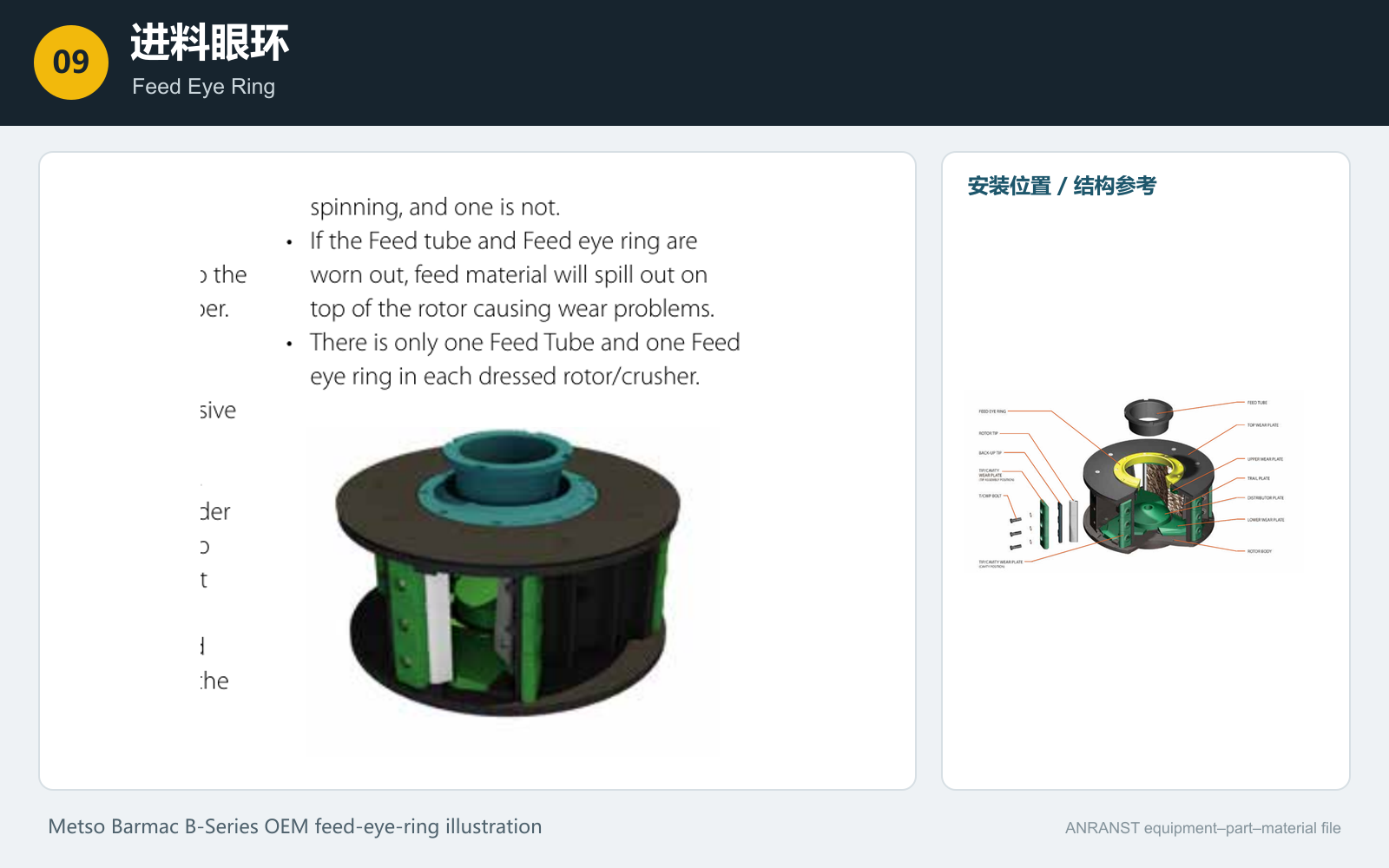

VSI Feed Eye Ring

Protection of the rotors Feed Inlet and control the feed boundary; check-in of rotors model Opening, positioning and material granularity. Impacts & wear profiles

Slurry Pump Expeller / Seal Ring

Using the spin Function Lower shaft seal.The pressure of the region; check-in pump type, impeller, Speed slurry, and gaping Mounting Directions and shaft seal Combination.

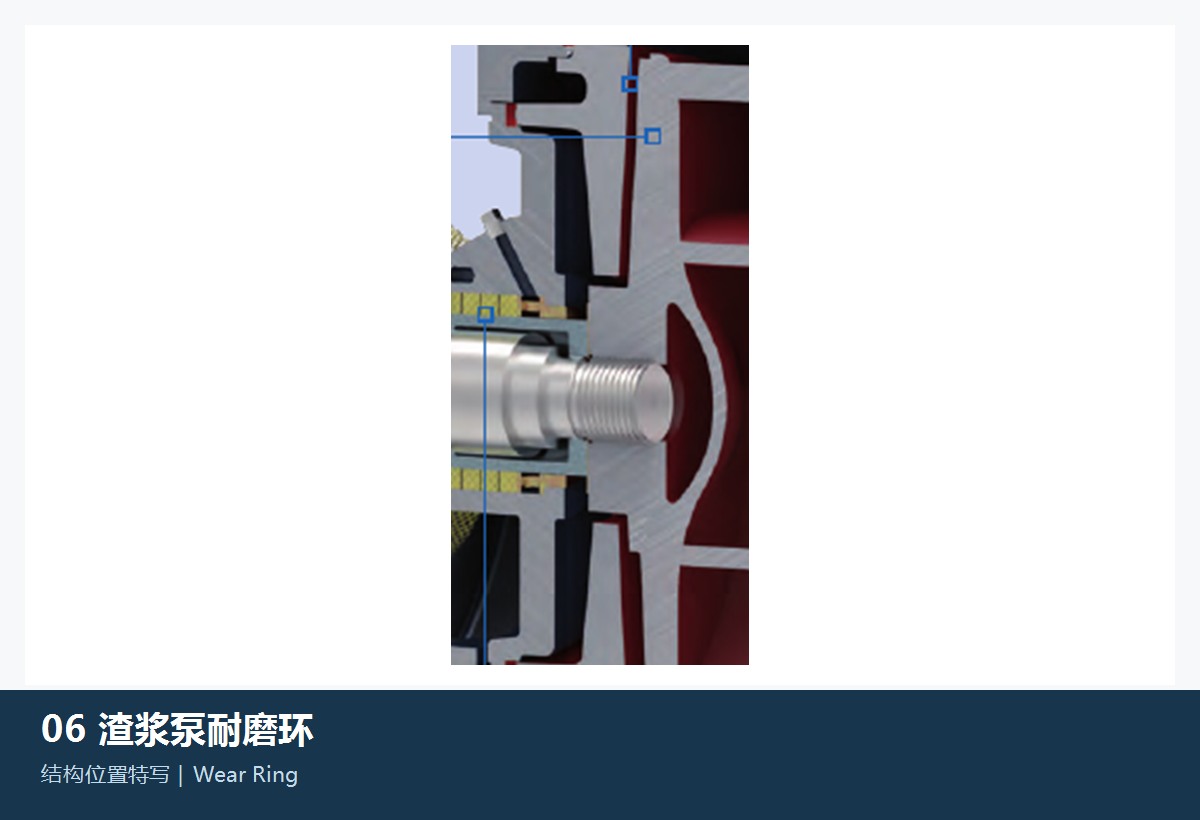

Slurry Pump Wear Ring / Gland Ring

Control the distribution of local gaps or fillers; check specific pumping, installation position, internal and external diameters; medium-sized media. Shaft Sleeve.

Torn scatterers Shell Connecting Ring

Connection or Positioning Segments Shell and linings; the check for rotor specifications, flange lines of holes in line with sealing system.

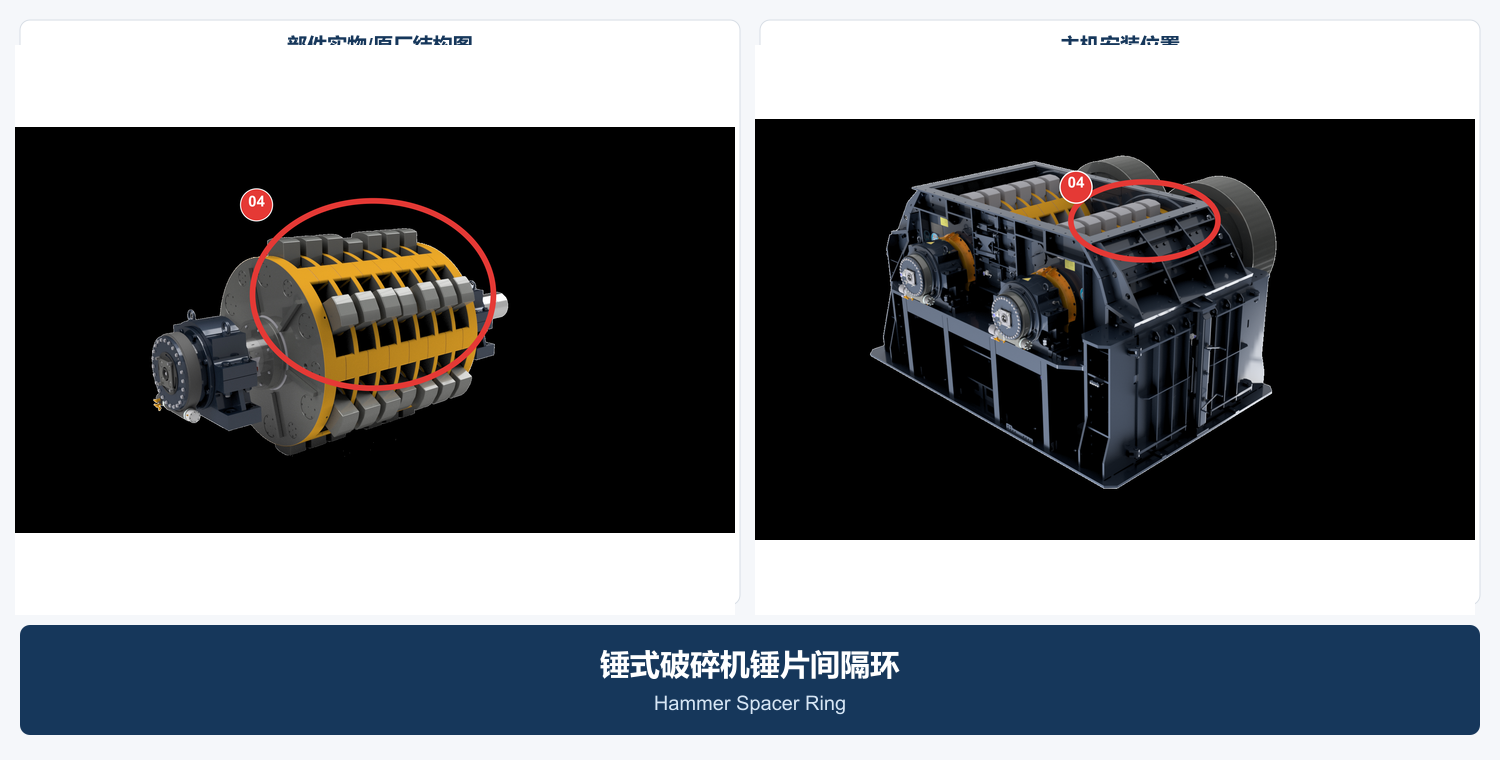

Hammers hammer Hammers Cycling of the Ring

Continuation Hammers along Rotor Shafts The position and spacing of the direction; checks for rotor, hammer shaft. Hammers Quantity, widths and shocking as well ASS.

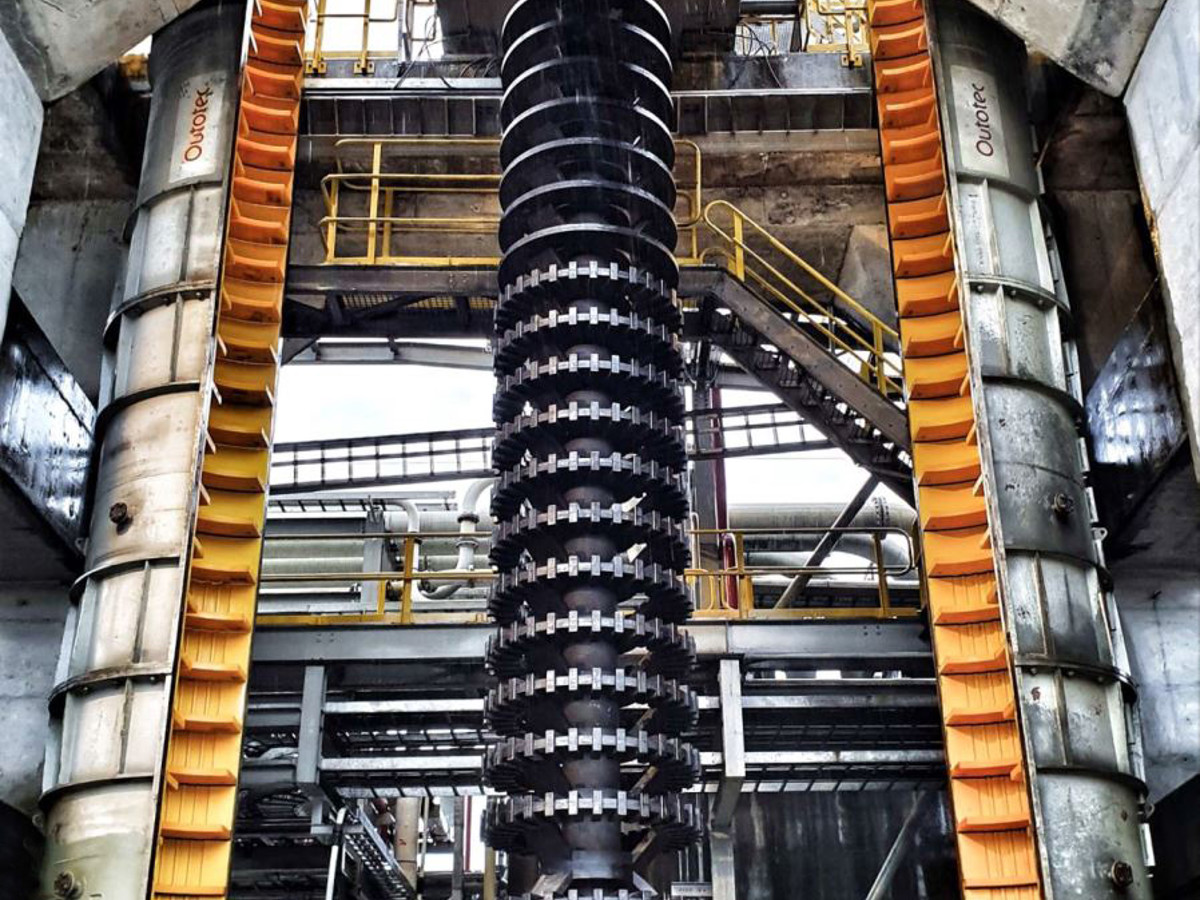

HIGmill Shell-mounted Stator Rings

Fixed on the polish side and formed with rotors Grinding Grades: Contrast Model Number, tiers and internal/external diameter of the sub-sectional structure. Working clearances.

Materials and Manufacturing Methods

Rings of the Shape Geometry Cannot replace Function Material Selection

materials Must be subject to load, wear and precision. Sizes must obey the loading of a payload; it has been broken down into an area where welding is required Mounting Conditions.

Cast Steel, forged steel and large ringforging For reloading, bearing and other loads Construction When it comes to cross-section uniformity, metallurgy Quality, heat treatment Hypnotherapy, size and residual stress.

girth gear Material System Possible use Ductile Iron, Cast Steel Or welding Construction the original design must confirm tooth surfaces, wheels and wheelwheel performance. Segment joints and the processing route. Detailed Alloy Steels for Drive Parts.

high-chromium cast iron and Wear-Resistant Cast Steel Can be used for specific Grinding Ring and swiping the ring parts; it is necessary to shock, thicknesses or faulting surfaces. Hardness Graduality and crack risk selection. View High-Chromium Cast Iron.

Quenched and tempered wear-resistant steel Consolidated stack welding Used for solder Construction Or the conductor ring parts, we must check base hardness resistant to surface wear layer and deformation of a segment. Quenched and Tempered Wear Plate.

rubber, polyurethane Packaging with Composite Coverage For scrubbing or stirring a grinding sublayer, focus on the formulation and thickness of its coating; metal skeleton binding.

Casualties and low cost replacements Filling the rings, scattering and protecting loop materials Submission: Cutable, loaded and disassembled to be straining or corrosionating Function. cannot be fitted with a large loader ring materials.

Failure Diagnosis

Deformance, cracking and scrubbing shall be applied Function System re-examination

Rings of the Piece failure And they are stern and tightly attached to each other. gear, cotton bed or hot Condition Together created.

Symptoms	Priority checks	Associated Risks
Wheel belt or girdle wheel mill	Shell the central line, support roller axis position, heat Condition, Rolling and Elliptical	Contact Stress concentration, axis oscillation and Shell Deformed
girth gear Tooth surface offset or puncture	girth gear Bouncers, Segment joints, pinion -: and	Tooth slit, torn and Power Transmission Vibration
Rings of the flawed	materials Casting defects, heat treatment, sectional mutations and tightening of impact load	Fracture extensions, segment failure and downtime
The height of the loop or silhouette is worn	Material, flow rate and impact angles; gaping / wear measurement & replacement Reference Material	Feed bed, wind volume and product particle size or efficiency changes
Sub-paragraph Interfaces Softener	bolts, screw-ups and shutters. Contact Surface, heat circulation and assembly order	Defects, shocking and cracked injuries to adjacent parts
Internal and external diameters or radial overconsistencies	Manufacturing Residues, heat treatment Deformations and processing Reference Material, transport support and field measurement	Inability to be assembled, eccentricity and Working clearances Anomalous

Inquiries and Quality Control

Large ring-shaped pieces Supply information

Supplies assembly drawing, installation position and accessories, avoid only copying according to the appearance of old items.

Equipment and Function

OEM, complete model, serial number, installation position, the total number of part number and Rings Function.

Geometry and Interfaces

Internal and external diameters, width. sectional dimensions; roundness of the curved shape (beating), hole lines: stop-toothes/partitionings & collocation).

Tooth Profile Or the work profile

Gear parameters, rollers and flow angle of the conveyor bed height. Working clearances and wearable limit values.

Loading and operating conditions

torque, Speed, loads bearing and impact materials; temperature. Heat circulation & corrosion

Materials and Manufacturing

materials Standards, chemical compositions heat treatment, performance and casting for welding routes; processing & repair restrictions.

Inspection and delivery

Sizes, Tooth Profile, NDT, Hardness, test kits and segment marking; transport support & on-site recording.

Technology References: Metso's open mill spare parts range lists the Gear and pinion as independent transmission parts, giving different manufacturing routes such to cast iron. The mixing grinding spore portion pages clearly list HIGmill fixed rings. Metalsu-Loesche has a detailed description of material passing through drilling table gear loop from airstream after it is removed by means that this thread ring belongs in process control rather than ordinary structural wheels. Metso Grinding Mill Parts · Metso Stirred Mill Parts

Related Equipment and Parts

Equipment, OEM model, the ringpiece and materials Closed Rings

The same ring can be from Equipment and OEM The path enters, but ends up pointing to a single page.

Levels mill girth gear, Filling rings and adjacent Power Transmission System. Vertical Mill Grinding Ring, Dam Ring, Nozzles Rings and process gap. gear Axes with teeth girth gear and pinion as a Power Transmission. Sub-convergences OEM Brands & Models by complete model, the total number and part number Converging the dedicated ringpiece.

Request Large Rings and Functional Rings quotation

Submission Equipment Models, Totals/ part number, Function, Internal and external diameters & cross-sectional sections Interfaces, materials, payloads and failure Information, Entry Technical Review.
