OEM Brands and Installed Equipment

thyssenkrupp Polysius

Founded in 1859More Than 17,600 Machines and Systems in Use800 Cement Plants Built7 Core Equipment Categories8 equipment series
Brand and History

From Machine Building in Dessau to Polysius Process Equipment

Brand history helps identify current and legacy installations. Manufacturing and quotation require the equipment nameplate, complete model, serial number, drawing, revision and actual interfaces.

1859 Gottfried Polysius opened a locksmith and metalworking shop in Dessau, which developed into a machinery manufacturing business.
1898 Polysius records the manufacture of its first rotary kiln in Europe, establishing a foundation for its subsequent cement equipment technology.
1971 Fried. Krupp GmbH acquired a majority interest, bringing Polysius into a larger engineering and financial group.
1985 The polycom® high-pressure grinding roll entered the market and became a core Polysius product for interparticle comminution.
1999 Krupp and Thyssen merged to form ThyssenKrupp AG. This marks a group merger, not the founding of the Polysius brand.
2022 The Cement Technologies business unit adopted the Polysius name again, continuing the historic brand and services for installed equipment.
2023 thyssenkrupp Polysius became part of the Decarbon Technologies segment.
Key Equipment

Core Equipment for Wear Parts, Heavy-Duty Spares and Maintenance

Select grinding, pyroprocessing or crushing equipment to review models, wear parts, spare parts, materials, maintenance tools and enquiry requirements.

polycom® high-pressure grinding roll

polycom® High Pressure Grinding Rolls

polycom® High-Pressure Grinding Roll

View Equipment Series →
quadropol® vertical roller mill

quadropol® Vertical Roller Mills

quadropol® Vertical Roller Mill

View Equipment Series →
Polysius ball mill

Polysius Ball Mills

Polysius Ball Mill

View Equipment Series →

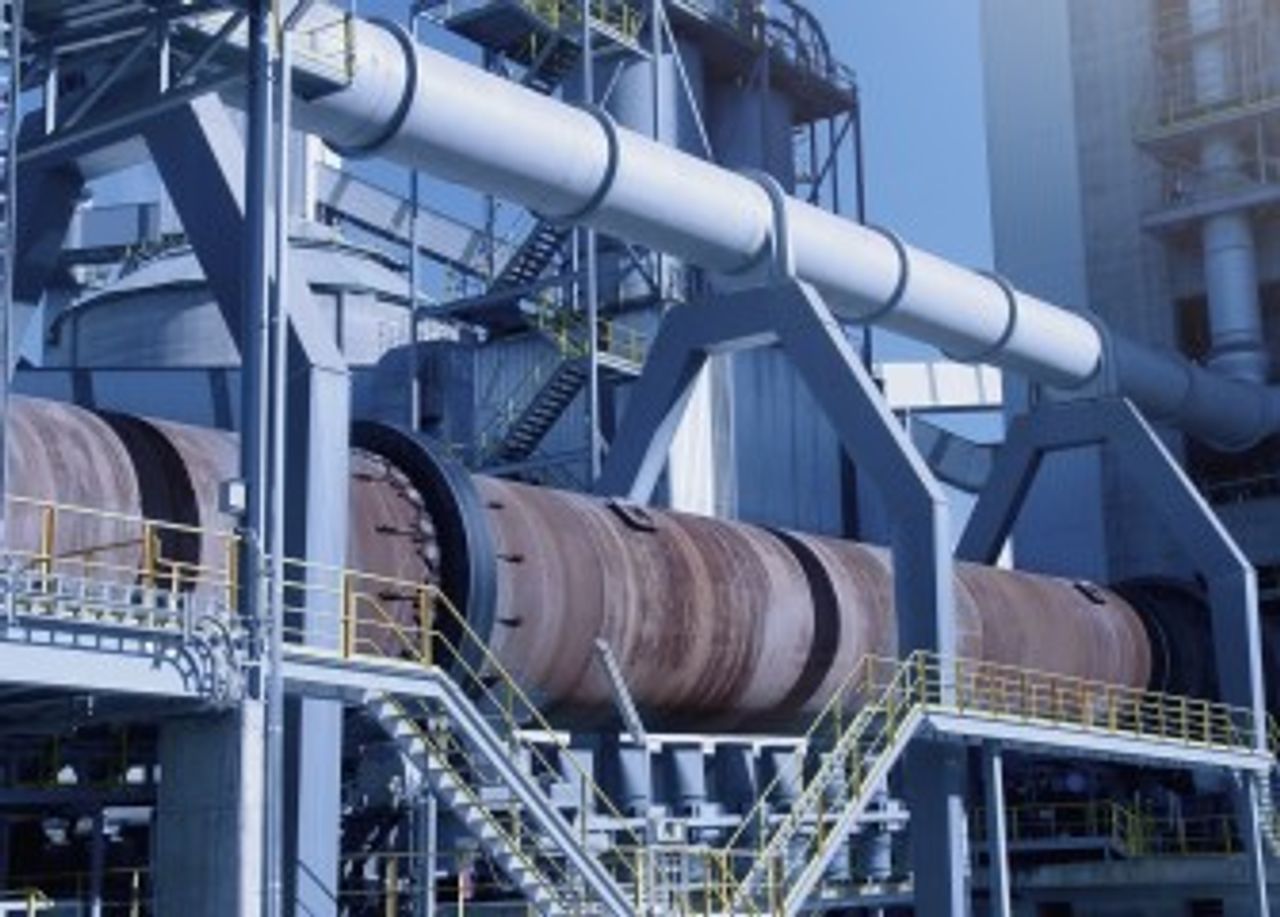

polro® and three-support rotary kilns

polro® and Three-Support Rotary Kilns

polro® 2-Support & 3-Support Rotary Kilns

View Equipment Series →
polytrack® clinker cooler

polytrack® Clinker Coolers

polytrack® Clinker Cooler

View Equipment Series →
TITAN® double-shaft hammer crusher

TITAN® Double-Shaft Hammer Crushers

TITAN® Double-Shaft Hammer Crusher

View Equipment Series →
PB series impact crusher

PB Series Impact Crushers

PB Primary & Secondary Impact Crusher

View Equipment Series →

thyssenkrupp Polysius HPGR and cement equipment

View Equipment Series →
Current and Legacy Installations

Core Equipment Series, Models and Installation Identification

Find models by equipment series and installed configuration, then review parts, materials and interfaces on the equipment pages.

Equipment SeriesModel / ConfigurationKey Identification CriteriaProduct Status
polycom® High Pressure Grinding RollsRaw material and binding agent finish grinding; pregrinding and combined grinding; legacy mineral HPGR installationsConfirm roll diameter, roll width and throughput against the complete model and material conditions. Check cement grinding and legacy mineral installations separately.Current Products and Legacy Installations
quadropol® Vertical Roller MillsQMR² 38/19–48/24; QMC² 40/20–51/25; QMK² 24/12, 32/16; QMS²Identify by raw meal, cement or binding agent, coal or petroleum coke, and slag applicationCurrent Series and Referenced Installations
Polysius Ball MillsTwo-compartment, single-compartment, air-swept and shell-supported designs; direct gearing and COMBIFLEX® drives2, 4 or 6 sliding shoes per bearing assembly; COMBIFLEX® dual drives rated up to 16,000 kWCurrent Products and Historical Installations
Polysius Rotary Kilnpolro® two-support and three-support kilns, polguide® girth gear drives, splined and floating tyresModern precalciner kilns typically have a length-to-diameter ratio of 13–15; above 15, the OEM recommends three supportsCurrent Products and Historical Projects
polytrack® Clinker Coolerspolytrack® eco, modular grate coolers, hydraulic conveying, clinker roll crushers and retrofit configurationspolytrack series capacity: 500–12,000 t/d; roll crushers for the current eco configuration: up to 9,000 t/dCurrent Products and Retrofitted Installations
TITAN® Double-Shaft Hammer CrushersTITAN 40 D 50 to TITAN 80 D 220; 19 standard OEM modelsRotor diameters: 1,320–2,400 mm; reference throughput of 180–3,150 t/h with grate openings of 30–90 mmStandard OEM Models and Current Product Family
PB Impact CrushersPB 100/100 to PB 250/300; CR primary and secondary configurationsImpact circle diameters: 1,000–2,500 mm; reference throughput: 110–2,500 t/hStandard OEM Models and Current Product Family
Part Identification and Supply

From Equipment Identification to Parts, Materials and Manufacturing in China

Find equipment series here, then use the equipment pages for models, part positions and drawing. General parts and materials pages cover operating conditions, materials, manufacturing and acceptance requirements for technical confirmation and enquiry.

OEM Brands Continue by Brand, Country and Equipment Category Return to brands → General Equipment Catalogue Explore Equipment Construction and Part Positions Open the equipment catalogue → General Parts Catalogue Find Parts by Material, Duty, Drawing or Spare Model Details or Drawing Open the parts catalogue →

Send Your thyssenkrupp Polysius Nameplate, Model, Drawing or Used Part Details

Provide the equipment series, complete model, serial number, installation position, drawings, drawing, used part photographs, materials and operating conditions. We coordinate identification, material assessment, manufacturing in China, quality control and delivery of finished parts.

Equipment Brand and ModelDrawingDrawing or DimensionsCurrent MaterialPhotographs of Failed PartsTarget Service LifeOperating Conditions
Request a Quote

Or contact us directly: +86 156 3797 3199
zzx@anranst.com

Manufacturing Services in China

From Technical Assessment to Finished-Part Delivery

ANRANST provides customers worldwide with engineering assessment, production at certified foundries to the customer technical requirements, quality control and finished-part delivery for custom wear parts and industrial spares, with scope to support other custom industrial parts.

01

Drawing and Engineering Review

We review mating surfaces and interface dimensions and assess material, heat treatment and manufacturing feasibility.

02

Material and Heat-Treatment Specification

Material grades and heat-treatment processes are specified order by order, stated in the technical agreement and tracked through production.

03

Quality Control

Drawing confirmation, material and process control, production tracking, inspection and acceptance coordination.

04

Finished-Part Delivery

We coordinate manufacturing, quality confirmation, packaging and delivery of complete finished parts in a workable, closed-loop supply process.

Provide the equipment brand, complete model and serial number, part name, part number or drawing number, drawing revision, quantity, material requirements and duty. If identifiers are unavailable, send photographs and key dimensions.

Submit an Enquiry
