Ball mill · 1965 · 8 models
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Allis-Chalmers 10 × 15 ft Ball mill | 10 × 15′ Ball mill | 7 | |
| Allis-Chalmers 12.5 × 15 ft Ball mill | 12.5 × 15′ Ball mill | 1965 | 7 |
| Allis-Chalmers 8 × 10 ft rubber liner Ball mill | 8 × 10′ Rubber liner Ball mill | 1966 | 7 |
| Allis-Chalmers 8 × 10 ft Ball mill | 8 × 10′ Ball mill | 7 | |
| Allis-Chalmers 8 × 37 ft Ball mill | 8 × 37′ | 7 | |
| Allis-Chalmers 9 × 10 ft Ball mill | 9 × 10′ Ball mill | 7 | |
| Allis-Chalmers 9 × 7 ft Ball mill | 9 × 7′ Ball mill | 7 | |
| Allis-Chalmers Compeb 6 × 21 ft Ball mill | Compeb 6 × 21′ Ball mill | 7 |

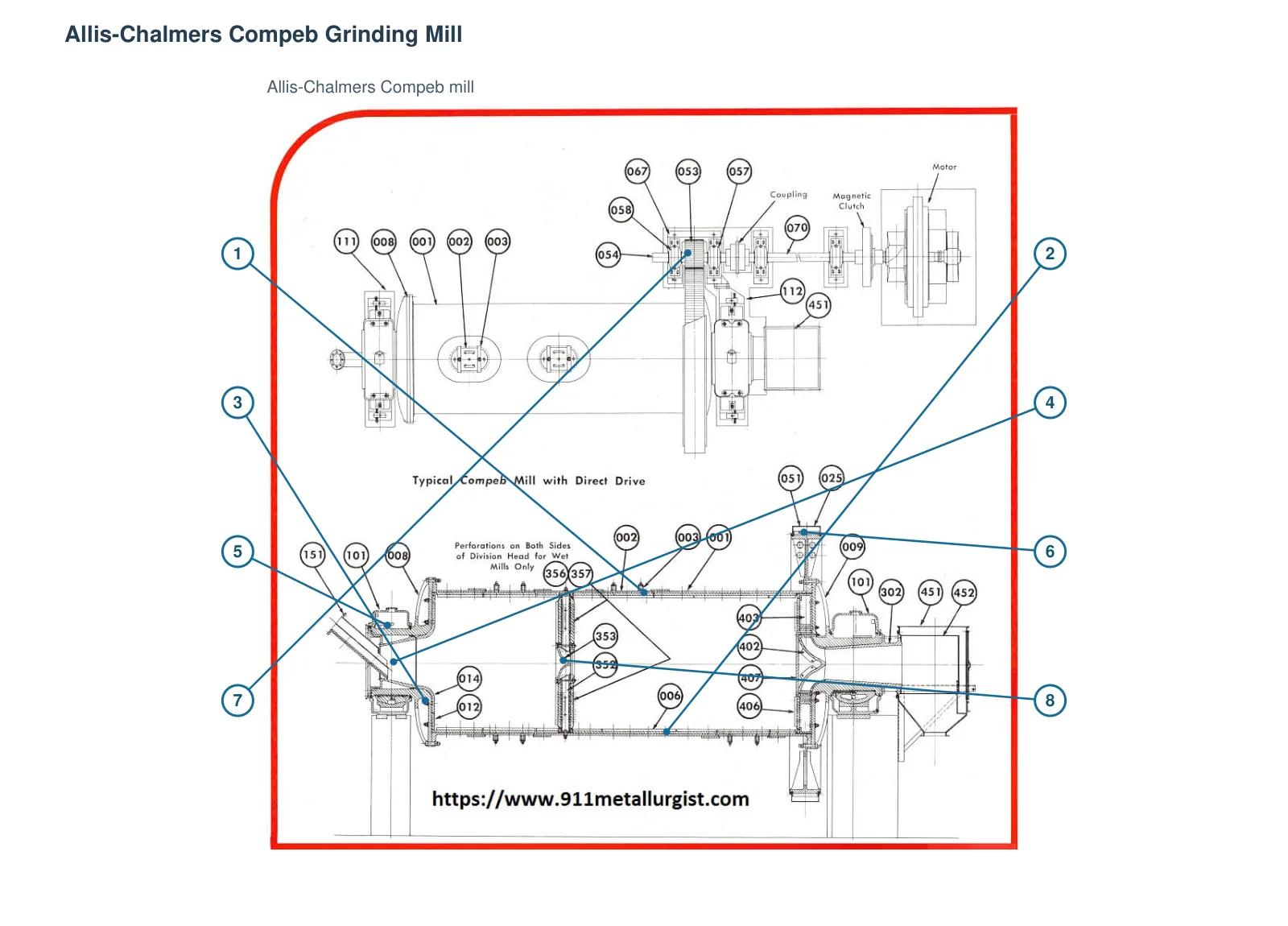

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Mill shell | Shell around the two compartments | Allis-Chalmers Compeb 6 × 21 ft |
| 2 | Shell liner | Lower internal shell surface | Allis-Chalmers Compeb 6 × 21 ft |
| 3 | Mill heads | Feed-end head | Allis-Chalmers Compeb 6 × 21 ft |
| 4 | Mill trunnions | Feed-end trunnion | Allis-Chalmers Compeb 6 × 21 ft |
| 5 | Main trunnion bearing | Feed trunnion support | Allis-Chalmers Compeb 6 × 21 ft |
| 6 | Girth gear | Girth gear at discharge end | Allis-Chalmers Compeb 6 × 21 ft |
| 7 | Drive pinion | Pinion in upper plan view | Allis-Chalmers Compeb 6 × 21 ft |
| 8 | Division head | Between grinding compartments | Allis-Chalmers Compeb 6 × 21 ft |
Models with the same components are grouped together; select a group to open its component table.
Models: Allis-Chalmers 10 × 15 ft Ball mill, Allis-Chalmers 12.5 × 15 ft Ball mill, Allis-Chalmers 8 × 10 ft rubber liner Ball mill, Allis-Chalmers 8 × 10 ft Ball mill, Allis-Chalmers 8 × 37 ft Ball mill, Allis-Chalmers 9 × 10 ft Ball mill, Allis-Chalmers 9 × 7 ft Ball mill, Allis-Chalmers Compeb 6 × 21 ft Ball mill
| No. | Component |
|---|---|
| 1 | Ball Mill Shells |
| 2 | Shell liner |
| 3 | Ball Mill Heads |
| 4 | Ball Mill Trunnions |
| 5 | Ball Mill Main Bearings, Bearing Shells and Housings |
| 6 | Girth Gear (Ring Gear) |
| 7 | Drive Pinion |
The Ball / Rod / Compeb Ball mill covers 8 models: Allis-Chalmers 10 × 15 ft Ball mill, Allis-Chalmers 12.5 × 15 ft Ball mill, Allis-Chalmers 8 × 10 ft rubber liner Ball mill, Allis-Chalmers 8 × 10 ft Ball mill, Allis-Chalmers 8 × 37 ft Ball mill, Allis-Chalmers 9 × 10 ft Ball mill, Allis-Chalmers 9 × 7 ft Ball mill, Allis-Chalmers Compeb 6 × 21 ft Ball mill. Former and renamed designations are listed in the models table on this page.
The Ball / Rod / Compeb Ball mill is also documented under these designations: Allis-Chalmers 10 × 15 ft Ball mill, 10 × 15′ Ball mill, Allis-Chalmers 12.5 × 15 ft Ball mill, 12.5 × 15′ Ball mill, Allis-Chalmers 8 × 10 ft rubber liner Ball mill, 8 × 10′ Rubber liner Ball mill, Allis-Chalmers 8 × 10 ft Ball mill, 8 × 10′ Ball mill, Allis-Chalmers 8 × 37 ft Ball mill, 8 × 37′, Allis-Chalmers 9 × 10 ft Ball mill, 9 × 10′ Ball mill, Allis-Chalmers 9 × 7 ft Ball mill, 9 × 7′ Ball mill.
The Ball / Rod / Compeb Ball mill is listed under the Allis Chalmers brand as: Ball mill. Period: 1965. Status: Historical model.
7 components are recorded, including: Ball Mill Shells, Ball Mill Heads, Ball Mill Trunnions, Shell liner, Ball Mill Main Bearings, Bearing Shells and Housings, Girth Gear (Ring Gear), Drive Pinion. The full list with locations is in the components table on this page.
