Ball mill
Ball mill · 1 model
Fuller Traylor
Fuller TraylorBrand
Ball millEquipment type
Historical modelStatus
Fuller Traylor
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Components |
|---|---|---|
| Fuller-Traylor ball mill | Ball mill 5.6×8.8m | 8 |
Fuller Traylor
Numbered Components

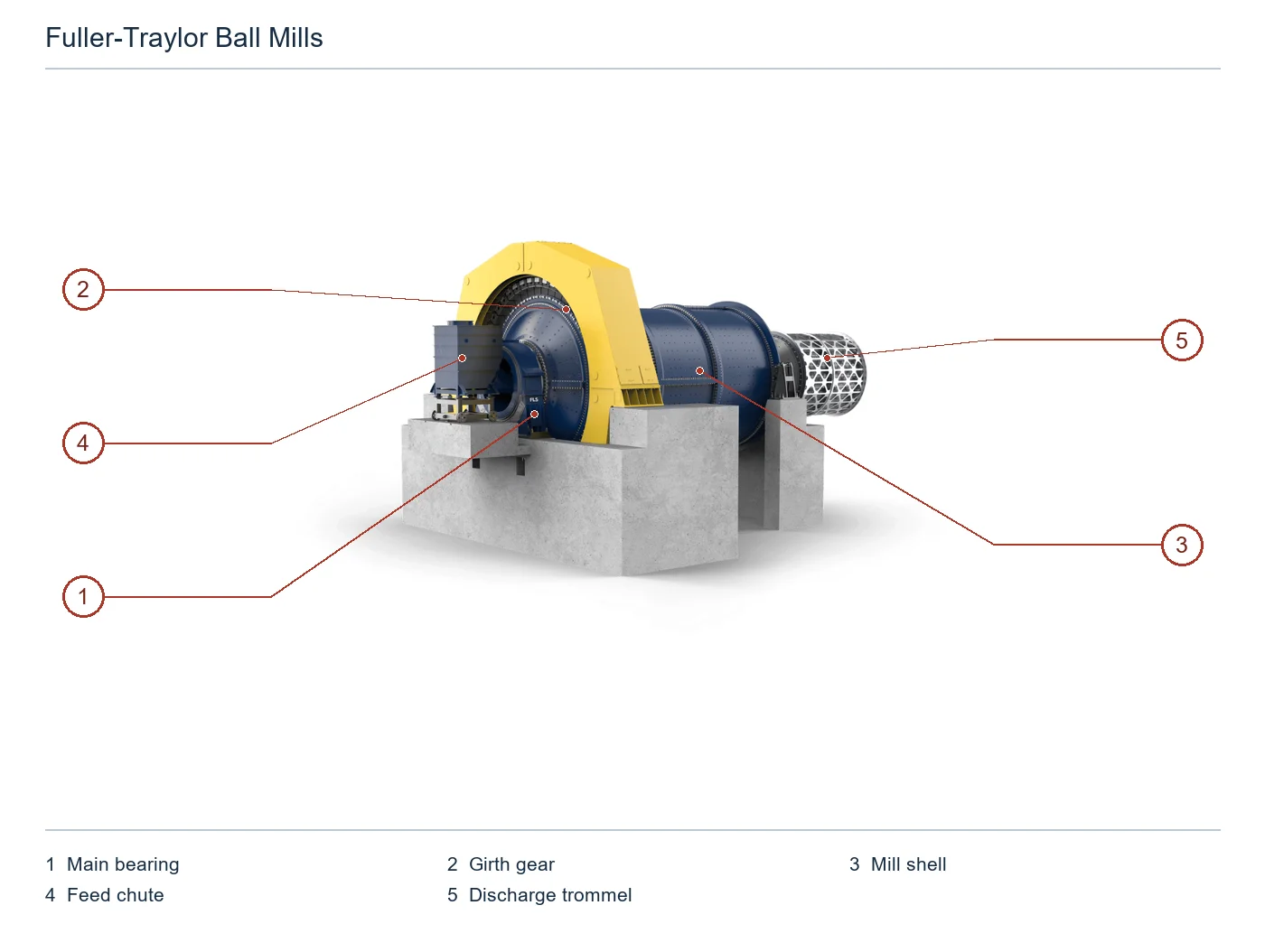

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Main bearing | Main bearing beneath feed-end trunnion | FLS ball mill (current OEM gear-drive rendering configuration; dimensions not specified) |
| 2 | Girth gear | Visible girth gear teeth inside yellow guard at top | FLS ball mill (current OEM gear-drive rendering configuration; dimensions not specified) |
| 3 | Mill shell | Blue mill shell at centre | FLS ball mill (current OEM gear-drive rendering configuration; dimensions not specified) |
| 4 | Feed chute | Grey feed chute at left end | FLS ball mill (current OEM gear-drive rendering configuration; dimensions not specified) |
| 5 | Discharge trommel | Exposed discharge trommel at right end | FLS ball mill (current OEM gear-drive rendering configuration; dimensions not specified) |
Other Components · 5 items
| Component |
|---|
| Ring gear and pinion drive |
| Mill lining |
| Low speed synchronous motor |
| Pneumatic clutch |
| Single transmission pinion |
Fuller Traylor
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Fuller-Traylor ball mill8 items
| No. | Component | Location |
|---|---|---|
| 1 | Main bearing | Cylinder or hollow shaft support |
| 2 | Transmission ring gear | Hartley grinding shell drive side |
| 5 | Discharge drum screen | Optional screening component at discharge end |
| Ring gear and pinion drive | Geared transmission configuration | |
| Mill lining | Inside the cylinder | |
| Low speed synchronous motor | Hartley Mill Drive | |
| Pneumatic clutch | Between Hartley motor and gear drive | |
| Single transmission pinion | Hartley mill drive ring gear side |
