Brand and History
Mining-equipment relationships among Komatsu, Joy Global, P&H and Joy
This page covers brand relationships directly relevant to mining wear parts, drive parts and custom-spare identification. The brands and trademarks belong to their respective owners. ANRANST is an independent technical and supply service and does not claim OEM authorization.
Key Equipment
Use Core Machines to Identify Models, Wear Parts and Heavy-Duty Spares
Six equipment categories directly related to mining wear parts, drive parts and heavy-duty spares form the main entry points.
Core surface mining equipment

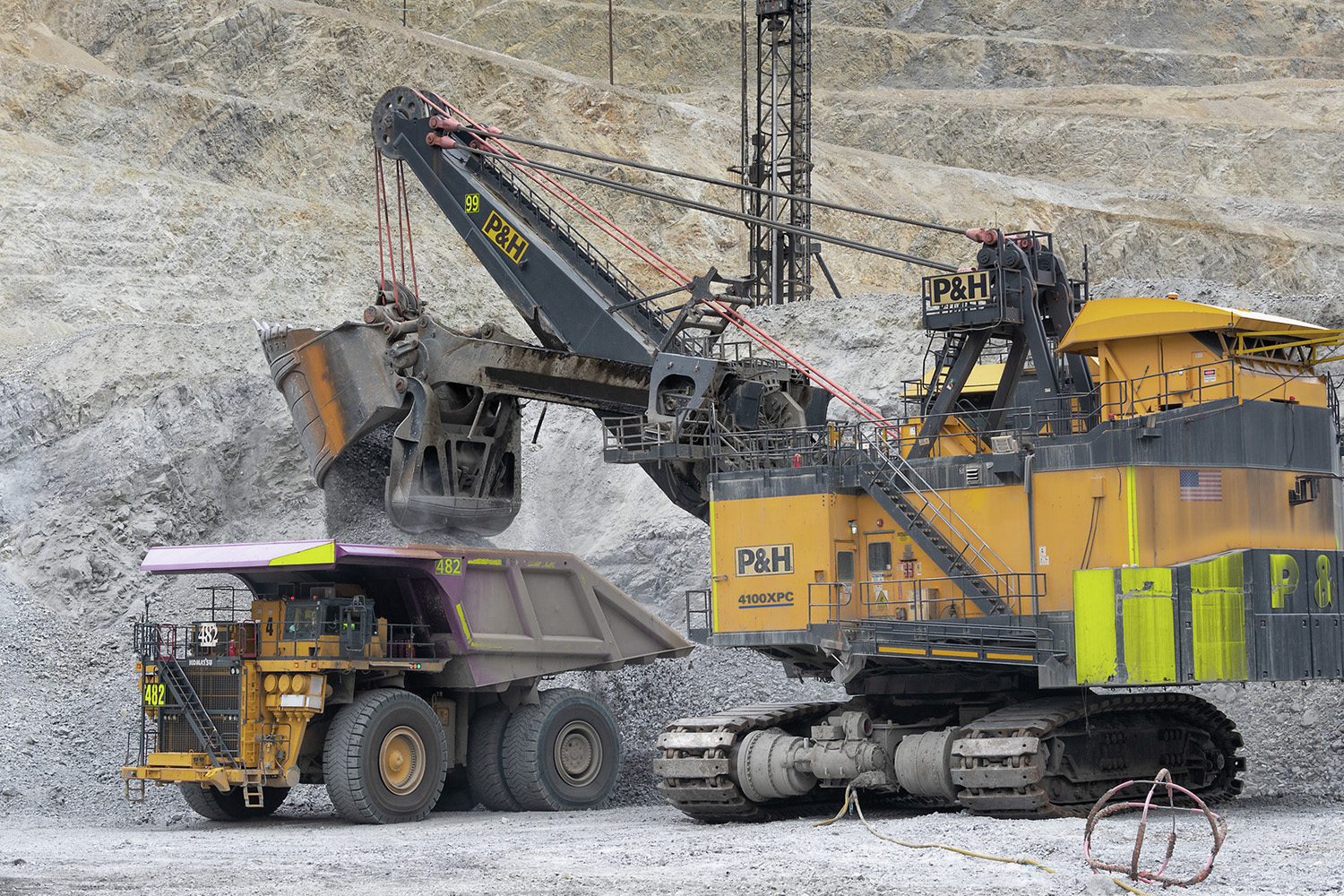

P&H Electric Rope Shovels
1900XPC / 2300XPC / 2800XPC / 4100 / 4800XPC
Identify the model and parts through the dipper and ground-engaging tools, handle, sheaves and ropes, hoist and swing drives, crawler system and major structures.
View OEM Equipment Details →
Core surface mining equipment

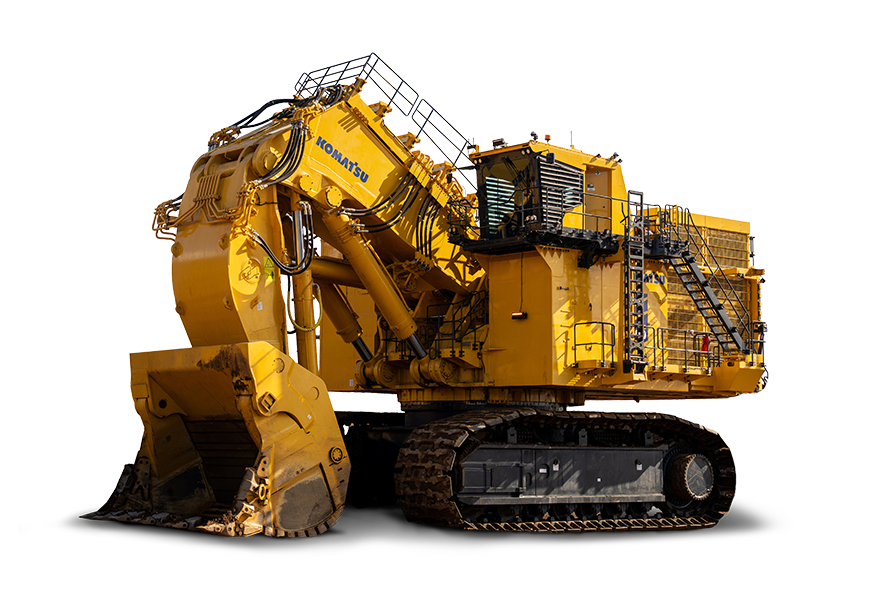

Hydraulic Mining Shovels
PC2000 / PC3000 / PC4000 / PC5500 / PC7000 / PC8000 / PC9000
Confirm front-shovel or backhoe configuration, bucket capacity and operating weight when identifying ground-engaging tools and guards, pins and bushes, swing ring, undercarriage, cylinders and hydraulic-system parts.
View OEM Equipment Details →
Loading and Haulage Equipment

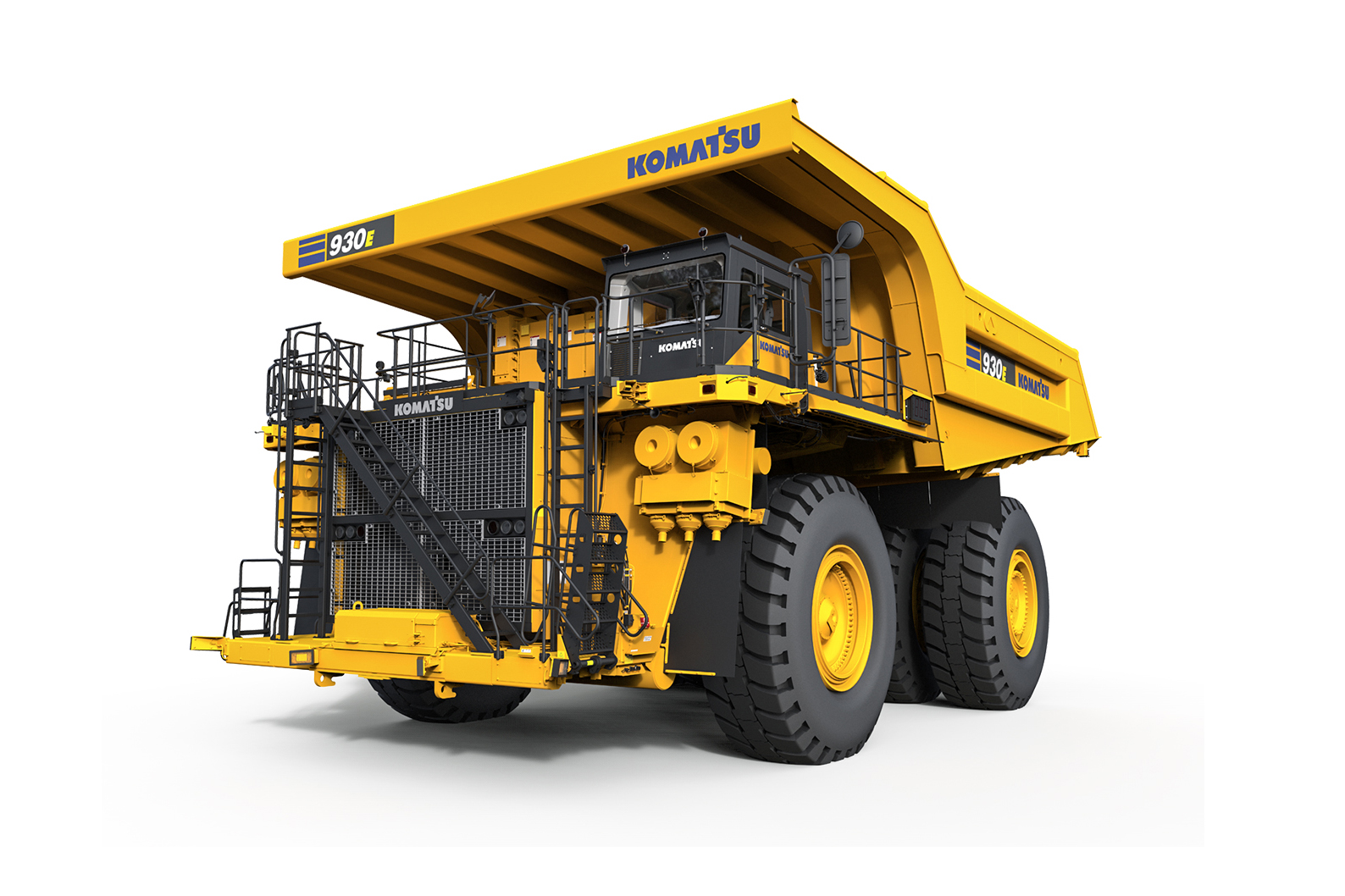

Mining Haul Trucks
730E / 830E / 860E / 930E / 980E and HD Series
Identify the installed machine through body floor and side wear components, suspension and steering, wheel-end and brake systems, electric or mechanical drive, and major structures.
View OEM Equipment Details →
Core Underground Mining Equipment

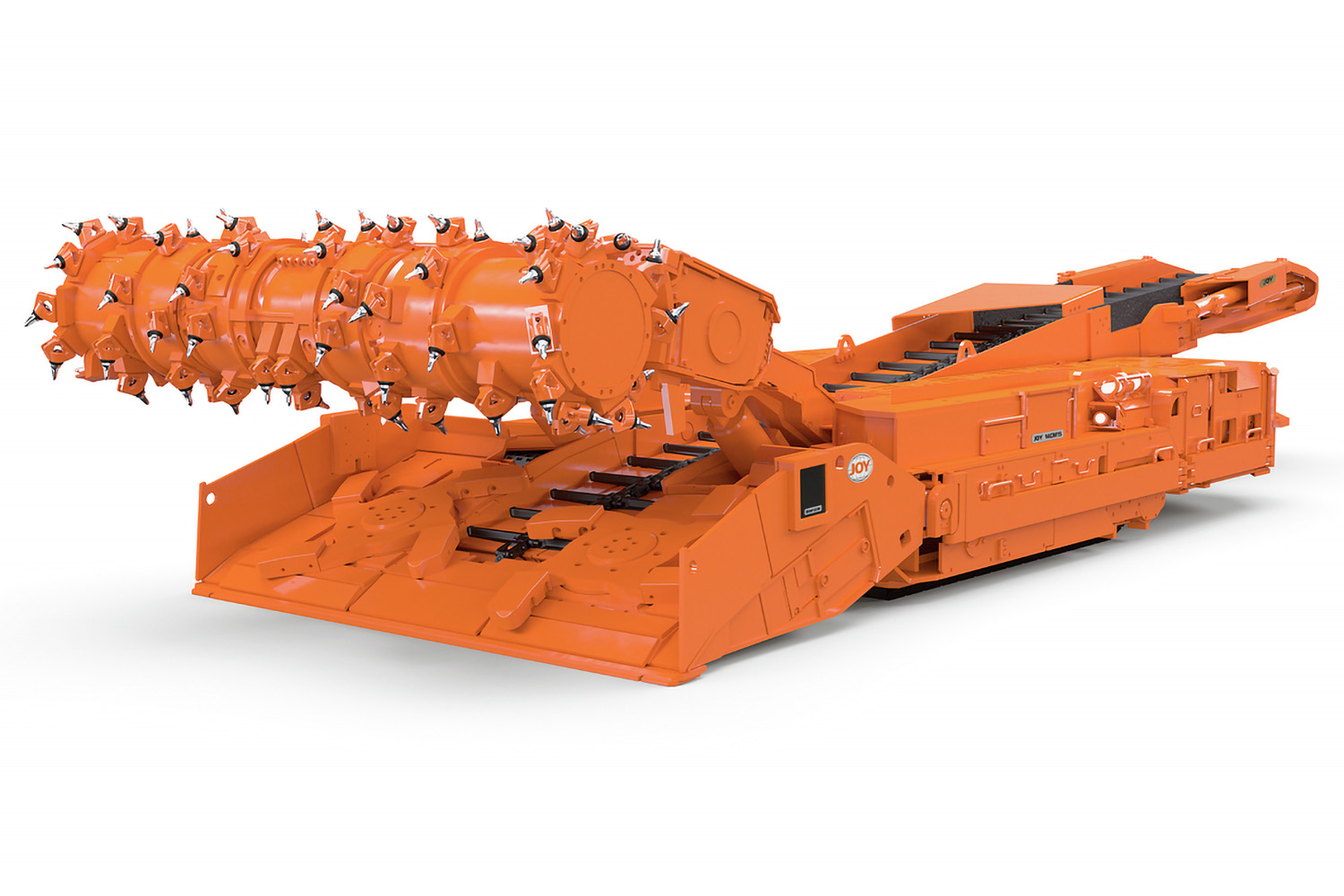

Joy Continuous Miners
12CM / 14CM / 12HM / MC51
Confirm the cutting drum, cutting bits and bit holders, gathering head, conveyor chain and sprockets, crawler system, reduction drives, and hydraulic and electrical interfaces.
View OEM Equipment Details →
Underground Longwall Systems

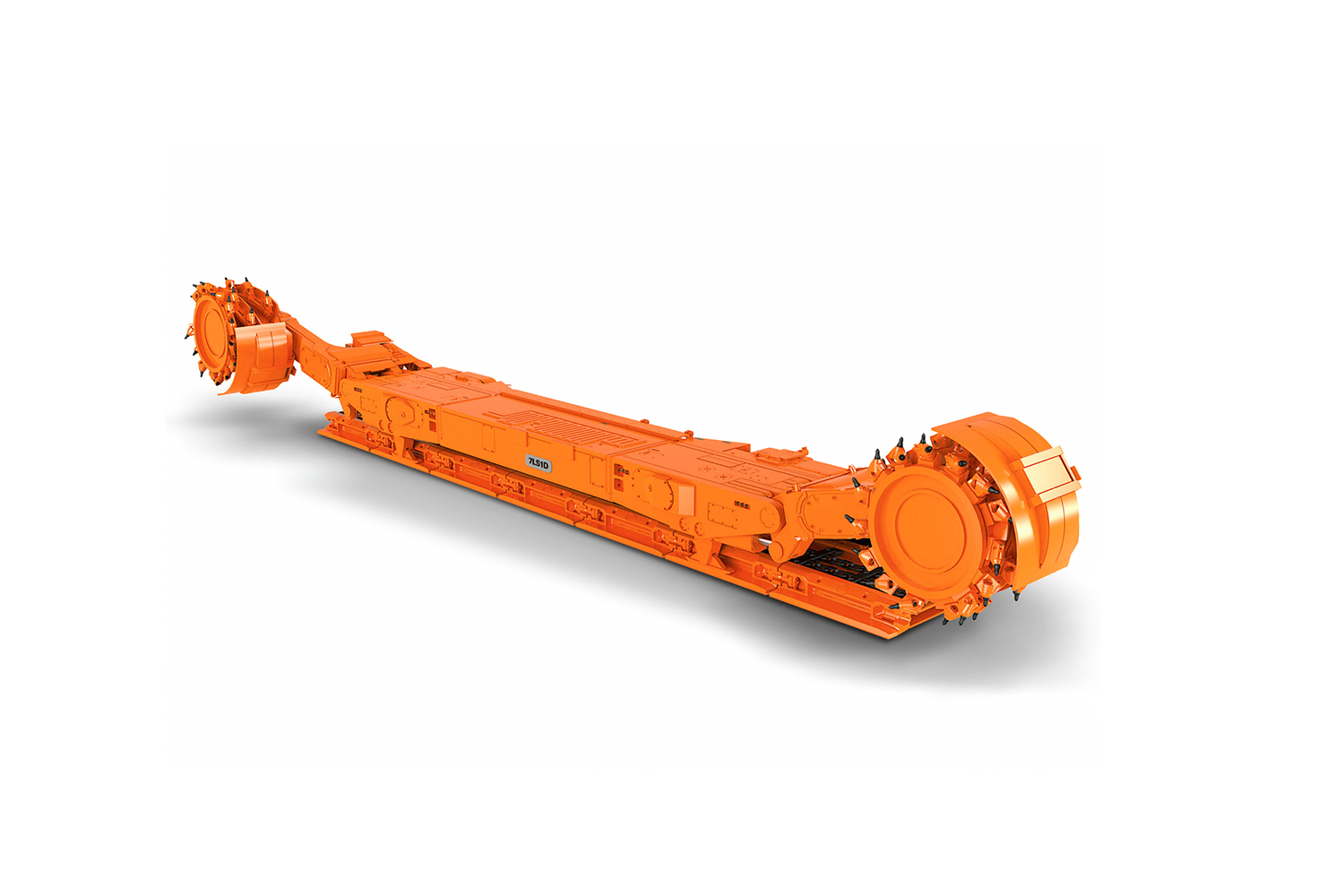

Joy Longwall Mining Systems
7LS Shearer / PRS / AFC / Stageloader / Crusher
Start with the shearer drums, cutting bits, ranging arms and haulage gears, then identify powered-roof-support hydraulics, armored face conveyor, stage loader and crusher parts.
View OEM Equipment Details →
High-Wear Conveying Equipment

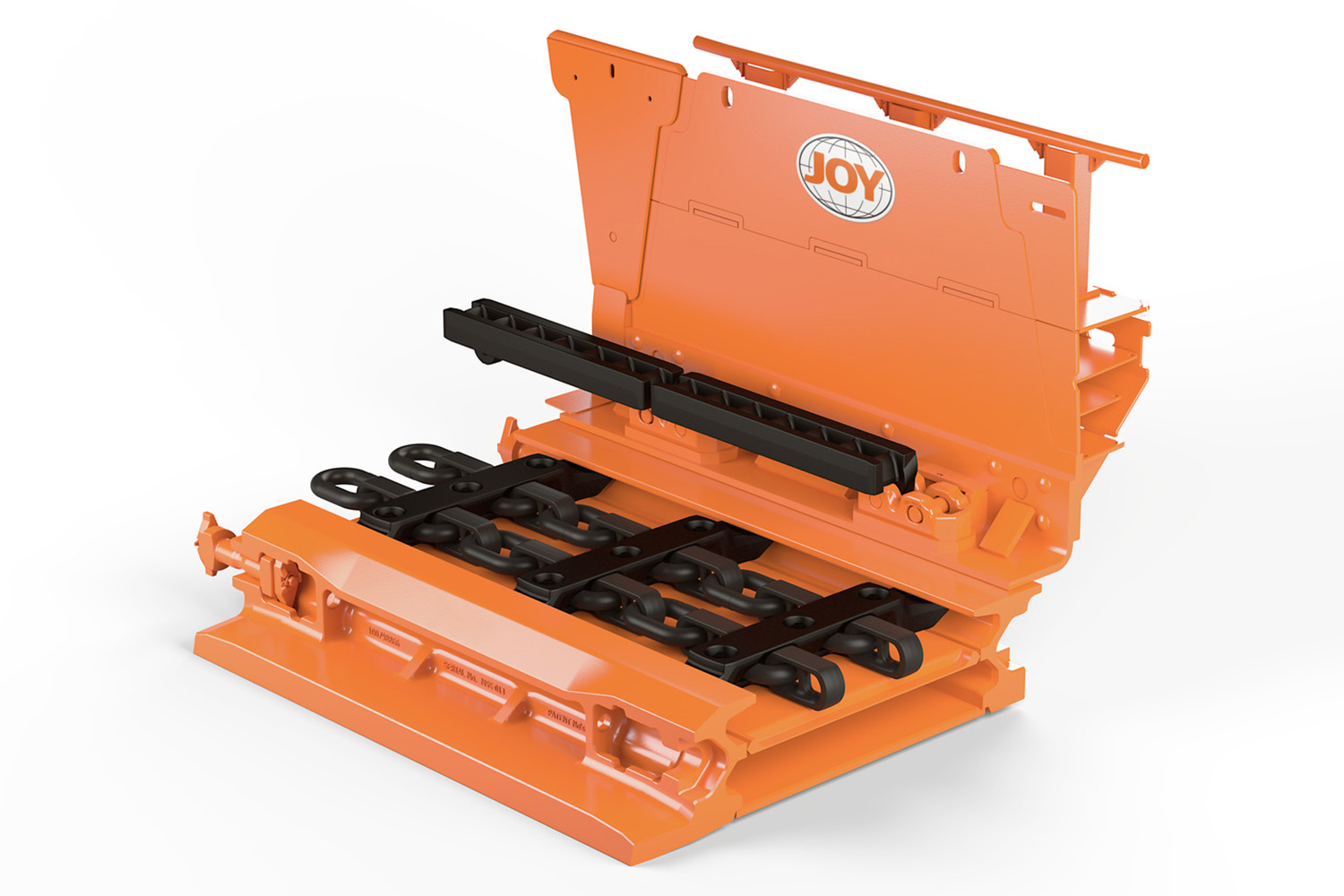

Joy Armored Face Conveyors
Armored Face Conveyor / AFC
Focus on line pans and wear plates, flight bars, chains, sprockets, head and tail frames, gearboxes, couplings and tensioning systems.
View OEM Equipment Details →Current and Legacy Installations
Current Website Series, Standard Models and Core Identification Ranges
Models and values support preliminary identification of installed equipment; they do not imply interchangeability across generations or configurations. Before manufacture and quotation, confirm the complete model, serial number, drawing number and revision, installation position, material and measured dimensions.
| Equipment Series | Model / Configuration | Key Identification Criteria | Product Status |
|---|---|---|---|
| P&H Electric Rope Shovels | 1900XPC, 2300XPC AC, 2800XPC, 4100C AC, 4100C BOSS, 4100XPC, 4100XPC AC-90, 4800XPC | Current published ratings are approximately 18–123 t nominal payload and 11–70 m³ nominal dipper capacity. Confirm the dipper, handle, hoist, crowd, swing and crawler systems. | Current Product Series |
| Hydraulic Mining Shovels | PC2000-11, PC3000-11, PC4000-11, PC5500-11, PC7000-11, PC8000-11, PC9000-12 | Current published bucket capacities are approximately 12–49 m³ and operating weights approximately 202–896 t. Distinguish front shovel from backhoe and diesel from electric-drive configurations. | Current Product Series |
| Electric-Drive Mining Trucks | 730E-10, 830E-5, 860E-1K, 930E-5, 930E-5SE, 980E-5, 980E-5SE | Current published payload ratings are approximately 186–363 t. Confirm frame, body, wheel-end, electric-drive, suspension and brake configurations. | Current Product Series |
| Mechanical-Drive Mining Trucks | HD325-8, HD405-8, HD465-10, HD605-10, HD785-8, HD1500-8E0 | Current published payload ratings are approximately 36.5–139.1 t. Do not mix drive and wheel-end information with the 730E–980E electric-drive series. | Current Product Series |
| Joy Continuous Miners | 12CM12/15/27, 14CM09CC/10/15 series/27 and 12HM26/27/36/46; MC51 hard-rock continuous miner | The published cutting-height range is 1.40–4.60 m for the 12CM12 and approximately 1.86–6.00 m for the 12HM series. Confirm the drum, cutting height, conveyor width and electrical specification. | Current Product Series |
| Joy Longwall Mining Systems | 7LS shearers, custom powered roof supports, AFCs, stage loaders, crushers and mobile tail pieces | Published cutting heights are 1.5–4.5 m for shearers and 0.8–7.8 m for powered roof supports. These are project-configured systems; a single series name does not replace installed-equipment drawings. | Current Engineered Series |
| Joy Armored Face Conveyors | Project-Specific AFC Configurations | Published capabilities are up to 6,000 t/h and 450 m long, with line-pan lengths of 1,503/1,756/2,050 mm. Chains, sprockets and pans must be checked as a system. | Current Engineered Series |
Product Brands and Historic Installed Equipment
Key Brand Paths in the Komatsu Mining System
Use these paths to identify related equipment and parts from nameplates, historic models and existing installations.
P&H Brand covering current and historic electric rope shovels, draglines and related surface-mining equipment. Open the P&H brand profile → Joy Installed-equipment brand covering continuous miners, longwall systems, armored face conveyors, and underground crushing and conveying equipment. Open the Joy brand profile → LeTourneau Historic large wheel-loader brand; the related equipment later became part of Joy Global and the Komatsu mining business. Open the LeTourneau brand profile → Montabert Hydraulic-breaker and rock-drilling brand that Komatsu's 2017 acquisition-completion announcement said it would continue to support. Open the Montabert brand profile →
Part Identification and Supply
Komatsu Installed-Equipment Identification and General Part and Material Paths
The OEM path establishes the Komatsu, P&H or Joy brand, equipment, model and number. The general path explains materials, operating conditions, manufacturing and inspection requirements for the corresponding part categories before technical confirmation and inquiry.
OEM Brands Find installations by brand, country and equipment category Return to brands → General Equipment Catalogue Find general technical guidance by machine structure and part installation position Open the equipment catalogue → General Components and Materials Check wear parts, drivetrain components, materials, manufacturing processes and inspection requirements Open the parts catalogue →
