Spider Bushing Oil Seal

Name: Spider Bushing Oil Seal
Brand: ANRANST

Retains spider bushing lubricant and excludes water and dust.

Spider Bushing Oil Seal (Spider Bushing Oil Seal)— Gyratory Crusher Wear part, position 20.

Installation and Function

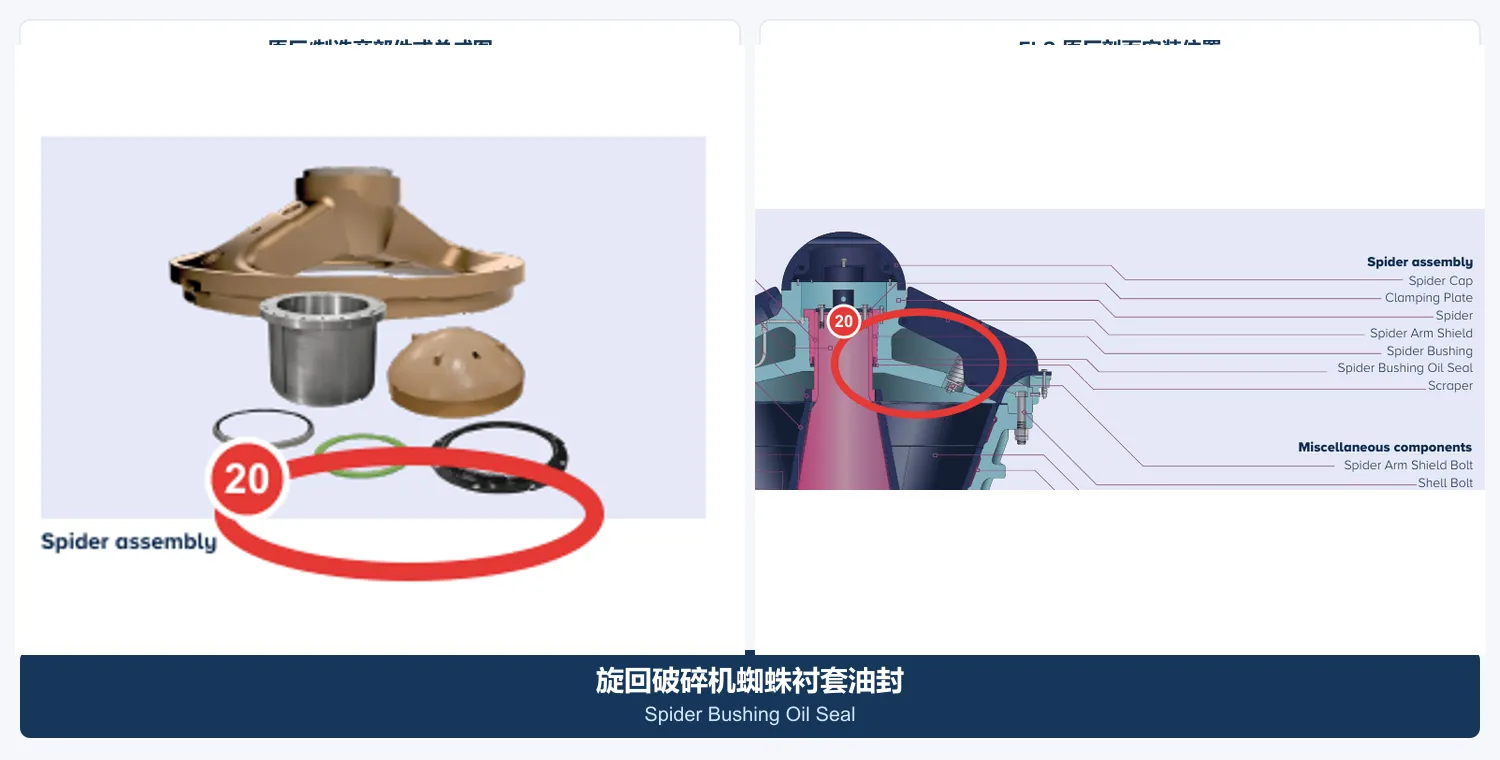

Installation Position	At the boundary of the spider-bushing lubrication chamber, corresponding to location 20 in the FLS cutaway diagram marked on this site.
Main Function	Retains spider bushing lubricant and excludes water and dust.
Replacement Frequency	Medium to high replacement frequency; replace for leakage, hardening, lip damage or contaminant ingress.

Materials and Mechanical Properties

Item	Details
Material Options	NBR, HNBR, FKM or PTFE/elastomer composite seals
Typical Properties and Acceptance Criteria	Select for compatibility with the grease or oil, temperature, dust and oscillation speed. Control seal lips, joints, hardness, compression set and installation preload. Worn mating faces, eccentricity and abnormal spider bushing clearance can greatly shorten seal life.
Principal Failure Mechanism	Sliding and three-body abrasion, local impact and cracking around fastener holes; contact fatigue, lubricant contamination, overheating, seizure and seal failure; wear, ageing, extrusion, fluid incompatibility and leakage

Material and Design Considerations

Identify material hardness, particle size, abrasiveness, moisture, temperature, pH, impact and tramp material;
High hardness does not replace core toughness, fatigue strength, corrosion resistance or high-temperature performance;
For composite, hardfaced, ceramic and elastomer designs, assess substrate bonding, edge protection, fastening and maintainability;
For parts that mate with shafts, gears, seals, roll surfaces or housings, control fits, tolerances, surface finish and assembly clearances together;
Assess material upgrades using cumulative throughput, dimensional wear, failure modes, product quality and downtime costs.

Required Ordering / RFQ Information

Equipment manufacturer, machine model, serial number, part number and latest drawing revision;
Part dimensions, unit weight, key tolerances, assembly and fastening method;
Current material, chemical composition, heat treatment, hardness and mechanical property reports;
Processed material, maximum particle size, hardness/abrasiveness, moisture and tramp material records;
Speed, load, temperature, pressure, process medium chemistry and continuous operating time;
Failure photographs, wear measurements, crack/fracture locations and current service life;

Materials and values are for preliminary engineering selection. Final chemical composition, heat treatment, hardness and dimensional tolerances must follow the OEM drawings and technical agreement.
