What other names or designations is the Thickener and clarifier known by?
The Thickener and clarifier is also documented under these designations: Hardinge historical thickeners / clarifiers, Hardinge, Hardinge thickener.
Thickener and clarifier
Thickener / clarifier · 1939 · 1 model
Hardinge
HardingeBrand
Thickener / clarifierEquipment type
1939Period
Historical modelStatus
Hardinge
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Hardinge historical thickeners / clarifiers | Hardinge; Hardinge thickener | 1939 | 1 |
Hardinge
Numbered Components

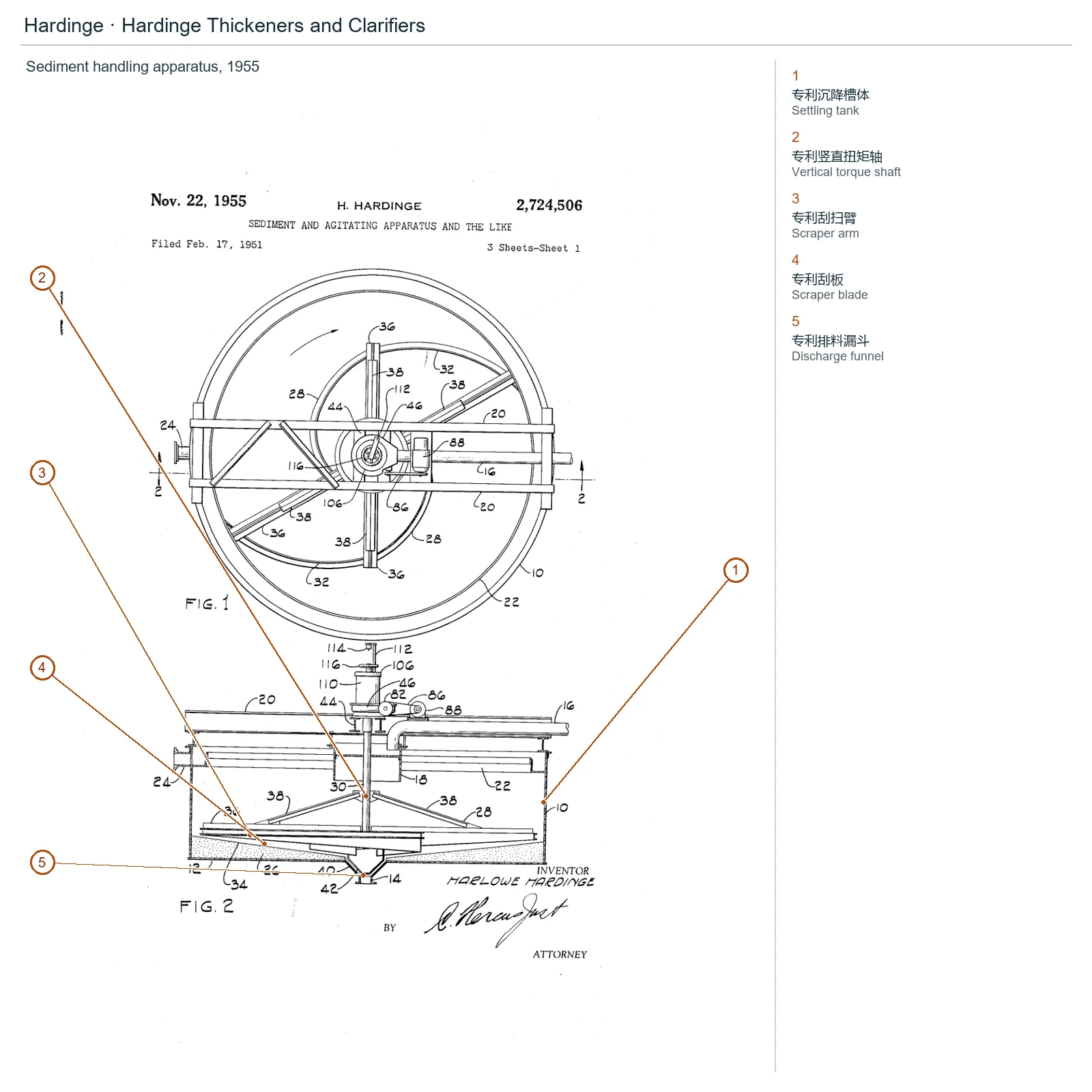

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Settling tank | Visible settling tank in Sediment handling apparatus, 1955 | US2724506 patented design |
| 2 | Vertical torque shaft | Visible vertical torque shaft in Sediment handling apparatus, 1955 | US2724506 patented design |
| 3 | Scraper arm | Visible scraper arm in Sediment handling apparatus, 1955 | US2724506 patented design |
| 4 | Scraper blade | Visible scraper blade in Sediment handling apparatus, 1955 | US2724506 patented design |
| 5 | Discharge funnel | Visible discharge funnel in Sediment handling apparatus, 1955 | US2724506 patented design |
Hardinge
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Hardinge historical thickeners / clarifiers1 item
| Component | Location |
|---|---|
| Entry Hardinge Condensation Tank | Mud at the bottom of the tank, clear liquid overflowing from the top of the tank; no rake manufacturing structure original text |
Frequently asked questions
Which brand and type of equipment is the Thickener and clarifier?
The Thickener and clarifier is listed under the Hardinge brand as: Thickener / clarifier. Period: 1939. Status: Historical model.
Which components and wear parts are recorded for the Thickener and clarifier?
1 component is recorded, including: Entry Hardinge Condensation Tank. The full list with locations is in the components table on this page.
How do I enquire about parts for the Thickener and clarifier?
Send us a drawing or sample and tell us the equipment model and part name.
