What other names or designations is the Weigh feeder known by?
The Weigh feeder is also documented under these designations: Hardinge constant weight feeder, Hardinge Feedometer Size B, Hardinge Feedometer Size C, Hardinge Feedometer Size D.
Weigh feeder
Weigh feeder · 1951 · 1 model
Hardinge
HardingeBrand
Weigh feederEquipment type
1951Period
Historical modelStatus
Hardinge
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Hardinge constant weight feeder (Feedometer) | Hardinge Constant Weight Feeder; Hardinge Feedometer Size B; Hardinge Feedometer Size C; Hardinge Feedometer Size D | 1951 | 12 |
Hardinge

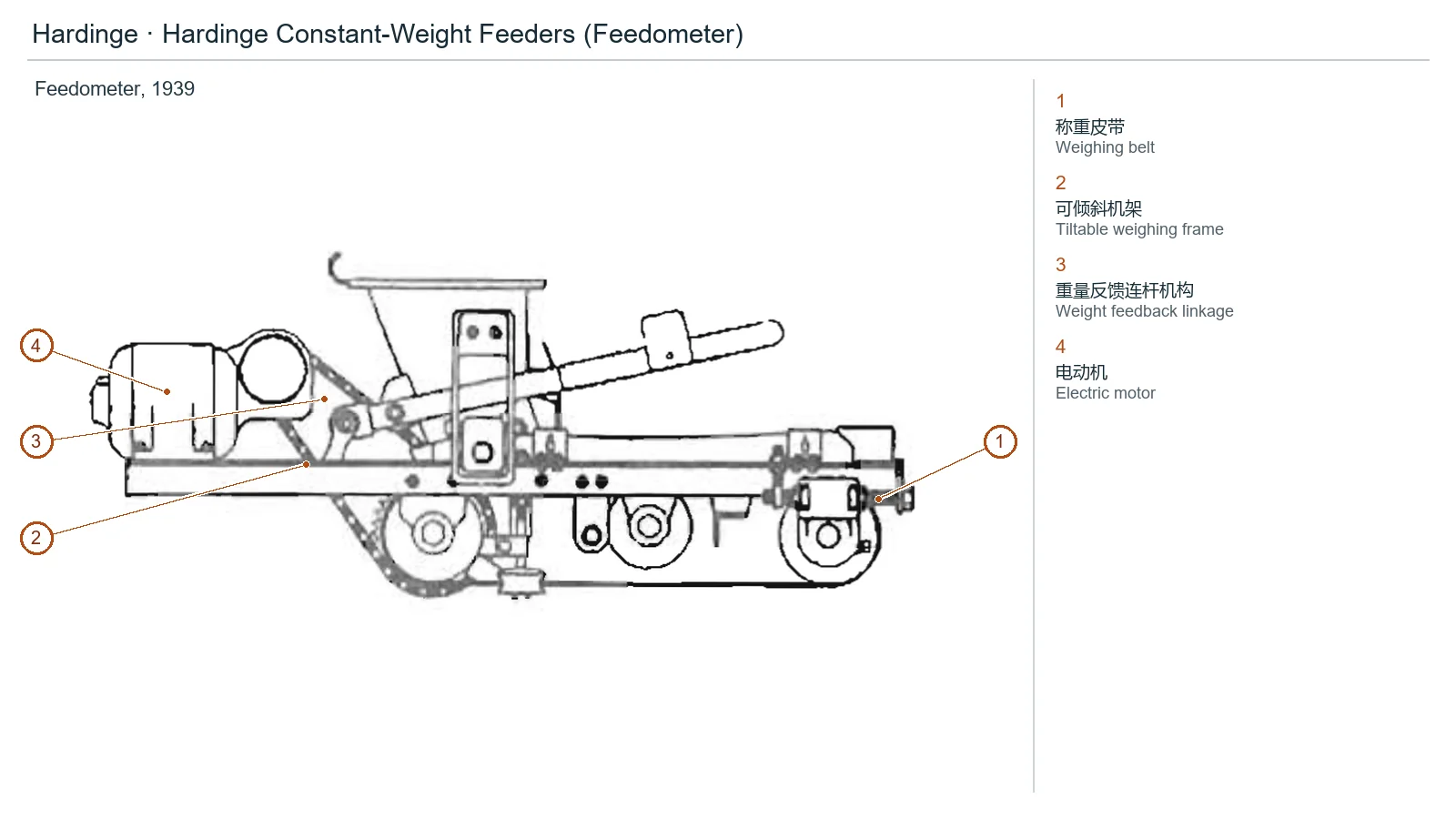

Numbered Components
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Weighing belt | Visible weighing belt in Feedometer, 1939 | 1939 Feedometer |
| 2 | Tiltable weighing frame | Visible tiltable weighing frame in Feedometer, 1939 | 1939 Feedometer |
| 3 | Weight feedback linkage | Visible weight feedback linkage in Feedometer, 1939 | 1939 Feedometer |
| 4 | Electric motor | Visible electric motor in Feedometer, 1939 | 1939 Feedometer |
Hardinge
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Hardinge constant weight feeder (Feedometer)12 items
| No. | Component | Location |
|---|---|---|
| 1 | Weighing belt | With the weight of the material acting on the tiltable frame |
| 2 | Tiltable frame | Belt load and weight feedback |
| 3 | Weight feedback linkage mechanism | Connection from tilt frame to gate |
| Feeding gate | Hopper unloading position | |
| Belt variable speed drive | Feeding belt drive | |
| Visual feeding indicator (optional) | On-site feeding amount display | |
| Accumulating meter and resettable counter (optional) | Accumulated or batch weight record | |
| Printing accessories and reset mechanism (optional) | Card accumulation/batch printing | |
| Control room recording chart (optional) | Remote control room | |
| Button and scale indication remote feeding volume control (optional) | Remote feeding rate control | |
| Proportional feeding interlock system (optional) | Between two or more feeders | |
| No-load shutdown accessories and signals (optional) | Empty material/bridging monitoring and shutdown |
Frequently asked questions
Which brand and type of equipment is the Weigh feeder?
The Weigh feeder is listed under the Hardinge brand as: Weigh feeder. Period: 1951. Status: Historical model.
Which components and wear parts are recorded for the Weigh feeder?
12 components are recorded, including: Weighing belt, Tiltable frame, Feeding gate, Weight feedback linkage mechanism, Belt variable speed drive, Visual feeding indicator (optional), Accumulating meter and resettable counter (optional), Printing accessories and reset mechanism (optional) and more. The full list with locations is in the components table on this page.
How do I enquire about parts for the Weigh feeder?
Send us a drawing or sample and tell us the equipment model and part name.
