What other names or designations is the Jeffrey Rader DynaGage Bar Screens known by?
The Jeffrey Rader DynaGage Bar Screens is also documented under these designations: Jeffrey Rader DynaGage, 816, 824, 1016, 1024, 1032.
Jeffrey Rader DynaGage Bar Screens
2012 · 1 model
TerraSource Global
TerraSource GlobalBrand
2012Period
Historical modelStatus
TerraSource Global
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Jeffrey Rader DynaGage | 816; 824; 1016; 1024; 1032 | 2012 | 4 |
TerraSource Global
Numbered Components

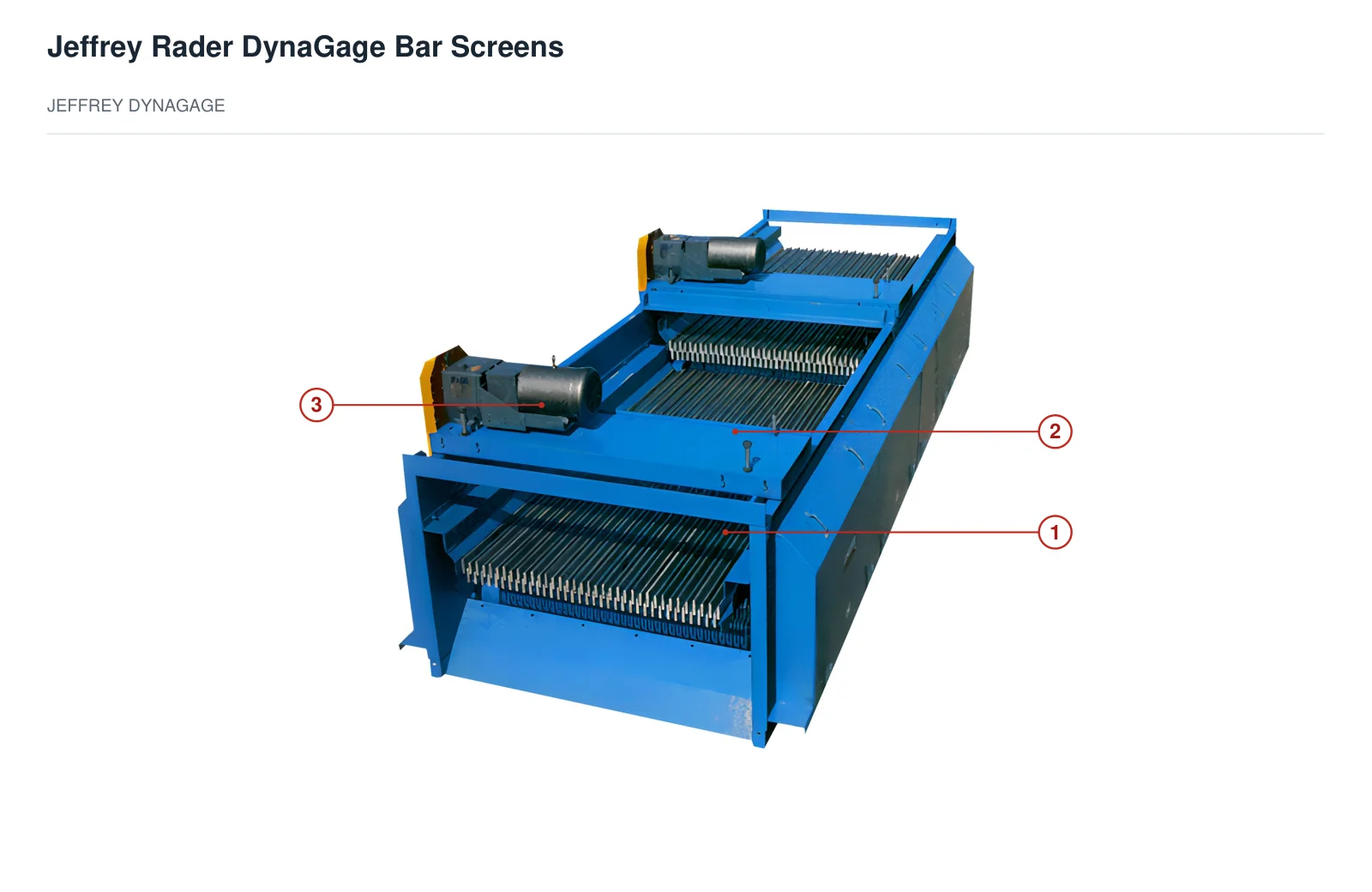

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location |
|---|---|---|
| 1 | Classifying bar | Classifying bars in the screen module |
| 2 | Screen-deck module | Stepped screening module |
| 3 | Drive motor | Motor outside the independently driven deck |
Other Components · 1 item
| Component |
|---|
| Eccentric shaft |
TerraSource Global
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Jeffrey Rader DynaGage4 items
| No. | Component |
|---|---|
| 1 | Screen bar |
| 2 | Model-specific component |
| 3 | Drive Electric motor |
| Eccentric shaft |
Frequently asked questions
Which brand and type of equipment is the Jeffrey Rader DynaGage Bar Screens?
The Jeffrey Rader DynaGage Bar Screens is listed under the TerraSource Global brand. Period: 2012. Status: Historical model.
Which components and wear parts are recorded for the Jeffrey Rader DynaGage Bar Screens?
4 components are recorded, including: Screen bar, Eccentric shaft, Drive Electric motor and more. The full list with locations is in the components table on this page.
How do I enquire about parts for the Jeffrey Rader DynaGage Bar Screens?
Send us a drawing or sample and tell us the equipment model and part name.
