2012 · 1 model
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Gundlach NANOSIZ-R | 440S; 460S; 460HC; NANOSIZ-R; NANOSIZ-R HC | 2012 | 6 |

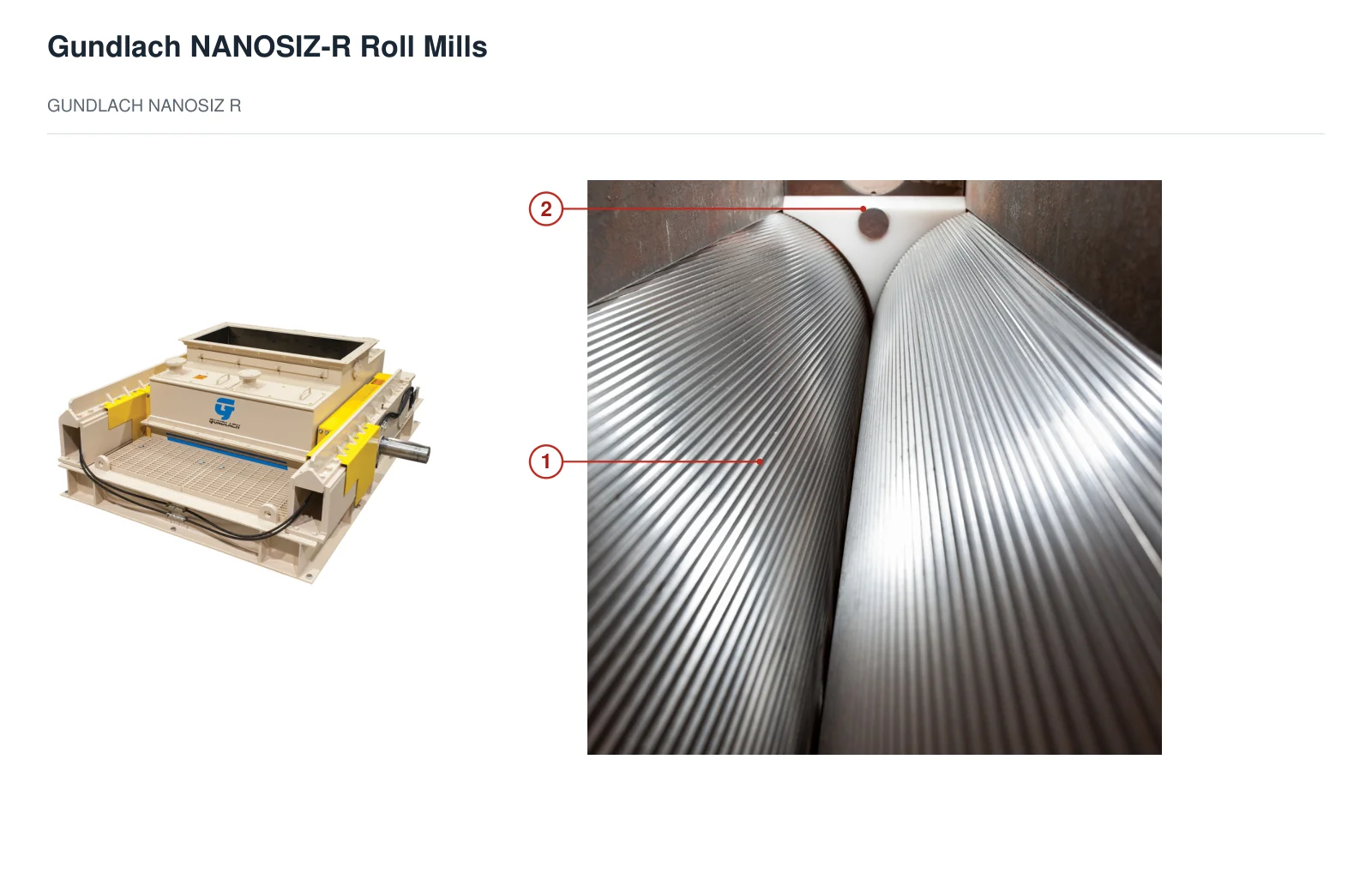

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location |
|---|---|---|
| 1 | Corrugated grinding roll | Opposed corrugated rolls inside the grinding chamber |
| 2 | End liner | Chamber end wall above the rolls |
| Component |
|---|
| Side liner |
| Roll bearing |
| Shaft seal |
| Gap adjustment assembly |
Models with the same components are grouped together; select a group to open its component table.
| No. | Component |
|---|---|
| 1 | Grinding roller |
| 2 | End Plate Liner |
| Side Liner / Side Plate | |
| Model-specific component | |
| Shaft seal | |
| Model-specific component |
The Gundlach NANOSIZ-R / NANOSIZ-R HC Roll Mills is also documented under these designations: Gundlach NANOSIZ-R, 440S, 460S, 460HC, NANOSIZ-R, NANOSIZ-R HC.
The Gundlach NANOSIZ-R / NANOSIZ-R HC Roll Mills is listed under the TerraSource Global brand. Period: 2012. Status: Historical model.
6 components are recorded, including: Grinding roller, Side Liner / Side Plate, End Plate Liner, Shaft seal and more. The full list with locations is in the components table on this page.
