2012 · 1 model
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Jeffrey Rader ADS | ADS; ADS 24 x 36; ADS 24 x 48; ADS 24 x 60; ADS 24 x 72; ADS 24 x 84 | 2012 | 5 |

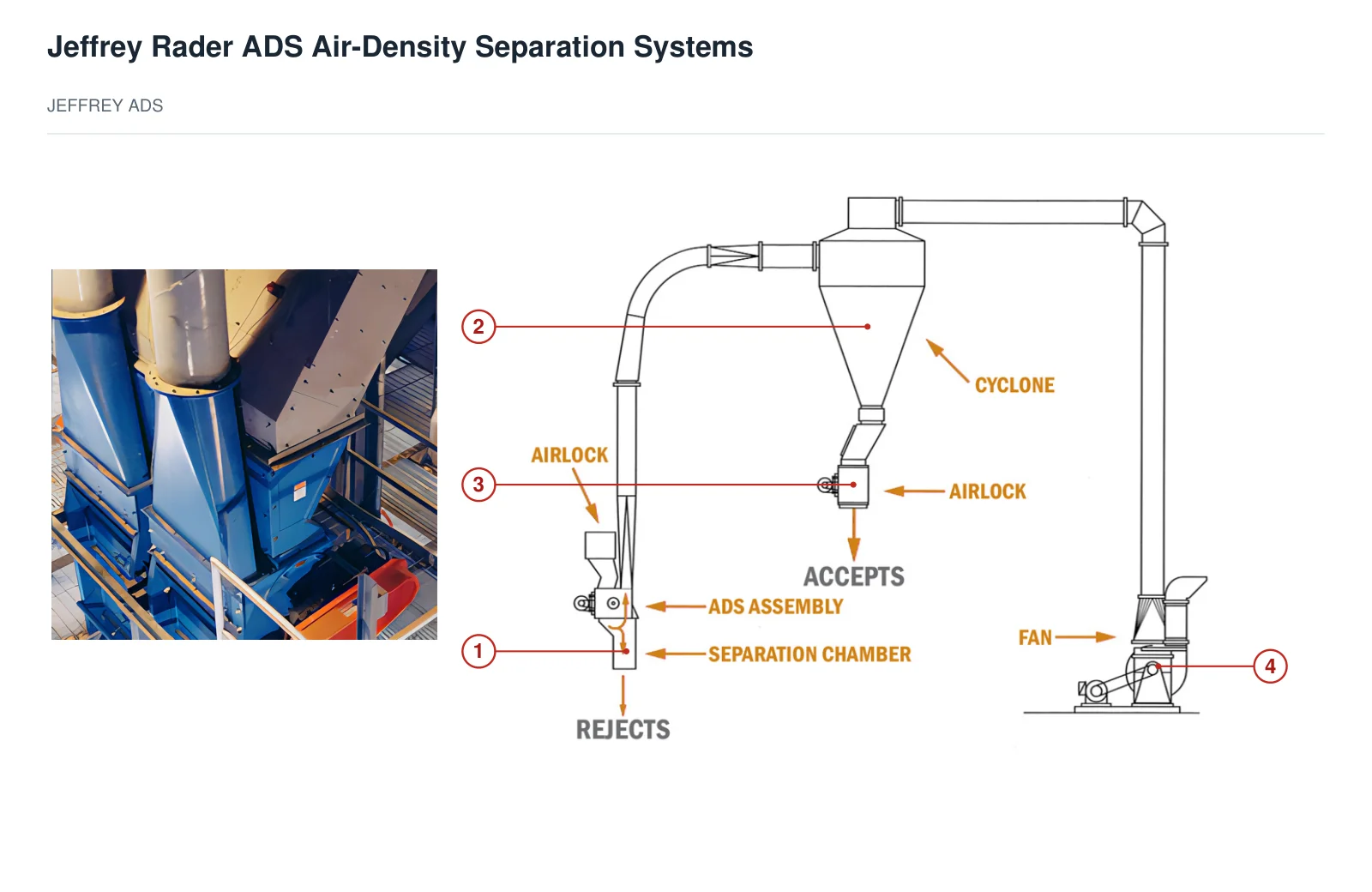

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location |
|---|---|---|
| 1 | Separation chamber | Heavy-reject chamber at the lower left of the flow diagram |
| 2 | Cyclone | Cyclone at the upper centre of the loop |
| 3 | Rotary airlock | Airlock below the cyclone cone |
| 4 | Centrifugal blower | Air-circulation fan at the lower right |
| Component |
|---|
| Air damper |
Models with the same components are grouped together; select a group to open its component table.
| No. | Component |
|---|---|
| 1 | Separation chamber |
| 2 | Cyclone separator |
| 3 | Model-specific component |
| 4 | Centrifugal blower |
| Model-specific component |
The Jeffrey Rader ADS Air-Density Separation Systems is also documented under these designations: Jeffrey Rader ADS, ADS, ADS 24 x 36, ADS 24 x 48, ADS 24 x 60, ADS 24 x 72, ADS 24 x 84.
The Jeffrey Rader ADS Air-Density Separation Systems is listed under the TerraSource Global brand. Period: 2012. Status: Historical model.
5 components are recorded, including: Separation chamber, Cyclone separator, Centrifugal blower and more. The full list with locations is in the components table on this page.
