Pennsylvania Crusher Equipment, Models and Spare Parts

Equipment Series and Installed-Model Identification

Pennsylvania Crusher Equipment and Hammer Products

Identify complete machines, specific models and hammer products separately. Equipment from other TerraSource Global brands is not included as Pennsylvania Crusher equipment.

Rotary raw-coal breaking and cleaning

Bradford Breaker

The Bradford Breaker lifts material inside a rotating drum and uses gravity impact to size raw coal and separate unwanted material. Type RMD uses trunnion-roller support. Key spare parts include screen plates, lifting flights, internal deflectors, drive ring gears and trunnion rollers.

Equipment Overview Screen / Perforated Plates Lifting Flights Drive Ring Gear Trunnion Rollers Drum Liners End-Plate Liners Bearings / Bearing Housings Feed Chute Liner Discharge Chute Liners

Diameter × length configurations

9′×12′, 9′×16′, 9′×20′, 9′×24′; 12′×16′, 12′×20′, 12′×24′, 12′×28′; 14′×20′, 14′×24′, 14′×28′, 14′×32′. These dimensions support installed-equipment identification only. Installation must follow certified drawings.

Twin-rotor sizing

Mountaineer II Sizer

Mountaineer II uses modular rotors, replaceable bolt-on tooth segments, a link gearbox and a common base. Timed and direct-drive untimed versions exist. Confirm rotor configuration, tooth-segment arrangement, link gearbox and drive type when enquiring about spares.

Sizer Equipment Tooth Segments / Tooth Caps Roll Shafts Gearboxes and Drives Bearings and Bearing Housings Tooth-Segment Bolts Roll Bodies Side Liners / End Plates Base Liners Scrapers / Cleaners Fluid Couplings

Model references

5010, 5020, 5025, 5030, 6510, 6520, 6530, 8013, 8020, 8030, 10010, 10020, 10030. Performance, feed size, product size and power requirements depend on the material and configuration.

Ring-hammer granulation

TKK Koal-King Granulator

The TKK Koal-King Granulator processes coal, limestone, gypsum and other friable materials. Material first encounters ring-hammer impact and the breaker plate, then is sized by rolling compression between the ring hammers and screen plates. The rear-opening design provides access for rotor maintenance and hammer replacement.

TKK Equipment Ring Hammers Screen / Grate Plates Breaker Plates Rotor Discs Hammer Pins / Rotor Pins Housing Liners Side Liners Feed Chute Liner Bearings / Bearing Housings Adjustment Mechanisms

Key identification details

Confirm machine size, rotor width, ring-hammer arrangement, screen openings, breaker-plate design, bearing-housing type and adjustment mechanism. Dimensional tables must be checked against certified project drawings. ANRAN project references also include TKK 60103-CSM-PCC and assembly drawing references GN22600103 and GN260-211-HF232; confirm these project identifiers against the customer's drawings.

Symmetrical crushing chamber and reversible rotor

FBR / SXCA-G Reversible Hammermill

FBR reversible hammermills process fluidized-bed boiler fuel, limestone and other minerals. Reversing the rotor alternates wear between the two hammer faces. Pennsylvania Crusher SXCA/G 104-42 is a historical installation with six hammer rows. Both are listed for reversible-hammermill identification, without implying parts interchangeability.

Hammermill Equipment Hammers Screen Plates Breaker Plates / Liners Rotor Discs Rotor Shafts

Historical model references

FBR: 422, 423, 424, 483, 484, 485, 545, 547, 549; SXCA/G: 104-42. Confirm dimensions, parts and application scope against the corresponding serial number, general arrangement and part drawings.

Wet and low-grade coal crushing

Coal Impactor

Coalpactor uses an open-bottom, free-air impact design for wet or low-grade coal. Key maintenance parts include forged hammers, breaker blocks, hammer suspension discs and bars, replaceable liners, rotors, bearings and split bearing housings.

Coalpactor Equipment Swing Hammers Breaker Plates Frame Liners Rotor Shafts Hammer Suspension Discs Split Bearing Housings Hammer Suspension Bars Breaker-Plate Adjustment Frames Retrofit Cage Crushing-Surface Segments Spherical Roller Bearings Bearing Seals

Models and configuration limits

The identification references include 7020; multiple sizes and configurations exist. Supply the nameplate, rotor width, hammer arrangement, breaker-block details and housing drawings with your enquiry.

Reversible impact crushing

Reversible Impactor：CAL, CA, CXF, CXC

Developed by Pennsylvania Crusher in 1937, this product family includes CAL, CA, CXF and CXC models. The open-bottom design has no screen bars. Principal spares include impact hammers, breaker blocks, rotor assemblies, frame liners and adjustment mechanisms.

Impact Crusher Equipment Impact Hammers / Striking Elements Breaker Blocks and Impact Parts Rotor Assemblies Side Liners

Model references

CAL: 3-32A, 5-32A, 5-38A, 7-38A, 9-38A, 11-38A, 13-38A, 11-44A, 15-44A, 19-44A; CA: 6-36, 8-48, 8-60, 10-60; CXF/CXC: 00-16, 3-26. Confirm equipment selection and parts against the full model designation, serial number and drawings.

Crushing hard and abrasive materials

Jaw Crushers

Pennsylvania Crusher jaw crushers compress material between fixed and moving jaw plates. An intermeshing-tooth cullet plate design is used for glass cullet. ANRAN production references include jaw-plate identifiers 502003 and 05AM15030-151AB; confirm the specific machine model and installation position against the customer's drawings.

Jaw Crusher Equipment Fixed Jaw Plates Moving Jaw Plates Toggle Plates Eccentric Shafts Spherical Roller Bearings Upper Cheek Plates Lower Cheek Plates Feed Guide Plates Intermediate Plates Swing-Jaw / Front-Frame Protection Plates Toggle Seats Jaw-Plate Clamping Wedges Discharge-Setting Wedges Tension Rods Tension Springs Labyrinth Seal Rings

Identification limits

The historical equipment range includes feed sizes up to 48 in (1219 mm) and nominal product sizes down to 3/4 in (19 mm). This overview does not replace certified drawings for a specific model.

Low-speed impact, shear and compression

Type K Single Roll Crusher

The Pennsylvania Crusher Type K single-roll crusher processes friable materials with compressive strengths no greater than 8,000 psi, including coal, petroleum coke and lignite. It can also break lumps of potash, chemicals and salts. The open bottom has no screen bars. Identify roll teeth, roll shells, crushing plates, adjustment shims, bearings and drive parts.

Roll Crusher Equipment Roll Teeth / Roll-Shell Segments Roll Shafts Bearings and Bearing Housings Drives and Couplings

Diameter × roll-face length

24×30, 24×40, 24×50, 24×60, 30×50, 30×60, 30×72, 30×100 in. Use these dimensions for initial identification; verify the final specification against the nameplate, serial number and certified drawings.

Continuous controlled feeding

POSIFLOW Feeders

POSIFLOW is a historical Pennsylvania Crusher feeder for wet, dry, lumpy, sticky, abrasive or granular materials. This entry supports historical equipment and spare-parts identification; it does not establish current models, performance ratings or interchangeable parts.

Send the Feeder Nameplate and Drawings

Enquiry requirements

Equipment nameplate, full model designation, serial number, feed capacity, material, rotor or conduit arrangement, drive details and existing part drawings. Confirm current supply or replacement options for the specific project.

Replacement hammers, not complete machines

Big Buster and PennAlloy 2000 Forged Steel Hammers

Big Buster hammers build on the PennAlloy 2000 forged steel hammer design with hardfacing on both working faces. PennAlloy 2000 hammers can be supplied in weight-matched sets with heat-batch traceability. These are hammer products, not complete crushers.

Swing Hammers / Hammers Enquire About Hammers

Historical specifications and scope

11, 16½, 20 and 50 lb, including half-head end-hammer options. These describe the historical product range only. ANRANST quotations depend on current drawings, worn samples, individual weights, set-matching requirements, materials and heat-treatment requirements.

Related Brands

Other TerraSource Global Equipment Brands

Mini-Mill, 30ABE and 34ABE belong to Jeffrey Rader. Cage-Paktor 1C3R/2C4R, 2000/3000/4000/5000 Series Roll Crushers and GC Roll Crushers belong to Gundlach. Although associated with TerraSource Global, these are not Pennsylvania Crusher machines and must be identified under their respective brands.

Return to OEM Brands Send a Nameplate for Brand Identification

Part and Drawing References

32 Part and Drawing Identifiers

Part / Drawing References	Revision	Part type	Identification requirements
528294	B	Ring Hammers	Check the equipment and drawing revision, including the corresponding three-dimensional model
528295	B	Ring Hammers	Check the equipment and drawing revision, including the corresponding three-dimensional model
528343	0	Ring Hammers	Check the equipment and drawing revision, including the corresponding three-dimensional model
GL 260 36	A	Ring-Hammer Assembly	Confirm assembly scope against the drawing
GN 260	H	Ring Hammers	Check revision H and the corresponding three-dimensional model
528025-60	K	20 lb Forged Paddle Hammer	Drawing and stamped identifier: 528025-60
528163-28	C	TK 18-72 Granulator Standard Ring Hammer	Check part number, equipment designation and revision against the drawing
528170-60	E	50 lb Forged Paddle Hammer	First-use designation: 707 hammer circle
528176-60	H	14.5 lb Drop-Forged End Hammer	Drop Forged End Hammer
528208-28	0	SXCA/G 125 Cast Hammer	Use the original first-installation reference; do not assume interchangeability with 104-42
528442-214	B	50 lb Bi-Metal Hammer	Bi-Metal Hammer
528443-214	B	42 lb Bi-Metal End Hammer	Bi-Metal End Hammer
8897-05	C	C1 / 2-24 Hammermill Paddle Hammer	Drawing 8897; part number 8897-05
10463-05	N	Paddle Hammer	Drawing 10463; part number 10463-05
528448	Preliminary	Cast Paddle Hammer	Pattern Number 528448; confirm the released drawing revision before manufacture
530019	Preliminary	Forged Paddle Hammer	Includes hardfaced areas; confirm the released drawing revision before manufacture
547735-203	0	Breaker Block Casting	Breaker Block Casting
SR-2005-6500	—	Tooth Plates / Tooth Segments	Confirm tooth geometry, hole pattern and material against the customer's project drawing
SR-2017-6500	—	Tooth Plates / Tooth Segments	Confirm tooth geometry, hole pattern and material against the customer's project drawing
SR-2027-5000	Reference drawing B	Tooth Plates / Tooth Segments	A reference drawing number does not establish interchangeability
SR-2029-5000	—	Tooth Plates / Tooth Segments	Confirm tooth geometry, hole pattern and material against the customer's project drawing
SR-2020-500	—	Tooth Plates / Tooth Segments	Supply the part drawing with the enquiry
2015	—	Tooth Plates / Toothed Parts	This abbreviated identifier requires the equipment details and drawing for identification
SR-2033-5000	AB	5000 Series Side-Sizer Tooth Segment	For the 2-inch product-size configuration shown on the drawing; do not extend this to other configurations
2034-5000	—	Tooth-Segment Marking	Provide the corresponding OEM drawing for identification
247712	—	Project Drawing Reference for Tooth Plates / Liners	Confirm the installation position on the OEM equipment against the project drawings
GN31644060	—	Project Liner Drawing Reference	Project identifier; not an OEM part number
GN40544060	—	Project Liner Drawing Reference	Project identifier; not an OEM part number
GN22600103	—	TKK Assembly Project Drawing Reference	Confirm the applicable assembly drawing with the enquiry
GN260-211-HF232	—	TKK Assembly Project Drawing Reference	Confirm the complete drawing number and assembly position
502003	—	Jaw Plate	Confirm the specific jaw crusher model and installation position
05AM15030-151AB	—	Jaw Plate	Confirm the specific jaw crusher model and installation position

Ordering requirements: Listed part numbers do not constitute a promise of direct interchangeability. Each enquiry requires comparison of the complete model, serial number, drawing revision, key dimensions, material, heat treatment, hardness and inspection requirements.

Parts, Manufacturing and Inspection

Product and Inspection Gallery

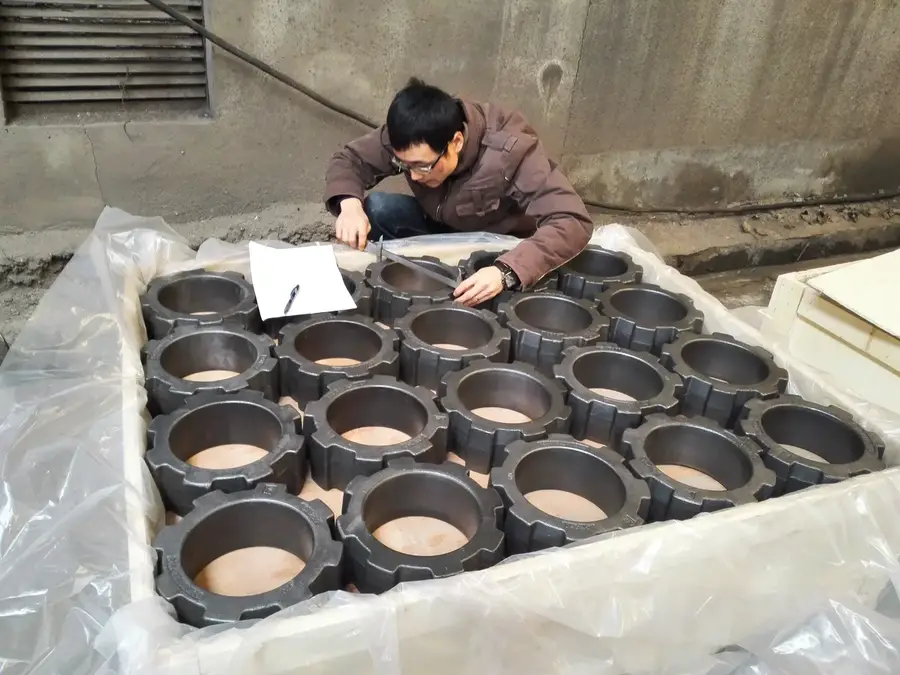

Ring-hammer batch and on-site inspection

Forged hammers

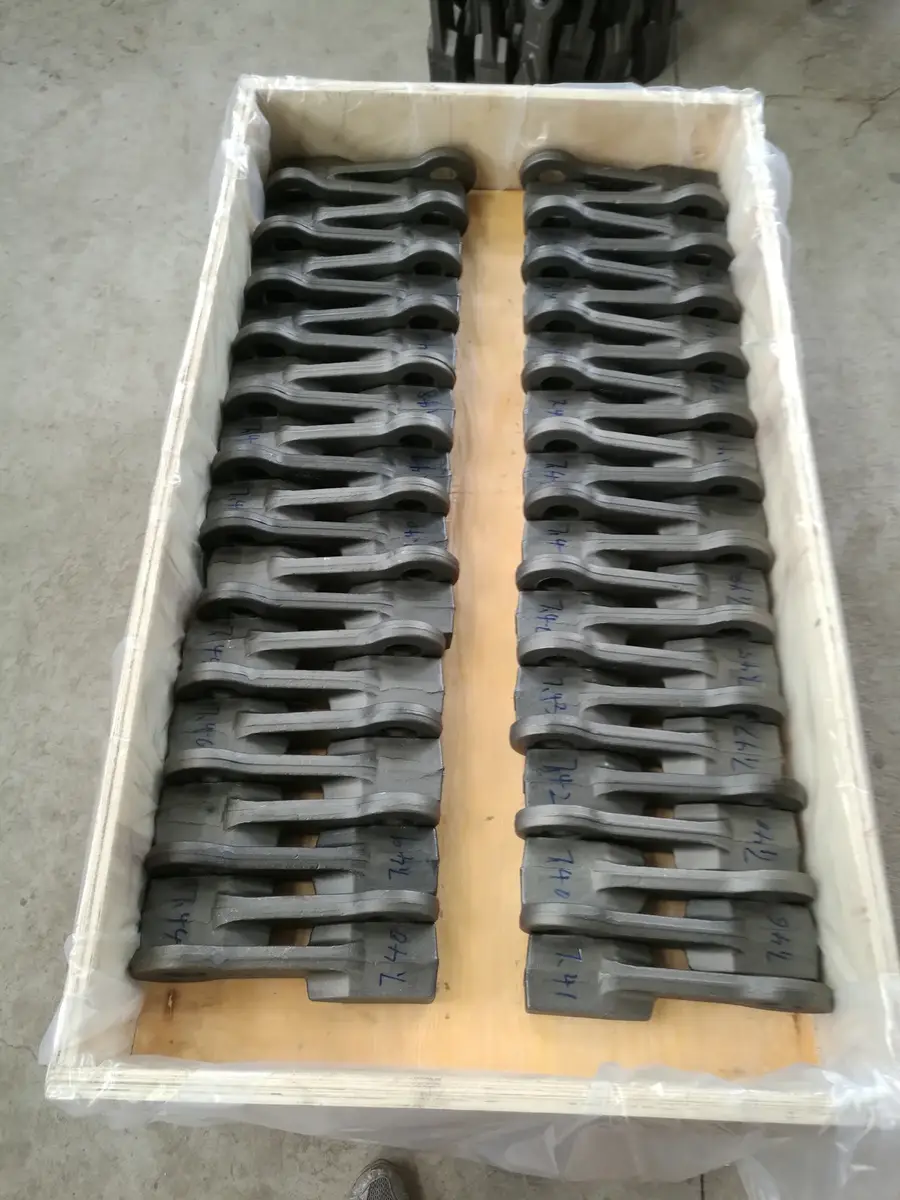

Packed hammer sets

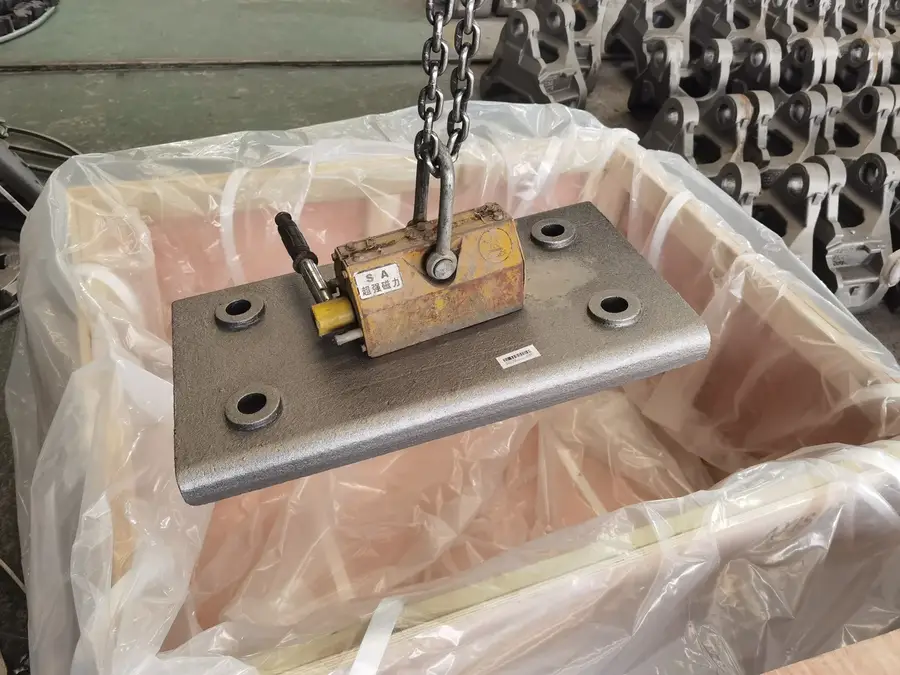

Liner lifting and identification checks

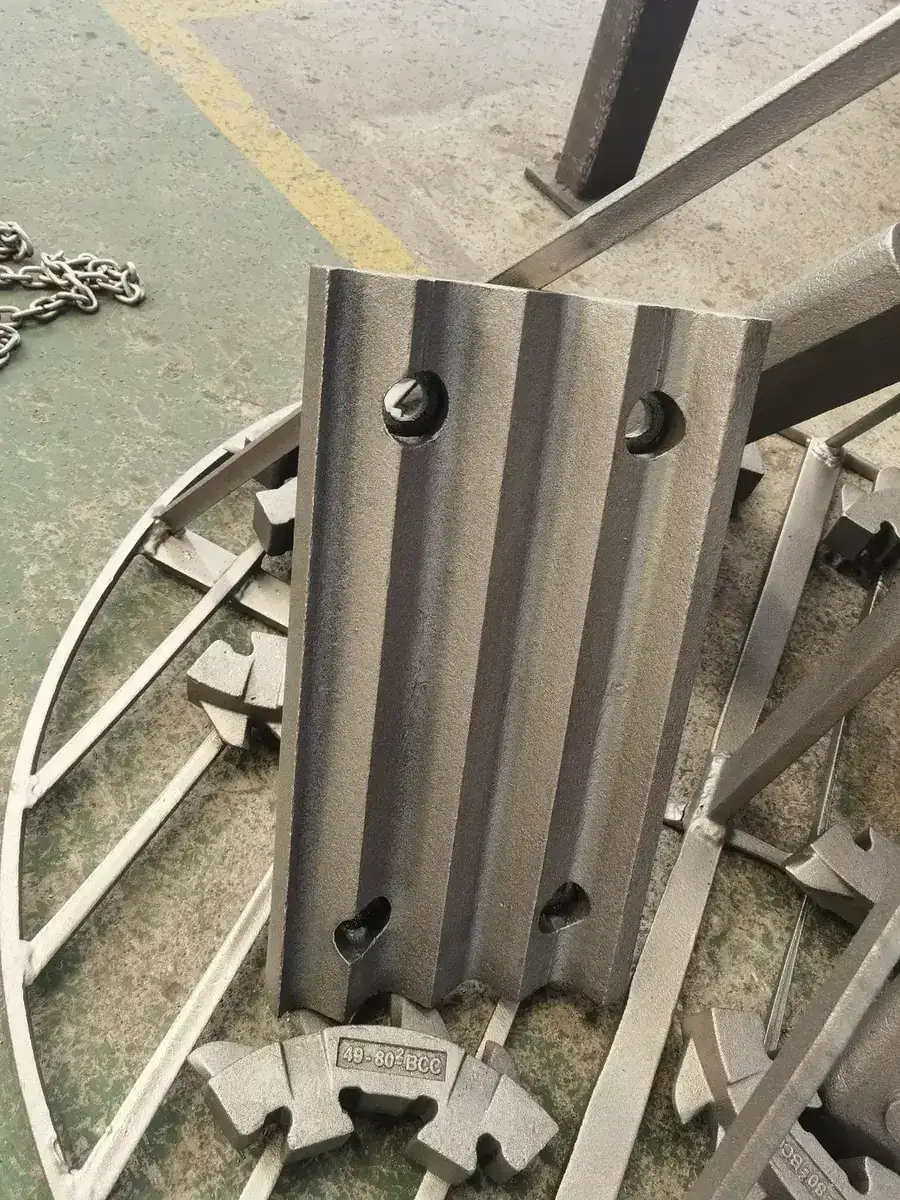

Bar liners and hole positions

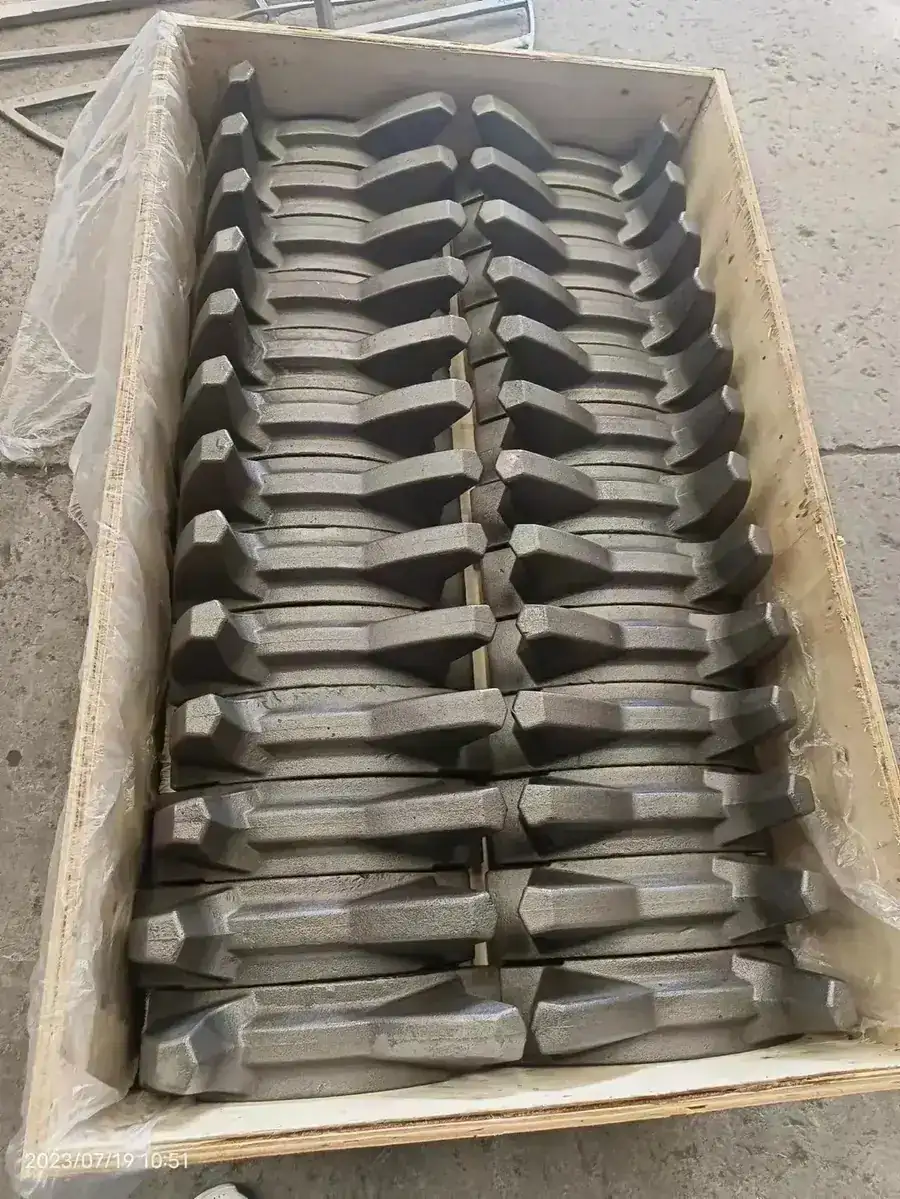

Sizer tooth sets

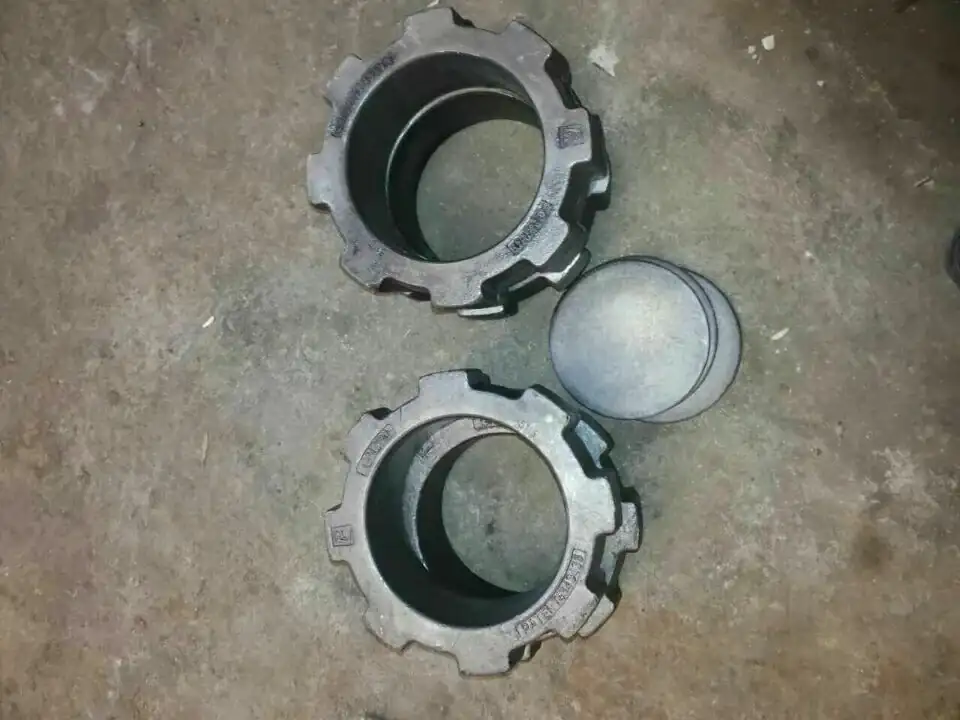

Cast ring hammers

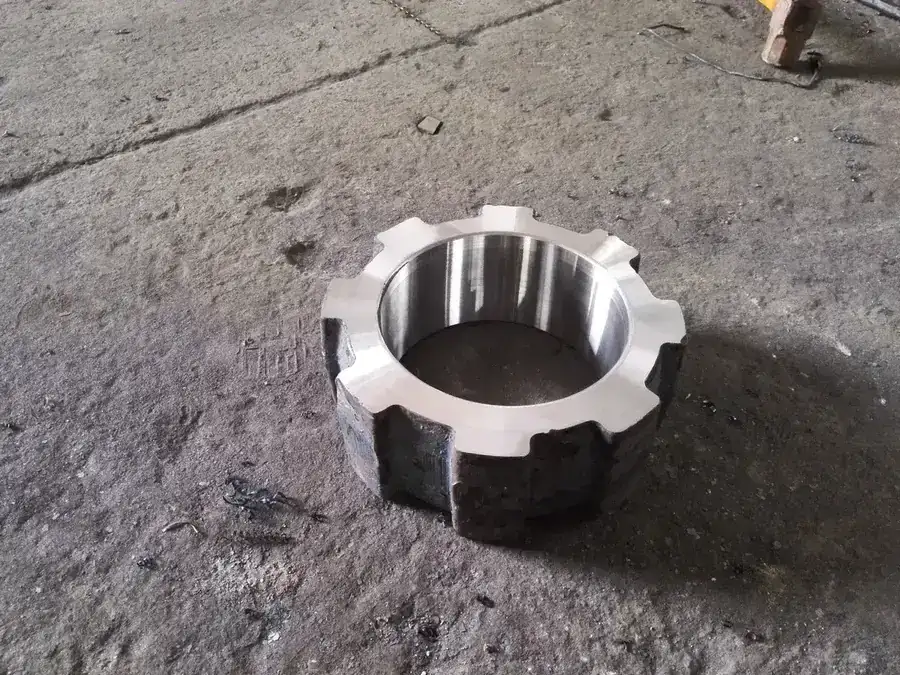

Machined ring hammers

Enquiry Requirements

Information Needed to Assess Your Enquiry

Start with these details

Nameplate or full model designation, serial number, part name, part or drawing number, installation position, photographs of the worn part from several angles and required quantity.

Manufacturing and quality requirements

Key dimensions, current material, chemical composition, hardness, heat treatment, non-destructive testing, dimensional inspection and acceptance-document requirements.

Operating conditions and failures

Material, feed size, product-size requirements, moisture content, operating hours, abnormal wear, fracture location and target service life.

If only a worn part is available

Send the nameplate, general arrangement, installation position and worn-part details. Engineers can then assess the feasibility of measurement, material analysis and manufacture.

Frequently Asked Questions

Models, Part Numbers and Replacement-Part Requirements

Can I enquire with photographs of worn parts but no Pennsylvania Crusher drawing number?

Yes. Send the nameplate, machine arrangement drawing, installation position, photographs of the worn part from several angles and key dimensions. These help determine whether identification, measurement or manufacture to drawing is feasible.

Can I order directly using the listed part numbers?

No. The part-number revision, equipment model, serial number, installation position, drawings and material requirements must first be checked.

Does a historical product catalogue mean every listed model is still sold?

No. Historical model information supports installed-equipment and spare-parts identification. Current availability and replacement relationships must be confirmed for the specific project.

Pennsylvania Crusher Coal and Industrial Crushing Equipment and Spares
