Rod mill · 1925 · 1 model
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Marcy Rod Mill (Open End/EPD/CPD) | Marcy Open End Rod Mill; Marcy Open End Rod mill 6×12; Marcy End Peripheral Discharge Rod Mill (EPD); Marcy Center Peripheral Discharge Rod Mill (CPD); Marcy Rod Mill 9×12; Marcy Rod mill 6¼ ft × 12½ ft; Marcy 15 ft; Marcy; Marcy rod mill 4×10ft; Marcy Open End Rod Mill 2ft×4ft; Marcy Rod Mill 5 x 12 L.H. Direct Driven S+D | 1925 | 17 |

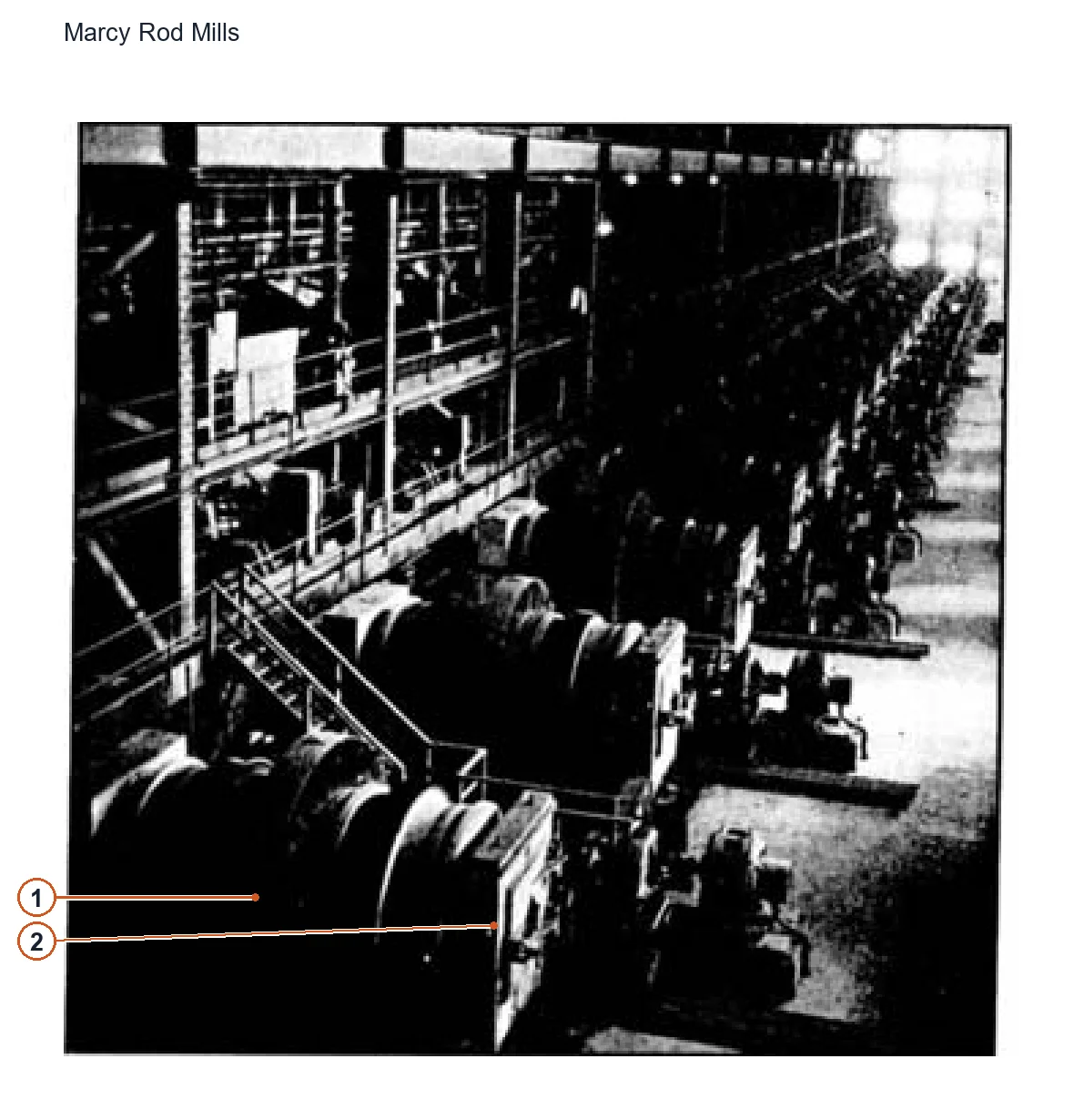

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Rod mill shell | Outer cylindrical shell of the foreground mill | Copper Cliff 1938 installed 6¼ft×12½ft Marcy rod mill |
| 2 | Rod mill head | Right-hand head of the foreground mill | Copper Cliff 1938 installed 6¼ft×12½ft Marcy rod mill |
Models with the same components are grouped together; select a group to open its component table.
| Component | Location |
|---|---|
| Shell Liner / Shell Plate — Tube inner liner (1938 site) | Inside the grinding shell; the original text is lined throughout, the end split is not listed |
| Grinding Rods / Steel Rods — Grinding rod (1938 site) | Inside the grinding shell |
| Shell Liner / Shell Plate — Single wave shell liner (Lakefield test) | The inner wall of the cylinder; six pieces, each piece is 25mm thick, and the central single wave is about 25mm high |
| Grinding Rods / Steel Rods — Grinding rod (Lakefield test) | Inside the grinding shell, original diameter 12 to 76mm |
| Transmission motor (Lakefield test) | Rod mill external drive, 7.5hp |
| Pulley and V-belt (Lakefield test) | Motor to gear transmission |
| Pinion (Lakefield test) | gear meshing transmission |
| girth gear (Lakefield test) | Mill external drive |
| Grand Junction single scoop feeder | 2×4ft rod mill feeding section; scoop radius 21in |
| Grand Junction Rod Mill End | Both ends of the cylinder are connected to the hollow shaft support |
| Grand Junction Rod Mill Hollow Shaft | Support at both ends of cylinder |
| Grand Junction hollow shaft bearing | Hollow shaft support at both ends |
| Grand Junction spur gear | Rod mill drive; number of teeth/interface not specified |
| Grand Junction drive pinion | Drive matched with spur gear |
| Shell Liner / Shell Plate — Grand Junction shell liner | Inner wall of rod mill shell |
| Head Liner / End Liner — Grand Junction end liner | Internal surface of rod mill end |
| Grand Junction liner bolt | Fixed rod mill liner; hole-by-hole position not specified |
The Rod mill is also documented under these designations: Marcy Rod Mill, Marcy Open End Rod Mill, Marcy Open End Rod mill 6×12, Marcy End Peripheral Discharge Rod Mill, Marcy Center Peripheral Discharge Rod Mill, Marcy Rod Mill 9×12, Marcy Rod mill 6¼ ft × 12½ ft, Marcy 15 ft, Marcy, Marcy rod mill 4×10ft, Marcy Open End Rod Mill 2ft×4ft, Marcy Rod Mill 5 x 12 L.H. Direct Driven S+D.
The Rod mill is listed under the Marcy brand as: Rod mill. Period: 1925. Status: Historical model.
17 components are recorded, including: Shell Liner / Shell Plate, Grinding Rods / Steel Rods, Shell Liner / Shell Plate, Grinding Rods / Steel Rods, Transmission motor (Lakefield test), Pulley and V-belt (Lakefield test), Pinion (Lakefield test), girth gear (Lakefield test) and more. The full list with locations is in the components table on this page.
