What other names or designations is the Rotary kiln known by?
The Rotary kiln is also documented under these designations: Boliden Allis rotary kiln, Rotary kiln radial.

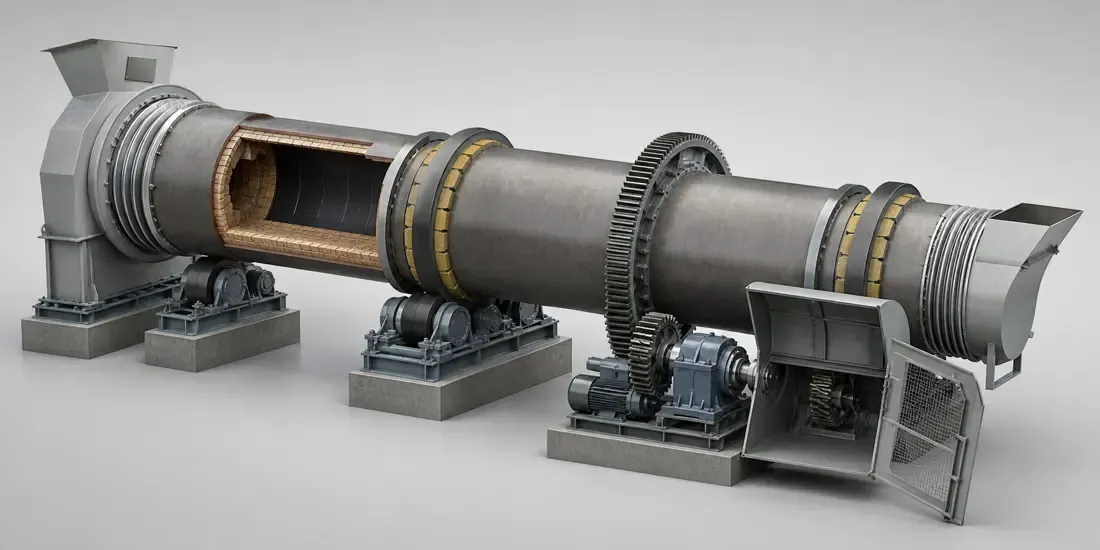

Rotary kiln
Rotary kiln · 1988–1989 · 1 model
Boliden Allis
Boliden AllisBrand
Rotary kilnEquipment type
1988–1989Period
Historical modelStatus
Boliden Allis
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Boliden Allis rotary kiln | Rotary kiln radial | 1988–1989 | 33 |
Boliden Allis
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Boliden Allis rotary kiln33 items
| Component | Location |
|---|---|
| Kiln Inlet / Outlet Seal — Flexible blade kiln end seal | Static/dynamic interface at the end of the rotary kiln |
| Flexible main blade seal | Kiln end and stationary cover interface; examples and claims |
| Staggered seam covering fiber blanket | Main blade side cover gap |
| Second set of bias blades (optional) | Blade and carpet interlayer, some embodiments may not be provided |
| Removable bracket, flange and fastener (grouped components) | Fixed cover wall or hoop with blades/blanket |
| Drum housing | Example rotating cylinder |
| shell refractory lining | Example barrel |
| Kiln Tyre / Riding Ring — Kiln tyre / riding ring | Example barrel outer circumference |
| Support Roller / Carrying Roller — Support roller | Example support riding ring |
| Feeding cover and feeding chute | Example of high-end feeding stationary cover/chute |
| Inlet end plate and annular ferrule | The annular gap is formed by the rotating end plate/stationary ferrule at the feed end |
| Discharge end plate | Discharge port at the lower end of the drum |
| Combustion end cover and refractory lining | Example discharge side combustion cover |
| Burner (Example) | Inside the combustion end cover, conventional burner |
| Radial bearing seat and end cover | Support roller shaft seat and bolt end cover |
| Radial aligning insert | Swing insert on the curved support of the bearing seat |
| Radial bearing/lining | Approximately 180° between the supporting roller shaft and the radial insert is a preferred example |
| Axial thrust wear plate | End of supporting roller shaft, thrust bearing surface |
| Thrust support plate | Behind thrust wear plate |
| Axial alignment components (two components grouped) | Thrust plate rear curved surface/planar matching component |
| Axial/radial stop lug (grouped components) | Anti-rotation of lining and support plate or axial movement of insert |
| Centering key and installation lever | Key mates with housing/radial insert; mounting lever for center adjustment |
| Anti-movement fastener (grouped components) | Anti-axial movement of lining; dimensions not specified |
| Cooling serpentine coil | Near the radial bearing bush, water/ethylene glycol or suitable cooling fluid |
| High-pressure oil supply pipeline and connector (optional) | End cover, support plate, hollow screw and thrust ring groove passage |
| High pressure flexible hose (optional) | Oil supply circuit allows relative movement of components |
| Oil scoop | The oil storage chamber provides low-pressure oil to the radial bearing bush |
| Oil storage chamber and oil channel (grouped components) | Interconnected oil storage chamber for oil distribution |
| Shaft oil seal | Prevent excessive leakage between shaft and bearing seat |
| Lubrication disc | Measuring oil dripping onto the shaft |
| Thrust member retainer | Axial support fixed |
| Axis measuring hole/measuring rod interface | Four-direction holes are the preferred example for installation and centering purposes. |
| Proximity sensor (optional) | Original capacitive/ultrasonic proximity detection option, not standard for all commercial kilns |
Frequently asked questions
Which brand and type of equipment is the Rotary kiln?
The Rotary kiln is listed under the Boliden Allis brand as: Rotary kiln. Period: 1988–1989. Status: Historical model.
Which components and wear parts are recorded for the Rotary kiln?
33 components are recorded, including: Kiln Inlet / Outlet Seal, Flexible main blade seal, Staggered seam covering fiber blanket, Second set of bias blades (optional), Removable bracket, flange and fastener (grouped components), Drum housing, shell refractory lining, Kiln Tyre / Riding Ring and more. The full list with locations is in the components table on this page.
How do I enquire about parts for the Rotary kiln?
Send us a drawing or sample and tell us the equipment model and part name.
