01

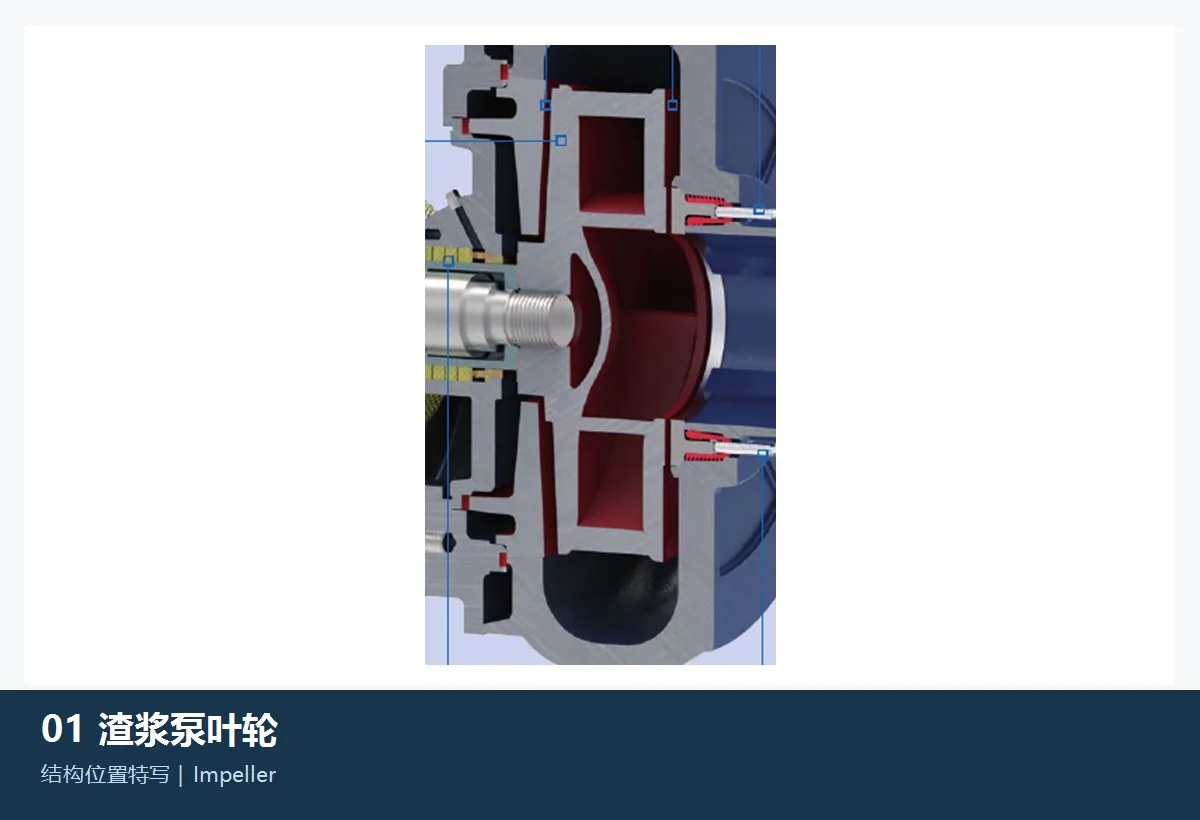

Impeller
Impeller
- Material Options
- A05/A49 high-chromium alloy / R26 rubber
- Installation and Function
- Rotates at high speed to generate centrifugal force and move the slurry
- Maintenance Category
- Very High
Slurry Pump
Centrifugal slurry pumps and positive-displacement piston-diaphragm pumps listed separately; verify wet-end and PD sections on their own terms.
Equipment Section View
This page separates centrifugal slurry-pump references from positive-displacement piston-diaphragm pumps. Identify impellers, liners and shaft seals for centrifugal pumps, and diaphragms, valves, hydraulic and drive sections for GEHO-type pumps. Verify each mechanism and parts list separately.
Equipment Parts
Part Identification and Technical Details
Explore part names, images, material options and technical requirements. Select a card to open the corresponding replacement part page.
Individual parts
Individual and Maintenance Parts
02
Volute Liner / Casing Liner
Volute Liner / Casing Liner
- Material Options
- A05/A49 high-chromium alloy / rubber
- Installation and Function
- Protect the casing and collect slurry discharged from the impeller
- Maintenance Category
- Very High
03
Front Cover Liner / Front Liner
Front Liner / Frame Plate Liner
- Material Options
- High-chromium alloy / rubber
- Installation and Function
- Wear protection for the front pump wet-end parts
04
Rear Cover Liner / Rear Liner
Back Liner / Cover Plate Liner
- Material Options
- High-chromium alloy / rubber
- Installation and Function
- Wear protection for the rear pump wet-end parts
05
Throatbush / Suction-Side Liner
Throatbush / Throat Bushing
- Material Options
- High-chromium alloy / rubber
- Installation and Function
- Wear-resistant liner at the impeller inlet
06
Wear Ring / Gland Ring
Wear Ring / Lantern Ring
- Material Options
- Copper alloy / stainless steel
- Installation and Function
- Reduces leakage between the impeller and casing
07
Shaft sleeve
Shaft Sleeve
- Material Options
- Stainless steel / ceramic coating
- Installation and Function
- Protects the pump shaft against wear and corrosion
08
Expeller / Seal Ring
Expeller / Expeller Ring
- Material Options
- High-chromium alloy / stainless steel
- Installation and Function
- Dynamic seal assembly that prevents slurry leakage
09
Stuffing Box Liner
Stuffing Box Liner
- Material Options
- Stainless steel / copper alloy
- Installation and Function
- Protective liner in the packed gland area
10
Packing / Mechanical Seal
Gland Packing / Mechanical Seal
- Material Options
- Graphite/PTFE/silicon carbide
- Installation and Function
- Pump shaft sealing
Materials for similarly named parts may differ by OEM, machine model and operating conditions. Confirm the machine model, drawing and measured dimensions before ordering or manufacture.
Material Information
- A05 is a Warman high-chromium white iron designation for applicable abrasive duties. Confirm the composition, heat treatment and hardness of replacement material against the part specification.
- A49 is a Warman high-chromium white iron designation for more corrosive environments. Select for combined erosion and corrosion; it is not simply a more abrasion-resistant substitute for A05.
- R26/R55 are original rubber material designations. Specify the exact grade, particle shape and size, temperature, speed and fluid compatibility when ordering.
- R08 is an original natural rubber material designation. Verify chemical compatibility for the specific compound and operating conditions.
- Ceramic coatings: a shaft sleeve surface treatment option for improved wear resistance.
Brand Applicability
Warman (UK/Australia), FLSmidth KREBS (Denmark/USA), Metso X-Series (Finland), Schurco (USA), Shijiazhuang Pump Industry Group/Naipu (China)
Industry Applications
Mineral processing slurry transport, power plant ash and desulfurization slurry handling, metallurgical slurry pumping, dredging, chemical slurry transport and tailings pumping
Materials for similarly named parts may differ by OEM, machine model and operating conditions. Confirm the machine model, drawing and measured dimensions before ordering or manufacture.
Part numbers
Part Number and Equipment Reference — Positive Displacement (GEHO)
GEHO positive-displacement piston diaphragm pumps (body and valve groups)
| Part / Original Reference No. | Chinese Name | English Name | Recorded Model / Series | OEM / Brand | Equipment Category and Identification Notes | Inquiry |
|---|---|---|---|---|---|---|
| 023.374.011 | 泵适配器壳体 | HOUSING;PUMP ADAPTER | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 045.374.011 | 隔膜壳体, ZPM800 | HOUSING:DIAPHRAGM;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: diaphragm / hydraulic end | RFQ |
| 824.070.014 | 隔膜, ZPM800 | DIAPHRAGM;GEHO PUMPS,ZPM800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: diaphragm / hydraulic end | RFQ |
| 063.374.007 | 活塞杆, ZPM800 | ROD;PISTON,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 845.010.433HR | 驱动齿轮总成, ZPM800 RB | GEAR;DRV ASSY,ZPM800 RB | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 841.243.016 | 缸套 | LINER;CYLINDER | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 841.260.002 | 气缸套筒, ZPM800 | SLEEVE:CYLINDER;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 832.100.462 | 监测杆, ZPM800 | ROD;GEHO PUMPS,ZPM800,PMP,MON | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.301.204 | 密封环 | RING;SEALING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 828.550.574 | 立管/下垂管, ZPM700 | STANDPIPE;GEHO ZPM 700,DROPLEG | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 048.374.008A1 | 泵缸体 | CYLINDER;PUMP,GEHO | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 063.373.002 | 活塞杆, ZPM700 | ROD:PISTON;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 048.374.008 | 泵缸, ZPM800 | PUMP;CYLINDER ZPM800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 841.241.004 | 气缸套筒, ZPM700 | SLEEVE;CYLINDER,GEHO PUMPS,ZPM700 | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 068.374.002 | 连杆, ZPM800 | ROD:CONNECTING;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.301.160 | 密封环 | RING;SEALING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 824.050.025 | 隔膜, 22-7/8英寸, 氯丁橡胶 | DIAPH;PMP,22-7/8 IN,NPRN | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: diaphragm / hydraulic end | RFQ |
| 066.565.005 | 圆柱销 (无头), ZPM800 | PIN:STRAIGHT;GEHO PUMPS,ZPM800,PMP,HDLSS | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 831.901.224 | 导向衬套 | BUSHING;GUIDE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 832.100.339 | 夹紧衬套 | BUSH;CLAMPING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 831.900.525 | 导向衬套, ZPM700/800 | BUSHING;GEHO PUMPS,ZPM700,ZPM800,PMP,GDE | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 841.264.020 | 缸套 | LINER;CYLINDER | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 832.100.335 | 监测杆, ZPM700 | ROD;GEHO PUMPS,ZPM700,PMP,MONITER | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 045.372.033 | 壳体, ZPM700 | HOUSING;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 832.100.296 | C型夹 (螺钉衬套), ZPM800 | CLAMP:C;GEHO PUMPS,ZPM800,PMP,SCRW,BSH | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 862.001.277 | 双头螺栓 | STUD:BOLT;GEHO PUMPS | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.301.203 | 密封环 | RING;SEALING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 839.100.068 | 十字头, ZPM800 | HEAD;CROSS,ZPM 800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 839.100.043 | 十字头, ZPM800 | CROSSHEAD;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 883.200.598 | 缸体连接件 | DEVICE;CYLINDER PIECE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| Q8621276 | 螺纹杆, M30×190, 特氟龙涂层 | THREADED ROD, M30 X 190MM, TEFLON COATED | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 862.001.282 | 双头螺柱 (镀层), ZPM800 | STUD;GEHO PUMPS,ZPM800,PMP,PL,THDD,PLD | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 006.374.006 | 齿轮, ZPM800 | GEAR:WHEEL;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 862.001.306 | 双头螺柱, ZPM700/800 | STUD;GEHO PUMPS,ZPM700,ZPM800,PMP,PL | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 831.900.793 | 锁紧螺母 | NUT:LOCK;GEHO | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 883.200.596A1 | 缸套 | LINER;CYLINDER | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.111.320 | 杆用平密封, ZPM800 | SEAL:PLAIN;GEHO PUMPS,ZPM800,PMP,ROD | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 831.900.558 | 圆柱销, ZPM800 | PIN:STRAIGHT;GEHO PUMPS,ZPM800,PMP,STR | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 062.01.374.1.36 | 锁紧螺母, 缸体组件 | NUT:LOCK;GEHO,CYLINDER ASSEMBLY | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 064.373.000 | 锁紧螺母, 十字头管件 | NUT:LOCK;GEHO PUMPS,PMP,PIPE,CRS HD | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 960.010.616 | 管接头, ZPM700/800 | NIPPLE:PIPE;GEHO PUMPS,ZPM700,ZPM800,PMP | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 862.005.120 | 螺母, ZPM700/800 | NUT;GEHO PUMPS,ZPM700,ZPM800,PMP | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 883.200.597 | 螺纹法兰 | FLANGE;SCREW | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 868.001.288 | 盲法兰适配器, 隔膜, ZPM700 | ADAPTER;BLIND FLANGE,DIAPH,ZPM 700 | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: diaphragm / hydraulic end | RFQ |
| 048.373.001 | 泵缸, ZPM700 | PUMP;CYLINDER ZPM700 | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 816.460.019 | 齿轮, ZPM700/800 | GEAR;GEHO PUMPS,ZPM700,ZPM800,PMP | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 883.200.599 | 缸端盖 | END;CYLINDER | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 835.464.001 | 活塞杯 | CUP;PISTON | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 831.901.406 | 承压衬套 | BUSHING;PRESSURE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 862.007.822 | 双头螺栓, ZPM800 | STUD:BOLT;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 835.341.001 | 压板/挡板, ZPM700 | PLATE:RETAINING;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 931.037.797 | 密封环, ZPM800 | SEAL:RING;GEHO PUMPS,ZPM800,PMP,MTL | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 911.040.448 | 双头螺栓 | PUMP;BOLT,STUD,GEHO PUMPS | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 835.360.018 | 压板/挡板, ZPM800 | PLATE:RETAINING;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 911.756.408 | 双头螺栓, ZPM700 | BOLT:STUD;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 911.766.242 | 双头螺柱, M12×55, 钢 | STUD;D398,M12X55,STEEL | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 868.001.850 | 盲法兰, R140×25/10.1/2 NPT | FLANGE;BLIND,R140X25/10.1/2 NPT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 868.001.617 | 法兰适配器, 隔膜壳体泄放 | ADAPTER;FLG-FLG,DIAPH HOUSE BLEED | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: diaphragm / hydraulic end | RFQ |
| 914.206.411 | 六角螺钉, ZPM800 | SCREW:HEX;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 897.050.336A1 | 拉拔块工具, ZPM700 | DEVICE;TOOL,PULLER BLOCK 700ZPM | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 868.002.156 | 法兰, ZPM800 | FLANGE;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 835.900.349 | 连接件 | DEVICE;CONNECTION PIECE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 835.141.005 | 活塞 (压缩侧), ZPM700 | PISTON;GEHO PUMPS,ZPM700,PMP,COMPRSR | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 831.901.404 | 导向衬套 | BUSHING;GUIDE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 883.200.569 | 导向衬套 | BUSHING;GUIDE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 037.374.006 | 泵缸盖, ZPM800 | COVER;CYLINDER PUMP ZPM800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 933.160.273 | V型/人字密封 | SEAL;CHEVRON | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 960.020.063 | 齿轮泵, 润滑单元 | GEAR PUMP;LUBRICATION UNIT,GEHOTZPM1200 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 835.341.002 | 压板/挡板, ZPM700 | PLATE:RETAINING;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 862.001.279 | 螺纹杆 | ROD;THREADED | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 942.410.334 | 承压套筒, ZPM700 | SLEEVE;GEHO PUMPS,ZPM700,PMP,PRESS | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 911.040.443 | 光杆螺柱, M24×60 | STUD:PLAIN;GEHO PUMPS,M24 DIA X 60 MM P | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 942.410.638 | 轴承适配套, 曲轴至机架 | ADAPTER:BEARING;SLEEVE,CRANKSHAFT TO FRM | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.037.793 | O型圈, 580×10, ZPM700 | O-RING;GEHO PUMPS,ZPM700,580 X 10 MM,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 933.500.001 | 隔膜 | DIAPHRAGM,GEHO PUMPS | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: diaphragm / hydraulic end | RFQ |
| 064.374.000 | 自锁螺母, ZPM800 | NUT:SELF-LOCKING;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 911.756.444 | 光杆螺柱, M24×65 | STUD:PLAIN;GEHO PUMPS,M24 DIA X 65 MM P | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 835.160.022 | 活塞头, ZPM800, 300mm | HEAD;PISTON,ZPM800,300MM | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 816.460.004 | 齿轮泵 | PUMP;GEAR | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 835.900.331 | 活塞杆法兰, ZPM800 | FLG;PISTON ROD,ZPM 800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.191.175 | 密封环, ZPM700/800 | RING;SEAL; GEHO PUMPS;ZMP700,ZPM800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 915.003.055 | 六角螺母, M24 | NUT:HEXAGONAL;M24 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 862.050.369 | 活塞杆螺母, ZPM800 | NUT;PISTON ROD,ZPM 800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 088.565.000 | 压板, 十字头销挡板 | PLATE:PRESS;FOR ROT PMP,CRSHD PIN RET | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 914.103.449 | 六角螺钉 | SCREW;HEX | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 835.900.319 | 导向环 | RING;GUIDE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 832.100.338 | 挡圈, 隔膜泵 | RING:RETAINING;GLBLWEIR,DIAPH PMP | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: diaphragm / hydraulic end | RFQ |
| 883.200.570 | 冲洗腔法兰 | FLANGE;FLUSHING CHAMBER | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.111.105 | U型密封 | SEAL;U RING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 883.200.603 | 导向衬套 | BUSHING;GUIDE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 868.002.106 | 盲管法兰, 隔膜, ZPM700 | FLANGE:PIPE;GEHO PUMPS,ZPM700,BLND,DIAPH | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: diaphragm / hydraulic end | RFQ |
| 823.090.110 | 端盖密封, ZPM700 | SEAL;COVER,ZPM 700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 922.945.243 | 立管螺柱适配器 | ADAPTER;STUD STANDPIPE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.111.079 | U型密封 | SEAL;U RING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 911.756.445 | 双头螺栓 | BOLT;STUD,GEHO | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.111.203 | U型密封, 液压缸单元 | SEAL;U RING,HYDRAULIC CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.301.120 | 密封环, ZPM700 | SEAL:RING;GEHO PUMPS,ZPM700,PMP,MTL | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 917.812.004 | 螺纹法兰, 1-1/2英寸, 90° | FLANGE;SCREWED,1.1/2IN - 90 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 915.003.034 | 六角螺母, M12, 钢 | NUT:HEXAGONAL;D934,M12,STEEL | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.111.045 | 油封, ZPM700/800 | SEAL:OIL;GEHO PUMPS,ZPM700,ZPM800,PMP | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 917.260.134 | 夹紧套, ZPM700/800 | CLAMP:SLEEVE;GEHO PUMPS,ZPM700,ZPM800 | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 822.320.049 | 密封环 | RING;SEALING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 971.100.611 | 磁铁, 液压缸单元 | MAGNET;HYDRAULIC CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 913.003.450 | 内六角圆柱头螺钉 | SCREW;CAP,HEX SOCKET HEAD | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 914.206.405 | 六角螺钉, M20, ZPM700/800 | SCREW;HEX,GEHO PUMPS,ZPM700,ZPM800,M20 | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 922.945.210 | 管路螺柱适配器 | ADAPTER:PIPELINE;GEHO PUMPS,STUD | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.342.006 | 导向环, 液压缸单元 | RING;GUIDE,HYDRAULIC CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 823.030.025 | 密封件, ZPM800 | SEAL;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 823.101.068 | 活塞杆导流器, ZPM800 | DFLCTR;PISTON ROD,ZPM 800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 933.160.143 | V型/人字密封 | SEAL;CHEVRON | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 911.770.448 | 双头螺栓 | BOLT;STUD | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 960.010.602 | 连接管接头 | NIPPLE;CONNECTING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 862.050.112 | 六角螺母 | PUMP;NUT,HEXAGONAL | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 915.003.063 | 六角螺母, ZPM800 | NUT:HEXAGONAL;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 933.111.070 | 杆用平密封, ZPM800 | SEAL:PLAIN;GEHO PUMPS,ZPM800,PMP,ROD | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 862.050.013.36 | 六角螺母, ZPM800 | NUT:HEXAGONAL;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 846.100.228 | 垫片座 | HOLDER;GASKET | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.160.066 | 填料组, 填料箱, ZPM800 | SET:PACKING;ZPM 800,STUFFING BOX | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 835.900.289 | 导向环 | RING;GUIDE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 816.955.184 | 锁紧板, 连杆销 | PLATE:LOCKING;GEHO PUMPS,CNROD PIN | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 960.010.613 | 连接管接头, R1/4 | NIPPLE;CONNECTING,R1/4 IN | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 883.500.508 | U型密封 | SEAL;U SEAL | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 843.150.613 | 导向衬套, 填料箱, ZPM800 | BSHG:GUIDE;ZPM 800,STUFFING BOX | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 862.015.196 | 螺纹杆, 170mm, M16 | ROD:THREADED;170MM,M16 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.331.000 | 导向衬套 | BUSHING;GUIDE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 835.900.103 | 活塞导向环, ZPM700 | RING:PISTON;GEHO PUMPS,ZPM700,PMP,GDE | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 913.003.401 | 内六角圆柱头螺钉 | SCREW:SOCKET HEAD CAP;GEHO PUMPS | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 822.030.024 | 密封环, ZPM700 | RING:SEAL;GEHO PUMPS,IK143EH,ZPM700 | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 931.030.474 | O型圈, ZPM700 | O-RING;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 823.020.282 | O型圈, 缸体单元 | O-RING;CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 922.915.209 | 可调螺柱外螺纹弯头 | ELBOW:TUBE;GEHO PUMPS,ADJ STUD,MALE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.030.447 | O型圈, ZPM800 | O-RING;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 922.945.209 | 管路适配器 | ADAPTER:PIPELINE,GEHO PUMPS | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.358.060 | 活塞环 | RING;PISTON | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 914.103.447 | 六角螺钉 | SCREW;HEX | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 914.006.408 | 头螺钉, M20×90, 钢 | SCREW:CAP;GEHO PUMPS,M20 X 90 MM LG,STL | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.037.248 | O型圈, ZPM700 | O-RING;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 921.700.400 | 过滤器壳体, ZPM700/800 | HOUSING:FILTER;GEHO PUMPS,ZPM700,ZPM800 | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 933.101.056 | U型密封 | SEAL;U RING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 928.130.005 | 泵适配器, 3/8×6英寸, ZPM800 | ADAPTER;PUMP,3/8X6IN,M,ZPM 800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 914.106.237 | 六角螺栓, ZPM800 | BOLT:HEXAGONAL;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.030.394 | O型圈, ZPM700/800 | O-RING;GEHO PUMPS,ZPM700,ZPM800,PMP | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 915.003.047 | 六角螺母, M20, ZPM700 | NUT:HEXAGONAL;GEHO PUMPS,ZPM700,PMP,M20 | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 822.150.023 | 密封环, ZPM800 | RING:SEAL;GEHO PUMPS,ZPM800,PMP,MTL | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.208.250 | 密封环 | RING:SEALING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 914.170.320 | 六角螺钉 | SCREW;HEXAGON | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 915.006.055 | 螺母, M24, 钢 | NUT;GEHO PUMPS,M24,STL | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.101.142 | U型密封 | SEAL;U RING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 822.125.012 | 垫片, 隔膜泄放 | GASKET;GLBLWEIR,DIAPH BLEED | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: diaphragm / hydraulic end | RFQ |
| 960.010.621 | 适配器, R1/4, 3000B | ADAPTER;R1/4 IN,FOR 3000B | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 917.260.137 | 夹紧套, R6×30, 销用 | SLEEVE;CLAMPING,R6X30 DIN1481-RVS,PIN | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 917.260.135 | 圆柱销 | PIN:STRAIGHT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 914.103.403 | 六角螺栓 | BOLT;HEXAGON | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 935.020.140 | 平密封 (加厚), ZPM800 | SEAL:PLAIN;GEHO PUMPS,ZPM800,THKNR,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 831.900.400 | 导向环 | RING;GUIDE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 913.003.240 | 内六角圆柱头螺钉, ZPM700 | SCREW:SOCKET HEAD CAP;GEHO PUMPS,ZPM700 | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 775.542.272 | 密封件, 12×8 | SEAL;12 X 8 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 915.1090.055 | 六角盖形螺母 | NUT;HEXAGON DOMED CAP | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 913.013.321 | 头螺钉, M16×50, 钢 | SCREW:CAP;GEHO PUMPS,M16 X 50 MM LG,STL | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 922.951.240 | 密封环 | RING;SEAL | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 914.103.320 | 键头螺栓 | PUMP;BOLT,KEY HEAD,GLBLWEIR | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.030.552 | O型圈, 9.3×5.7, ZPM800 | O-RING;GEHO PUMPS,ZPM800,9.3 X 5.7 MM | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.030.902 | O型圈, ZPM800 | O-RING;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 913.480.241 | 内六角圆柱头螺钉 | SCREW;CAP,HEX SOCKET HEAD | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 822.040.026 | 垫片, 乙二醇泄压阀用 | GASKET;GLBLWEIR,PMP,FOR GLYCOL PRV SM | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 913.003.166 | 头螺钉, M8×25 | SCREW:CAP;GEHO PUMPS,M8 X 25 MM LG | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 822.080.022 | 密封环, ZPM700/800 | RING:SEAL;GEHO PUMPS,ZPM700,ZPM800,PMP | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 913.003.169 | 头螺钉 | PUMP;SCREW:CAP,GEHO PUMPS | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.101.064 | 防尘刮油密封, ZPM800 | SEAL:WIPER;T20/63-78-12.5,ZPM 800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.030.554 | O型圈, 9.3×5.7, ZPM800 | O-RING;GEHO PUMPS,ZPM800,9.3 X 5.7 MM | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 925.520.203 | 管接头, 6mm | NIPPLE:TUBE;GEHO PUMPS,6 MM | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 914.103.401 | 六角螺栓 | BOLT;HEXAGON | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 915.160.055 | 六角螺母 | NUT;HEXAGON | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.031.680 | O型圈, 活塞单元 | O-RING;PISTON UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 933.101.061 | U型活塞环, ZPM700 | RING:PISTON;GEHO PUMPS,ZPM700,PMP,TYP U | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 931.031.632 | O型圈, 液压缸单元 | O-RING;HYDRAULIC CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 935.020.110 | 平密封 | PUMP;SEAL,PLAIN,GLBLWEIR | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.450.164 | 密封环, ZPM800 | SEAL:RING;GEHO PUMPS,ZPM800,PMP,MTL | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.400.361 | 密封环, ZPM800 | SEAL:RING;GEHO PUMPS,ZPM800,PMP,MTL | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 822.220.019 | 垫片, 缸体单元 | GASKET;CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.030.339 | O型圈, ZPM800 | O-RING;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.037.231 | O型圈, 螺栓用 | O-RING;GLBLWEIR,PMP,BOLT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 913.063.401 | 内六角头螺钉 | SCREW;CAP,SOCKET HEAD | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.031.327 | O型圈, NBR90, 7×3.53, ZPM800 | O-RING;NBR-90SH,R37,7X3.53,ZPM800PSTNH | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.081.021 | 组合密封 | SEAL;MULTI | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.031.331 | O型圈, 液压缸单元 | O-RING;HYDRAULIC CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.030.880 | O型圈, ZPM700 | O-RING;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 914.106.195 | 螺栓, M10×20 | BOLT;GEHO PUMPS,M10 DIA X 20 LG MM | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.031.251 | O型圈, 液压缸单元 | O-RING;HYDRAULIC CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.030.645 | O型圈, 液压缸单元 | O-RING;HYDRAULIC CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.030.239 | O型圈 | O-RING;GEHO | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.031.230 | O型圈, 液压缸单元 | O-RING;HYDRAULIC CYLINDER UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 913.003.141 | 内六角圆柱头螺钉 | SCREW;HEX.SOCKET HEAD CAP | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 822.150.059 | 油封压盖垫片, ZPM800 | GSKT;OIL SEAL COVER GLAND,ZPM 800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 931.400.331 | 密封环 | RING;SEALING | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 922.015.261 | 外螺纹螺母, 12S | NUT;12S,MALE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.030.051 | O型圈 | O-RING;GEHO | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 931.030.386 | O型圈, 90×4 NBR70, 填料箱, ZPM800 | O-RING;R90X4NBR70SH,ZPM800,STFGBX | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| Q831.080.160 | 阀, Uptime, SPM800, API-10 | VALVE;UPTIME,SPM800,API-10 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| Q831.080.161 | 阀, Uptime, SPM700, API-8 | VALVE;UPTIME,SPM700,API-8 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 023.008.027 | 泵阀壳体 | HOUSING;PUMP,VALVE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 831.900.776 | 阀导向, ZPM800 | GUIDE;GEHO PUMPS,ZPM800,PMP,VLV | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| 825.107.045 | 螺旋弹簧, ZPM700 | SPRING;GEHO PUMPS,ZPM700,PMP,HLCL | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 831.900.456 | 阀导向支承, ZPM800 | SUPPORT;VALVE GUIDE,ZPM800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| 828.550.689 | 外三通件, ZPM800 | UNIT;T PIECE,OUTER,ZPM800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 828.550.686 | 外三通件, ZPM800 | UNIT;T PIECE,OUTER,ZPM800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 831.901.067 | 阀导向, ZPM700 | GUIDE:VALVE;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 828.550.687 | 歧管, ZPM800 | MANIFOLD;ZPM800 | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 025.374.010 | 阀壳盖, ZPM800 | COVER;VALVE HOUSING,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| 825.107.044 | 压缩螺旋弹簧, ZPM800 | SPRING;GEHO PUMPS,ZPM800,PMP,HEL,COMPRSD | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: pump body / wet-end or drive structure | RFQ |
| 828.550.524 | 阀体 (三通), ZPM700 | BODY:VALVE;GEHO PUMPS,ZPM700,PMP,TEE | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 931.032.665 | 阀盖密封, ZPM700 | SEAL;GEHO PUMPS,ZPM700,PMP,PL,VLV CVR | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 025.565.001 | 阀壳盖, ZPM700 | COVER;VALVE HOUSING,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 828.550.580 | 歧管, ZPM700 | MANIFOLD;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: pump body / wet-end or drive structure | RFQ |
| 831.901.438 | 阀杆 | ROD;VALVE ROD | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 831.080.077 | 阀组 | SET;VALVE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 831.151.952 | 阀座 | SEAT;VALVE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 897.010.539C | 阀座拆装工具, ZPM700 | DEVICE;TOOL,VALVE SEAT DISASS,700ZPM | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 831.900.653 | 阀锁销, ZPM700 | PIN;LOCKING,VALVE ZPM700 | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 897.010.1244 | 阀座拆装工具, ZPM800 | DEVICE;TOOL,800ZPM,VALVE SEAT DIS/ASS | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| 931.032.385 | 阀座 (密封O型圈式) | SEAT:VALVE;GLBLWEIR,SEALNG O-RNG | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 824.050.025.REPAIR | 阀隔膜, EPDM, 56×50mm, 5.1kg | DIAPHRAGM;VALVE,EPDM,056MM X 50MM,5.1KG | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 972.200.065 | 三位二通阀, NW6 | VALVE;WAY,3/2 IN,NW6 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 831.901.297 | 柱塞, 驱动阀单元 | PLUNGER;ACTUATED VALVE UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 831.901.439 | 阀盖环 | RING;VALVE COVER | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 922.950.939 | 安全阀, ZPM700 | VALVE:SAFETY;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 972.200.066 | 控制阀, ZPM700/800 | VALVE:CONTROL;GEHO PUMPS,ZPM700,ZPM800 | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| 972.050.042 | 调节阀, ZPM700 | VALVE:REGULATION;GEHO PUMPS,ZPM700 | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 853.100.455 | 止回阀 | VALVE:CHECK,GEHO | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 921.050.001 | 针阀, ZPM800 | VALVE:NEEDLE;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| 972.050.003 | 安全阀, ZPM700/800 | VALVE:SAFETY;GEHO PUMPS,ZPM700,ZPM800 | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| RT931.032.383 | O型圈, 160×4, 橡胶, 底阀座 | O-RING;160 MM,4 MM,RBR,BTM SEAT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 921.050.003 | 针阀, ZPM700 | VALVE:NEEDLE;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 922.880.000 | 止回阀, ZPM700/800 | VALVE:CHECK;GEHO PUMPS,ZPM700,ZPM800,PMP | GEHO ZPM700/ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| 928.860.011 | 球阀, ZPM800 | VALVE:BALL;GEHO PUMPS,ZPM800,PMP | GEHO ZPM800 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM800; position: valve group (suction / discharge / guide) | RFQ |
| 922.805.209 | 安全阀, ZPM700 | VALVE:SAFETY;GEHO PUMPS,ZPM700,PMP | GEHO ZPM700 | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: ZPM700; position: valve group (suction / discharge / guide) | RFQ |
| 921.200.026 | 球阀, 2G, E3185 | VALVE:BALL;2G,E3185 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 921.150.015 | 闸阀, 1/2英寸NPT, 8000psi | VALVE:GATE;CONVTNL,1/2 IN,NPT,8000 PSI | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 921.150.024 | 闸阀 | VALVE;GATE | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 825.102.000.32 | 弹簧 | SPRING;GEHO PUMPS | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: pump body / wet-end or drive structure | RFQ |
| 822.500.055 | 垫片, 阀壳体单元 | GASKET;VALVE HOUSING UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 931.030.640 | O型圈, 阀单元 | O-RING;VALVE UNIT,GEHOTZPM1200 | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
| 931.030.259 | O型圈, 驱动阀单元 | O-RING;ACTUATED VALVE UNIT | GEHO ZPM | Weir Minerals (GEHO®) | GEHO positive-displacement piston-diaphragm pump identification; recorded model: GEHO ZPM series; position: valve group (suction / discharge / guide) | RFQ |
Preserve the original number format for lookup and inquiry; a number alone does not guarantee interchangeability. Verify the original catalogue/drawing, complete machine model, serial number, revision, material and interfaces. Keep GEHO piston-diaphragm pumps, KREBS centrifugal pumps and KREBS hydrocyclones in separate sections. Similar numbers do not establish interchangeability: suffixes, material codes, revisions and positions may differ.
Part Number and Equipment Reference — Krebs Centrifugal Slurry Pump
FLSmidth KREBS centrifugal slurry pump wet-end and related parts
| Part / Original Reference No. | Chinese Name | English Name | Recorded Model / Series | OEM / Brand | Equipment Category and Identification Notes | Inquiry |
|---|---|---|---|---|---|---|
| VM100-CZ-WEKT | 湿端大修套件, VM100 | KIT, WET END REBUILD, VM100 | Krebs VM100 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM100; position per part name | RFQ |
| 24X20X54MME525-10001 | 泵筒, 24×20 MME WF | BARREL, 24X20 MME WF,PUMP,MTL | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| RM250-013-26001 | 驱动侧壳体衬板, RM250-013 | LINER, CASING,DRIVE SIDE,RM250-013 | Krebs RM250 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs RM250; position per part name | RFQ |
| MM600-118-00MMF | 衬套, 灯笼环, 内径26×外径28×长64 | BUSHING, LNTRN,26 ID X 28 OD X 64 LG MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| RM250-547-00009 | 叶轮, CDR200, 5叶片 | IMPELLER, CDR200,5 VANE | Krebs RM250 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs RM250; position per part name | RFQ |
| MM600-078-12MMF | 填料箱, 压盖式 | STUFFING BOX, GLND | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VM080-010-00001 | 泵壳, 液体端 | HOUSING, PUMP,SMP,LIQ | Krebs VM080 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM080; position per part name | RFQ |
| MM500-118-00069 | 衬套, 24×20 MME WF | BUSHING, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| VM080-595-1500S | 金属管, 不锈钢, 出口 | PIPE METALLIC, SMP,SS,DISCH | Krebs VM080 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM080; position per part name | RFQ |
| RM150-013-26001 | 驱动侧壳体衬板 | LINER, DRV SIDE CSG | Krebs RM150 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs RM150; position per part name | RFQ |
| MM500-044-10069 | 填料, 泵用 | GLAND PACKING,PUMP | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MME-239-10001 | 挡圈/压盖环, 24×20 MME WF | COLLAR RETAINER, 24X20 MME WF | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| VMB-513-1500 | 轴承轴 | SHAFT, BEARING | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM250-175-18007 | 轴套, 耐磨 | SLEEVE SHAFT, WEAR | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| RM250-042-26001 | 吸入侧衬板, CDR200 | LINER SUCTION, CDR200,PUMP | Krebs RM250 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs RM250; position per part name | RFQ |
| MM500-179-10MME | 间隔套, 24×20 MME WF | SPACER SLEEVE, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| RM150-547-00016 | 泵叶轮, 5叶片 | IMPELLER PUMP, 5 | Krebs RM150 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs RM150; position per part name | RFQ |
| MM250-118-00001 | 衬套, 轴套式 | PUMP, BUSHING,SLEEVE | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MMF-338-100QR | 法兰六角螺栓, 28×26×64 | BOLT FLANGE HEX, 28X26X64,PUMP | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MMF-340-100QR | 六角螺母, 28×26×64 | NUT HEXAGONAL, 28X26X64,PUMP | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VM080-847-00001 | 叶轮 | IMPELLER, PUMP,SMP | Krebs VM080 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM080; position per part name | RFQ |
| MM200-078-12013 | 填料箱, 10×8, millMAX | STUFFING BOX, 10 X 8,MILLMAX | Krebs millMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX; position per part name | RFQ |
| MM500-045-16001 | 光杆双头螺栓, 24×20 MME WF | STUD PLAIN, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| MM150-118-00001 | 灯笼环衬套 | BUSH, LNTRN | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VMB-556-10001 | 轴承, VMB | BEARING, VMB | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| VM080-022-12001 | 滤网 | STRAINER, PUMP,SMP | Krebs VM080 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM080; position per part name | RFQ |
| MM600-045-16001 | 全螺纹双头螺栓, 28×26×64 | STUD CONTINUOUS THREAD, 28X26X64 | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MME-517-28100 | 油封, 8-1/4″×9.252″×1/2″ | SEAL OIL, 8-1/4 IN,9.252 IN,1/2 IN,1 | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| VMB-557-10001 | 轴承 (1491912), C045001 | BEARING, 1491912), C045001 | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM10-S021300162 | 双头螺栓, M16×130, 不锈钢, 耐磨环用 | STUD, M16 X 130 MM,SS,CARR,WEAR RNG | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| UM700-126-28001 | O型圈, 壳体用, UMD 28×26-66 | O-RING, CSG,FOR UMD 28 X 26-66 | Krebs UMD | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs UMD; position per part name | RFQ |
| VM100-034-10001 | 带肩双头螺栓, M10×65, VM080 | STUD, COLLARED,M10X65MM,VM080 | Krebs VM100 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM100; position per part name | RFQ |
| VMA-556-10001 | 轴承 | BEARING | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM600-126-28001 | O型圈, 24×20 MME WF, 壳体 | O-RING, 24X20 MME WF,PUMP,CSG | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| VM050-022-25001 | 滤网, VM050, millMAX | STRAINER, VM050,MILLMAX PUMP | Krebs VM050 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM050; position per part name | RFQ |
| MM150-111-43104 | 填料环, 每套4件 | PACKING, RNG,4 PER SET | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM150-078-12MMA | 填料箱 | BOX STUFFING | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM600-226-28001 | O型圈, 24×20 MME WF | O-RING, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| MM150-175-18016 | 轴套 | SLEEVE SHAFT | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM05-H08-16 | 平垫圈, M16, 不锈钢, 硬化 | WASHER FLAT, M16,SS,HRDD | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VMA-557-10001 | 轴承 | BEARING | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM100-060-26049 | 垫片, ANSI | GASKET, ANSI | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM500-018-29070 | 垫片, 28×26×64 | GASKET, 28X26X64,PUMP | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM500-018-29073 | 垫片, 24×20 MME WF | GASKET, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| MM400-226-28001 | O型圈, 43.9×0.275″ | O-RING, 43.9 X 0.275 IN | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VMB-518-10001 | 锁紧螺母, KM19 | NUT LOCK, KM19 | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM200-060-26249 | 橡胶法兰垫片, 150 lb, 8″出口 | GASKET JOINT, RBR,150 LB,8 IN DISCH | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM600-245-16001 | 光螺母, 28×26×64, 圆管螺纹 | NUT PLAIN, 28X26X64,PUMP,RND,TBNG | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| UM250-126-28001 | O型圈, 壳体, 10×8 UMD | O-RING, CSG,10X8 UMD | Krebs UMD | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs UMD; position per part name | RFQ |
| MME-239-100QR | 松脱压盖环, 6″ | COLLAR, RELEASE,6 IN | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| VMB-558-11001 | 轴承间隔套, VMB | SPACER, BRG VMB | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM500-061-26100 | 垫片, 24×20 MME WF | GASKET, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| MM150-140-10001 | 平垫圈, M16, 窄型硬化 | WASHER, MILL,M16,NARROW HRDD FLT | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM400-126-28001 | O型圈, 45.55″×0.275″ | O-RING, 45.55 IN,0.275 IN | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MMD-520-10001 | 平键, 24×20 MME WF | KEY MACHINE, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| VMB-514-10001 | 端盖 | COVER, END | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM250-179-10MMC | 间隔套, 10×8-24 | SPACER SLEEVE, 10X8-24,10 X 8-24 | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM150-063-16001 | 灯笼环 | RING LANTERN | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM500-108-29097 | 垫片, 28×26×64, 间隔套用 | GASKET, 28X26X64,PUMP,SLV SPCR | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM600-122-29MMF | 填料箱垫片, UMD 28×26 | GASKET, STFG BX,FOR UMD 28 X 26 PUMP | Krebs UMD | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs UMD; position per part name | RFQ |
| MM00-L051000162 | 螺栓, M16×100 | BOLT, M16 X 100 MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM150-064-18001 | 颈环 | NECK RING | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM500-108-29069 | 垫片, 24×20 MME WF | GASKET, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| MM350-245-16001 | 压盖双头螺栓螺母, 24×20 MME WF | NUT GLAND STUD, 24X20 MME WF | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| MMF-139-10001 | 松脱环, 短轴 | RING, RLS,STUB SFT | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM250-018-29007 | 垫片, MM14×12-36 | GASKET, MM14X12-36,PUMP | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM400-122-29084 | 垫片, KLVR | GASKET, KLVR | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM08-L05-16 | 弹簧垫圈, M16 | WASHER LOCK, MILL,M16 | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VMB-515D10001 | 甩油环, 驱动端 | FLINGER, DRIVE END | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| VMB-515-10001 | 甩油环, 叶轮端 | FLINGER, IMPELLER END | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM100-534-10019 | 六角螺母, M16 | NUT HEXAGONAL, MILL,M16 | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM00-L050800162 | 螺栓, M16×80 | BOLT, MILL,M16 X 80 MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MMA-517-28001 | 径向密封, 95.25×114.33×9.53 mm | SEAL, RDL,95.25 MM,114.33 MM,9.53 MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VM100-126-28001 | O型圈, 壳体 | O-RING, CASING | Krebs VM100 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM100; position per part name | RFQ |
| VMA-515D10001 | 挡尘挡液环, 驱动端 | DEFLECTOR, DIRT AND LIQUID,DRIVE END | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| VMA-515-10001 | 挡尘挡液环, 叶轮端 | IMPELLER, DEFLECTOR,DIRT AND LIQUID,END | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| VMA-518-10001 | 锁紧螺母, 六角自锁, KMH3 | NUT LOCK, HEXAGONAL,SELF,KMH3 | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| VMB-514D11001 | 端盖, 驱动端 | COVER, END,DRIVE END | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM600-122-29069 | 垫片 | GASKET | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM350-145-16001 | 平垫圈, 24×20 MME WF | WASHER FLAT, 24X20 MME WF,PUMP | Krebs MME | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs MME; position per part name | RFQ |
| MM600-145-16001 | 平垫圈, 压盖螺钉用 | WASHER FLAT, GLAND SCREW | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM250-140-10001 | 平垫圈, 衬板双头螺栓用 | WASHER FLAT, LNR STUD | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM300-108-29036 | 垫片, MM14×12-36 | GASKET, MM14X12-36,PUMP | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM100-434-10025 | 平垫圈, M12, 硬化 | WASHER FLAT, M12,HD | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM00-L050750162 | 螺栓, M16×75 | BOLT, M16 X 75 LG MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM00-L050450162 | 螺栓, M16×45 | BOLT, M16 X 45 MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM200-520-10013 | 平键, 250 mm 轴用 | KEY, 250 MM,SFT | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM250-019-28015 | O型密封圈, 轴用 | SEAL O-RING, FOR SFT | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MMB-336-10001 | 六角螺栓, M8×30 | BOLT HEXAGONAL, MILL,M8 X 30 LG MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| RM250-017-29008 | 叶轮垫片, CDR200 | GASKET IMPELLER, CDR200,PUMP | Krebs RM250 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs RM250; position per part name | RFQ |
| MM150-534-10016 | 六角螺母 | NUT HEXAGONAL, PL | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VM080-060-26049 | 法兰垫片 | PUMP, GASKET FLANGE | Krebs VM080 | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM080; position per part name | RFQ |
| MMB-337-10001 | 平垫圈, M8, 硬化 | WASHER, MILL,M8,HD | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM00-L050900162 | 螺栓, M16×90 | BOLT, M16 X 90 LG MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM100-018-29018 | 叶轮垫片 | GASKET IMPELLER, MILL | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM100-334-10034 | 螺栓, M16×40 | BOLT, M16 X 40 LG MM | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| VMB-519-10001 | 锁紧垫圈, MBB19 | WASHER LOCK, MBB19 | Krebs VM | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs VM; position per part name | RFQ |
| MM100-245-16001 | 六角螺母, M12, 不锈钢 | NUT HEXAGONAL, M12,STAINLESS STEEL | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM150-018-29016 | 叶轮垫片 | GASKET IMPELLER | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MMB-527-10001 | 定位销, 硬化 | PIN DOWEL, MILL,HRDD | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM250-245-16001 | 六角螺母, M16, 不锈钢 | NUT HEXAGONAL, PUMP,M16,SS | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
| MM150-109-28016 | 间隔套, O型圈用 | SLEEVE SPACER, O-RNG | Krebs millMAX / slurryMAX | KREBS (FLS) | KREBS centrifugal slurry-pump identification; recorded series: Krebs millMAX / slurryMAX; position per part name | RFQ |
Preserve the original number format for lookup and inquiry; a number alone does not guarantee interchangeability. Verify the original catalogue/drawing, complete machine model, serial number, revision, material and interfaces. Keep GEHO piston-diaphragm pumps, KREBS centrifugal pumps and KREBS hydrocyclones in separate sections. Similar numbers do not establish interchangeability: suffixes, material codes, revisions and positions may differ.
Identification
Identification and Inquiry Checks
Identify impeller, volute/liners, plates, throatbush, shaft seal and lining for the pump model. Record duty point, speed, particle size/shape, concentration, pH, temperature and reagents. Compare A05, A49, rubber and other options for both erosion and corrosion rather than code number.
Identification FAQ
Does A49 always outlast A05?
No. Corrosion and solids duty can change the result.
