Side housing liner

Name: Side housing liner
Brand: ANRANST

Protects the crusher housing and maintains the effective crushing chamber width.

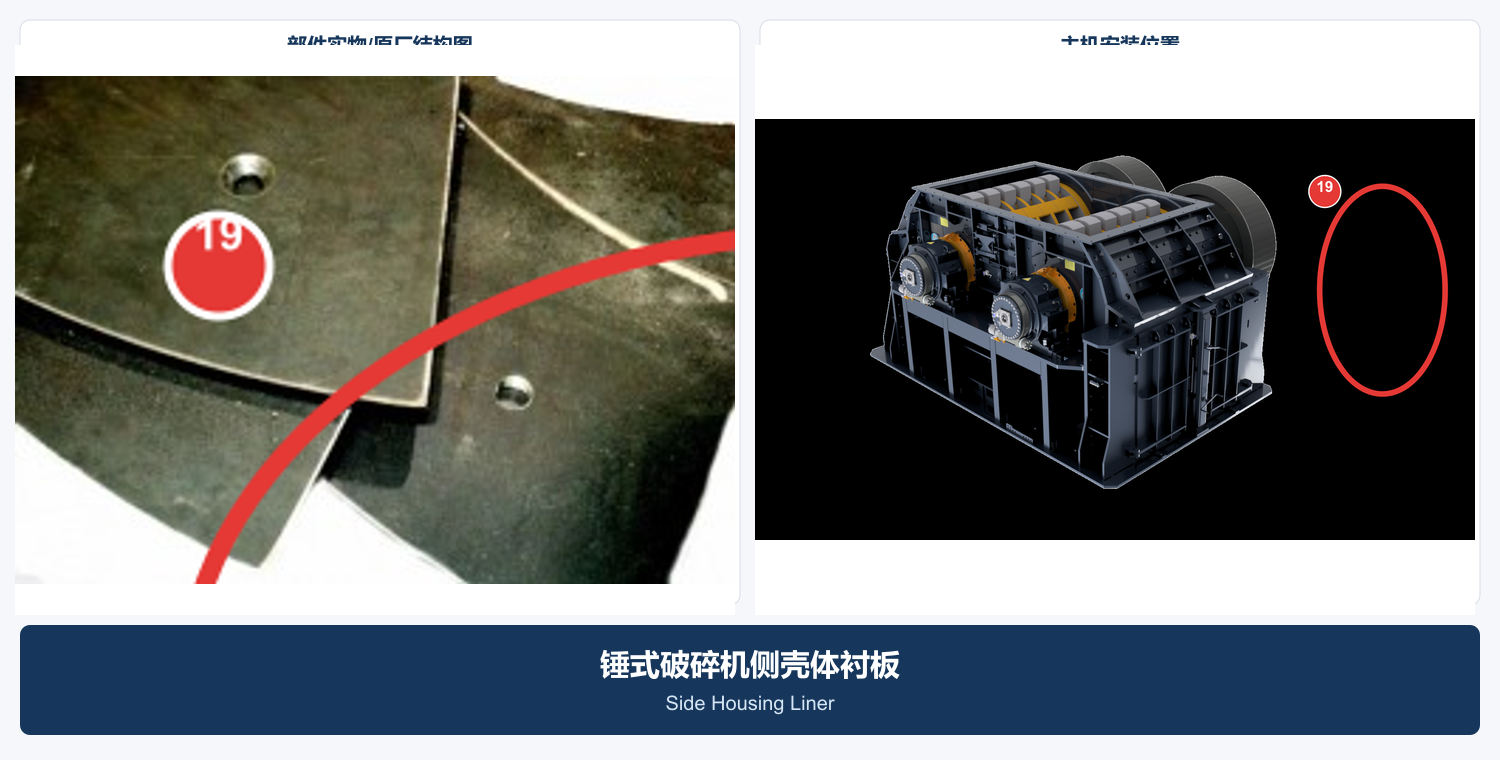

Side housing liner (Side Housing Liner)— Hammer Crusher Wear part, position 19.

Installation and Function

Installation Position	On the left and right inner chamber walls; position 19 in the HDS/HUV location diagram.
Main Function	Protects the crusher housing and maintains the effective crushing chamber width.
Replacement Frequency	Moderate to high wear exposure; assess remaining thickness, hole condition, distortion, looseness and exposure of the underlying housing when deciding on replacement.

Materials and Mechanical Properties

Item	Details
Material Options	AISI 1040/1045 carbon-manganese steel, Mn13/Mn18 high-manganese steel, 400–500 HB quenched and tempered wear plate or composite liners
Typical Properties and Acceptance Criteria	Side liners face three-body abrasion, rebounding material impact and local stress around bolt holes. Prioritize toughness near high-impact feed areas; harder materials may suit downstream zones with steady sliding abrasion. Confirm wear plate hardness for the brand, grade and thickness against the material certificate. Check welding, hole-edge and impact requirements when selecting a harder material.
Principal Failure Mechanism	Impact, cutting and abrasive wear; sliding and three-body abrasion, local impact and cracking around fastener holes

Material and Design Considerations

Identify material hardness, particle size, abrasiveness, moisture, temperature, pH, impact and tramp material;
High hardness does not replace core toughness, fatigue strength, corrosion resistance or high-temperature performance;
For composite, hardfaced, ceramic and elastomer designs, assess substrate bonding, edge protection, fastening and maintainability;
For parts that mate with shafts, gears, seals, roll surfaces or housings, control fits, tolerances, surface finish and assembly clearances together;
Assess material upgrades using cumulative throughput, dimensional wear, failure modes, product quality and downtime costs.

Required Ordering / RFQ Information

Equipment manufacturer, machine model, serial number, part number and latest drawing revision;
Part dimensions, unit weight, key tolerances, assembly and fastening method;
Current material, chemical composition, heat treatment, hardness and mechanical property reports;
Processed material, maximum particle size, hardness/abrasiveness, moisture and tramp material records;
Speed, load, temperature, pressure, process medium chemistry and continuous operating time;
Failure photographs, wear measurements, crack/fracture locations and current service life;

Materials and values are for preliminary engineering selection. Final chemical composition, heat treatment, hardness and dimensional tolerances must follow the OEM drawings and technical agreement.
