Spider scraper ring
Scrapes away contaminants and excess lubricant to protect the spider bushing lubrication area.

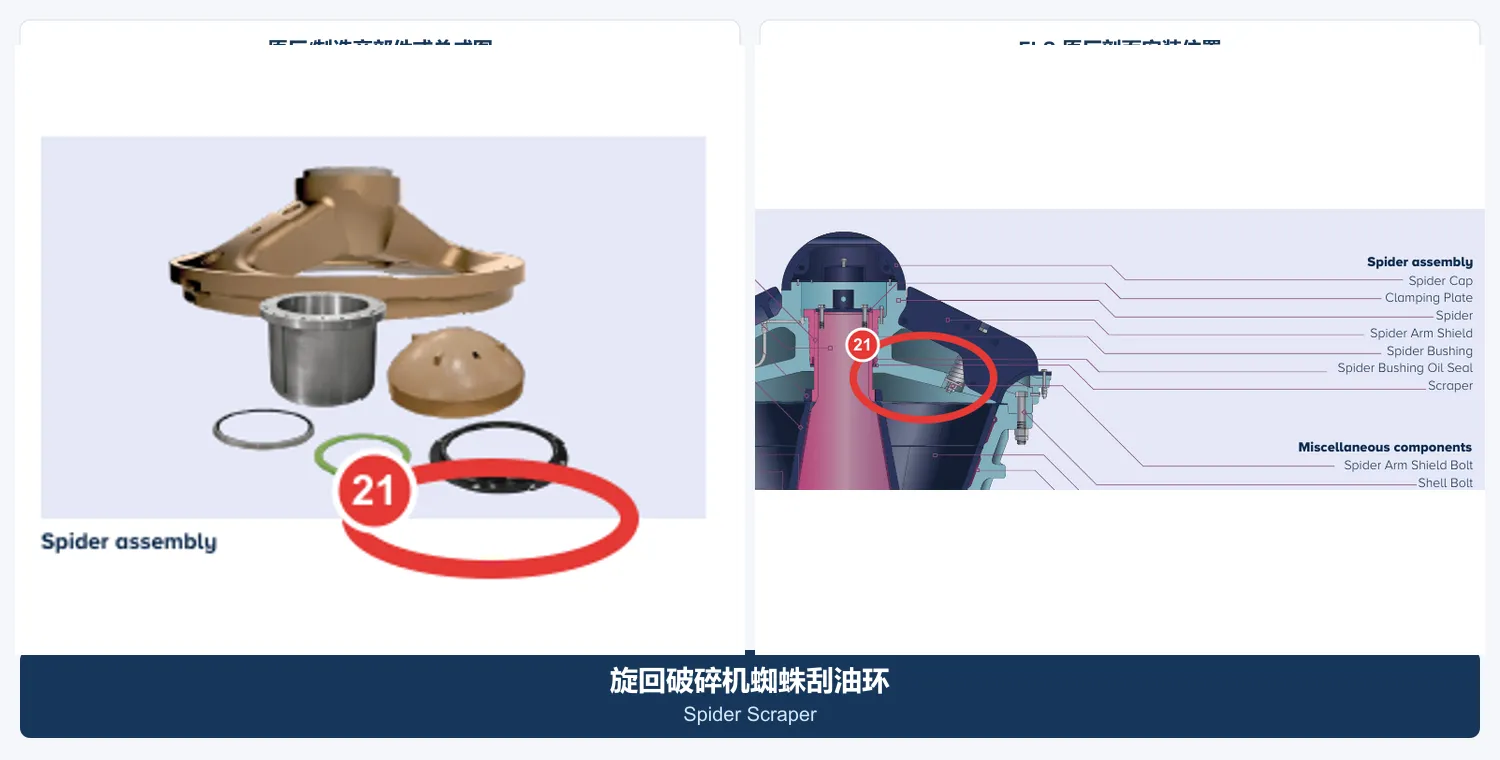

Spider scraper ring (Scraper)— Gyratory Crusher Wear part, position 21.
Location and Function
| Material Options | Wear-resistant copper alloy, quenched and tempered steel, polymer or an OEM-specified scraper material |
| Typical Properties and Acceptance Criteria | Requires a stable scraping edge, wear resistance, low friction and compatibility with the lubricant. Check the edge and contact surface, roundness, joints, preload and safe clearance from the mainshaft. Excessive tightness causes heating; a loose fit reduces scraping and contaminant exclusion. |
| Principal Failure Mechanism | Abrasion, fatigue, corrosion or assembly damage; use photographs of failed parts from the site to identify the dominant mechanism |
Information Required for RFQ
- Equipment manufacturer, machine model, serial number, model details and latest drawing revision;
- Part dimensions, unit weight, key tolerances, assembly and fastening method;
- Current material, chemical composition, heat treatment, hardness and mechanical property reports;
- Processed material, maximum particle size, hardness/abrasiveness, moisture and tramp material records;
- Speed, load, temperature, pressure, process medium chemistry and continuous operating time;
- Failure photographs, wear measurements, crack/fracture locations and current service life;
Materials and values are for preliminary engineering selection. Final chemical composition, heat treatment, hardness and dimensional tolerances must follow the OEM drawings and technical agreement.
