Eccentric assembly

The drive assembly that produces gyratory motion of the mainshaft.

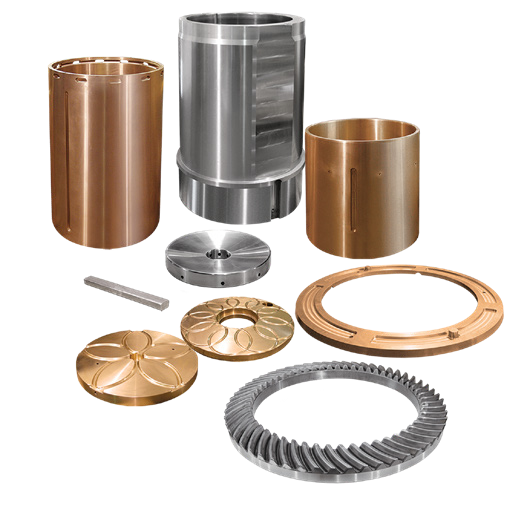

Eccentric assembly The eccentric assembly is a gyratory crusher assembly. Check its interfaces with adjacent mainshaft, spider, liner, eccentric and hydraulic-system parts against the installed configuration.

Installation position and function

Installation Position	Around the lower mainshaft, within the bottom-shell and drive-gear area.
Main Function	Eccentric motion drives the mainshaft and crushing head in a gyratory path, while the gear and axial wear parts transmit and support loads.
Part type	Parts / Assemblies

Drawing-based manufacture and technical review

Confirm part numbers, clearances, lubrication and material requirements for the eccentric body, bushing, gear, eccentric wear plate, support plate, keys and adjacent mating surfaces.

Required Ordering / RFQ Information

OEM, complete model, serial number and assembly or part number;
Latest drawing revision, dimensions, unit weight, critical tolerances and assembly interfaces;
Current material, heat treatment, hardness, mechanical properties and nondestructive testing requirements;
Failure photos, wear measurements, crack locations, current service life and target life;
Fit with adjacent parts, fastening, lubrication, sealing and assembly/disassembly requirements.

Parts or assemblies with the same name can differ between brands, series and production periods. Confirm the complete model, drawing number and revision before manufacture.

Equipment and part relationships

Parent equipment and related major parts

This page describes a generic equipment category. It does not establish direct interchangeability with any particular OEM model.

Parent equipment category

Gyratory Crusher

Confirm the brand, series, complete model, serial number, part number, drawings and operating conditions for the installed machine.

Request drawing-based eccentric assembly manufacture

Submit the model, drawing number, drawings and operating conditions for review of the structure, material, manufacturing process and inspection requirements.

Request an Engineering Review
