Mobile cone crusher · 2001 · 2 models
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Svedala Crawlmaster S Series | Crawlmaster S3000; Crawlmaster S4000; Sandvik CM S4800i; Sandvik Crawlmaster 4800i | 2001 | 4 |
| Svedala Roadmaster mobile cone crusher | Roadmaster 3000; Roadmaster 4000; Sandvik Roadmaster | 2001 | 9 |

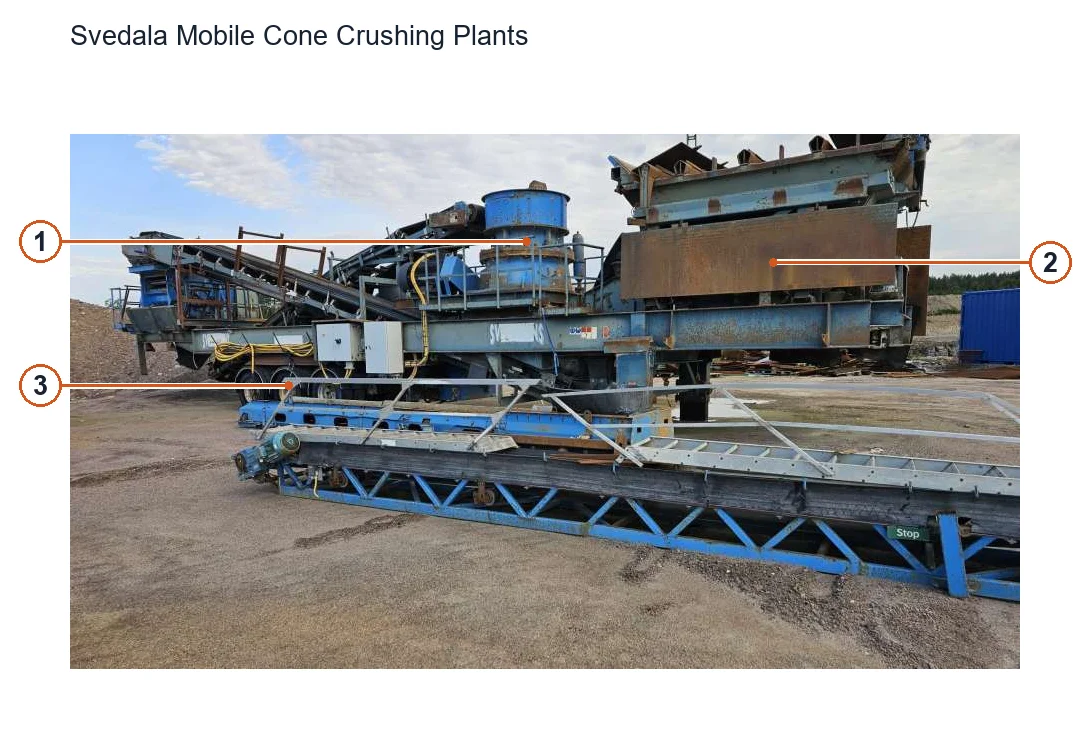

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | H4000 cone crusher | Cone crusher at the centre of the chassis | Roadmaster4000 |
| 2 | Feed hopper | Feed hopper at the rear right of the photograph | Roadmaster4000 |
| 3 | Three-axle chassis | Portable chassis below all components | Roadmaster4000 |
Models with the same components are grouped together; select a group to open its component table.
| No. | Component | Location |
|---|---|---|
| 1 | Roadmaster4000 H4000 cone host (in stock example) | The main engine is marked in 2006, which is not the year of complete machine modification. |
| 2 | Roadmaster4000 feed hopper (in stock example) | 10m³ |
| 3 | Roadmaster4000 three-axle chassis (in stock example) | The chassis is marked as 1996, not the year of manufacture of H4000 |
| Roadmaster4000 host motor (in stock example) | 160kW | |
| Roadmaster4000 scale category (inventory example) | Original text only Scale, location/sensor/brand not included | |
| Unspecified Roadmaster traction connection (Stangeland example) | 3.5in Kingbolt, not specifically 3000/4000 | |
| Unspecified Roadmaster diesel generator power supply (Stangeland example) | 400V diesel generator, the demand varies from 400kW to determine the rated model of the generator | |
| Roadmaster4000 host driver category (inventory example) | Original text Motor & Drive, pulleys, couplings, etc. are not disassembled | |
| Roadmaster4000 VLB-1420 three-layer screen (in stock example) | 1400×2000mm; original writing VLB retained, not recognized as VBL series |
| Component | Location |
|---|---|
| CM S4800i track chassis (2007 manufacturer advertisement) | Only the new crawler secondary machine is directly declared, the internal host/pump valve is not documented |
| Unmarked H/S4800i engine (Stangeland example) | Original Deutz/Volvo, 315kW/422hp; not suitable for two units installed at the same time |
| Unmarked H/S4800i diesel hydraulic drive category (Stangeland example) | Specific pump/motor components not included |
| Unmarked H/S4800i24V electrical category (Stangeland example) | Original text EL24V, cannot push the full sensor list |
The Mobile cone crushing plant covers 2 models: Svedala Crawlmaster S Series, Svedala Roadmaster mobile cone crusher. Former and renamed designations are listed in the models table on this page.
The Mobile cone crushing plant is also documented under these designations: Svedala Crawlmaster S Series, Crawlmaster S3000, Crawlmaster S4000, Sandvik CM S4800i, Sandvik Crawlmaster 4800i, Svedala Roadmaster mobile cone crusher, Roadmaster 3000, Roadmaster 4000, Sandvik Roadmaster.
The Mobile cone crushing plant is listed under the Svedala brand as: Mobile cone crusher. Period: 2001. Status: Historical model.
13 components are recorded, including: CM S4800i track chassis (2007 manufacturer advertisement), Unmarked H/S4800i engine (Stangeland example), Roadmaster4000 three-axle chassis (in stock example), Roadmaster4000 host motor (in stock example), Roadmaster4000 feed hopper (in stock example), Roadmaster4000 scale category (inventory example), Unspecified Roadmaster traction connection (Stangeland example), Unspecified Roadmaster diesel generator power supply (Stangeland example) and more. The full list with locations is in the components table on this page.
Model-specific components with their own page: Unmarked H/S4800i diesel hydraulic drive category (Stangeland example), Unmarked H/S4800i24V electrical category (Stangeland example), Roadmaster4000 H4000 cone host (in stock example), Roadmaster4000 host driver category (inventory example), Roadmaster4000 VLB-1420 three-layer screen (in stock example) (5 in total).
