2 models
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Components |
|---|---|---|
| Pegson Roller Bearing Granulator 24x5 | 24x5; 620x125 | 3 |
| Pegson Roller Bearing Granulator 36x6 | 36x6; 910x150 | 3 |

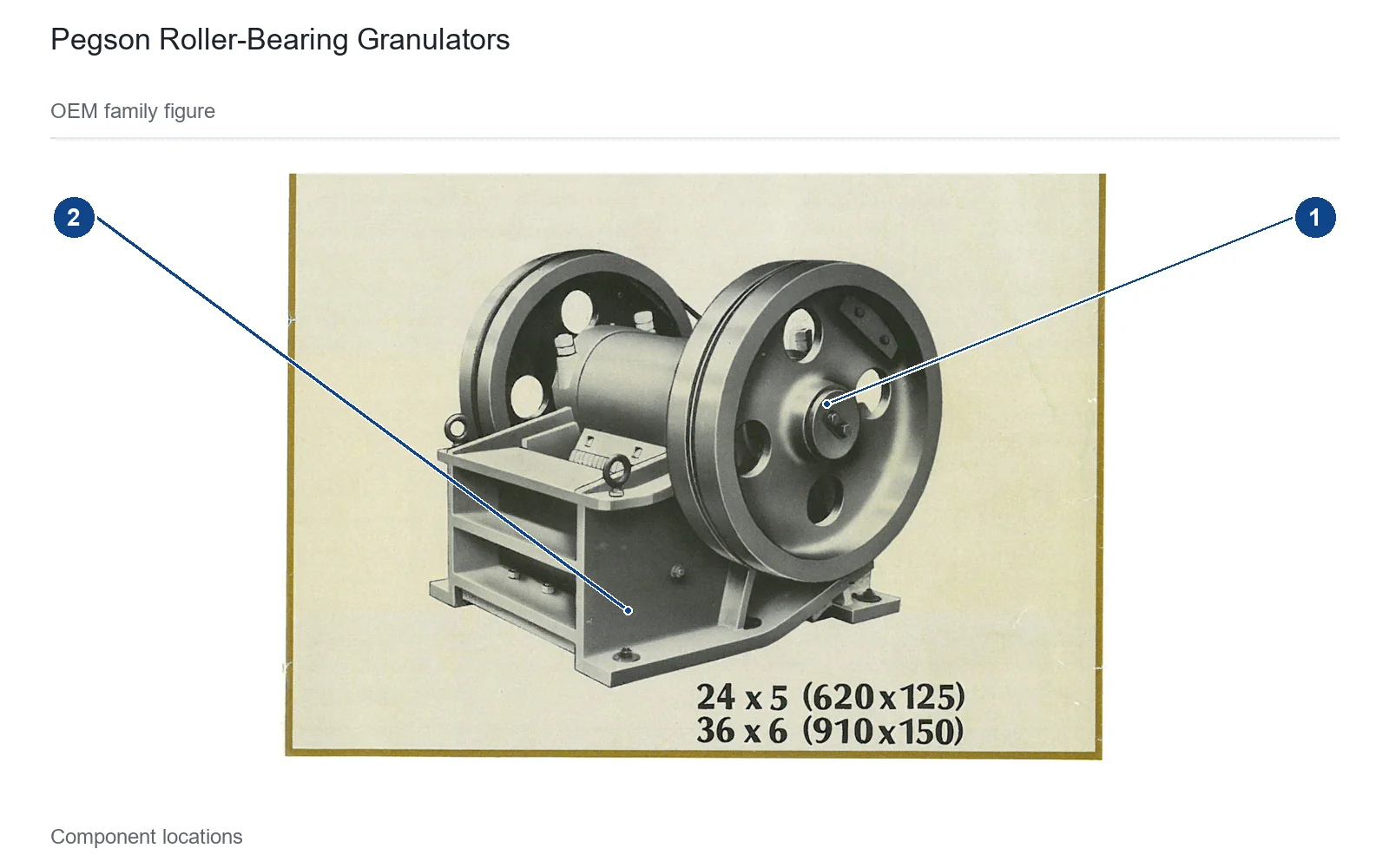

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Drive pulley | Large multi-groove drive pulley on the right | Pegson Roller Bearing Granulator OEM photo (brochure lists 24x5 and 36x6) |
| 2 | Support frame | Steel crusher frame at the bottom | Pegson Roller Bearing Granulator OEM photo (brochure lists 24x5 and 36x6) |
| Component |
|---|
| Jaw plates |
| Roller bearings |
| Drive belts |
Models with the same components are grouped together; select a group to open its component table.
Models: Pegson Roller Bearing Granulator 24x5, Pegson Roller Bearing Granulator 36x6
| Component |
|---|
| Jaw plate |
| Roller bearing |
| Drive belt |
The Roller Bearing Granulator covers 2 models: Pegson Roller Bearing Granulator 24x5, Pegson Roller Bearing Granulator 36x6. Former and renamed designations are listed in the models table on this page.
The Roller Bearing Granulator is also documented under these designations: Pegson Roller Bearing Granulator 24x5, 24x5, 620x125, Pegson Roller Bearing Granulator 36x6, 36x6, 910x150.
The Roller Bearing Granulator is listed under the Pegson brand. Status: Historical model.
3 components are recorded, including: Jaw plate, Roller bearing, Drive belt. The full list with locations is in the components table on this page.
Send us a drawing or sample and tell us the equipment model and part name.
Provide the equipment model, drawing for engineering review and quotation. If service life or wear is a concern, describe the operating conditions as well.
