What other names or designations is the LC known by?
The LC is also documented under these designations: LC 280, LC 60, LC 80 W, LC 100, LC 130, LC 180, LC 200, LC 300, LC 380, LC 500, LC 4000, LC 1500, LC 2000, LC 2500.
LC
2022 · 1 model
Liebherr
LiebherrBrand
2022Period
Historical modelStatus
Liebherr
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| LC | LC 280; LC 60; LC 80 W; LC 100; LC 130; LC 180; LC 200; LC 300; LC 380; LC 500; LC 4000; LC 1500; LC 2000; LC 2500; LC 3000; LC 4500; LC 6000; LC 8000; LC 10000; LC 12000; LC 600; LC 700; LC 800; LC 1000; LC 1200; LC 1400; LC 1600; LC 280 α; LC 300 DC; LC 500 DC; LC 700 M | 2022 | 4 |
Liebherr

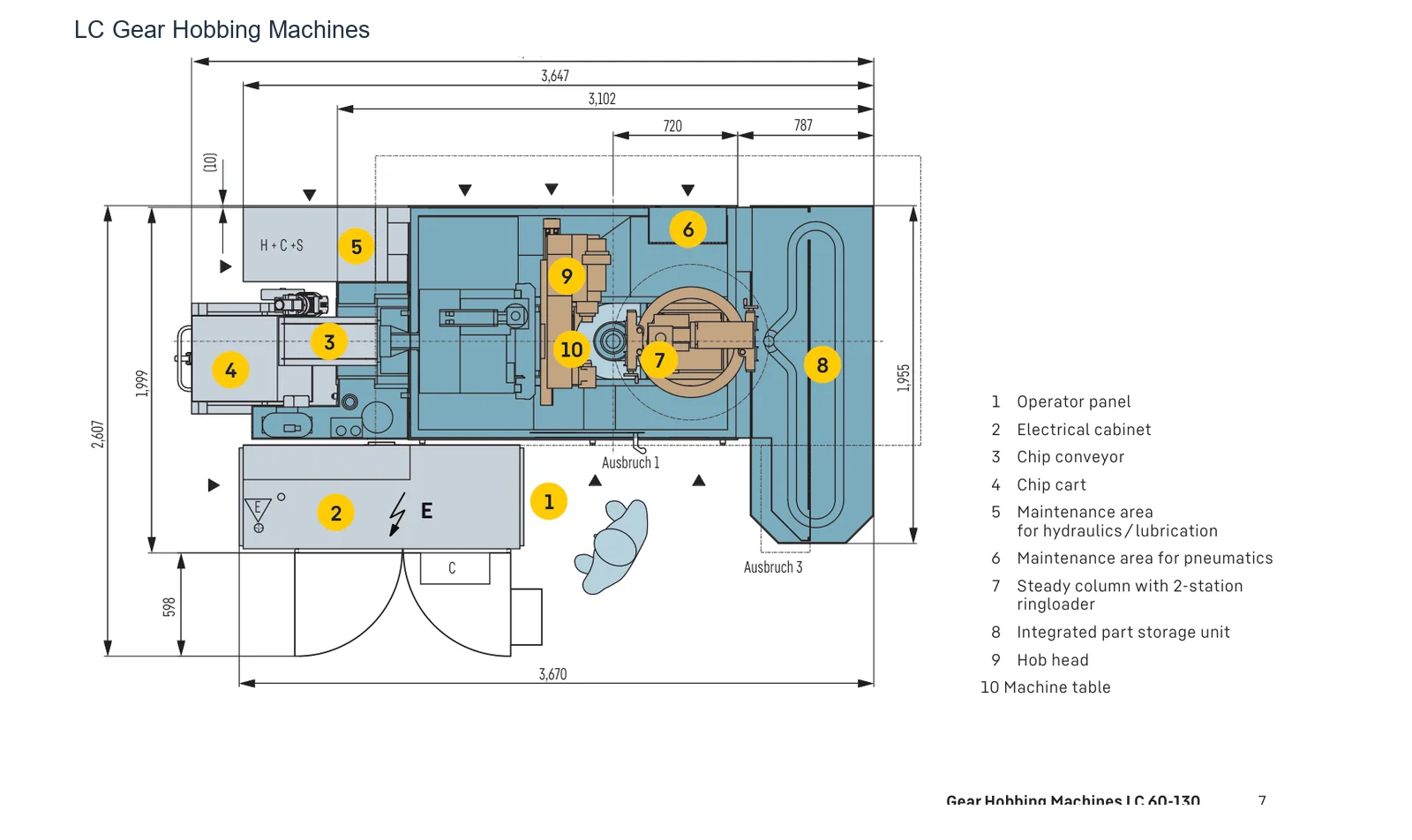

Numbered Components
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Operator panel | Operator position in front of machine | LC 60;LC 100;LC 130 |
| 2 | Electrical cabinet | Lower-left area in layout | LC 60;LC 100;LC 130 |
| 3 | Chip conveyor | Left middle area in layout | LC 60;LC 100;LC 130 |
| 4 | Chip cart | End of chip conveyor | LC 60;LC 100;LC 130 |
| 5 | Hydraulics and lubrication service area | Upper-left service zone in layout | LC 60;LC 100;LC 130 |
| 6 | Pneumatics service area | Upper service zone in layout | LC 60;LC 100;LC 130 |
| 7 | Steady column with two-station ringloader | Loading assembly to right of machine table | LC 60;LC 100;LC 130 |
| 8 | Integrated part storage unit | Right side of machine layout | LC 60;LC 100;LC 130 |
| 9 | Hob head | Central machining zone | LC 60;LC 100;LC 130 |
| 10 | Machine table | Between hob head and ringloader | LC 60;LC 100;LC 130 |
Liebherr
Components by Model
Models with the same components are grouped together; select a group to open its component table.
LC4 items
| No. | Component | Location |
|---|---|---|
| 9 | Hobbing head | LC hobbing zone |
| 10 | Workpiece turntable | Workpiece support position in the LC machining zone |
| Ring loader/unloader | Between the LC machining zone and the loading and unloading zone | |
| Rear column | Long-shaft workpiece support position of the LC |
Frequently asked questions
Which brand and type of equipment is the LC?
The LC is listed under the Liebherr brand. Period: 2022. Status: Historical model.
Which components and wear parts are recorded for the LC?
4 components are recorded, including: Hobbing head, Workpiece turntable, Ring loader/unloader, Rear column. The full list with locations is in the components table on this page.
Which model-specific components of the LC have their own page?
Model-specific components with their own page: Hobbing head, Workpiece turntable, Ring loader/unloader, Rear column (4 in total).
How do I enquire about parts for the LC?
Send us a drawing or sample and tell us the equipment model and part name.
