Hydraulic breaker · 1967 · 1 model
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Krupp HM series hydraulic breaker | HM 400; Krupp HM 60; Krupp HM 45; Krupp HM 50; Krupp HM 55; Krupp HM 75; Krupp HM 110; Krupp HM 135; Krupp HM 140; Krupp HM 85; Krupp HM 90; Krupp HM 170; Krupp HM 185; Krupp HM 190; Krupp HM 230V; Krupp HM 200; Krupp HM 300; Krupp HM 305; Krupp HM 350; Krupp HM 550; Krupp HM 560; Krupp HM 580; Krupp HM 700; Krupp HM 701; Krupp HM 702; Krupp HM 780; Krupp HM 710; Krupp HM 711; Krupp HM 712; Krupp HM 720; Krupp HM 600; Krupp HM 950; Krupp HM 960; Krupp HM 900; Krupp HM 901; Krupp HM 902; Krupp HM 800; Krupp HM 1000; Krupp HM 1300; Krupp HM 1200; Krupp HM 1800; Krupp HM 2000; Krupp HM 1500; Krupp HM 2200; Krupp HM 2500; Krupp HM 2600; Krupp HM 2100; Krupp HM 2300; Krupp HM 4000; Krupp HM 3000; HM 2000 / V; HM 2500 / V; HM 1000 Marathon; Krupp HM 2600 S | 1967 | 53 |

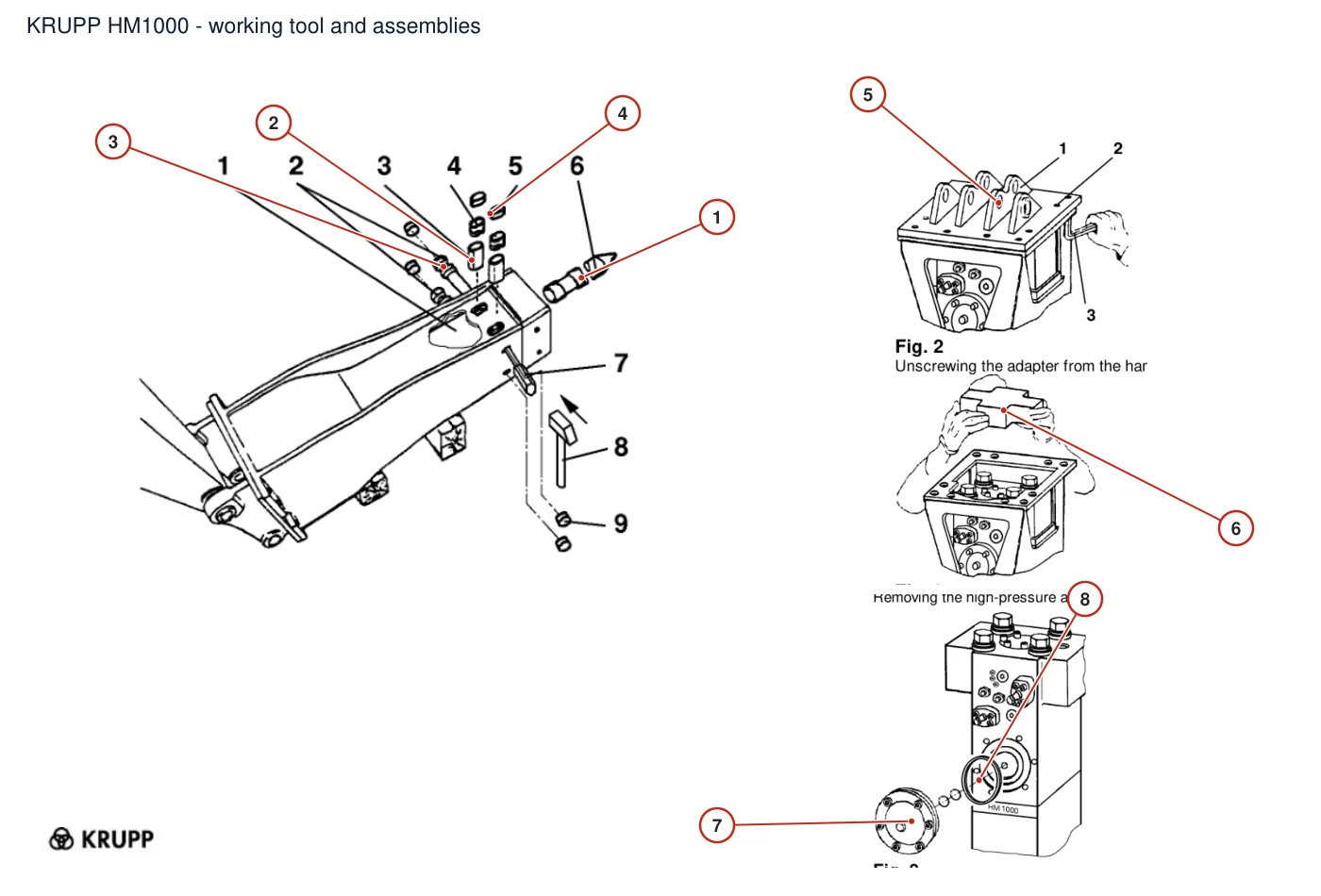

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | HM1000 working tool | Working-tool bore in lower hammer body | HM1000; HM1000 Marathon |
| 2 | Retainer bar | Working-tool retainer in lower hammer body | HM1000; HM1000 Marathon |
| 3 | Locking pin | Locking-pin hole for retainer bar | HM1000; HM1000 Marathon |
| 4 | HM1000 hammer-box plugs and sealing plugs | Hammer-box and retainer access holes | HM1000; HM1000 Marathon |
| 5 | Connection adapter | Top mounting interface of hammer box | HM1000; HM1000 Marathon |
| 6 | Elastic pad | Between adapter and percussion mechanism | HM1000; HM1000 Marathon |
| 7 | HM1000 high-pressure accumulator | Circular accumulator on percussion mechanism | HM1000; HM1000 Marathon |
| 8 | Accumulator O-ring and back-up ring | Accumulator sealing interface | HM1000; HM1000 Marathon |
| Component |
|---|
| Piston |
| Upper bushing |
| Lower tool bushing |
| Tool holding pin |
| Sealing set |
| Accumulator diaphragm |
| HM2000/V, HM2500/V high-pressure accumulator |
| HM2000/V, HM2500/V accumulator expansion bolts and washers |
| HM2000/V, HM2500/V connection adapter and elastic pad |
| HM2000/V, HM2500/V accumulator thread insert |
| Drill rod lubricating paste for HM2000/V, HM2500/V maintenance |
| 5L nitrogen bottle for maintenance of HM2000/V and HM2500/V |
| HM2000/V, HM2500/V inflation valve and pressure gauge, hose |
| HM2000/V, HM2500/V pin punch and hexagon socket tools |
| HM1000 drill rod locking bar and locking pin |
| HM1000 connection adapter, elastic pad and hexagon socket screws |
| HM1000 Marathon ContiLube II connecting lubrication tube |
| HM1000 accumulator thread inserts, lock washers and screws |
| Drill rod lubricating paste for HM1000 maintenance |
| 2L nitrogen bottle for HM1000 maintenance |
| HM1000 inflation valve, pressure gauge and hose |
| HM1000 pin punch, hook wrench and screwdriver |
| Marathon pilot valve |
| Marathon automatic stroke switching valve |
| Marathon coarse and fine scraper rings |
| Vibrosilenced elastic vibration isolation support |
| Pointed drill rod |
| Horizontal flat drill rod |
| Wide flat drill rod |
| Blunt tip work tools |
| HM2000/V, HM2500/V Service Box 4 maintenance box and set |
| HM2000/V special wear inspection gauge |
| HM2500/V special wear inspection gauge |
| HM4000/V special wear inspection gauge (accessory item in this box) |
| HM2000/V, HM2500/V accumulator nitrogen charging device |
| HM2000/V, HM2500/V electric or hydraulic power wrench |
| HM2000/V, HM2500/V Heli-Coil thread repair tool |
Models with the same components are grouped together; select a group to open its component table.
| No. | Component | Location |
|---|---|---|
| 1 | HM1000 working drill rod | Working tool hole in the lower part of the hammer body (PDF13) |
| 4 | HM1000 hammer box hole plug and seal blocked | Elongated hole for hammer box and locking bar (PDF13) |
| 7 | HM1000 high-voltage accumulator | Impact mechanism; 0.9L, 200bar only original version 11/98 (PDF15) |
| Piston | Inside the hammer hydraulic working cylinder | |
| Upper bushing | Hammer upper guide | |
| Lower tool bushing | Drill rod guide part | |
| Tool holding pin | Drill rod limit position | |
| Sealing set | Working cylinder and sealing position | |
| Accumulator diaphragm | Inside the accumulator | |
| HM2000/V, HM2500/V high-voltage accumulator | Outside of the impact mechanism; original page 14 shows the disassembly part; 1.5L, 200bar only this edition | |
| HM2000/V, HM2500/V accumulator expansion bolts and washers | High-voltage accumulator installation location (PDF14) | |
| HM2000/V, HM2500/V connection adapter and elastic pad | Hammer box and impact mechanism installation room (PDF13 text/picture) | |
| HM2000/V, HM2500/V accumulator thread insert | Accumulator bolt hole; original text requires inspection and replacement if necessary (PDF14) | |
| Drill rod lubricating paste for HM2000/V, HM2500/V maintenance | Service Box 4 consumables; no brand/formula (PDF9) | |
| 5L nitrogen bottle for maintenance of HM2000/V and HM2500/V | Inside Service Box 4; used for accumulator filling (PDF9/10) | |
| HM2000/V, HM2500/V inflation valve and pressure gauge, hose | Service Box 4; OEM product number not copied (PDF9) | |
| HM2000/V, HM2500/V pin punch and hexagon socket tools | Service Box 4 Repair Tool (PDF9) | |
| HM1000 drill rod locking bar and locking pin | Side hole in the lower part of the hammer body; M12 lifting hole at the end of the locking bar (PDF13) | |
| HM1000 connection adapter, elastic pad and hexagon socket screws | Assembly of impact mechanism and hammer box (PDF14) | |
| HM1000 Marathon ContiLube II connecting lubrication tube | Marathon exclusive maintenance section; between lubricator and hydraulic hammer (PDF14) | |
| HM1000 accumulator thread inserts, lock washers and screws | Accumulator fixing; original text requires inspection of threaded inserts (PDF15) | |
| Drill rod lubricating paste for HM1000 maintenance | Toolbox 3 consumables (PDF9); no recipe | |
| 2L nitrogen bottle for HM1000 maintenance | In Toolbox 3 (PDF9) | |
| HM1000 inflation valve, pressure gauge and hose | In Toolbox 3 (PDF9) | |
| HM1000 pin punch, hook wrench and screwdriver | Toolbox 3 tool; do not copy the article number (PDF9) | |
| Marathon pilot valve | Inside the AutoControl combination valve | |
| Marathon automatic stroke switching valve | Inside the AutoControl combination valve | |
| Marathon coarse and fine scraper rings | DustProtector internal coarse/fine dust-proof scraping parts; quantity specifications not specified | |
| Vibrosilenced elastic vibration isolation support | Between the impact mechanism and the hammer box; only the noise reduction configuration | |
| Pointed drill rod | Working tools for the lower part of the breaker | |
| Horizontal flat drill rod | Working tools for the lower part of the breaker | |
| Wide flat drill rod | Corresponding to HM version working end | |
| Blunt tip work tools | Corresponding to HM version working end | |
| HM2000/V, HM2500/V Service Box 4 maintenance box and set | for maintenance; 755×220×255mm (PDF9) | |
| HM2000/V special wear inspection gauge | In Service Box 4; the model name is printed directly on the inspection tool (PDF9) | |
| HM2500/V special wear inspection gauge | In Service Box 4; the model name is printed directly on the inspection tool (PDF9) | |
| HM4000/V special wear inspection gauge (accessory item in this box) | Service Box 4 accessories list and inspection tool marks; it does not prove that this book covers the entire HM4000/V machine (PDF9) | |
| HM2000/V, HM2500/V accumulator nitrogen charging device | Optional accessories; pressure gauge/check valve/adapter/inflatable tube (PDF10) | |
| HM2000/V, HM2500/V electric or hydraulic power wrench | Shop tooling purchase; two options (PDF11) | |
| HM2000/V, HM2500/V Heli-Coil thread repair tool | Specify cylinder head, accumulator, adapting parts; tap/screw insert/installation tool (PDF11), no part number is copied | |
| HM2000/V, HM2500/V impact piston assembly lifting ring auxiliary parts | Special assembly tooling (PDF12) | |
| HM2000/V bushing pressing tool | Composition of handle/screw/upper push-out component/lower push-out component (PDF12) | |
| HM2500/V bushing pressing tool | Composed of handle/screw/upper push-out component/lower push-out component, different from HM2000/V (PDF12) | |
| HM1000 Toolbox 3 repair tool box and set | for maintenance; 760×215×250mm (PDF9) | |
| HM1000 special wear inspection gauge | In Toolbox 3 (PDF9) | |
| HM1000 accumulator nitrogen charging device | Independent optional accessories (PDF10) | |
| HM1000 electric or hydraulic power wrench | Two types of optional maintenance tooling (PDF11) | |
| HM1000 Heli-Coil Thread Repair Tool | Cylinder head P+T port M14, accumulator M16, control system cylinder head M20, adapter seat M30, lower hammer body RD36×5 are arranged separately (PDF11) | |
| HM1000 impact piston assembly lifting ring auxiliary parts | Special lifting ring for assembly (PDF12) | |
| HM1000 bushing pressing tool | Handle/Screw/Press out component composition (PDF12) | |
| Marathon AutoControl combination valve system | Breaker control system; only original Marathon configuration | |
| Marathon ContiLube II automatic lubricator | directly installed on the corresponding hydraulic hammer | |
| Marathon DustProtector dust protection component | Drill rod guide/dust-proof part of the lower part of the hammer body |
The Hydraulic breaker is also documented under these designations: Krupp HM series hydraulic breaker, HM 400, Krupp HM 60, Krupp HM 45, Krupp HM 50, Krupp HM 55, Krupp HM 75, Krupp HM 110, Krupp HM 135, Krupp HM 140, Krupp HM 85, Krupp HM 90, Krupp HM 170, Krupp HM 185.
The Hydraulic breaker is listed under the Krupp Berco Bautechnik brand as: Hydraulic breaker. Period: 1967. Status: Historical model.
53 components are recorded, including: Piston, Upper bushing, Lower tool bushing, Tool holding pin, Sealing set, Accumulator diaphragm, HM2000/V, HM2500/V high-voltage accumulator, HM2000/V, HM2500/V accumulator expansion bolts and washers and more. The full list with locations is in the components table on this page.
Model-specific components with their own page: Pointed drill rod, Horizontal flat drill rod, Wide flat drill rod, Blunt tip work tools, HM2000/V, HM2500/V Service Box 4 maintenance box and set, HM2000/V special wear inspection gauge, HM2500/V special wear inspection gauge, HM4000/V special wear inspection gauge (accessory item in this box) and more (24 in total).
