What other names or designations is the Armored Face Conveyor known by?
The Armored Face Conveyor is also documented under these designations: Joy AFC.
Armored Face Conveyor
2026 · 1 model
Joy
JoyBrand
2026Period
Historical modelStatus
Joy
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| Joy AFC | 2026 | 7 |
Joy
Numbered Components

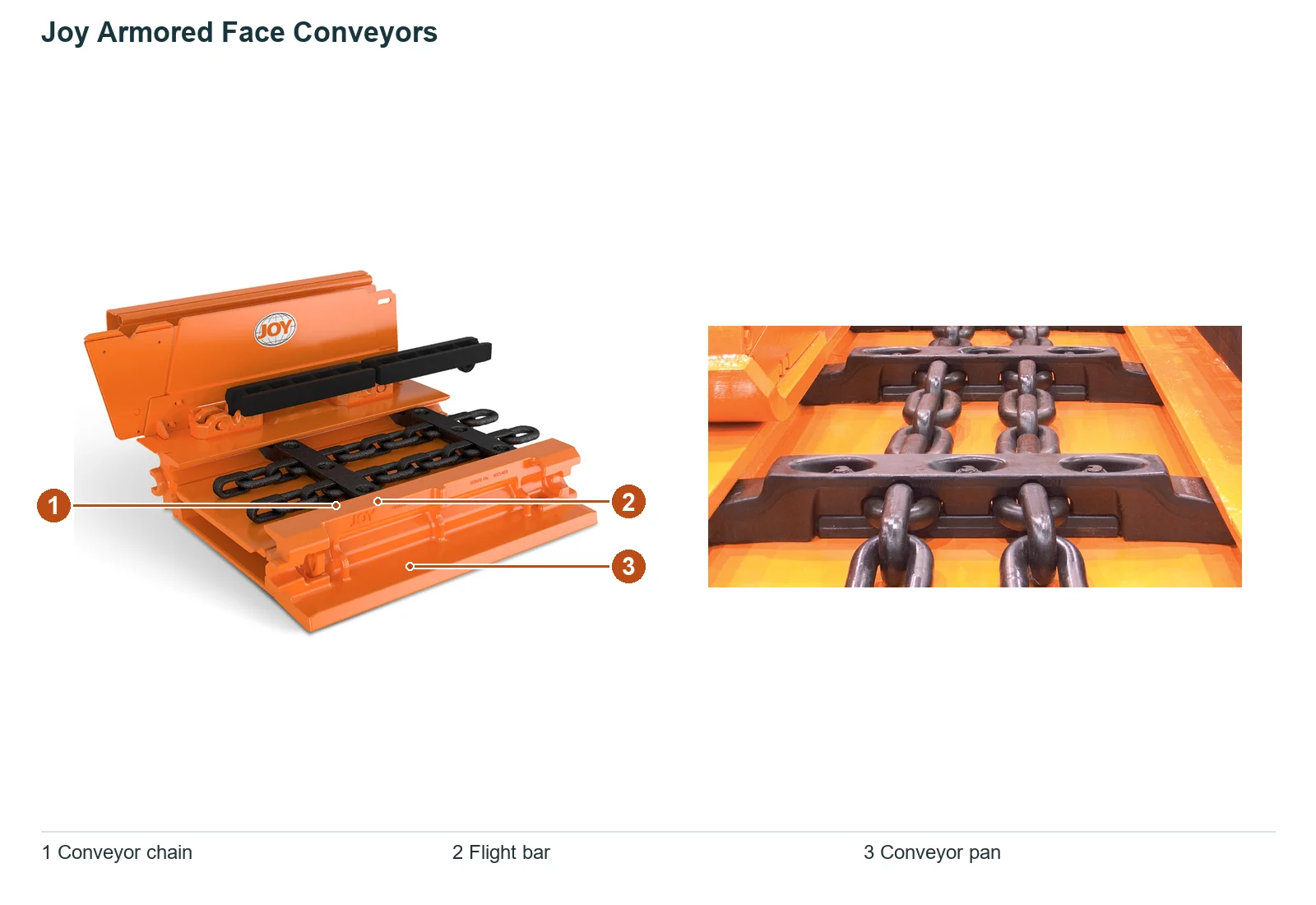

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to | |
|---|---|---|---|---|

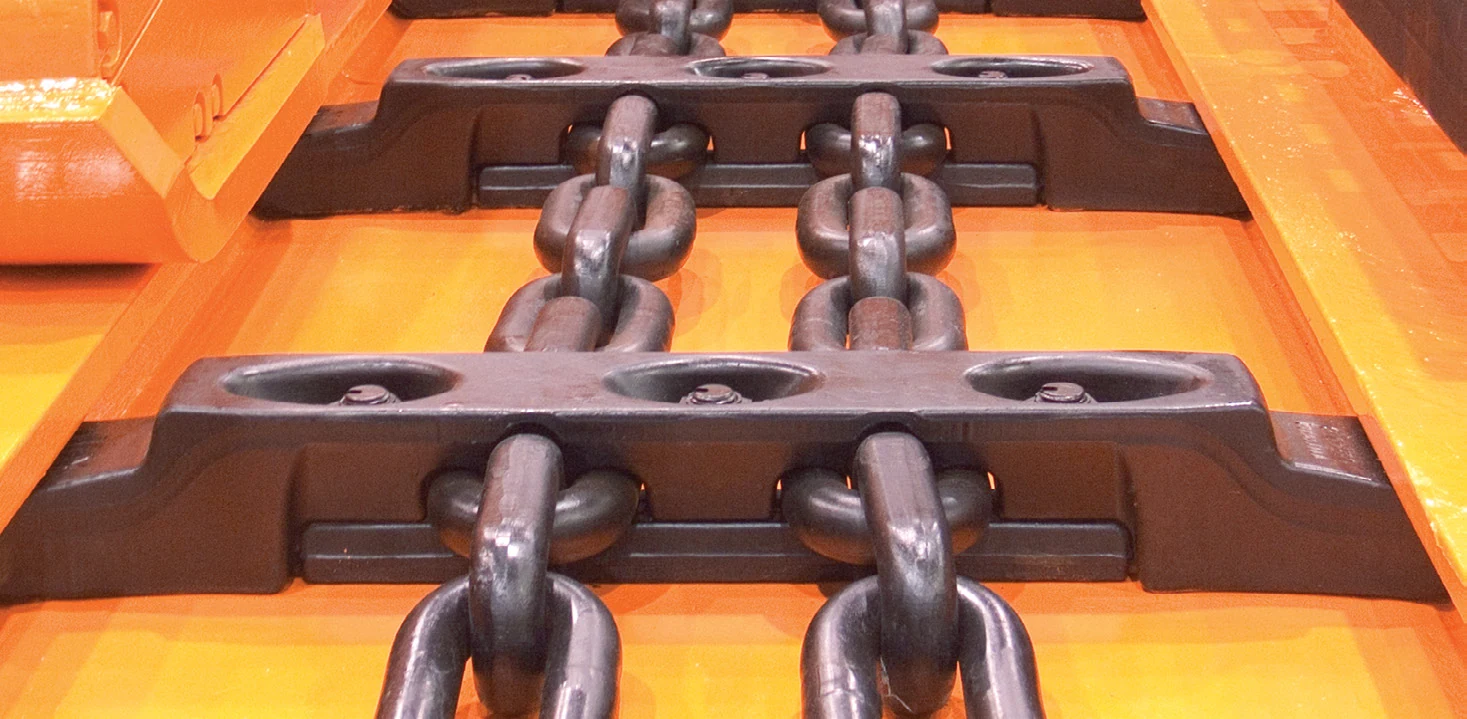

| 1 |  | Conveyor chain | Traction chain inside the AFC pan | Joy AFC |
| 2 | Flight bar | Transverse material-carrying bar on the conveyor chain | Joy AFC | |
| 3 | Conveyor pan | Load-carrying and chain-guiding pan of the face conveyor | Joy AFC |
Other Components · 4 items
| Component |
|---|
| Sprocket |
| Tensioning device |
| Gearbox |
| Stage loader |
Joy
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Joy AFC7 items
| No. | Component | Location |
|---|---|---|
| 1 | Chain | |
| 2 | Scraper Blade / Flight Bar | |
| 3 | Conveyor trough body | Material trough of the face conveyor |
| Sprocket | ||
| Tensioning device | ||
| Gearbox | Drive frame transmission position | |
| Transfer conveyor | Conveying junction between the working face and the gateroad |
Frequently asked questions
Which brand and type of equipment is the Armored Face Conveyor?
The Armored Face Conveyor is listed under the Joy brand. Period: 2026. Status: Historical model.
Which components and wear parts are recorded for the Armored Face Conveyor?
7 components are recorded, including: Chain, Scraper Blade / Flight Bar, Sprocket, Tensioning device, Conveyor trough body, Gearbox, Transfer conveyor. The full list with locations is in the components table on this page.
Which model-specific components of the Armored Face Conveyor have their own page?
Model-specific components with their own page: Conveyor trough body, Gearbox, Transfer conveyor (3 in total).
How do I enquire about parts for the Armored Face Conveyor?
Send us a drawing or sample and tell us the equipment model and part name.
