What other names or designations is the Mobile Horizontal Screen known by?
The Mobile Horizontal Screen is also documented under these designations: FT6203.
Mobile Horizontal Screen
2026 · 1 model
JCI
JCIBrand
2026Period
Historical modelStatus
JCI
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| FT6203 | 2026 | 8 |
JCI
Numbered Components

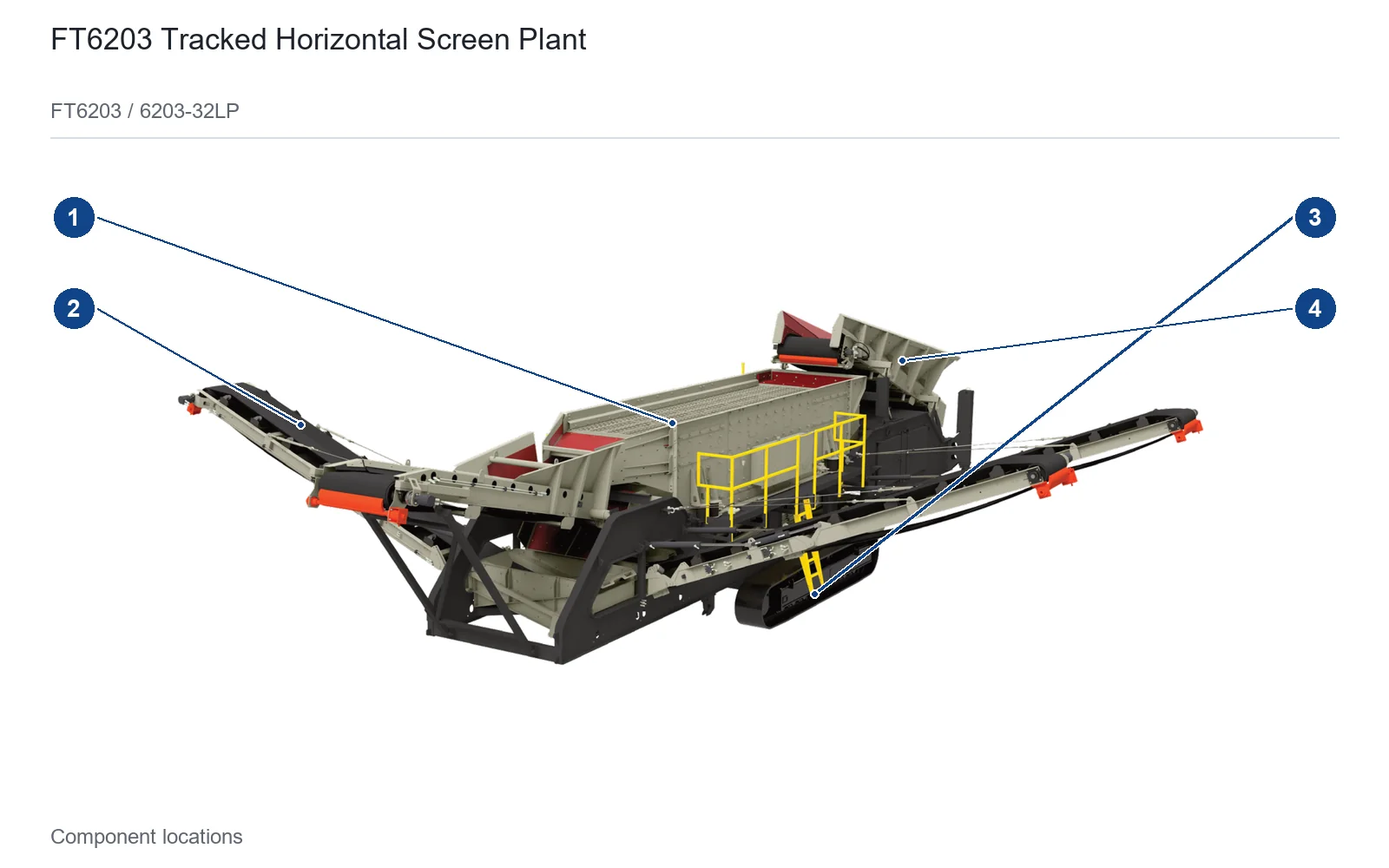

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Screenbox side plate | 6203-32LP screenbox side plate in the centre of the plant | FT6203 / 6203-32LP |
| 2 | Conveyor belt | Belt surface of the front-side discharge conveyor | FT6203 / 6203-32LP |
| 3 | Track assembly | Track assembly beneath the screenbox | FT6203 / 6203-32LP |
| 4 | Feed hopper | Inclined feed hopper upstream of the screenbox | FT6203 / 6203-32LP |
Other Components · 8 items
| Component |
|---|
| Screen media |
| Feed box liner |
| Discharge lip liner |
| Spherical roller bearings |
| Screen support springs / buffers |
| Screen tension rails |
| Drive belts |
| Exciter shaft assembly |
JCI
Components by Model
Models with the same components are grouped together; select a group to open its component table.
FT62038 items
| Component | Location |
|---|---|
| Screen Mesh / Wire Mesh | |
| Feed Box Liner | |
| Model-specific component | |
| Model-specific component | |
| Support Spring / Buffer | Between the screen box and the base frame |
| Tension Rail / Wedge | |
| Drive belt | |
| Exciter shaft assembly | Exciter mechanism in the middle of the screen box |
Frequently asked questions
Which brand and type of equipment is the Mobile Horizontal Screen?
The Mobile Horizontal Screen is listed under the JCI brand. Period: 2026. Status: Historical model.
Which components and wear parts are recorded for the Mobile Horizontal Screen?
8 components are recorded, including: Screen Mesh / Wire Mesh, Feed Box Liner, Support Spring / Buffer, Tension Rail / Wedge, Drive belt, Exciter shaft assembly and more. The full list with locations is in the components table on this page.
Which model-specific components of the Mobile Horizontal Screen have their own page?
Model-specific components with their own page: Exciter shaft assembly (1 in total).
How do I enquire about parts for the Mobile Horizontal Screen?
Send us a drawing or sample and tell us the equipment model and part name.
