Which models does the Cone crusher cover?
The Cone crusher covers 3 models: Faço imperial-size Hydrocone cone crushers, Faço RB cone crusher, Faço T-type cone crusher. Former and renamed designations are listed in the models table on this page.
Cone crusher
Cone crusher · 1980 · 3 models
FACO
FACOBrand
Cone crusherEquipment type
1980Period
Historical modelStatus
FACO
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Faço imperial-size Hydrocone cone crushers | Faço Hydrocone 36 (M300); Faço Hydrocone 45 (M300); Faço Hydrocone 51 (M300); Faço Hydrocone 60 (M300); Faço Hydrocone 84 (M300) | 1980 | 73 |
| Faço RB cone crusher | Faço90RBS (DNIT2003); Faço90RBF (DNIT2003); Faço90RB (MB076); Faço120RB (MB076); Faço90RB G / S / F; Faço120RB G / S / F | 1977 | 167 |
| Faço T-type cone crusher | Faço90-TS; Faço90-TF; Faço60TS (DNIT2003); Faço50T; Faço60TS; Faço60TF; Faço90TS; Faço90TF; Faço120TS; Faço120TF; Faço120TG; FAÇO 60 TS; Faço 60S | 1977 | 337 |
FACO
Numbered Components

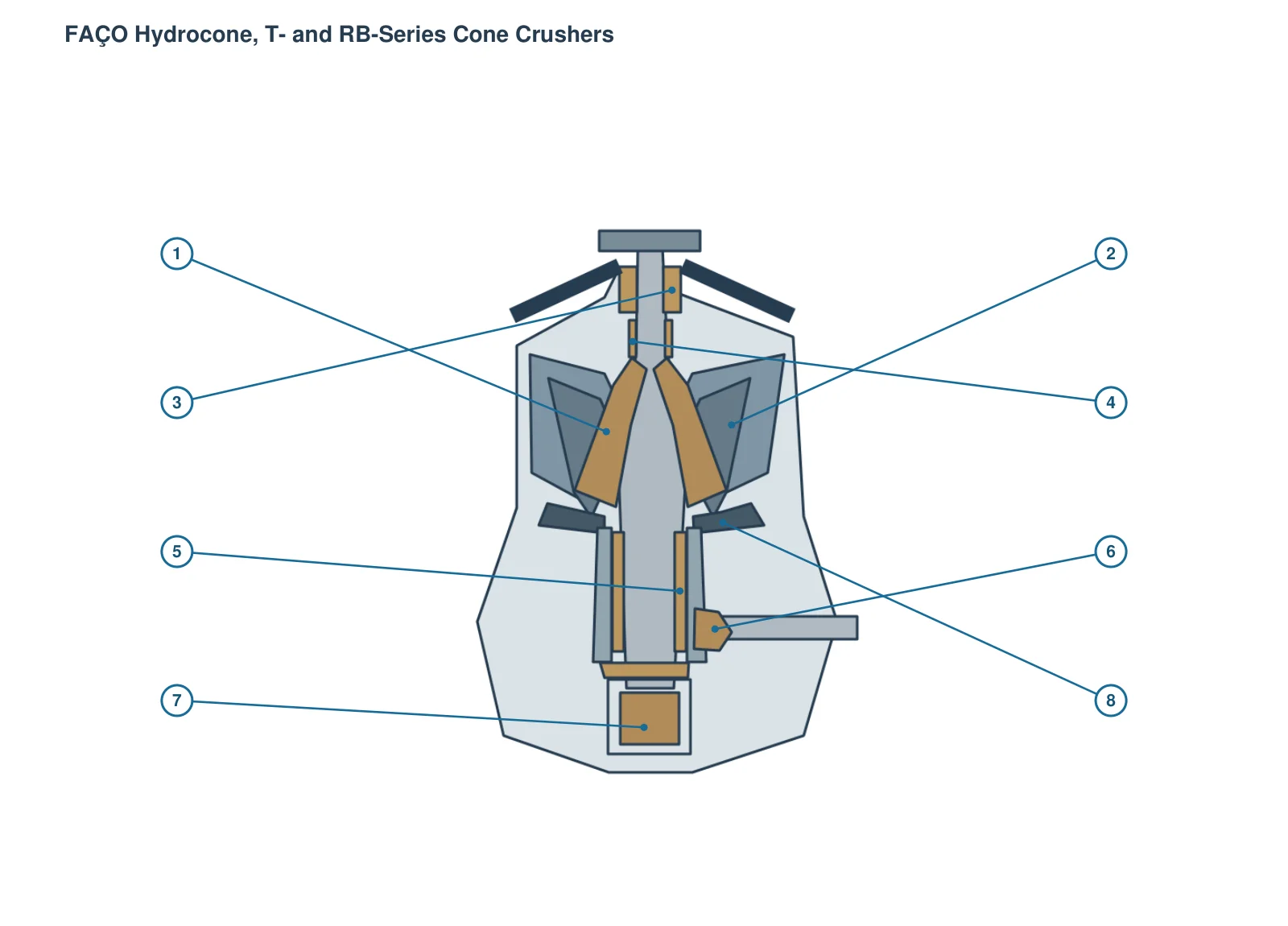

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Mantle | Outside moving cone | Traditional inch-size Hydrocone design relationships only; T and RB types excluded |
| 2 | Concave | Fixed crushing surface in top shell | Traditional inch-size Hydrocone design relationships only; T and RB types excluded |
| 3 | Spider bushing | Around shaft in spider center | Traditional inch-size Hydrocone design relationships only; T and RB types excluded |
| 4 | Mainshaft sleeve | Shaft below spider | Traditional inch-size Hydrocone design relationships only; T and RB types excluded |
| 5 | Eccentric bushing | Between eccentric and shaft | Traditional inch-size Hydrocone design relationships only; T and RB types excluded |
| 6 | Pinion | Inner pinionshaft drive end | Traditional inch-size Hydrocone design relationships only; T and RB types excluded |
| 7 | Hydroset piston | Inside cylinder below mainshaft | Traditional inch-size Hydrocone design relationships only; T and RB types excluded |
| 8 | Dust seal ring | Dust interface under moving cone | Traditional inch-size Hydrocone design relationships only; T and RB types excluded |
Other Components · 38 items
| Component |
|---|
| Lower case |
| Chassis bushing |
| Chassis bushing fixing key (not applicable to 36 inches) |
| Sealing ring seat |
| Sealing ring seat gasket |
| Arm Guard / Arm Liner — Lower chassis arm liner |
| Eccentric piece |
| Drive Gear — Large ring gear |
| Eccentric wear ring |
| Eccentric support |
| Upper chassis |
| Arm Guard / Arm Liner — Upper chassis arm liner |
| Crushing chamber lining |
| Upper shelf bushing |
| Shelf seal |
| Hydroset hydraulic cylinder |
| Hydroset piston |
| Thrust Bearing |
| Piston wear ring |
| Piston top cover |
| Hydroset seal (60/84 inches) |
| Accumulator |
| Accumulator bleed valve |
| Hydraulic one-way valve |
| Hydroset solenoid valve |
| Hydraulic relief valve |
| Crushing pressure gauge |
| Hydamp pressure gauge protection valve |
| Automatic constant pressure regulating cylinder (optional) |
| Air compressor |
| Air pressure regulating valve |
| Air pressure gauge |
| Air filter |
| Elastic rubber mounting piece (optional) |
| Main shaft |
| Main-shaft sleeve |
| moving cone |
| Countershaft |
FACO
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Faço T-type cone crusher337 items
| Component | Location | Part / drawing no. |
|---|---|---|
| 90TS drive motor (1977 contract) | 60HP six poles | |
| 90TF drive motor (1977 contract) | 75HP six poles | |
| 90T pulley (1977 contract) | TS/TF contract driver | |
| 90T transmission belt (1977 contract) | TS/TF contract driver | |
| Mantle / Head Liner — 60TS mantle liner (2003 cost sheet) | clear manto móvil | |
| Bowl Liner / Concave — 60TS concave liner (2003 cost sheet) | clear anel côncavo fixo | |
| 50T main drive motor | M290 pp8–10; choose one of the 50/60Hz motor wheel versions, the fasteners are combined with name categories rather than interchangeable with the same size | 0050-0 |
| 50T motor pulley | M290 pp8–10; choose one of the 50/60Hz motor wheel versions, the fasteners are combined with name categories rather than interchangeable with the same size | 59.329.798.000 / 89.340.175.000 / 0051-0 |
| 50T motor pulley cover | M290 pp8–10; choose one of the 50/60Hz motor wheel versions, the fasteners are combined with name categories rather than interchangeable with the same size | 59.429.800.000 / 0051-4 |
| 50T motor base | M290 pp8–10; choose one of the 50/60Hz motor wheel versions, the fasteners are combined with name categories rather than interchangeable with the same size | 59.329.767.500 / 0052-0 |
| 50T V-shaped transmission belt | M290 pp8–10; choose one of the 50/60Hz motor wheel versions, the fasteners are combined with name categories rather than interchangeable with the same size | 0054-0 |
| 50T hexagonal bolt | M290 pp8–10; choose one of the 50/60Hz motor wheel versions, the fasteners are combined with name categories rather than interchangeable with the same size | 0050-1 |
| 50T spring washer | M290 pp8–10; choose one of the 50/60Hz motor wheel versions, the fasteners are combined with name categories rather than interchangeable with the same size | 0050-3 |
| 50T chassis | M290 pp8–9 chassis/support group | 59.129.721.500 / 0105-0 |
| 50T protection ring | M290 pp8–9 chassis/support group | 89.440.172.000 / 0105-8 |
| 50T labyrinth sealing ring | M290 pp8–9 chassis/support group | 59.329.754.500 / 0106-0 |
| 50T rubber ring | M290 pp8–9 chassis/support group | 59.429.757.000 / 0110-0 |
| Arm Guard / Arm Liner — 50T chassis arm guard | M290 pp8–9 chassis/support group | 89.440.155.000 / 0115-0 |
| 50T spring seat plate | M290 pp8–9 chassis/support group | 59.329.744.500 / 0120-0 |
| 50T tie rod | M290 pp8–9 chassis/support group | 59.429.782.000 / 0125-0 |
| 50T coil spring | M290 pp8–9 chassis/support group | 59.415.300.000 / 0130-0 |
| 50T chassis flange | M290 pp8–9 chassis/support group | 59.329.750.500 / 0135-0 |
| 50T Volumoide Gasket | M290 pp8–9 chassis/support group | 0135-5 |
| 50T oil seal | M290 pp8–9 casing flange and shaft lubrication seal group both have oil seals. The positions/dimensions are different. The merging of names and categories does not prove interchangeability. | 0136-0 / 0407-0 / 0479-1 |
| 50T equipment pulley cover | M290 pp8–9 chassis/support group | 59.429.772.500 / 0137-0 |
| 50T shaft assembly | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.229.727.500 / 0400-0 |
| 50T upper cone | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.229.729.500 / 0410-0 |
| 50T lower cone | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.229.725.500 / 0411-0 |
| 50T fixed head | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.429.730.000 / 0415-0 |
| 50T double-ended stud | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.429.717.000 / 59.429.718.000 / 0416-0 |
| 50T upper cover | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.329.731.000 / 0425-0 |
| 50T locking steel wire | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 0425-4 |
| Mantle / Head Liner — 50T mantle liner | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 89.340.149.000 / 0430-0 |
| 50T disc spring | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.429.742.000 / 0435-0 |
| 50T tapered roller bearing | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 0440-0 |
| 50T spherical roller thrust bearing | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 0445-0 |
| 50T support ring | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.329.753.000 / 0455-0 |
| 50T oil collection piece | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.329.787.500 / 0460-0 |
| 50T lock ring | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.329.734.500 / 0467-0 |
| 50T fixing nut | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.429.733.000 / 0468-0 |
| 50T clamping ring | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 0469-0 |
| 50T equipment pulley | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.229.738.000 / 0470-0 |
| 50T bushing | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.418.352.000 / 0474-0 |
| 50T lubricated shaft | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 59.418.346.000 / 0475-0 |
| 50T ball bearing | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 0477-0 |
| 50T retaining ring | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 0478-0 |
| 50T hexagon socket screw | M290 p9; only name, supplier bearing model/quantity will not be transcribed | 89.440.233.000 / 0410-1 |
| 50T crushing chamber body | M290 p9 crushing chamber/liner fastening set | 59.229.723.000 / 0505-0 |
| Bowl Liner / Concave — 50T fixed cone cavity liner | M290 p9 crushing chamber/liner fastening set | 89.240.147.000 / 0520-0 |
| 50T square head bolt | M290 p9 crushing chamber/liner fastening set | 0520-1 |
| 50T hexagonal nut | M290 p9 crushing chamber/liner fastening set | 0125-2 / 0520-2 |
| 50T flat washer | M290 p9 crushing chamber/liner fastening set | 0125-3 / 0520-3 |
| 50T upper ring | M290 p10; choose one of lubrication pump PARKER or VIKING, not standard configuration of both pumps at the same time | 59.229.735.000 / 0560-0 |
| 50T adjustment spacer | M290 p10; choose one of lubrication pump PARKER or VIKING, not standard configuration of both pumps at the same time | 59.429.797.001 / 59.429.797.002 / 59.429.797.003 / 59.429.797.004 |
| 50T wedge | M290 p10; choose one of lubrication pump PARKER or VIKING, not standard configuration of both pumps at the same time | 59.329.737.000 / 0565-0 |
| 50T feeding chute | M290 p10; choose one of lubrication pump PARKER or VIKING, not standard configuration of both pumps at the same time | 59.329.785.500 / 0605-0 |
| 50T lubrication pump | M290 p10; choose one of lubrication pump PARKER or VIKING, not standard configuration of both pumps at the same time | 0710-0 |
| 50T lubricated motor | M290 p10; choose one of lubrication pump PARKER or VIKING, not standard configuration of both pumps at the same time | 0712-0 |
| 50T elastic coupling | M290 p10; choose one of lubrication pump PARKER or VIKING, not standard configuration of both pumps at the same time | 0713-0 |
| 50T oil suction filter | M290 p10; choose one of lubrication pump PARKER or VIKING, not standard configuration of both pumps at the same time | 0720-0 |
| 50T liner backing filler | M290 p9 clearly indicates that Resina Epoxi and PLASTIC FAÇO correspond to this version | 0430-9 |
| 60TS/60TF crusher base | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 59.129.385.500 / 0042-0 |
| 60TS/60TF main drive motor | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 0050-0 |
| 60TS/60TF motor pulley | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 59.418.379.000 / 59.418.380.000 / 0051-0 |
| 60TS/60TF motor wheel cover | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 59.409.891.000 / 0051-4 |
| 60TS/60TF wheel cover fixing screws | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 0051-1 |
| 60TS/60TF spacer | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 59.418.381.000 / 0051-5 |
| 60TS/60TF motor base | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 59.318.378.500 / 0052-0 |
| 60TS/60TF V-shaped transmission belt | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 0054-0 |
| 60TS/60TF belt guard | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 59.318.360.500 / 0054-5 |
| 60TS/60TF hexagonal bolt | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 59.418.354.000 / 0050-1 |
| 60TS/60TF hexagonal nut | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 0050-2 / 0520-2 |
| 60TS/60TF spring washer | M290 p15 two specifications drive set; pulley 50/60Hz choose one | 0050-3 |
| 60TS/60TF case | M290 p15 chassis set; no arm guards are included | 59.118.363.500 / 0105-0 |
| 60TS/60TF protection ring | M290 p15 chassis set; no arm guards are included | 59.319.039.000 / 0106-0 |
| 60TS/60TF sealing ring | M290 p15 chassis set; no arm guards are included | 59.424.973.000 / 0110-0 |
| 60TS/60TF spring seat plate | M290 p15 chassis set; no arm guards are included | 59.318.329.000 / 0120-0 |
| 60TS/60TF tie rod | M290 p15 chassis set; no arm guards are included | 59.418.316.000 / 0125-0 |
| 60TS/60TF coil spring | For M290, the outer safety spring of the casing and the internal pressure regulating component of the shaft are both coil springs; the combined names do not equal the same part, and the materials/quantities/specifications cannot be applied across locations. | 59.415.300.000 / 59.418.372.000 / 0130-0 / 0420-0 |
| 60TS/60TF chassis flange | M290 p15 chassis set; no arm guards are included | 59.318.331.500 / 0135-0 |
| 60TS/60TF Volumoide gasket | M290 p15 chassis set; no arm guards are included | 0135-5 |
| 60TS/60TF flat washer | M290 p15 chassis set; no arm guards are included | 0125-3 / 0520-3 |
| 60TS/60TF shaft assembly | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.228.444.500 / 0400-0 |
| 60TS/60TF upper cone | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.325.261.500 / 59.325.262.500 / 0410-0 |
| 60TS/60TF lower cone | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.218.339.500 / 0411-0 |
| 60TS/60TF fixed head | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.425.263.000 / 0415-0 |
| 60TS/60TF double-ended stud | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.425.264.000 / 0416-0 |
| 60TS/60TF spring rod | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.371.500 / 0421-0 |
| 60TS/60TF spring plate | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.370.000 / 0422-0 |
| 60TS/60TF spring bracket | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.369.000 / 0423-0 |
| 60TS/60TF upper cover | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.344.000 / 0425-0 |
| 60TS/60TF locking wire | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 0425-4 |
| Mantle / Head Liner — 60TS/60TF mantle liner | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.218.341.000 / 0430-0 |
| 60TS/60TF disc spring | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.349.000 / 0435-0 / 0520-7 |
| 60TS/60TF tapered roller bearing | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 0440-0 |
| 60TS/60TF spherical roller thrust bearing | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 0445-0 |
| 60TS/60TF support ring | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.345.000 |
| 60TS/60TF oil collection parts | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.347.500 / 0460-0 |
| 60TS/60TF locking ring | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.318.497.500 / 0467-0 |
| 60TS/60TF fixing nut | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.351.000 / 0468-0 |
| 60TS/60TF equipment pulley | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.318.328.000 / 0470-0 |
| 60TS/60TF fixed plate | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.429.367.000 / 0471-0 |
| 60TS/60TF pulley fixing nut | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.353.000 / 0472-0 |
| 60TS/60TF key | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.356.000 / 0473-0 |
| 60TS/60TF bushing | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.352.000 / 0474-0 |
| 60TS/60TF Lubricated Shaft | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.346.000 / 0475-0 |
| 60TS/60TF ball bearing | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 0477-0 |
| 60TS/60TF retaining ring | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 0478-0 |
| 60TS/60TF oil seal | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 0479-3 |
| 60TS/60TF hexagon socket screws | M290 p16; This set of upper cones has different records of TS/TF and is not claimed to be interchangeable. | 59.418.355.000 / 0410-1 |
| 60TS/60TF Teflon sealing ring | M290 p16 axis assembly table directly named | 59.425.265.500 / 0407-0 |
| 60TS/60TF liner backing filler | M290 p16 clear Resina Epoxi, PLASTIC FAÇO | 0430-9 |
| 60TS/60TF crushing chamber body | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.218.336.000 / 0505-0 |
| 60TS/60TF adjusting nut | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.218.337.500 / 0510-0 |
| 60TS/60TF rubber sealing strip | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0515-0 |
| Bowl Liner / Concave — 60TS/60TF fixed cone cavity liner | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.218.342.000 / 0520-0 |
| 60TS/60TF square head bolt | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.418.357.000 / 0520-1 |
| 60TS/60TF grease nozzle | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0525-0 |
| 60TS/60TF protective parts | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.324.775.500 / 0530-0 |
| 60TS/60TF gasket | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.318.358.000 / 0531-0 |
| 60TS/60TF ring | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.318.361.000 / 0532-0 |
| 60TS/60TF feeding chute | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.318.359.500 / 0605-0 |
| 60TS/60TF lubrication pump | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0710-0 |
| 60TS/60TF pump bracket | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 59.327.932.001 / 0711-0 |
| 60TS/60TF Lubricated Motor | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0712-0 |
| 60TS/60TF elastic coupling | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0713-0 |
| 60TS/60TF line filter | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0715-0 |
| 60TS/60TF oil suction filter | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0720-0 |
| 60TS/60TF pressure gauge | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0722-0 |
| 60TS/60TF thermometer | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0724-0 |
| 60TS/60TF check valve | M290 p17 chamber/lubrication group; for the properties of the live contacts of the pressure/temperature gauge, see also pp39/44 | 0726-0 |
| 90TF/120TF crusher base | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0042-0 |
| 90TF/120TF main drive motor | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0050-0 |
| 90TF/120TF motor pulley | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0051-0 |
| 90TF/120TF motor wheel cover | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0051-4 |
| 90TF/120TF wheel cover fixing screw | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0051-1 |
| 90TF/120TF spacer | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0051-5 |
| 90TF/120TF motor base | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0052-0 |
| 90TF/120TF V-shaped transmission belt | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0054-0 |
| 90TF/120TF belt guard | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0054-5 |
| 90TF/120TF hexagonal bolt | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0050-1 |
| 90TF/120TF hexagonal nut | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0050-2 / 0520-2 |
| 90TF/120TF spring washer | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0050-3 |
| 90TF/120TF flat washer | M290 pp24–26 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0125-3 / 0520-3 |
| 90TF/120TF case | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0105-0 |
| 90TF/120TF protection ring | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0106-0 |
| 90TF/120TF sealing ring | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0110-0 |
| Arm Guard / Arm Liner — 90TF/120TF chassis arm guard | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0115-0 |
| 90TF/120TF right arm guard | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0115-1 |
| 90TF/120TF left arm guard | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0115-2 |
| 90TF/120TF spring seat plate | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0120-0 |
| 90TF/120TF tie rod | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0125-0 |
| 90TF/120TF coil spring | For M290, the outer safety spring of the casing and the internal pressure regulating component of the shaft are both coil springs; the combined names do not equal the same part, and the materials/quantities/specifications cannot be applied across locations. | 0130-0 / 0420-0 |
| 90TF/120TF chassis flange | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0135-0 |
| 90TF/120TF Volumoide gasket | M290 pp24–26 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size. | 0135-5 |
| 90TF/120TF shaft assembly | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0400-0 |
| 90TF/120TF upper cone | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0410-0 |
| 90TF/120TF lower cone | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0411-0 |
| 90TF/120TF double-ended stud | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0416-0 |
| 90TF/120TF adjustment washer | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0417-0 / 0418-0 / 0419-0 |
| 90TF/120TF spring rod | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0421-0 |
| 90TF/120TF spring plate | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0422-0 |
| 90TF/120TF spring bracket | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0423-0 |
| 90TF/120TF upper cover | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0425-0 |
| 90TF/120TF locking wire | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0425-4 |
| Mantle / Head Liner — 90TF/120TF mantle liner | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0430-0 |
| 90TF/120TF disc spring | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0435-0 / 0520-7 |
| 90TF/120TF tapered roller bearing | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0440-0 |
| 90TF/120TF spherical roller thrust bearing | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0445-0 |
| 90TF/120TF upper oil collector | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0450-0 |
| 90TF/120TF support ring | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0455-0 |
| 90TF/120TF lower oil collector | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0460-0 |
| 90TF/120TF special nut | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0465-0 |
| 90TF/120TF key | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0466-0 / 0473-0 |
| 90TF/120TF equipment pulley | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0470-0 |
| 90TF/120TF lubricated shaft | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0475-0 |
| 90TF/120TF shaft end cover | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0476-0 |
| 90TF/120TF ball bearing | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0477-0 |
| 90TF/120TF retaining ring | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0478-0 |
| 90TF/120TF oil seal | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0136-0 / 0479-1 / 0479-2 |
| 90TF/120TF hexagon socket screw | M290 pp24–26 shaft/cone set; bearing and supplier numbers are not transcribed, and no claim is made that the two size parts are identical | 0476-1 |
| 90TF/120TF liner backing filler | M290 pp24–26 Clear Resina Epoxi, PLASTIC FAÇO | 0430-9 |
| 90TF/120TF crushing chamber body | M290 pp24–26 crushing chamber/feeding group | 0505-0 |
| 90TF/120TF adjusting nut | M290 pp24–26 crushing chamber/feeding group | 0510-0 |
| 90TF/120TF rubber sealing strip | M290 pp24–26 crushing chamber/feeding group | 0515-0 |
| Bowl Liner / Concave — 90TF/120TF fixed cone cavity liner | M290 pp24–26 crushing chamber/feeding group | 0520-0 |
| 90TF/120TF square head bolt | M290 pp24–26 crushing chamber/feeding group | 0520-1 |
| 90TF/120TF square washer | M290 pp24–26 crushing chamber/feeding group | 0520-4 |
| 90TF/120TF grease nozzle | M290 pp24–26 crushing chamber/feeding group | 0525-0 |
| 90TF/120TF protective parts | M290 pp24–26 crushing chamber/feeding group | 0530-0 |
| 90TF/120TF gasket | M290 pp24–26 crushing chamber/feeding group | 0531-0 |
| 90TF/120TF ring | M290 pp24–26 crushing chamber/feeding group | 0532-0 |
| 90TF/120TF support plate | M290 pp24–26 crushing chamber/feeding group | 0533-0 |
| 90TF/120TF feeding chute | M290 pp24–26 crushing chamber/feeding group | 0605-0 |
| 90TF/120TF fuel tank | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0705-0 |
| 90TF/120TF oil pipe | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0706-0 |
| 90TF/120TF lubrication pump | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0710-0 |
| 90TF/120TF pump bracket | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0711-0 |
| 90TF/120TF Lubricated Motor | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0712-0 |
| 90TF/120TF elastic coupling | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0713-0 |
| 90TF/120TF line filter | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0715-0 |
| 90TF/120TF oil suction filter | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0720-0 |
| 90TF/120TF pressure gauge | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0722-0 |
| 90TF/120TF thermometer | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0724-0 |
| 90TF/120TF check valve | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0726-0 |
| 90TF/120TF dustproof sealing valve | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | |
| 90TF/120TF cooling group base | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0730-0 |
| 90TF/120TF cooling motor | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0735-0 |
| 90TF/120TF radiator | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0740-0 |
| 90TF/120TF fan | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0745-0 |
| 90TF/120TF hose | M290 pp24–26 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0747-0 |
| 90TS/120TS/120TG crusher base | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0042-0 |
| 90TS/120TS/120TG main drive motor | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0050-0 |
| 90TS/120TS/120TG motor pulley | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0051-0 |
| 90TS/120TS/120TG motor wheel cover | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0051-4 |
| 90TS/120TS/120TG wheel cover fixing screws | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0051-1 |
| 90TS/120TS/120TG spacer | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0051-5 |
| 90TS/120TS/120TG motor base | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0052-0 |
| 90TS/120TS/120TG V-shaped transmission belt | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0054-0 |
| 90TS/120TS/120TG belt guard | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0054-5 |
| 90TS/120TS/120TG hexagonal bolt | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0050-1 |
| 90TS/120TS/120TG hexagonal nut | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0050-2 / 0520-2 |
| 90TS/120TS/120TG spring washer | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0050-3 |
| 90TS/120TS/120TG flat washer | M290 pp26–28 drive/fastening name category; 50/60Hz pulley selection, quantity and size do not apply across specifications | 0125-3 / 0520-3 |
| 90TS/120TS/120TG chassis | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0105-0 |
| 90TS/120TS/120TG protection ring | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0106-0 |
| 90TS/120TS/120TG sealing ring | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0110-0 |
| Arm Guard / Arm Liner — 90TS/120TS/120TG Chassis Arm Guard | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0115-0 |
| 90TS/120TS/120TG right arm guard | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0115-1 |
| 90TS/120TS/120TG left arm guard | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0115-2 |
| 90TS/120TS/120TG spring seat plate | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0120-0 |
| 90TS/120TS/120TG tie rod | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0125-0 |
| 90TS/120TS/120TG coil spring | For M290, the outer safety spring of the casing and the internal pressure regulating component of the shaft are both coil springs; the combined names do not equal the same part, and the materials/quantities/specifications cannot be applied across locations. | 0130-0 / 0420-0 |
| 90TS/120TS/120TG chassis flange | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0135-0 |
| 90TS/120TS/120TG Volumoide gasket | M290 pp26–28 chassis set; the complete set and separate side guards are different items in the table, and are not considered to be assembled together for each size | 0135-5 |
| 90TS/120TS/120TG shaft assembly | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0400-0 |
| 90TS/120TS/120TG upper cone | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0410-0 |
| 90TS/120TS/120TG lower cone | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0411-0 |
| 90TS/120TS/120TG double-ended studs | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0416-0 |
| 90TS/120TS/120TG adjustment washer | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0417-0 / 0418-0 / 0419-0 |
| 90TS/120TS/120TG spring rod | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0421-0 |
| 90TS/120TS/120TG spring plate | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0422-0 |
| 90TS/120TS/120TG spring bracket | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0423-0 |
| 90TS/120TS/120TG upper cover | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0425-0 |
| 90TS/120TS/120TG locking wire | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0425-4 |
| Mantle / Head Liner — 90TS/120TS/120TG mantle liner | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 59.112.776.000 / 59.115.272.000 / 0430-0 |
| 90TS/120TS/120TG disc spring | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0435-0 / 0520-7 |
| 90TS/120TS/120TG tapered roller bearings | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0440-0 |
| 90TS/120TS/120TG spherical roller thrust bearing | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0445-0 |
| 90TS/120TS/120TG upper oil collection parts | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0450-0 |
| 90TS/120TS/120TG support ring | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0455-0 |
| 90TS/120TS/120TG lower oil collector | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0460-0 |
| 90TS/120TS/120TG special nut | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0465-0 |
| 90TS/120TS/120TG key | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0466-0 / 0473-0 |
| 90TS/120TS/120TG equipment pulley | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0470-0 |
| 90TS/120TS/120TG Lubricated Shaft | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0475-0 |
| 90TS/120TS/120TG shaft end cover | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0476-0 |
| 90TS/120TS/120TG ball bearings | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0477-0 |
| 90TS/120TS/120TG retaining ring | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0478-0 |
| 90TS/120TS/120TG oil seal | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0136-0 / 0479-1 / 0479-2 |
| 90TS/120TS/120TG socket head screws | M290 pp26–28 shaft/cone set; does not transcribe bearing and supplier numbers, does not claim that two size parts are identical | 0410-1 / 0476-1 |
| 90TS/120TS/120TG liner backing filler | M290 pp26–28 Clear Resina Epoxi, PLASTIC FAÇO | 0430-9 |
| 90TS/120TS/120TG crushing chamber body | M290 pp26–28 crushing chamber/feeding group | 0505-0 |
| 90TS/120TS/120TG adjusting nut | M290 pp26–28 crushing chamber/feeding group | 0510-0 |
| 90TS/120TS/120TG rubber sealing strip | M290 pp26–28 crushing chamber/feeding group | 0515-0 |
| Bowl Liner / Concave — 90TS/120TS/120TG fixed cone cavity liner | M290 pp26–28 crushing chamber/feeding group | 59.114.993.007 / 59.214.545.000 / 89.340.018.502 / 0520-0 |
| 90TS/120TS/120TG square head bolt | M290 pp26–28 crushing chamber/feeding group | 0520-1 |
| 90TS/120TS/120TG Square Washer | M290 pp26–28 crushing chamber/feeding group | 0520-4 |
| 90TS/120TS/120TG grease nozzle | M290 pp26–28 crushing chamber/feeding group | 0525-0 |
| 90TS/120TS/120TG protective parts | M290 pp26–28 crushing chamber/feeding group | 0530-0 |
| 90TS/120TS/120TG gasket | M290 pp26–28 crushing chamber/feeding group | 0531-0 |
| 90TS/120TS/120TG ring | M290 pp26–28 crushing chamber/feeding group | 0532-0 |
| 90TS/120TS/120TG support plate | M290 pp26–28 crushing chamber/feeding group | 0533-0 |
| 90TS/120TS/120TG feeding chute | M290 pp26–28 crushing chamber/feeding group | 0605-0 |
| 90TS/120TS/120TG fuel tank | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0705-0 |
| 90TS/120TS/120TG oil pipe | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0706-0 |
| 90TS/120TS/120TG lubrication pump | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0710-0 |
| 90TS/120TS/120TG pump bracket | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0711-0 |
| 90TS/120TS/120TG Lubricated Motor | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0712-0 |
| 90TS/120TS/120TG elastic coupling | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0713-0 |
| 90TS/120TS/120TG line filter | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0715-0 |
| 90TS/120TS/120TG oil suction filter | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0720-0 |
| 90TS/120TS/120TG pressure gauge | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0722-0 |
| 90TS/120TS/120TG thermometer | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0724-0 |
| 90TS/120TS/120TG check valve | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0726-0 |
| 90TS/120TS/120TG dustproof sealing valve | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0728-0 |
| 90TS/120TS/120TG cooling group base | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0730-0 |
| 90TS/120TS/120TG cooling motor | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0735-0 |
| 90TS/120TS/120TG radiator | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0740-0 |
| 90TS/120TS/120TG fan | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0745-0 |
| 90TS/120TS/120TG hose | M290 pp26–28 lubrication/cooling group; choose one of PARKER or VIKING pumps, the pump bracket table is limited to PARKER, the number of 120T radiators is 1 or 2 as needed | 0747-0 |
| 90TF/120TF cone head | M290 pp25/55/58: This fine crushing group is named; does not cover 90TS, etc. | 0431-0 |
| Feed Plate / Feed Cone — 90TF/120TF fabric tray | M290 pp25/55/58: This fine crushing group is named; does not cover 90TS, etc. | 0480-0 |
| 90TF/120TF lower chute | M290 pp25/55/58: This fine crushing group is named; does not cover 90TS, etc. | 0610-0 |
| 90TF/120TF activity disk | M290 pp25/55/58: This fine crushing group is named; does not cover 90TS, etc. | 0615-0 |
| 90TS/120TS/120TG fixed head | M290 p27 and p66 assembly; 120TG cavity lining tie rod/bracket is individually limited | 59.412.782.000 / 59.415.277.000 / 59.429.533.000 / 59.455.146.000 |
| 90TS/120TS/120TG upper bearing protection washer | M290 p27 and p66 assembly; 120TG cavity lining tie rod/bracket is individually limited | 0485-0 |
| 120TG cavity lining fixed tie rod | M290 p28 column TG exclusive row, does not fit other T sizes | 0521-1 |
| 120TG Cavity Liner Bracket | M290 p28 column TG exclusive row, does not fit other T sizes | 0521-3 |
| T-type 60/90/120 lubrication pressure regulating valve | M290 pp39/42/44; not equipped with 50T standard group | |
| T type 60/90/120 minimum oil pressure electrical contact | M290 pp39/42/44; not equipped with 50T standard group | |
| T type 60/90/120 maximum oil temperature electrical contact | M290 pp39/42/44; not equipped with 50T standard group | |
| T-type full size fuel tank external liquid level pipe | M290 p43 plastic tube for liquid level control | |
| T-type optional immersion oil heater | M290 pp39/45 is clearly optional; the electric control box 60T, 90/120T and heating version are respectively applicable | 0036-0 |
| T-type optional thermostat | M290 pp39/45 is clearly optional; the electric control box 60T, 90/120T and heating version are respectively applicable | 0038-0 |
| T-type optional electric control box | M290 pp39/45 is clearly optional; the electric control box 60T, 90/120T and heating version are respectively applicable | 0080-0 |
| T-type optional electric control box button | M290 pp45–50 limited text members; different box quantity/wiring cannot be extrapolated | |
| T-type optional electric control box indicator light | M290 pp45–50 limited text members; different box quantity/wiring cannot be extrapolated | |
| T-type optional electric control box contactor | M290 pp45–50 limited text members; different box quantity/wiring cannot be extrapolated | |
| T-type optional electric control box time relay | M290 pp45–50 limited text members; different box quantity/wiring cannot be extrapolated | |
| T-type optional electric control box auxiliary relay | M290 pp45–50 limited text members; different box quantity/wiring cannot be extrapolated | |
| T-type optional electric control box thermal relay | M290 pp45–50 limited text members; different box quantity/wiring cannot be extrapolated | |
| T-type optional electric control box fuse | M290 pp45–50 limited text members; different box quantity/wiring cannot be extrapolated | |
| T-type optional electric control box audio alarm | M290 pp45–50 limited text members; different box quantity/wiring cannot be extrapolated | |
| T-type maintenance tool category Crane or lifting equipment | M290 pp30/36/52/55/58/66–68: Tool category only, jack is specifically used for 90/120T spring assembly | |
| T-type maintenance tool category wire rope | M290 pp30/36/52/55/58/66–68: Tool category only, jack is specifically used for 90/120T spring assembly | |
| T-type maintenance tool category steel brush | M290 pp30/36/52/55/58/66–68: Tool category only, jack is specifically used for 90/120T spring assembly | |
| T-type maintenance tool category hydraulic jack | M290 pp30/36/52/55/58/66–68: Tool category only, jack is specifically used for 90/120T spring assembly | |
| T-type filling construction consumables metal sheet for funnel | M290 pp58–59; backing construction package, not suitable for random mechanical kit | |
| T-type filling construction consumables protective clay | M290 pp58–59; backing construction package, not suitable for random mechanical kit | |
| T-shaped filling construction consumables thread grease | M290 pp58–59; backing construction package, not suitable for random mechanical kit | |
| T-shaped filling alternative zinc filler | M290 p58 and PLASTIC FAÇO are alternative options, not a mixed formula | |
| T-type spare parts program seal set | M290 p29 one year/12h daily spare parts recommended | |
| T-type spare parts program coil spring set | M290 p29 one year/12h daily spare parts recommended | |
| T-type spare parts program V-shaped drive belt set | M290 p29 one year/12h daily spare parts recommended | |
| T-type spare parts program tapered roller bearing cup/cone set | M290 p29 one year/12h daily spare parts recommended | |
| T-type spare parts plan pipeline filter element | M290 p29 one year/12h daily spare parts recommended | |
| T-type optional adjustment component pulley | M290 pp37–38, 60/90/120T optional adjustment device | |
| T-type optional adjustment component pulley shaft | M290 pp37–38, 60/90/120T optional adjustment device | |
| T-type optional adjustment component pulley bracket | M290 pp37–38, 60/90/120T optional adjustment device | |
| 90/120T optional adjustment tool manual lifting device | M290 pp38/55 manual lifting/Tirfor, no complete model or accessories are included | |
| 60T optional adjustment tool drive wrench | M290 p38; dimensions not included and all members of the random set | |
| T-shaped maintenance tool category Flexible opening measuring tool | M290 pp30/36/52/55/58/66–68: Tool category only, jack is specifically used for 90/120T spring assembly | |
| T-type maintenance tool category Shot put measuring parts | M290 pp30/36/52/55/58/66–68: Tool category only, jack is specifically used for 90/120T spring assembly | |
| T-type maintenance tool category Measuring piece fixing wire | M290 pp30/36/52/55/58/66–68: Tool category only, jack is specifically used for 90/120T spring assembly | |
| T-type maintenance tool category parts support stand | M290 pp30/36/52/55/58/66–68: Tool category only, jack is specifically used for 90/120T spring assembly | |
| T-type filling construction consumables curing agent | M290 pp58–59; backing construction package, not suitable for random mechanical kit |
Faço RB cone crusher167 items
| Component | Location | Part / drawing no. |
|---|---|---|
| 90RBS cone lining name manto (original attribute conflict) | The original manto writing is fixed; the dynamic/fixed nature needs to be disambiguated in the factory register | 59.115.272.000 |
| 90RBS cavity lining name côncavo (original attribute conflict) | Original côncavo writing activity | 59.224.727.000 |
| 90RBF cone lining name manto (original attribute conflict) | Only confirm the name, do not adopt the original movement/definition attribute | |
| 90RBF cavity lining name côncavo (original attribute conflict) | Only confirm the name, do not adopt the original movement/definition attribute | |
| RB standard automatic hydraulic system suction filter | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system hydraulic oil tank | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system oil return filter | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system motor | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system pump set | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system gear pump | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system manual reversing valve | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system pressure isolation valve | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system pressure gauge | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system check valve | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system hydraulic accumulator | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | |
| RB standard automatic hydraulic system hydraulic cylinder | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | 59.942.225.003 |
| RB standard automatic hydraulic system connecting hose | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | 59.940.481.001 / 59.940.481.002 |
| RB standard automatic hydraulic system locking hose | MB076 pp4–6 specified system; separate from pre-1994 systems; standard automatic locking not manual optional pump | 59.940.487.001 / 59.940.487.002 |
| RB accumulator nitrogen capsule | MB076 pp6/8 nitrogen bladder clear; improper mechanical release spring | |
| Hydraulic system gear pump before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system motor before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system suction filter before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system motor pump unit before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system hydraulic tank before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system before RB1994 manual reversing valve | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system pressure regulating valve before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system valve block before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system flow control valve before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system handle before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system adjustment screw before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system check valve before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system accumulator before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system before RB1994 pressure gauge isolation valve | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system pressure gauge before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system return filter before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system hydraulic cylinder before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system connecting hose before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| Hydraulic system locking hose before RB1994 | MB076 pp8–9 clearly defines the old system before 1994; it will not be integrated with the 1999 text standard system. | |
| RB Nitrogen Filling Tool Category Nitrogen Cylinder | MB076 pp6–8 mention factory-available adapter; supply number not transcribed | |
| RB lubrication and cooling sealed oil tank | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling Oil Heater | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling main lubrication pump | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling High Pressure Lubrication Pump | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling line filter | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling filter bypass valve | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling bypass alarm switch | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling air oil radiator | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling oil return tank | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling Float Level Switch | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling oil tank fine mesh plate | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling Seal Inspection Cover | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling Pressure Balance Hose | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling lubrication oil pipe | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling live contact temperature gauge | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling Lubrication Pump Motor | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling Spherical Support Lubrication Pump Motor | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling radiator motor | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling High Pressure Pump Pressure Switch | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB lubrication and cooling separated oil collector | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB Lubrication and Cooling Oil Drain Faucet | MB076 pp9–18/26–28/32; two lubrication circuits are distinguished: the high-pressure pump provides hydrostatic thrust support, while the other circuit serves the mainshaft bush. Pressure-source parameters do not establish interchangeability between machines. | |
| RB line filter 25 micron filter element | MB076 pp10/19/28; The public text lists 9 items, and does not push the number to all historical RB configurations | |
| RB air sealing system internal seal | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | 53 364986000 |
| RB air sealing system external seal | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system spherical bearing seal | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | 53465954000 |
| RB air sealing system seal guide | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system sealing tape | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system sealing fixing belt | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system blower | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system blower motor | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system air pipe | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system air intake filter | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system dry air filter element | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system filter element fixing nut | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system filter rubber gasket | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system filter clogging indicator | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system indicator bracket | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system indicator hose | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB air sealing system U-shaped differential pressure gauge | MB076 pp11–12/25–27/32–36 three-layer seal and air intake assembly; the seal combination list has an unnamed number, and the name is not made up according to the number | |
| RB outer seal polyurethane lip seal | MB076 pp11/14 clear external sealing material | |
| RB main shaft and support main shaft assembly | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and supporting eccentric body | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support eccentric inner bushing | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support housing bushing | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support inner sleeve positioning pin | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support eccentric key | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| Drive Gear — RB main shaft and support ring gear | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| Thrust Bearing — RB main shaft and support thrust bearing | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support bearing supports | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support lower end cover | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support bottom plate | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support bearing spherical ring support assembly | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and supporting O-ring | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support spiral safety spring | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support spring disc | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support double-ended studs | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support nut | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB main shaft and support assembly adjusting spacer | MB076 pp20/23–27; the lower cover gasket is also used for sealing and eccentric height adjustment, and the spherical ring/support is an inseparable assembly | |
| RB spherical ring spherical support ring | MB076 p27 clearly indicates bronze and cannot be sold separately based on this | |
| RB gasket pinion shaft box adjustment gasket | MB076 p24 clear Volumoide, used for backlash position adjustment | |
| RB crushing chamber and lining crushing chamber body | MB076 pp19–22 installation relationship: the cavity lining is fixed on the cavity, and the cone lining is installed on the shaft; the RBF/RBS fixed structure is different, and the DNIT cost table dynamic attribute errors leave traces | |
| RB crushing chamber and liner chamber adjusting nut | MB076 pp19–22 installation relationship: the cavity lining is fixed on the cavity, and the cone lining is installed on the shaft; the RBF/RBS fixed structure is different, and the DNIT cost table dynamic attribute errors leave traces | |
| Bowl Liner / Concave — RB crushing chamber and liner Fixed cone chamber liner | MB076 pp19–22 installation relationship: the cavity lining is fixed on the cavity, and the cone lining is installed on the shaft; the RBF/RBS fixed structure is different, and the DNIT cost table dynamic attribute errors leave traces | 59.224.727.000 |
| Mantle / Head Liner — RB crushing chamber and liner mantle liner | MB076 pp19–22 installation relationship: the cavity lining is fixed on the cavity, and the cone lining is installed on the shaft; the RBF/RBS fixed structure is different, and the DNIT cost table dynamic attribute errors leave traces | 59.115.272.000 |
| RB crushing chamber and liner upper fixed cover | MB076 pp19–22 installation relationship: the cavity lining is fixed on the cavity, and the cone lining is installed on the shaft; the RBF/RBS fixed structure is different, and the DNIT cost table dynamic attribute errors leave traces | |
| RB crushing chamber and liner moving cone fixing screws | MB076 pp19–22 installation relationship: the cavity lining is fixed on the cavity, and the cone lining is installed on the shaft; the RBF/RBS fixed structure is different, and the DNIT cost table dynamic attribute errors leave traces | |
| RB crushing chamber and liner feeding hopper | MB076 pp19–22 installation relationship: the cavity lining is fixed on the cavity, and the cone lining is installed on the shaft; the RBF/RBS fixed structure is different, and the DNIT cost table dynamic attribute errors leave traces | |
| RB crushing chamber and liner liner fixing bolts | MB076 pp19–22 installation relationship: the cavity lining is fixed on the cavity, and the cone lining is installed on the shaft; the RBF/RBS fixed structure is different, and the DNIT cost table dynamic attribute errors leave traces | |
| RB mantle liner and manganese steel liner material relationship | MB076 p20 lifting discussion clear acero manganeso, non-two liners full material list | |
| RB pinion shaft set pinion shaft | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| Pinion — RB pinion shaft set pinion | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft set equipment pulley | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft set spacer | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft set end flange | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft set, shaft box | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft set bearing | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft set internal oil seal | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft set external oil seal | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft set oil drain plug | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft group oil level plug | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB pinion shaft group oil inlet | MB076 pp10/23/24; This bearing has an independent oil bath and does not mix with the main lubrication oil circuit; the orientation of each oil seal is not included in the study table for construction regulations | |
| RB standard signal box signal box | MB076 pp29–30 standard equipment signal box; alarm sounder is not included in Svedala’s scope of supply | 53.251.005.400 |
| RB standard signal box timer | MB076 pp29–30 standard equipment signal box; alarm sounder is not included in Svedala’s scope of supply | |
| RB standard signal box control transformer | MB076 pp29–30 standard equipment signal box; alarm sounder is not included in Svedala’s scope of supply | |
| RB standard signal box alarm indicator light | MB076 pp29–30 standard equipment signal box; alarm sounder is not included in Svedala’s scope of supply | |
| RB standard signal box silencer button | MB076 pp29–30 standard equipment signal box; alarm sounder is not included in Svedala’s scope of supply | |
| RB customer matching alarm sounder | MB076 pp29–32, the sounder is clearly supplied by the customer, the speed switch is recommended for external conveyor protection, it is not false that the built-in standard parts of the crusher | |
| RB customer supporting discharge belt speed switch | MB076 pp29–32, the sounder is clearly supplied by the customer, the speed switch is recommended for external conveyor protection, it is not false that the built-in standard parts of the crusher | |
| RB optional auxiliary electric control box Auxiliary electric control box | MB076 pp30–31 explicitly optional; not combined with standard signal box | 53.351.006.400 |
| RB optional auxiliary electric control box heating button | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RB optional auxiliary electric control box lubrication pump button | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RB optional auxiliary electric control box time relay | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RB optional auxiliary electric control box auxiliary relay | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RB optional auxiliary electric control box test selection switch | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RB optional auxiliary electric control box signal light | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RB optional auxiliary electric control box fuse | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RB optional auxiliary electric control box thermal relay | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RB optional auxiliary electric control box main switch | MB076 pp30–31 explicitly optional; not combined with standard signal box | |
| RBU type differential pressure gauge glass straight tube | MB076 pp32–35 meter subassembly; glass tube, aluminum scale plate, nylon or stainless steel tips optional, do not combine alternative materials into a standard version | |
| RBU type differential pressure gauge connection terminal | MB076 pp32–35 meter subassembly; glass tube, aluminum scale plate, nylon or stainless steel tips optional, do not combine alternative materials into a standard version | |
| RBU type differential pressure gauge protection tank box | MB076 pp32–35 meter subassembly; glass tube, aluminum scale plate, nylon or stainless steel tips optional, do not combine alternative materials into a standard version | |
| RBU type differential pressure gauge scale plate | MB076 pp32–35 meter subassembly; glass tube, aluminum scale plate, nylon or stainless steel tips optional, do not combine alternative materials into a standard version | |
| RBU type differential pressure gauge zero adjustment button | MB076 pp32–35 meter subassembly; glass tube, aluminum scale plate, nylon or stainless steel tips optional, do not combine alternative materials into a standard version | |
| RBU type differential pressure gauge wall mounting bracket | MB076 pp32–35 meter subassembly; glass tube, aluminum scale plate, nylon or stainless steel tips optional, do not combine alternative materials into a standard version | |
| RBU type differential pressure gauge connector | MB076 pp32–35 meter subassembly; glass tube, aluminum scale plate, nylon or stainless steel tips optional, do not combine alternative materials into a standard version | |
| RBU type differential pressure gauge indicating fluid | MB076 pp32–35 meter subassembly; glass tube, aluminum scale plate, nylon or stainless steel tips optional, do not combine alternative materials into a standard version | |
| RB maintenance tool category centrifugal sedimentation sample tube | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB repair tool category hammer | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB maintenance tool category steel brush | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB maintenance tool category feeler gauge | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB maintenance tool category dial indicator | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB maintenance tool category hydraulic jack | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB maintenance tool category multimeter | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB backing material and construction consumables metal funnel sheet for filling | MB076 pp20–22/25; The chemical body of the filler is not named in this article and is not cross-text inferred from M290; the inner sealant is polyurethane-based and the commercial supply number is not transcribed | |
| RB backing materials and construction consumables thread lubrication paste | MB076 pp20–22/25; The chemical body of the filler is not named in this article and is not cross-text inferred from M290; the inner sealant is polyurethane-based and the commercial supply number is not transcribed | |
| RB filling alternative zinc filler | Choose one of MB076 p21 and Plastic-Faço, not a mixed filler formula | |
| RB optional manual hydraulic system manual pump | MB076 p7 clearly optional system; not standard electric pump | |
| RB Nitrogen Charging Tool Category Nitrogen Charging Adapter | MB076 pp6–8 mention factory-available adapter; supply number not transcribed | 59.940.232.400 / 59.941.876.001 |
| RB emergency mechanical locking accessory kit round end locking bolt | MB076 p28 clearly subcontracts the supply of these two members. They will be used when hydraulic failure occurs and will not be installed when the hydraulic system is running normally. | |
| RB emergency mechanical locking accessory package locking nut | MB076 p28 clearly subcontracts the supply of these two members. They will be used when hydraulic failure occurs and will not be installed when the hydraulic system is running normally. | |
| RB maintenance tool category Liner removal device | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB maintenance tool category main shaft lifting threaded pin | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB maintenance tool category seal inspection template | MB076 pp16/19–25/27; The centrifuge tube is filled with 100mL and the specification OCR writes 1000mL, which conflicts and the volume is not used | |
| RB backing materials and construction consumables Plastic-Faço filler | MB076 pp20–22/25; The chemical body of the filler is not named in this article and is not cross-text inferred from M290; the inner sealant is polyurethane-based and the commercial supply number is not transcribed | |
| RB backing materials and construction consumables curing agent | MB076 pp20–22/25; The chemical body of the filler is not named in this article and is not cross-text inferred from M290; the inner sealant is polyurethane-based and the commercial supply number is not transcribed | |
| RB backing materials and construction consumables Internal sealing adhesive | MB076 pp20–22/25; The chemical body of the filler is not named in this article and is not cross-text inferred from M290; the inner sealant is polyurethane-based and the commercial supply number is not transcribed | |
| RB backing material and construction consumables shell steel ring adhesive | MB076 pp20–22/25; The chemical body of the filler is not named in this article and is not cross-text inferred from M290; the inner sealant is polyurethane-based and the commercial supply number is not transcribed | |
| RB backing materials and construction supplies Cleaning agent before gluing | MB076 pp20–22/25; The chemical body of the filler is not named in this article and is not cross-text inferred from M290; the inner sealant is polyurethane-based and the commercial supply number is not transcribed |
Faço imperial-size Hydrocone cone crushers73 items
| No. | Component | Location | Part / drawing no. |
|---|---|---|---|
| 1 | Mantle / Head Liner | Chapter 2 60/84-inch signed watch | 59.155.298.000 / 59.254.508.000 |
| 4 | Main-shaft sleeve | Chapter 2 60/84-inch signed watch | 59.240.940.000 / 59.243.790.000 |
| 5 | Eccentric Bushing | Section 5.2 | 59.243.661.000 / 59.243.796.000 / 59.254.380.000 |
| 7 | Hydroset piston | Section 4.2 | 59.240.019.000 / 59.240.929.000 |
| Lower case | Section 5.1 Lower Shell Assembly | 59.140.003.500 / 59.254.416.500 | |
| Chassis bushing | Section 5.1; 36 inches without key, cannot be used with other size fixing methods | 59.340.006.000 | |
| Chassis bushing fixing key (not applicable to 36 inches) | Section 5.1.2 Rest of keyed configurations | 59.440.056.000 | |
| Sealing ring seat | Section 5.1 collar, connection dust seal | 59.240.057.000 / 59.240.928.000 | |
| Sealing ring seat gasket | Section 5.1 collar joint | 59.440.008.000 / 59.440.957.500 | |
| Arm Guard / Arm Liner — Lower chassis arm liner | Section 5.1 | 59.340.005.000 | |
| Eccentric piece | Section 5.2 | 59.254.379.500 | |
| Drive Gear — Large ring gear | Section 5.2; Do not borrow material from other sizes | 59.240.013.001 / 59.240.944.002 | |
| Eccentric wear ring | Section 5.2 Support | 59.240.014.000 | |
| Eccentric support | Section 5.2 Support | 59.140.964.000 / 59.240.015.000 | |
| Upper chassis | Section 8.1 | 59.140.092.000 | |
| Arm Guard / Arm Liner — Upper chassis arm liner | Section 8.1 | ||
| Crushing chamber lining | Section 8.1; No generalization of materials or number of pieces | 59.143.045.000 / 59.240.151.000 / 59.254.021.000 / 59.254.584.000 | |
| Upper shelf bushing | Sections 8.1 and 8.4 | 59.243.579.000 | |
| Shelf seal | Section 8.5 | 59.355.063.003 | |
| Hydroset hydraulic cylinder | Section 4.2 Adjustment Assembly | ||
| Thrust Bearing | Section 4.2 | ||
| Piston wear ring | Section 4.2 | 59.240.937.000 | |
| Piston top cover | Section 4.2 | 59.340.023.000 | |
| Hydroset seal (60/84 inches) | Section 4.2 clarifies that only these two levels are | 59.355.011.003 / 59.355.011.004 | |
| Accumulator | Section 4.3, Nitrogen filling; OCR pressure values are not transcribed as current operating standards | ||
| Accumulator bleed valve | Section 4.3 | ||
| Hydraulic one-way valve | Section 4.4, Delayed backflow after passage of foreign matter | ||
| Hydroset solenoid valve | Section 4.5, ASCOVAL package; supplier part number not transcribed | 00.970.701.095 | |
| Hydraulic relief valve | Section 4.6 | ||
| Crushing pressure gauge | Section 4.7 | ||
| Hydamp pressure gauge protection valve | Section 4.8 | 17.103.978.001 | |
| Automatic constant pressure regulating cylinder (optional) | Sections 4.9 and 10.11; Hydrofine standard, Hydrocone fine/medium crushing options | ||
| Air compressor | Section 2.8 Compressed Air Components | 59.940.392.001 | |
| Air pressure regulating valve | Section 2.8 | 00.970.889.061 | |
| Air pressure gauge | Section 2.8 | 00.977.001.081 | |
| Air filter | Section 2.8 | 00.938.495.002 | |
| Elastic rubber mounting piece (optional) | Section 2.2 is for additional cost configuration, do not write standard random | ||
| Main shaft | Chapter 2 60/84-inch signed watch | ||
| moving cone | Chapter 2 60/84-inch signed watch | 59.140.922.000 | |
| Countershaft | Chapter 2 60/84-inch pinion shaft table | 59.240.979.000 | |
| Countershaft casing | Chapter 2 60/84-inch table | 59.140.972.500 / 59.240.026.500 | |
| Lubricating oil tank | Chapter 2 60/84 inch lubrication list | 59.143.476.500 | |
| Lubricating oil tank inspection cover | Chapter 2 60/84 inch list | 59.442.327.500 | |
| Lubrication thermometer | Chapter 2 60/84 inch list | ||
| Lubrication gear pump | Chapter 2 60/84-inch listing; supplier part number not transcribed | 00.942.303.101 | |
| Lubricating motor | Chapter 2 60/84 inch list | 00.960.001.054 | |
| Lubricating coupling | Chapter 2 60/84 inch list | 00.932.101.003 / 00.932.101.005 | |
| Lubrication filter | Chapter 2 60/84 inch list | ||
| Lubrication flow indicator | Chapter 2 60/84 inch list | ||
| Heat exchanger | Chapter 2 60/84 inch list | 00.943.108.201 | |
| Radiator | Chapter 2 60/84 inch list | 00.943.004.045 | |
| Cooling fan | Chapter 2 60/84 inch list | ||
| 60-inch large ring gear material version | Chapter 2 R02/1987-11 60-inch table | 59.240.013.001 | |
| 60-inch pinion material version | Chapter 2 60-inch watch | 59.240.013.002 | |
| 60-inch piston wear ring material version | Chapter 2 60-inch table; chemical composition diagram not available | ||
| 60-inch Hydroset sealing material version | Chapter 2 60-inch watch | 59.355.011.003 | |
| 84-inch large ring gear material version | Chapter 2 R03/1987-11 84-inch watch | 59.240.944.002 | |
| 84-inch pinion material version | Chapter 2 84-inch watch from 1996-01 | ||
| 84-inch Hydroset sealing material version | Chapter 2 84-inch watch | 59.355.011.004 | |
| 45-inch Hydroset sealing material version | Chapter 2 45-inch table; the appearance of HYD51 in adjacent parts does not change the title of this table | ||
| 45-inch sealing strip material version | Chapter 2 45-inch table; 70 Shore unprinted A/D scale, cannot add A | ||
| Remove the sealing ring seat wedge | Section 5.1 Tool category, non-complete machine random full tool list | ||
| Disassemble the casing bushing support rod | Section 5.1.2 Lower Support Rod Category | ||
| Bushing/eccentric repair hydraulic jack | Section 5.1/5.2 Tool Category, Unloaded Capacity and Dimensions | ||
| Eccentric removal of support beam | Section 5.2 Beam categories matched with jacks | ||
| Hydroset disassembly support rod | Section 4.2 Keep the hydraulic cylinder horizontally lowered; unloaded tooling dimensions | ||
| Upper frame bushing top removal bolt | Section 8.4 Upper flange disassembly, thread size not specified | ||
| Piston support pad category | Text in Figure 4.3; the original picture has not been obtained, so the dimensions are not recommended. | ||
| main shaft storage bracket/horse stool category | Section 1.8 Storage and Maintenance, not the internal parts of the whole machine | ||
| main shaft storage anti-corrosion felt pad | Section 1.8 Support Contact | ||
| Solenoid valve repair kit category | Section 4.5 specifies the repair kit; there is no member list and no guessing of the number of seals | ||
| Plasticfaço filling backing material | Chapter 2 60/84-inch table; does not apply Whitmore epoxy formula | 00.917.913.001 | |
| 36-inch bushing fixed filling material | Section 5.1.2 Plastic-Pack replaces fixed keys |
Frequently asked questions
What other names or designations is the Cone crusher known by?
The Cone crusher is also documented under these designations: Faço imperial-size Hydrocone cone crushers, Faço Hydrocone 36, Faço Hydrocone 45, Faço Hydrocone 51, Faço Hydrocone 60, Faço Hydrocone 84, Faço RB cone crusher, Faço90RBS, Faço90RBF, Faço90RB, Faço120RB, Faço90RB G / S / F, Faço120RB G / S / F, Faço T-type cone crusher.
Which brand and type of equipment is the Cone crusher?
The Cone crusher is listed under the FACO brand as: Cone crusher. Status: Historical model.
Which components and wear parts are recorded for the Cone crusher?
577 components are recorded, including: Lower case, Chassis bushing, Chassis bushing fixing key (not applicable to 36 inches), Sealing ring seat, Sealing ring seat gasket, Arm Guard / Arm Liner, Eccentric piece, Eccentric Bushing and more. The full list with locations is in the components table on this page.
Which drawing or part numbers are listed for the Cone crusher?
Lower case: 59.140.003.500 / 59.254.416.500, Chassis bushing: 59.340.006.000, Chassis bushing fixing key (not applicable to 36 inches): 59.440.056.000, Sealing ring seat: 59.240.057.000 / 59.240.928.000, Sealing ring seat gasket: 59.440.008.000 / 59.440.957.500, Arm Guard / Arm Liner: 59.340.005.000, Eccentric piece: 59.254.379.500, Eccentric Bushing: 59.243.661.000 / 59.243.796.000 / 59.254.380.000, Drive Gear: 59.240.013.001 / 59.240.944.002, Eccentric wear ring: 59.240.014.000.
Which model-specific components of the Cone crusher have their own page?
Model-specific components with their own page: Remove the sealing ring seat wedge, Disassemble the casing bushing support rod, Bushing/eccentric repair hydraulic jack, Eccentric removal of support beam, Hydroset disassembly support rod, Upper frame bushing top removal bolt, Piston support pad category, main shaft storage bracket/horse stool category and more (34 in total).
How do I enquire about parts for the Cone crusher?
Send us a drawing or sample and tell us the equipment model and part name.
