Tabor Horizontal Vibrating screen
Horizontal Vibrating screen · 2018 · 1 model
Elgin
ElginBrand
Horizontal Vibrating screenEquipment type
2018Period
Historical modelStatus
Elgin
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| Tabor Horizontal | 2018 | 5 |
Elgin
Numbered Components

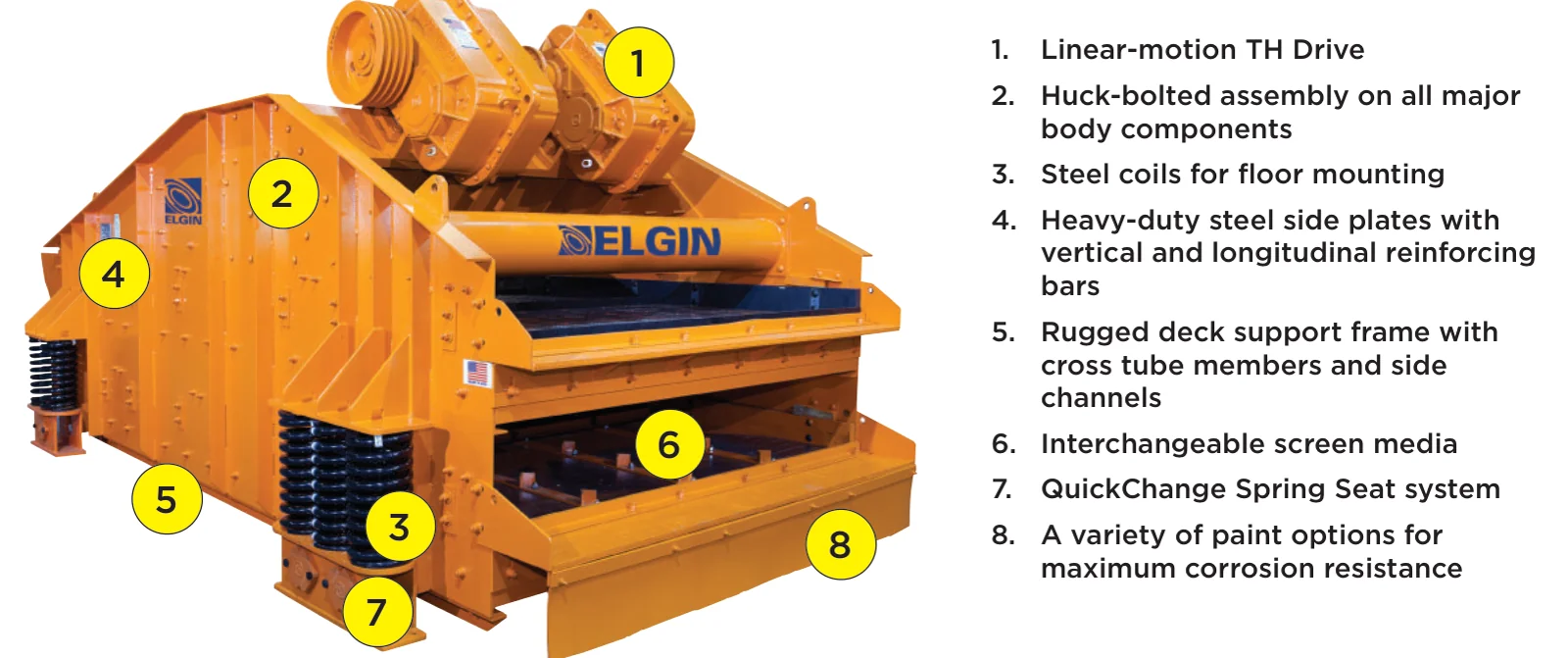

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Linear-motion TH drive | TH drive above the screen body | OEM pictured configuration (exact model not specified) |
| 2 | Huck bolts | Main screen-body joints | OEM pictured configuration (exact model not specified) |
| 3 | Support Spring / Buffer | Between screen body and floor supports | OEM pictured configuration (exact model not specified) |
| 4 | Reinforced side plates | Screen body sidewalls | OEM pictured configuration (exact model not specified) |
| 5 | Cross beam | Crossmembers of the deck support frame | OEM pictured configuration (exact model not specified) |
| 6 | Screen Mesh / Wire Mesh | Interchangeable screening decks | OEM pictured configuration (exact model not specified) |
| 7 | QuickChange spring seat | Removable seats below support springs | OEM pictured configuration (exact model not specified) |
| 8 | Corrosion-resistant paint | External screen-body surfaces | OEM pictured configuration (exact model not specified) |
Other Components · 1 item
| Component |
|---|
| Feed-box liner |
Elgin
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Tabor Horizontal5 items
| No. | Component | Location |
|---|---|---|
| 1 | Exciter | Exciter drive section of the screen box |
| 3 | Support Spring / Buffer | |
| 5 | Cross beam | Screen deck support position inside the screen box |
| 6 | Screen Mesh / Wire Mesh | |
| Feed Box Liner |
Frequently asked questions
Which brand and type of equipment is the Tabor Horizontal Vibrating screen?
The Tabor Horizontal Vibrating screen is listed under the Elgin brand as: Horizontal Vibrating screen. Period: 2018. Status: Historical model.
Which components and wear parts are recorded for the Tabor Horizontal Vibrating screen?
5 components are recorded, including: Screen Mesh / Wire Mesh, Support Spring / Buffer, Feed Box Liner, Cross beam, Exciter. The full list with locations is in the components table on this page.
Which model-specific components of the Tabor Horizontal Vibrating screen have their own page?
Model-specific components with their own page: Cross beam, Exciter (2 in total).
How do I enquire about parts for the Tabor Horizontal Vibrating screen?
Send us a drawing or sample and tell us the equipment model and part name.
