Which models does the Progressive Cavity cover?
The Progressive Cavity covers 2 models: KTPC-NM063-P101, KTPC-NM090-P101. Former and renamed designations are listed in the models table on this page.
Progressive Cavity
2018 · 2 models
Elgin
ElginBrand
2018Period
Historical modelStatus
Elgin
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| KTPC-NM063-P101 | 2018 | 6 |
| KTPC-NM090-P101 | 2018 | 6 |
Elgin

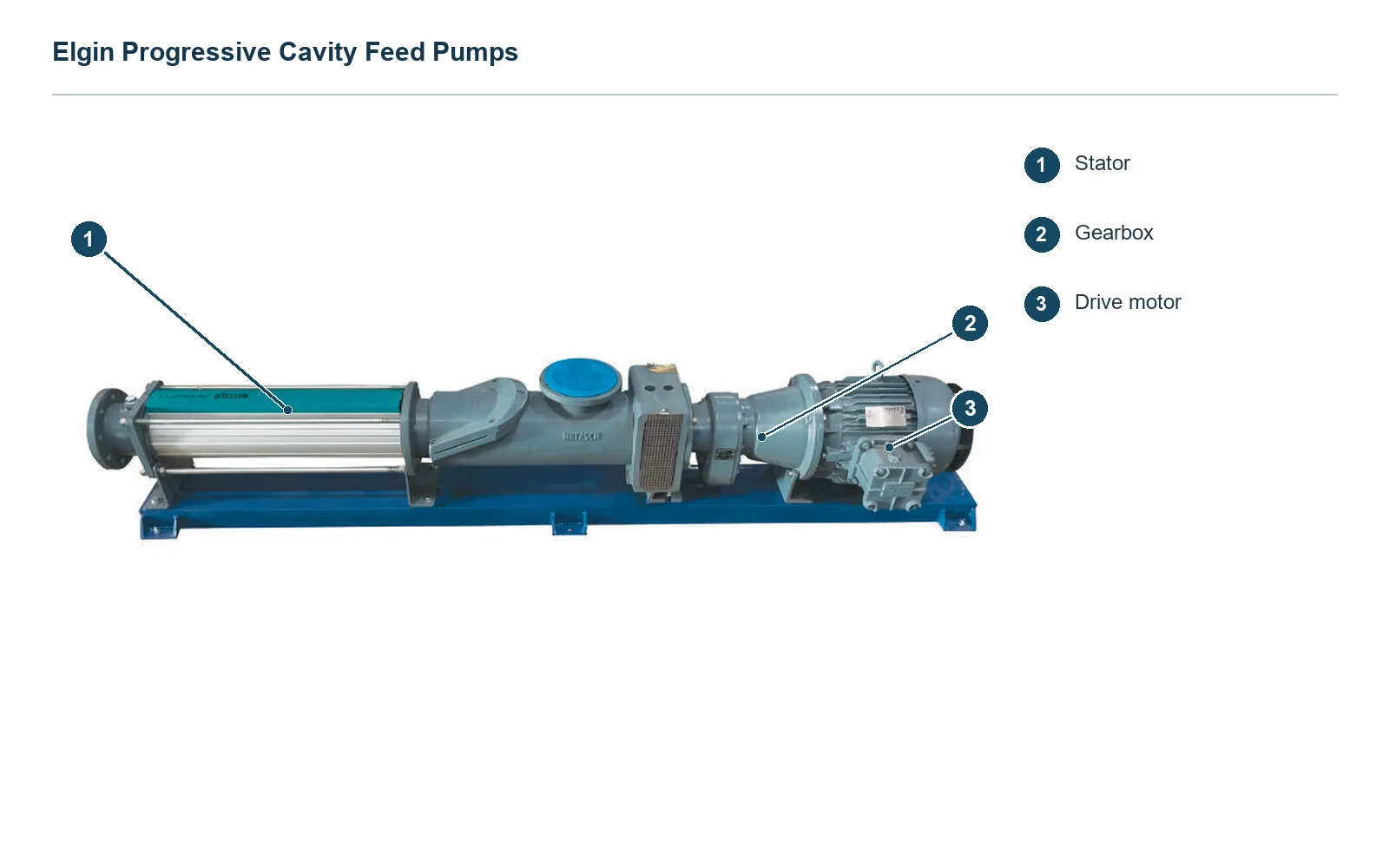

Numbered Components
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Stator | Green stator assembly at left | KTPC-NM063-P101 |
| 2 | Gearbox | Gearbox housing ahead of right-side motor | KTPC-NM063-P101 |
| 3 | Drive motor | Motor at right end | KTPC-NM063-P101 |
Other Components · 4 items
| Component |
|---|
| Rotor |
| Connecting rod |
| Shaft seal |
| Coupling |
Elgin
Components by Model
Models with the same components are grouped together; select a group to open its component table.
KTPC-NM063-P101, KTPC-NM090-P1016 items
Models: KTPC-NM063-P101, KTPC-NM090-P101
| No. | Component | Location |
|---|---|---|
| 1 | Stator | Working chamber outside the rotor |
| 2 | Gearbox | Motor-to-pump shaft drive end |
| Rotor | Pump conveying working chamber | |
| Connecting rod | Between the drive and the rotor | |
| Shaft seal | Pump shaft exit point | |
| Coupling | Drive connection between the motor and the pump |
Frequently asked questions
What other names or designations is the Progressive Cavity known by?
The Progressive Cavity is also documented under these designations: KTPC-NM063-P101, KTPC-NM090-P101.
Which brand and type of equipment is the Progressive Cavity?
The Progressive Cavity is listed under the Elgin brand. Period: 2018. Status: Historical model.
Which components and wear parts are recorded for the Progressive Cavity?
6 components are recorded, including: Rotor, Stator, Connecting rod, Shaft seal, Coupling, Gearbox. The full list with locations is in the components table on this page.
Which model-specific components of the Progressive Cavity have their own page?
Model-specific components with their own page: Rotor, Stator, Connecting rod, Shaft seal, Coupling, Gearbox (6 in total).
How do I enquire about parts for the Progressive Cavity?
Send us a drawing or sample and tell us the equipment model and part name.
