Which models does the CSI Cyclone Pro cover?
The CSI Cyclone Pro covers 3 models: CSI-D3, CSI-D4, CSI-D5. Former and renamed designations are listed in the models table on this page.
CSI Cyclone Pro
2018 · 3 models
Elgin
ElginBrand
2018Period
Historical modelStatus
Elgin

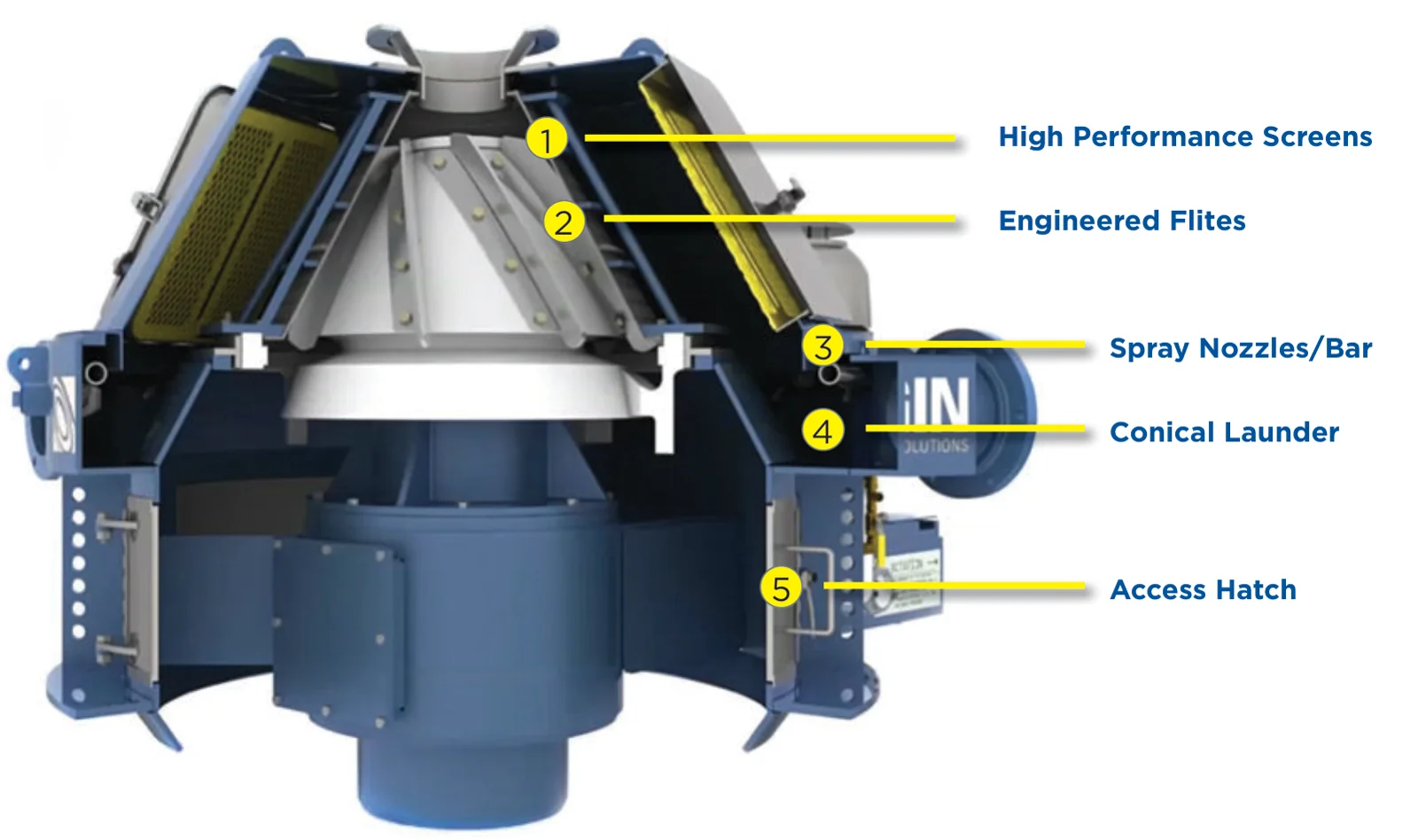

Numbered Components
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Screen basket | Original 1: outer conical screen | CSI-D3;CSI-D4;CSI-D5 |
| 2 | Engineered flite | Original 2: flites inside screen | CSI-D3;CSI-D4;CSI-D5 |
| 3 | Spray nozzles / bar | Original 3: spray bar below screen | CSI-D3;CSI-D4;CSI-D5 |
| 4 | Conical launder | Original 4: conical liquid collection launder | CSI-D3;CSI-D4;CSI-D5 |
| 5 | Access hatch | Original 5: lower housing access hatch | CSI-D3;CSI-D4;CSI-D5 |
Other Components · 2 items
| Component |
|---|
| Ceramic liner |
| Dual-drive gearbox |
Elgin
Components by Model
Models with the same components are grouped together; select a group to open its component table.
CSI-D3, CSI-D4, CSI-D57 items
Models: CSI-D3, CSI-D4, CSI-D5
| No. | Component | Location |
|---|---|---|
| 1 | Screen basket | Cuttings separation working surface |
| 2 | Scraper blade | Solids conveying position inside the screen basket |
| 3 | Flushing nozzle | Screen basket flushing position |
| 4 | Liquid discharge launder | Liquid collection point beneath the screen basket |
| 5 | Access cover | Access opening of the machine body |
| Ceramic liner | Wear protection surface | |
| Dual-drive gearbox | Drive end of the main unit |
Frequently asked questions
What other names or designations is the CSI Cyclone Pro known by?
The CSI Cyclone Pro is also documented under these designations: CSI-D3, CSI-D4, CSI-D5.
Which brand and type of equipment is the CSI Cyclone Pro?
The CSI Cyclone Pro is listed under the Elgin brand. Period: 2018. Status: Historical model.
Which components and wear parts are recorded for the CSI Cyclone Pro?
7 components are recorded, including: Screen basket, Scraper blade, Flushing nozzle, Liquid discharge launder, Ceramic liner, Access cover, Dual-drive gearbox. The full list with locations is in the components table on this page.
Which model-specific components of the CSI Cyclone Pro have their own page?
Model-specific components with their own page: Screen basket, Scraper blade, Flushing nozzle, Liquid discharge launder, Ceramic liner, Access cover, Dual-drive gearbox (7 in total).
How do I enquire about parts for the CSI Cyclone Pro?
Send us a drawing or sample and tell us the equipment model and part name.
