Sectional, expandable ball mill · 1954 OCR · 1 model
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Denver 30-inch Convertible sectional ball mill | Denver Sectional expandable ball mill 30×18; Denver Sectional expandable ball mill 30×36 | 1954 OCR | 6 |

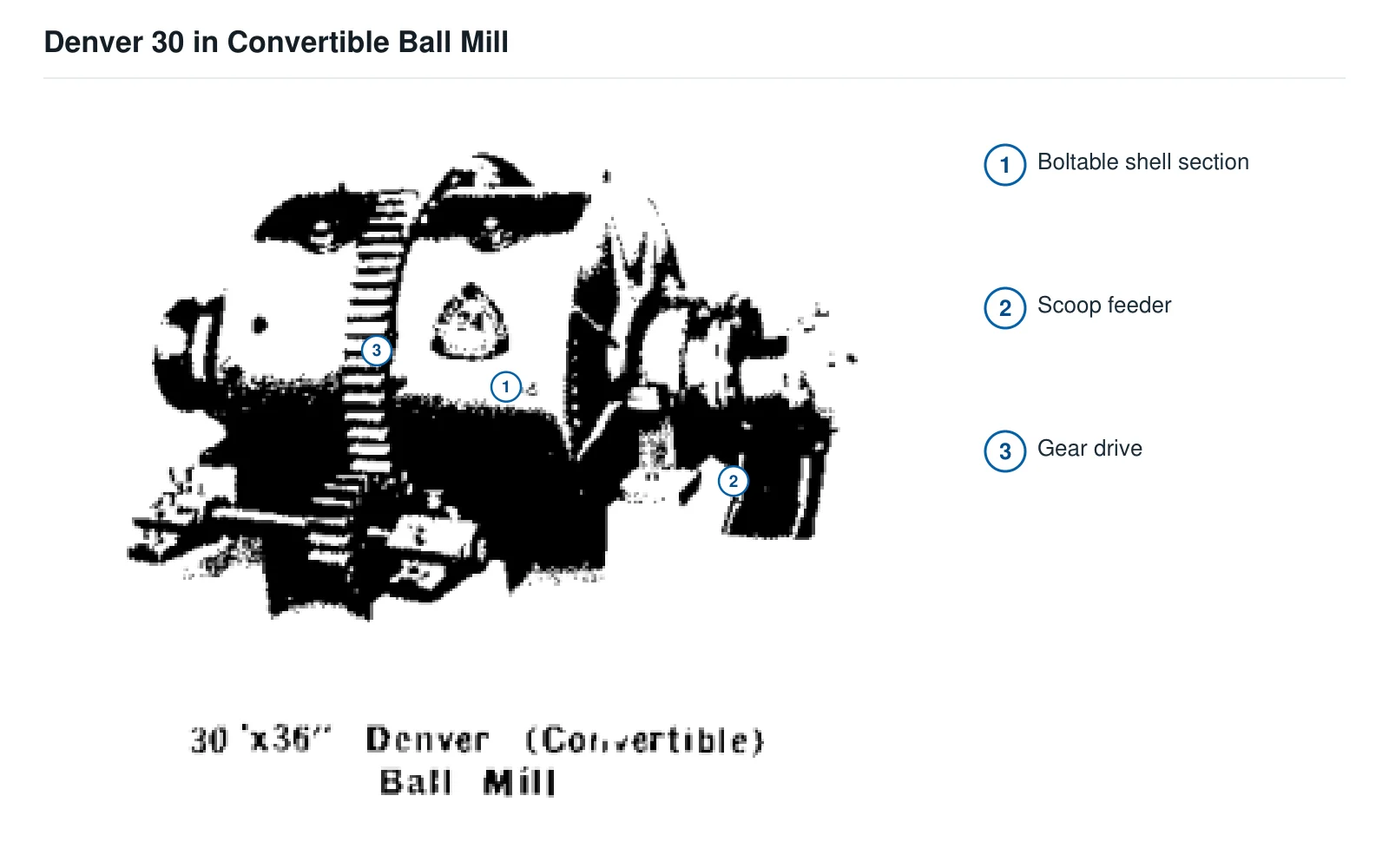

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Boltable shell section | External convertible shell section | Convertible 30×36 in |
| 2 | Scoop feeder | Right-side scoop feeder | Convertible 30×36 in |
| 3 | Gear drive | Visible shell gear ring | Convertible 30×36 in |
| Component |
|---|
| Replaceable feeder lip |
| shell liner |
| Spiral screen |
Models with the same components are grouped together; select a group to open its component table.
| No. | Component | Location |
|---|---|---|
| 1 | Boltable barrel section | Mill shell |
| 2 | Bucket feeder | Feed end |
| 3 | Gear transmission configuration | Drive area; gear selection |
| Replaceable feeder lip | Bucket feeder inlet | |
| shell liner | Inner wall of mill | |
| Spiral screen | Optional accessories for discharge end |
The Sectional expandable ball mill is also documented under these designations: Denver 30-inch Convertible sectional ball mill, Denver Sectional expandable ball mill 30×18, Denver Sectional expandable ball mill 30×36.
The Sectional expandable ball mill is listed under the Denver Equipment brand as: Sectional, expandable ball mill. Period: 1954 OCR. Status: Historical model.
6 components are recorded, including: Boltable barrel section, Bucket feeder, Replaceable feeder lip, shell liner, Gear transmission configuration, Spiral screen. The full list with locations is in the components table on this page.
