What other names or designations is the apron feeders Apron feeder known by?
The apron feeders Apron feeder is also documented under these designations: Nordberg Apron feeders Apron feeder, Apron feeders.
apron feeders Apron feeder
Apron feeder · 1 model
Nordberg
NordbergBrand
Apron feederEquipment type
Historical modelStatus
Nordberg
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Components |
|---|---|---|
| Nordberg Apron feeders Apron feeder | Apron feeders | 4 |
Nordberg
Numbered Components

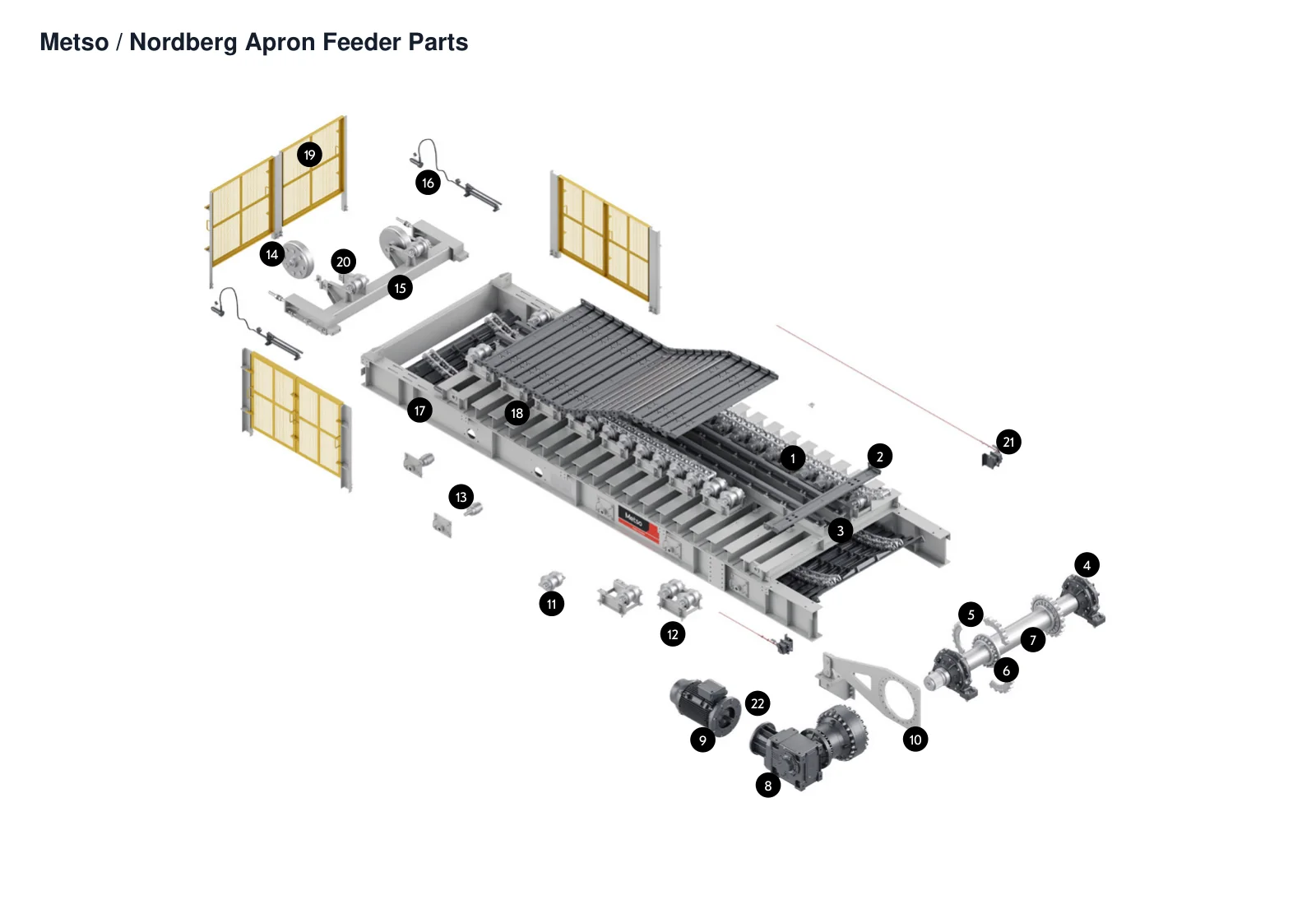

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Chain | Traction chain beneath the pans | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 2 | Pans | Upper load-carrying pans | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 3 | Impact rails | Impact support beneath the pans | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 4 | Bearings | Head-shaft end supports | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 5 | Sprockets | Drive-end chain engagement | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 6 | Hubs | Inside the drive sprockets | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 7 | Head shaft | Transverse shaft at the drive end | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 8 | Reducer gearbox | Outside the head shaft | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 9 | Motor | Outside the reducer | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 10 | Torque arm and linkage | Reducer restraint connection | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 11 | Carry rollers | Upper chain support | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 12 | Roller modules | Grouped rollers within the frame | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 13 | Return rollers | Lower return-chain support | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 14 | Idler tail wheels | Tail-end chain return | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 15 | Take-up frame | Sliding tail-wheel support | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 16 | Take-up system | Tail-end tensioning mechanism | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 17 | Frame | Main structural frame | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 18 | Cross beams | Transverse frame connections | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 19 | Guards | Side guarding for drive and moving parts | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 20 | Zero-speed switch | Tail-end monitoring point | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 21 | Emergency pull cord | Along the side of the frame | OEM Apron feeder family view; historical Nordberg dimensions not specified |
| 22 | Lubrication system | Near the motor and reducer | OEM Apron feeder family view; historical Nordberg dimensions not specified |
Nordberg
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Nordberg Apron feeders Apron feeder4 items
| No. | Component |
|---|---|
| 1 | Chain |
| 2 | Chain plate |
| 5 | Model-specific component |
| 11 | Track roller |
Frequently asked questions
Which brand and type of equipment is the apron feeders Apron feeder?
The apron feeders Apron feeder is listed under the Nordberg brand as: Apron feeder. Status: Historical model.
Which components and wear parts are recorded for the apron feeders Apron feeder?
4 components are recorded, including: Chain plate, Chain, Track roller and more. The full list with locations is in the components table on this page.
How do I enquire about parts for the apron feeders Apron feeder?
Send us a drawing or sample and tell us the equipment model and part name.
