Which models does the Washing Systems cover?
The Washing Systems covers 2 models: CSP 120, CSP 200. Former and renamed designations are listed in the models table on this page.
Washing Systems
2010 · 2 models
McCloskey
McCloskeyBrand
2010Period
Historical modelStatus
McCloskey
Numbered Components

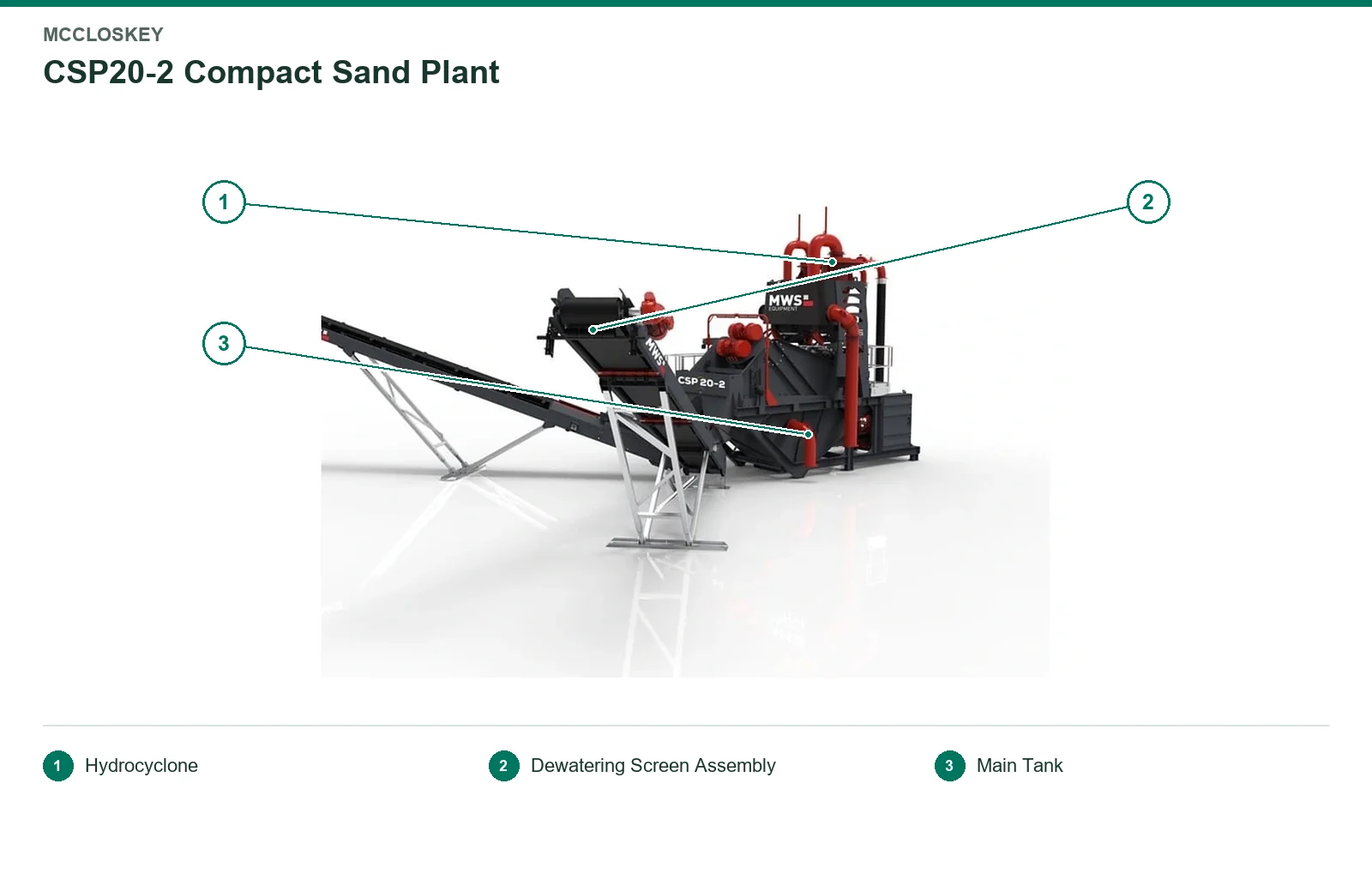

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Hydrocyclone | Elevated cyclone assembly and slurry inlet | CSP 20-2 |
| 2 | Dewatering Screen Assembly | Left dewatering screen module above the main tank | CSP 20-2 |
| 3 | Main Tank | Main tank below the dewatering screen | CSP 20-2 |
Other Components · 3 items
| Component |
|---|
| Screen Mesh / Wire Mesh |
| Slurry pump |
| Wear lining |
McCloskey
Components by Model
Models with the same components are grouped together; select a group to open its component table.
CSP 120, CSP 2004 items
Models: CSP 120, CSP 200
| No. | Component | Location |
|---|---|---|
| 1 | Hydrocyclone | Classification unit after slurry pump transfer |
| Screen Mesh / Wire Mesh | ||
| Slurry pump | Between the slurry collection sump and the hydrocyclone | |
| Wear lining | Pumping pipeline, hydrocyclone and discharge area |
Frequently asked questions
What other names or designations is the Washing Systems known by?
The Washing Systems is also documented under these designations: CSP 120, Compact Sand Plant 120, CSP 200, Compact Sand Plant 200.
Which brand and type of equipment is the Washing Systems?
The Washing Systems is listed under the McCloskey brand. Period: 2010. Status: Historical model.
Which components and wear parts are recorded for the Washing Systems?
4 components are recorded, including: Screen Mesh / Wire Mesh, Hydrocyclone, Slurry pump, Wear lining. The full list with locations is in the components table on this page.
Which model-specific components of the Washing Systems have their own page?
Model-specific components with their own page: Hydrocyclone, Slurry pump, Wear lining (3 in total).
How do I enquire about parts for the Washing Systems?
Send us a drawing or sample and tell us the equipment model and part name.
