Which models does the Washing Systems CSP cover?
The Washing Systems CSP covers 3 models: CSP 250, CSP 300, CSP 60. Former and renamed designations are listed in the models table on this page.
Washing Systems CSP
2018 · 3 models
McCloskey
McCloskeyBrand
2018Period
Historical modelStatus
McCloskey
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
McCloskey
Numbered Components

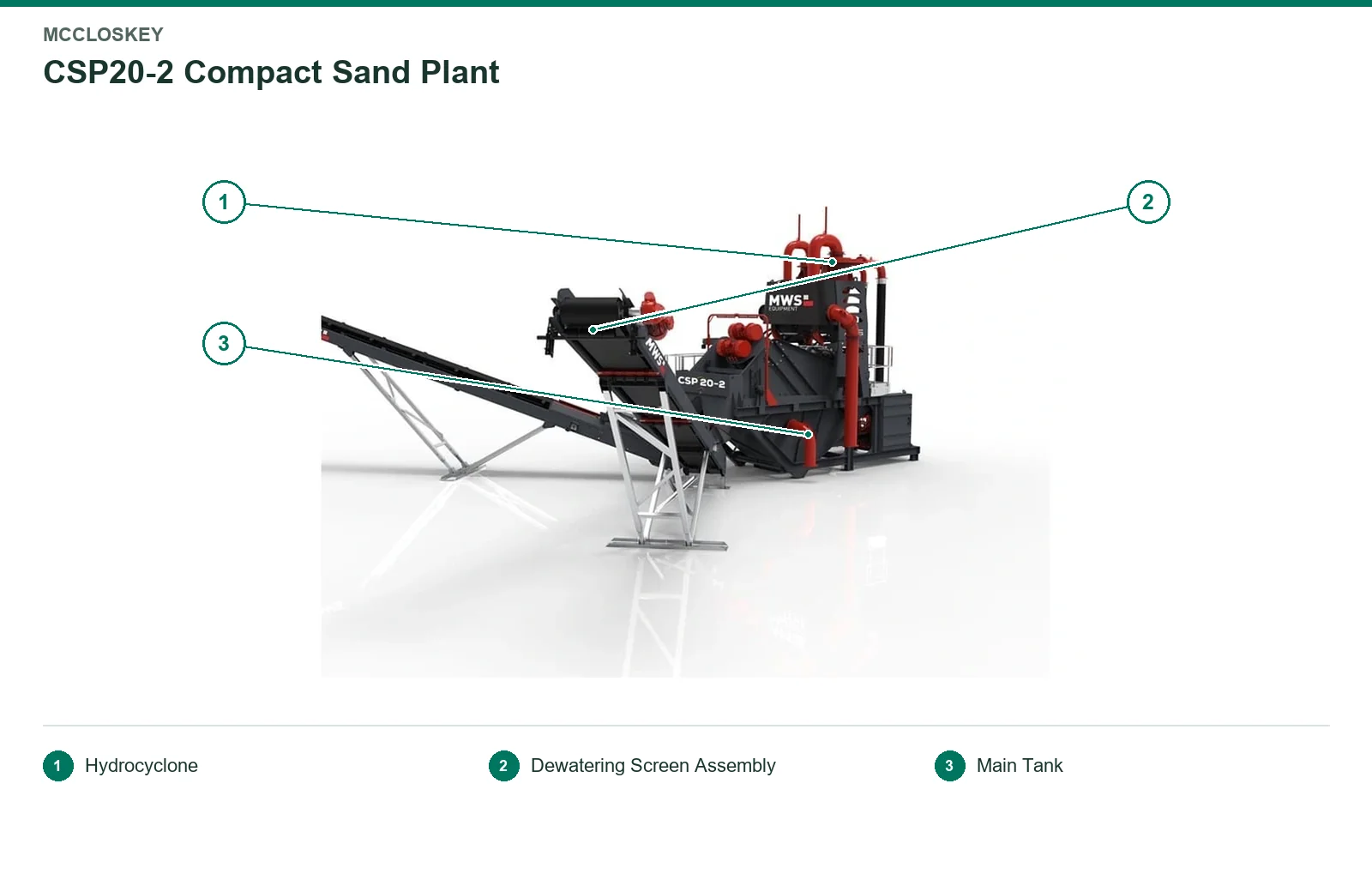

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Hydrocyclone | Elevated cyclone assembly and slurry inlet | CSP 20-2 |
| 2 | Dewatering Screen Assembly | Left dewatering screen module above the main tank | CSP 20-2 |
| 3 | Main Tank | Main tank below the dewatering screen | CSP 20-2 |
Other Components · 3 items
| Component |
|---|
| Screen Mesh / Wire Mesh |
| Slurry pump |
| Wear lining |
McCloskey
Components by Model
Models with the same components are grouped together; select a group to open its component table.
CSP 250, CSP 300, CSP 604 items
Models: CSP 250, CSP 300, CSP 60
| No. | Component | Location |
|---|---|---|
| 1 | Hydrocyclone | Classification unit after slurry pump transfer |
| Screen Mesh / Wire Mesh | ||
| Slurry pump | Between the slurry collection sump and the hydrocyclone | |
| Wear lining | Pumping pipeline, hydrocyclone and discharge area |
Frequently asked questions
What other names or designations is the Washing Systems CSP known by?
The Washing Systems CSP is also documented under these designations: CSP 250, Compact Sand Plant 250, CSP 300, Compact Sand Plant 300, CSP 60, Compact Sand Plant 60.
Which brand and type of equipment is the Washing Systems CSP?
The Washing Systems CSP is listed under the McCloskey brand. Period: 2018. Status: Historical model.
Which components and wear parts are recorded for the Washing Systems CSP?
4 components are recorded, including: Screen Mesh / Wire Mesh, Hydrocyclone, Slurry pump, Wear lining. The full list with locations is in the components table on this page.
Which model-specific components of the Washing Systems CSP have their own page?
Model-specific components with their own page: Hydrocyclone, Slurry pump, Wear lining (3 in total).
How do I enquire about parts for the Washing Systems CSP?
Send us a drawing or sample and tell us the equipment model and part name.
