Which models does the Mesabi Scalper cover?
The Mesabi Scalper covers 6 models: 4102-26, 5122-32, 5162-26-2, 6122-32, 6162-26-2, 7162-32-2. Former and renamed designations are listed in the models table on this page.
Mesabi Scalper
6 models
KPI-JCI
KPI-JCIBrand
Historical modelStatus
KPI-JCI
Numbered Components

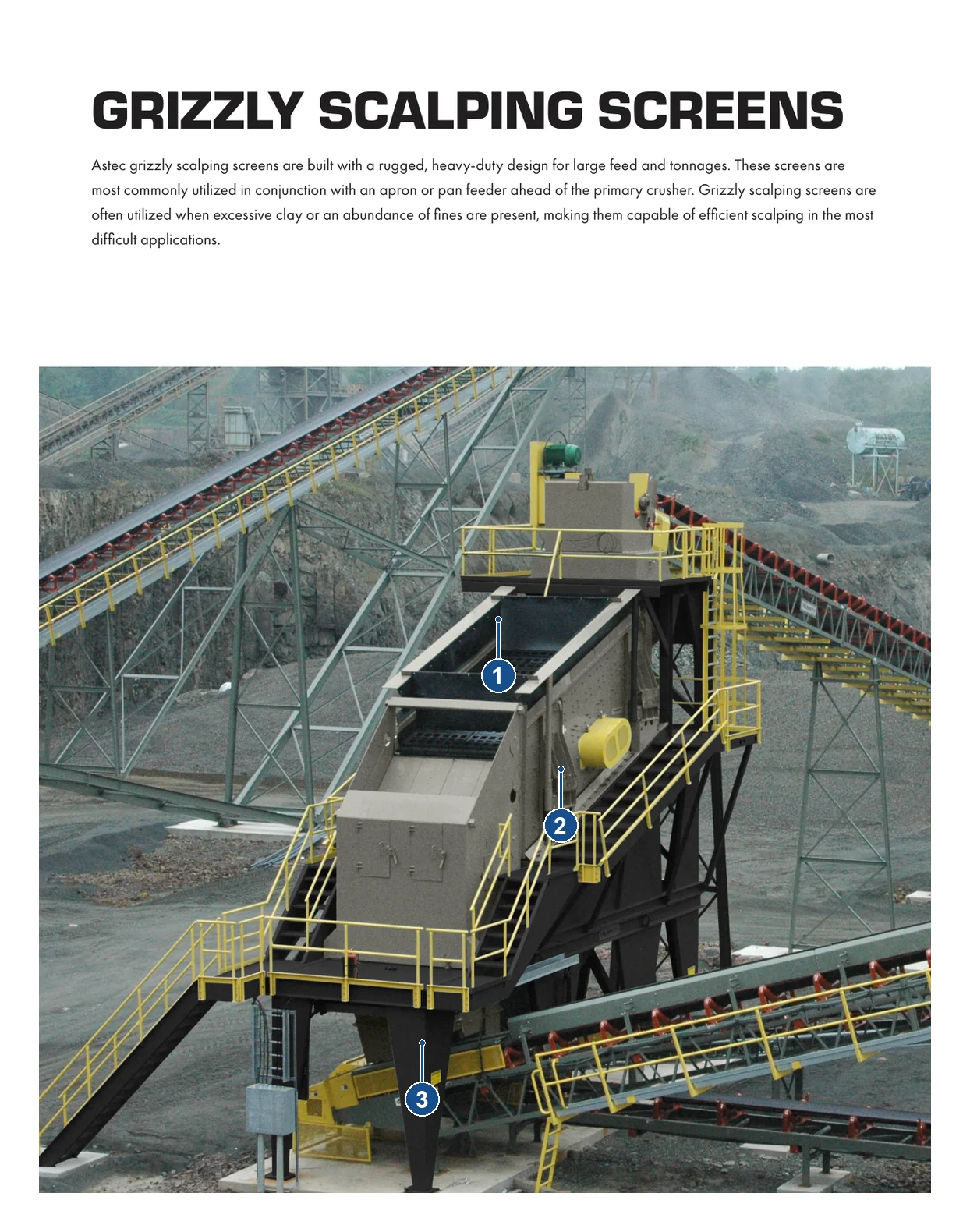

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Screen media | Working screening surface inside the screen box | Grizzly Scalping Screens OEM brochure configuration (model not specified) |
| 2 | Screen box | Upper screening body of the machine | Grizzly Scalping Screens OEM brochure configuration (model not specified) |
| 3 | Support frame | Lower fixed support structure of the equipment | Grizzly Scalping Screens OEM brochure configuration (model not specified) |
Other Components · 6 items
| Component |
|---|
| Cheek plate |
| Exciter |
| Screen box cross member |
| Spiral flight |
| Wear liner |
| Bearing |
KPI-JCI
Components by Model
Models with the same components are grouped together; select a group to open its component table.
4102-26, 5122-32, 5162-26-2, 6122-32, 6162-26-2, 7162-32-27 items
Models: 4102-26, 5122-32, 5162-26-2, 6122-32, 6162-26-2, 7162-32-2
| No. | Component |
|---|---|
| 1 | Screen mesh |
| Model-specific component | |
| Exciter | |
| Screen box Cross beam | |
| Screw flight | |
| Wear liner | |
| Bearing |
Frequently asked questions
What other names or designations is the Mesabi Scalper known by?
The Mesabi Scalper is also documented under these designations: 4102-26, 5122-32, 5162-26-2, 6122-32, 6162-26-2, 7162-32-2.
Which brand and type of equipment is the Mesabi Scalper?
The Mesabi Scalper is listed under the KPI-JCI brand. Status: Historical model.
Which components and wear parts are recorded for the Mesabi Scalper?
7 components are recorded, including: Screen mesh, Exciter, Screen box Cross beam, Screw flight, Wear liner, Bearing and more. The full list with locations is in the components table on this page.
How do I enquire about parts for the Mesabi Scalper?
Send us a drawing or sample and tell us the equipment model and part name.
