What other names or designations is the Pneumatic Conveying system known by?
The Pneumatic Conveying system is also documented under these designations: Pneumatic Conveying Systems.
Pneumatic Conveying system
2024 · 1 model
Jeffrey Rader
Jeffrey RaderBrand
2024Period
Historical modelStatus
Jeffrey Rader
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| Pneumatic Conveying Systems | 2024 | 5 |
Jeffrey Rader
Numbered Components

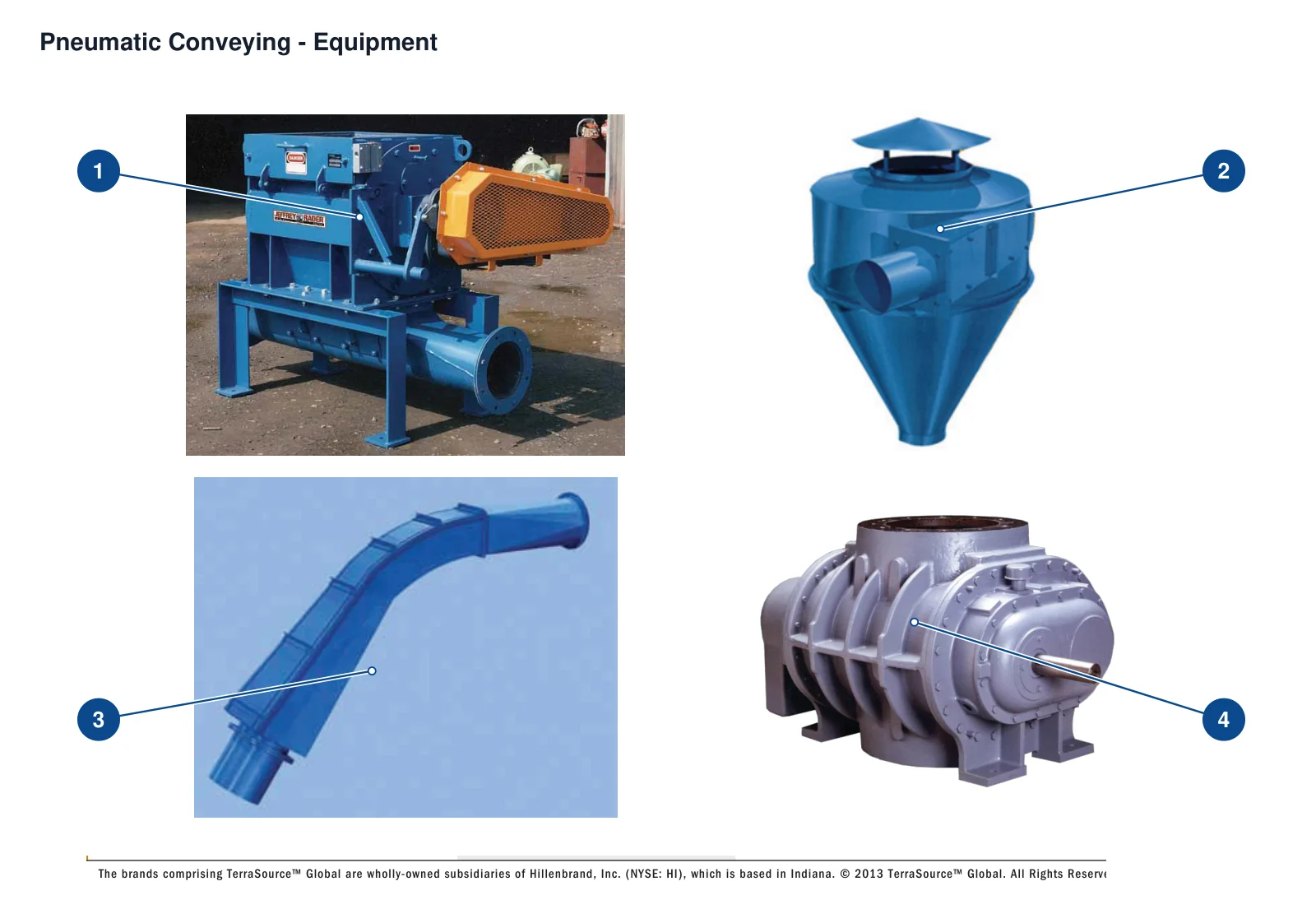

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Rotary airlock | Rotary airlock assembly in the upper-left component image | Pneumatic Conveying Systems |
| 2 | Cyclone | Model E cyclone in the upper-right component image | Pneumatic Conveying Systems |
| 3 | Wear-back elbow | Mark II elbow in the lower-left component image | Pneumatic Conveying Systems |
| 4 | Positive-displacement blower | Positive-displacement blower in the lower-right component image | Pneumatic Conveying Systems |
Other Components · 1 item
| Component |
|---|
| Air duct |
Jeffrey Rader
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Pneumatic Conveying Systems5 items
| No. | Component | Location |
|---|---|---|
| 1 | Rotary airlock | Material feeding position into the pneumatic pipeline |
| 2 | Cyclone separator | Gas-solid separation end |
| 3 | Wear-back elbow | Pneumatic pipeline turning position |
| 4 | Blower | Conveying air power end |
| Air duct | Pneumatic conveying path |
Frequently asked questions
Which brand and type of equipment is the Pneumatic Conveying system?
The Pneumatic Conveying system is listed under the Jeffrey Rader brand. Period: 2024. Status: Historical model.
Which components and wear parts are recorded for the Pneumatic Conveying system?
5 components are recorded, including: Rotary airlock, Cyclone separator, Wear-back elbow, Blower, Air duct. The full list with locations is in the components table on this page.
Which model-specific components of the Pneumatic Conveying system have their own page?
Model-specific components with their own page: Rotary airlock, Cyclone separator, Wear-back elbow, Blower, Air duct (5 in total).
How do I enquire about parts for the Pneumatic Conveying system?
Send us a drawing or sample and tell us the equipment model and part name.
