What other names or designations is the Linear Screw Reclaimer known by?
The Linear Screw Reclaimer is also documented under these designations: Linear Screw Reclaimer TSG.
Linear Screw Reclaimer
2026 · 1 model
Jeffrey Rader
Jeffrey RaderBrand
2026Period
Historical modelStatus
Jeffrey Rader
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| Linear Screw Reclaimer TSG | 2026 | 4 |
Jeffrey Rader
Numbered Components

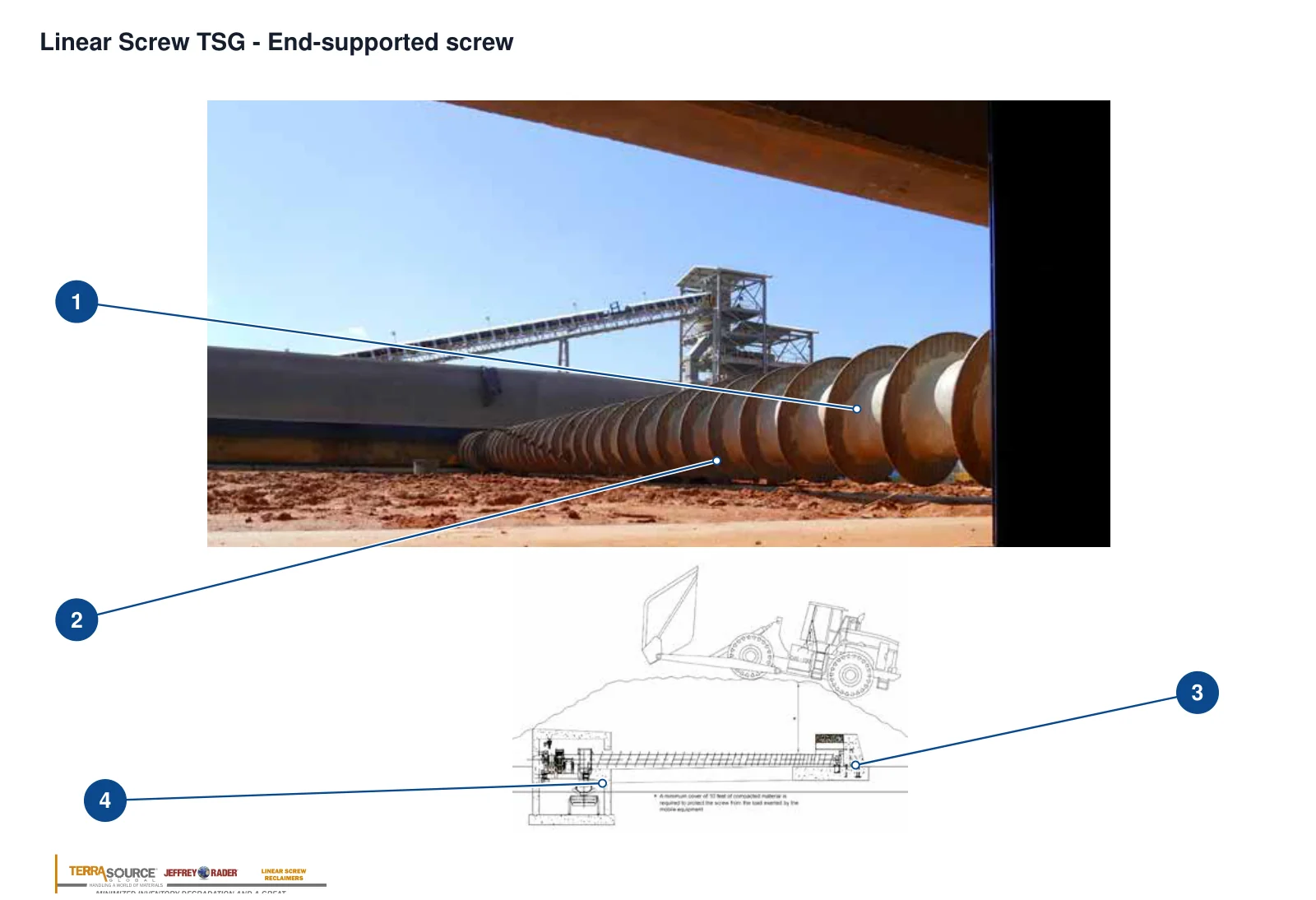

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Screw flight | Open screw flights in the photograph | Linear Screw Reclaimer TSG |
| 2 | Screw shaft | Central shaft of the open screw | Linear Screw Reclaimer TSG |
| 3 | End drive | End drive at the right end of the OEM arrangement | Linear Screw Reclaimer TSG |
| 4 | Traveling support assembly | Rail-supported traveling carriage at the left of the arrangement | Linear Screw Reclaimer TSG |
Jeffrey Rader
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Linear Screw Reclaimer TSG4 items
| No. | Component | Location |
|---|---|---|
| 1 | Screw flight | On the reclaiming screw shaft |
| 2 | Screw shaft | Center of the reclaimer |
| 3 | End drive | Screw end |
| 4 | Mobile support assembly | Travel position of the reclaimer across the bin width |
Frequently asked questions
Which brand and type of equipment is the Linear Screw Reclaimer?
The Linear Screw Reclaimer is listed under the Jeffrey Rader brand. Period: 2026. Status: Historical model.
Which components and wear parts are recorded for the Linear Screw Reclaimer?
4 components are recorded, including: Screw flight, Screw shaft, End drive, Mobile support assembly. The full list with locations is in the components table on this page.
Which model-specific components of the Linear Screw Reclaimer have their own page?
Model-specific components with their own page: Screw flight, Screw shaft, End drive, Mobile support assembly (4 in total).
How do I enquire about parts for the Linear Screw Reclaimer?
Send us a drawing or sample and tell us the equipment model and part name.
