2026 · 8 models

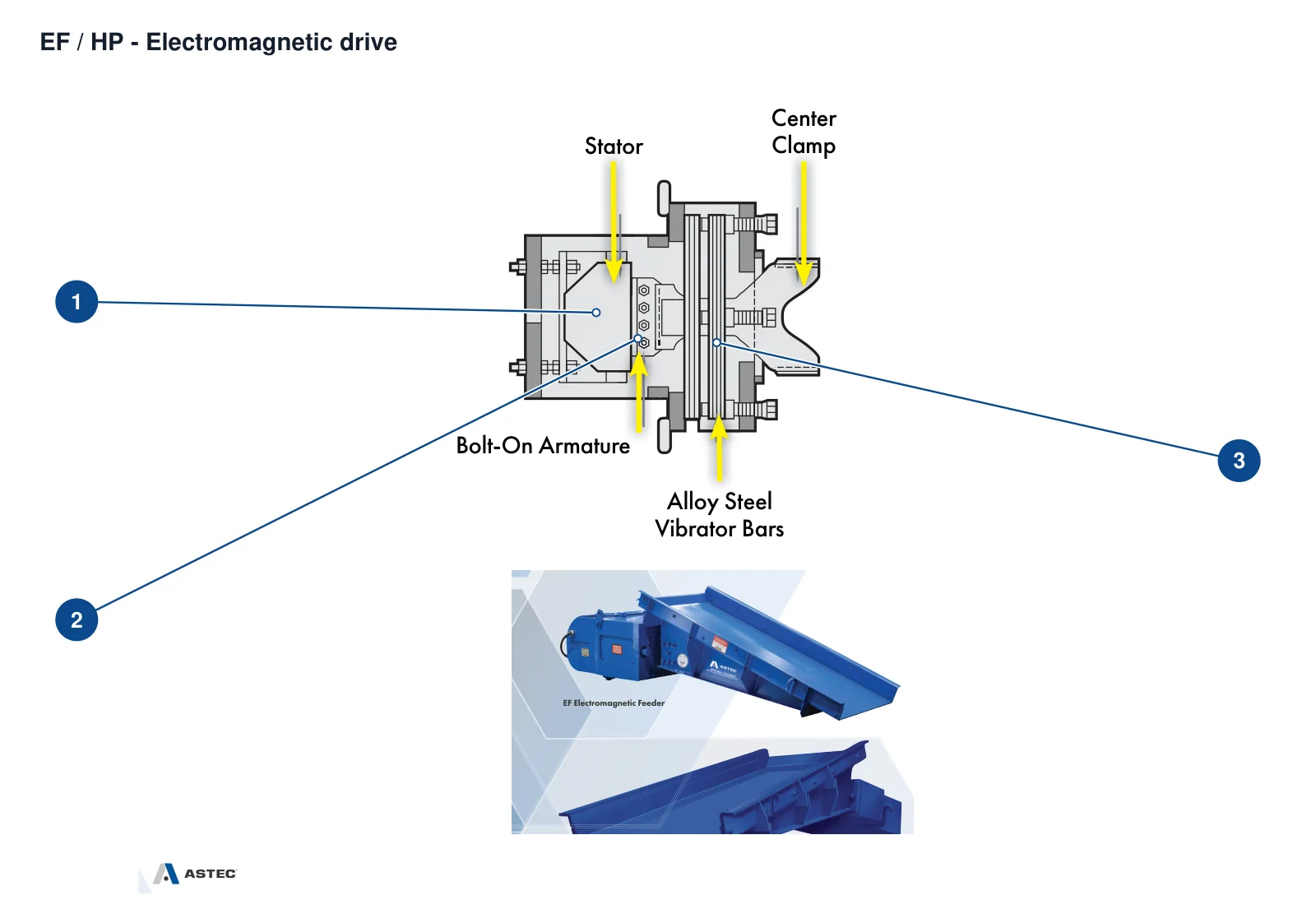

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Stator lamination stack | Stator stack on the left of the drive section | EF/HP Electromagnetic Vibrating Feeder drive |
| 2 | Bolt-on armature | Moving armature opposite the stator | EF/HP Electromagnetic Vibrating Feeder drive |
| 3 | Alloy steel vibrator bar | Vibrator bar on the right of the drive section | EF/HP Electromagnetic Vibrating Feeder drive |
| Component |
|---|
| Support Spring / Buffer |
| Feed trough liner |
| Excitation coil |
Models with the same components are grouped together; select a group to open its component table.
Models: EF1, EF2, EF3, EF4, EF5, EF6, EF8, HP050
| No. | Component | Location |
|---|---|---|
| 1 | Stator laminations | Core of the electromagnetic drive |
| 2 | Armature | Moving end of the electromagnetic drive connected to the trough |
| 3 | Vibration spring bar | Elastic system of the stator and armature |
| Support Spring / Buffer | ||
| Feed trough liner | Material-bearing surface of the feed trough | |
| Excitation coil | Inside the stator of the electromagnetic drive |
The EF / HP Electromagnetic Vibrating feeder covers 8 models: EF1, EF2, EF3, EF4, EF5, EF6, EF8, HP050. Former and renamed designations are listed in the models table on this page.
The EF / HP Electromagnetic Vibrating feeder is also documented under these designations: EF1, EF2, EF3, EF4, EF5, EF6, EF8, HP050.
The EF / HP Electromagnetic Vibrating feeder is listed under the Jeffrey Rader brand. Period: 2026. Status: Historical model.
6 components are recorded, including: Support Spring / Buffer, Feed trough liner, Excitation coil, Stator laminations, Armature, Vibration spring bar. The full list with locations is in the components table on this page.
Model-specific components with their own page: Feed trough liner, Excitation coil, Stator laminations, Armature, Vibration spring bar (5 in total).
Send us a drawing or sample and tell us the equipment model and part name.
Provide the equipment model, drawing for engineering review and quotation. If service life or wear is a concern, describe the operating conditions as well.
