What other names or designations is the Tabor TMS known by?
The Tabor TMS is also documented under these designations: Tabor TMS Multi-Slope.
Tabor TMS
2018 · 1 model
Elgin
ElginBrand
2018Period
Historical modelStatus
Elgin
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| Tabor TMS Multi-Slope | 2018 | 5 |
Elgin

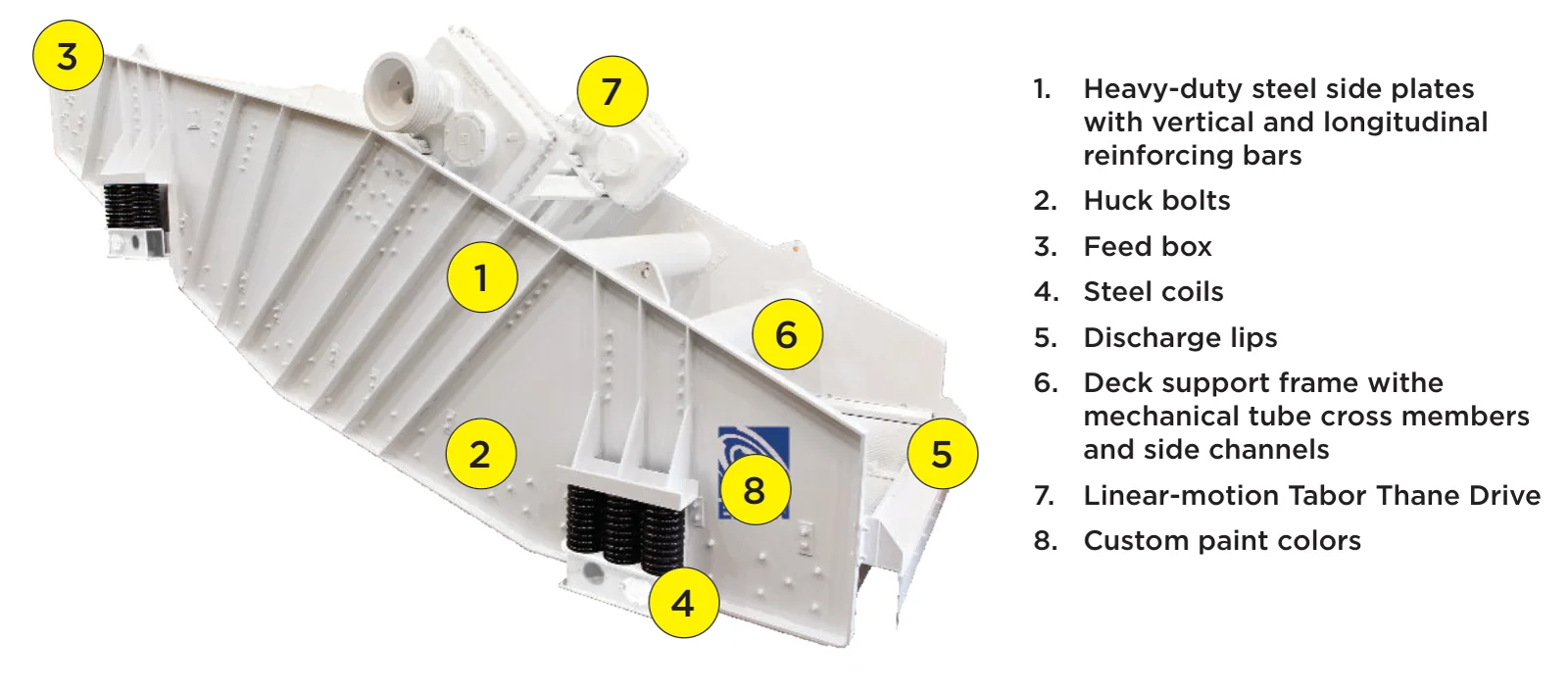

Numbered Components
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Reinforced side plates | Sidewalls of the multi-slope screen body | OEM pictured configuration (exact model not specified) |
| 2 | Huck bolts | Screen-body joints | OEM pictured configuration (exact model not specified) |
| 3 | Feed box | Feed end at the steep upper deck | OEM pictured configuration (exact model not specified) |
| 4 | Support Spring / Buffer | Between screen body and supports | OEM pictured configuration (exact model not specified) |
| 5 | Discharge lips | Discharge ends of the screening decks | OEM pictured configuration (exact model not specified) |
| 6 | Cross beam | Mechanical tube crossmembers in the deck support frame | OEM pictured configuration (exact model not specified) |
| 7 | Tabor Thane linear drive | Linear-motion drive above the screen body | OEM pictured configuration (exact model not specified) |
| 8 | Custom paint coating | External screen-body surfaces | OEM pictured configuration (exact model not specified) |
Other Components · 2 items
| Component |
|---|
| Screen media |
| Feed-box liner |
Elgin
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Tabor TMS Multi-Slope5 items
| No. | Component | Location |
|---|---|---|
| 4 | Support Spring / Buffer | |
| 6 | Cross beam | Screen deck support position inside the screen box |
| 7 | Exciter | Exciter drive section of the screen box |
| Screen Mesh / Wire Mesh | ||
| Feed Box Liner |
Frequently asked questions
Which brand and type of equipment is the Tabor TMS?
The Tabor TMS is listed under the Elgin brand. Period: 2018. Status: Historical model.
Which components and wear parts are recorded for the Tabor TMS?
5 components are recorded, including: Screen Mesh / Wire Mesh, Support Spring / Buffer, Feed Box Liner, Cross beam, Exciter. The full list with locations is in the components table on this page.
Which model-specific components of the Tabor TMS have their own page?
Model-specific components with their own page: Cross beam, Exciter (2 in total).
How do I enquire about parts for the Tabor TMS?
Send us a drawing or sample and tell us the equipment model and part name.
