Which models does the CSI Turnkey cover?
The CSI Turnkey covers 3 models: CSI-D3 Containerized System, CSI-D4 Turnkey System, CSI-D5 Telescoping System. Former and renamed designations are listed in the models table on this page.
CSI Turnkey
2018 · 3 models
Elgin
ElginBrand
2018Period
Historical modelStatus
Elgin
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| CSI-D3 Containerized System | 2018 | 7 |
| CSI-D4 Turnkey System | 2018 | 7 |
| CSI-D5 Telescoping System | 2018 | 7 |
Elgin
Numbered Components

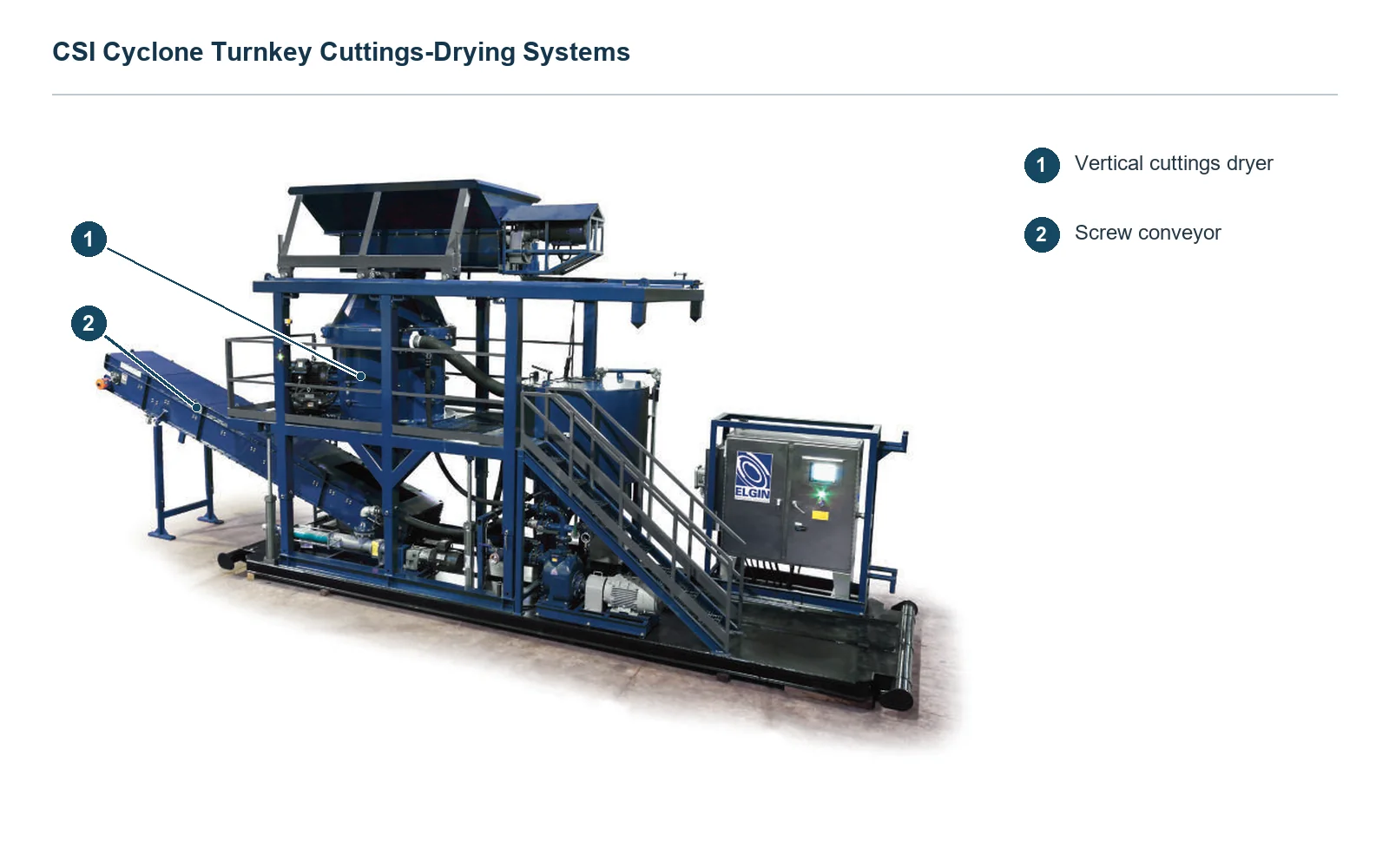

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Vertical cuttings dryer | Dryer on upper platform | CSI-D4 Turnkey System |
| 1 | Vertical cuttings dryer | Dryer assembly in upper container level | CSI-D3 Containerized System |
| 1 | Vertical cuttings dryer | Conical dryer on upper platform | CSI-D5 Telescoping System |
| 2 | Screw conveyor | Inclined screw conveyor on left of platform | CSI-D4 Turnkey System |
| 2 | Feed hopper | Hopper above container | CSI-D3 Containerized System |
| 2 | Screw conveyor | Inclined conveyor at left of unit | CSI-D5 Telescoping System |
| 3 | Feed hopper | Large hopper on right | CSI-D5 Telescoping System |
Other Components · 6 items
| Component |
|---|
| Screen basket |
| Flite |
| Spray nozzle |
| Conical launder |
| Ceramic liner |
| Access hatch |
Elgin
Components by Model
Models with the same components are grouped together; select a group to open its component table.
CSI-D3 Containerized System, CSI-D4 Turnkey System, CSI-D5 Telescoping System7 items
Models: CSI-D3 Containerized System, CSI-D4 Turnkey System, CSI-D5 Telescoping System
| No. | Component | Location |
|---|---|---|
| 2 | Screw conveyor | System material conveying section |
| Screen basket | Cuttings separation working surface | |
| Scraper blade | Solids conveying position inside the screen basket | |
| Flushing nozzle | Screen basket flushing position | |
| Liquid discharge launder | Liquid collection point beneath the screen basket | |
| Ceramic liner | Wear protection surface | |
| Access cover | Access opening of the machine body |
Frequently asked questions
What other names or designations is the CSI Turnkey known by?
The CSI Turnkey is also documented under these designations: CSI-D3 Containerized System, CSI-D4 Turnkey System, CSI-D5 Telescoping System.
Which brand and type of equipment is the CSI Turnkey?
The CSI Turnkey is listed under the Elgin brand. Period: 2018. Status: Historical model.
Which components and wear parts are recorded for the CSI Turnkey?
7 components are recorded, including: Screen basket, Scraper blade, Flushing nozzle, Liquid discharge launder, Ceramic liner, Access cover, Screw conveyor. The full list with locations is in the components table on this page.
Which model-specific components of the CSI Turnkey have their own page?
Model-specific components with their own page: Screen basket, Scraper blade, Flushing nozzle, Liquid discharge launder, Ceramic liner, Access cover, Screw conveyor (7 in total).
How do I enquire about parts for the CSI Turnkey?
Send us a drawing or sample and tell us the equipment model and part name.
