Boomer E3 / E4
2015-09 · 2 models
Atlas Copco Mining
Atlas Copco MiningBrand
2015-09Period
Historical modelStatus
Atlas Copco Mining
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Boomer XE3 | XE3 | 2015-09 | 12 |
| Boomer XE4 | XE4 | 2015-09 | 12 |
Atlas Copco Mining
Numbered Components

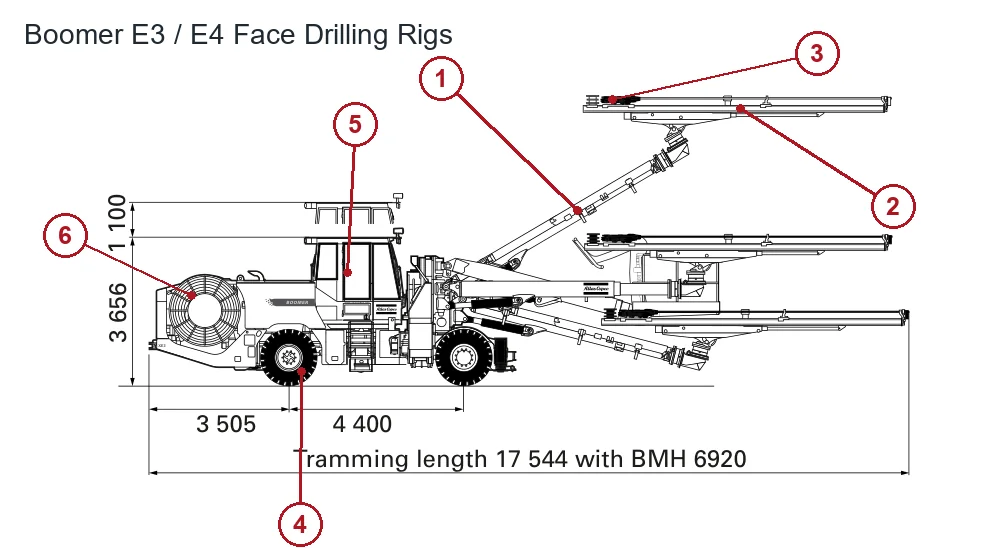

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Boom | Between front chassis and upper feed beam | Boomer XE3; OEM brochure 2015-09 |
| 2 | Hydraulic feed beam | Horizontal feed beam at boom end | Boomer XE3; OEM brochure 2015-09 |
| 3 | Hydraulic rock drill | Rock drill at rear of upper feed beam | Boomer XE3; OEM brochure 2015-09 |
| 4 | Tyre | Rear wheel end | Boomer XE3; OEM brochure 2015-09 |
| 5 | Cab | Operator position near articulation | Boomer XE3; OEM brochure 2015-09 |
| 6 | Cable reel | Circular cable storage assembly at rear | Boomer XE3; OEM brochure 2015-09 |
Other Components · 6 items
| Component |
|---|
| Shank adapter |
| Drill rod connection sleeve |
| Hydraulic Pump |
| Air compressor |
| Water hose reel |
| Rod handling system |
Atlas Copco Mining
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Boomer XE3, Boomer XE412 items
Models: Boomer XE3, Boomer XE4
| No. | Component | Location |
|---|---|---|
| 1 | Drill boom | Between the front of the vehicle body and the feed beam |
| 2 | Hydraulic feed beam | Front end of the drill boom |
| 3 | Hydraulic rock drill | Feed beam at the front end of the drill boom |
| 4 | Tire | |
| 5 | Cab | Control position of the main unit |
| 6 | Cable reel | |
| Model-specific component | ||
| Drill rod connection sleeve | ||
| Hydraulic Pump | ||
| Air compressor | ||
| Model-specific component | ||
| Drill rod handling mechanism | Drill rod mounting position on the side of the feed beam |
