Which models does the Boltec Roof-bolting carriage cover?
The Boltec Roof-bolting carriage covers 3 models: Boltec EC, Boltec LC, Boltec MC. Former and renamed designations are listed in the models table on this page.
Boltec Roof-bolting carriage
Roof-bolting carriage · 2009—2016 · 3 models
Atlas Copco Mining
Atlas Copco MiningBrand
Roof-bolting carriageEquipment type
2009—2016Period
Historical modelStatus
Atlas Copco Mining

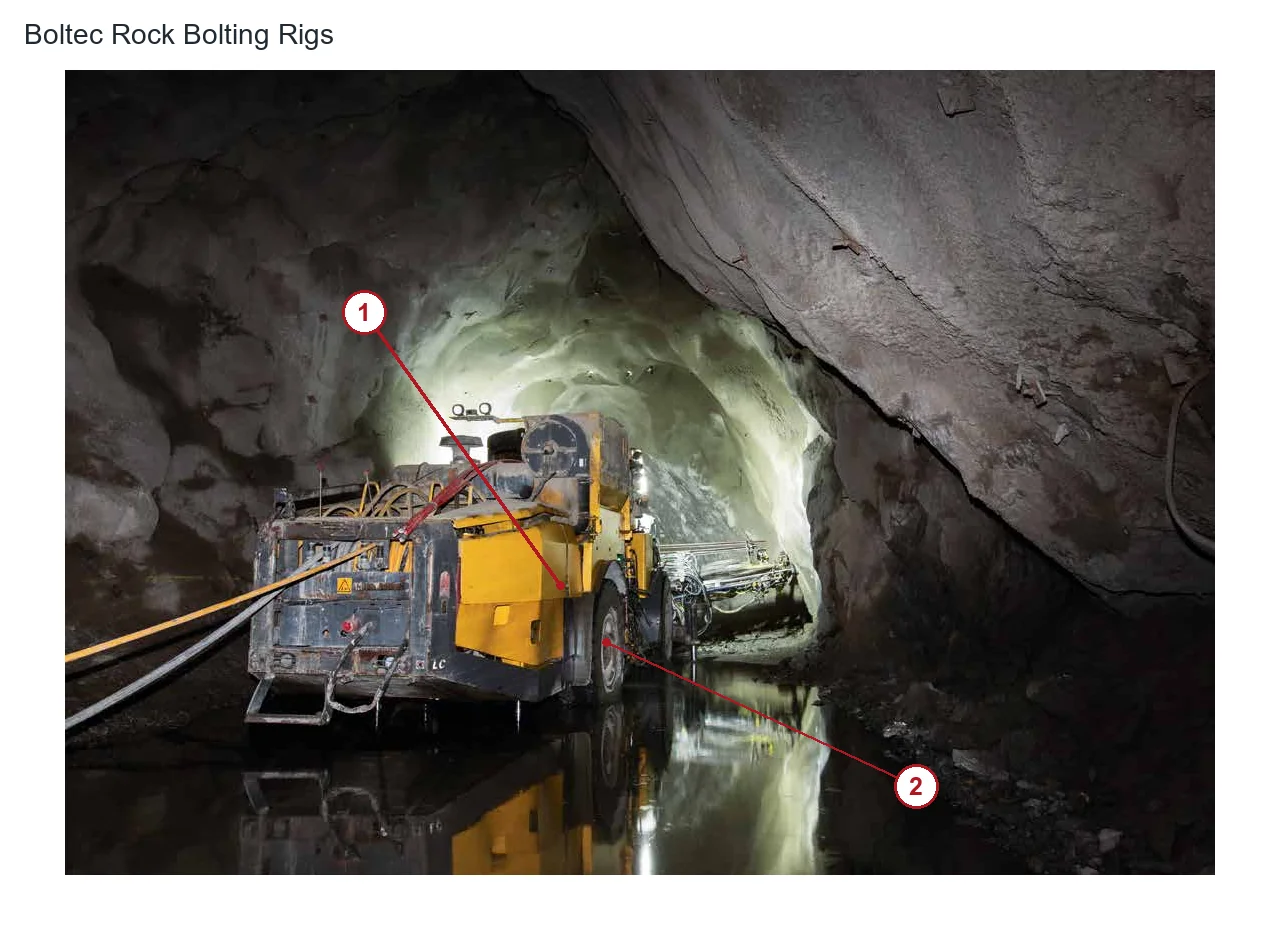

Numbered Components
The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Carrier body | Yellow outer body panel at side of carrier | Boltec LC; 2017 OEM project publication |
| 2 | Tyre | Wheel end at side of carrier | Boltec LC; 2017 OEM project publication |
Other Components · 6 items
| Component |
|---|
| Bolt installation mechanism |
| Hydraulic rock drill |
| Boom |
| Mesh handling boom |
| Drill rod |
| Grout hose |
Atlas Copco Mining
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Boltec EC, Boltec MC4 items
Models: Boltec EC, Boltec MC
| Component | Location |
|---|---|
| Rock bolt installation mechanism | Rock bolting end of the drill boom |
| Hydraulic rock drill | On the feed beam at the front end of the drill boom |
| Drill boom | Between the front of the vehicle body and the feed beam |
| Mesh-installation drill boom | Auxiliary mesh-hanging mechanism on the main unit |
Boltec LC4 items
| Component | Location |
|---|---|
| Drill boom | Between the front of the vehicle body and the feed beam |
| Drill rod | Drilling end of the drill boom |
| Grouting hose | Hole grouting position |
| Rock bolt installation mechanism | Rock bolting end of the drill boom |
Frequently asked questions
What other names or designations is the Boltec Roof-bolting carriage known by?
The Boltec Roof-bolting carriage is also documented under these designations: Boltec EC, Boltec LC, Boltec MC.
Which brand and type of equipment is the Boltec Roof-bolting carriage?
The Boltec Roof-bolting carriage is listed under the Atlas Copco Mining brand as: Roof-bolting carriage. Period: 2009—2016. Status: Historical model.
Which components and wear parts are recorded for the Boltec Roof-bolting carriage?
7 components are recorded, including: Rock bolt installation mechanism, Hydraulic rock drill, Drill boom, Mesh-installation drill boom, Drill rod, Grouting hose, Rock bolt installation mechanism. The full list with locations is in the components table on this page.
Which model-specific components of the Boltec Roof-bolting carriage have their own page?
Model-specific components with their own page: Hydraulic rock drill, Drill boom, Mesh-installation drill boom, Drill rod, Grouting hose, Rock bolt installation mechanism (6 in total).
What is the current successor of the Boltec Roof-bolting carriage?
Epiroc.
How do I enquire about parts for the Boltec Roof-bolting carriage?
Send us a drawing or sample and tell us the equipment model and part name.
