Semi-autogenous (SAG) mill · 2026-10-03 · 1 model
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| ММПС wet Semi-autogenous (SAG) mill | ММПС-5000х2300; ММПС-5000х3400; ММПС-7000х2300; ММПС-7000х3000; ММПС-7000х3500; ММПС-7000х4500; ММПС-9500х2900; ММПС-9500х4500; ММПС-9500х5400; ММПС-10500х5400; ММПС-10500х6400 | 2026-10-03 | 4 |

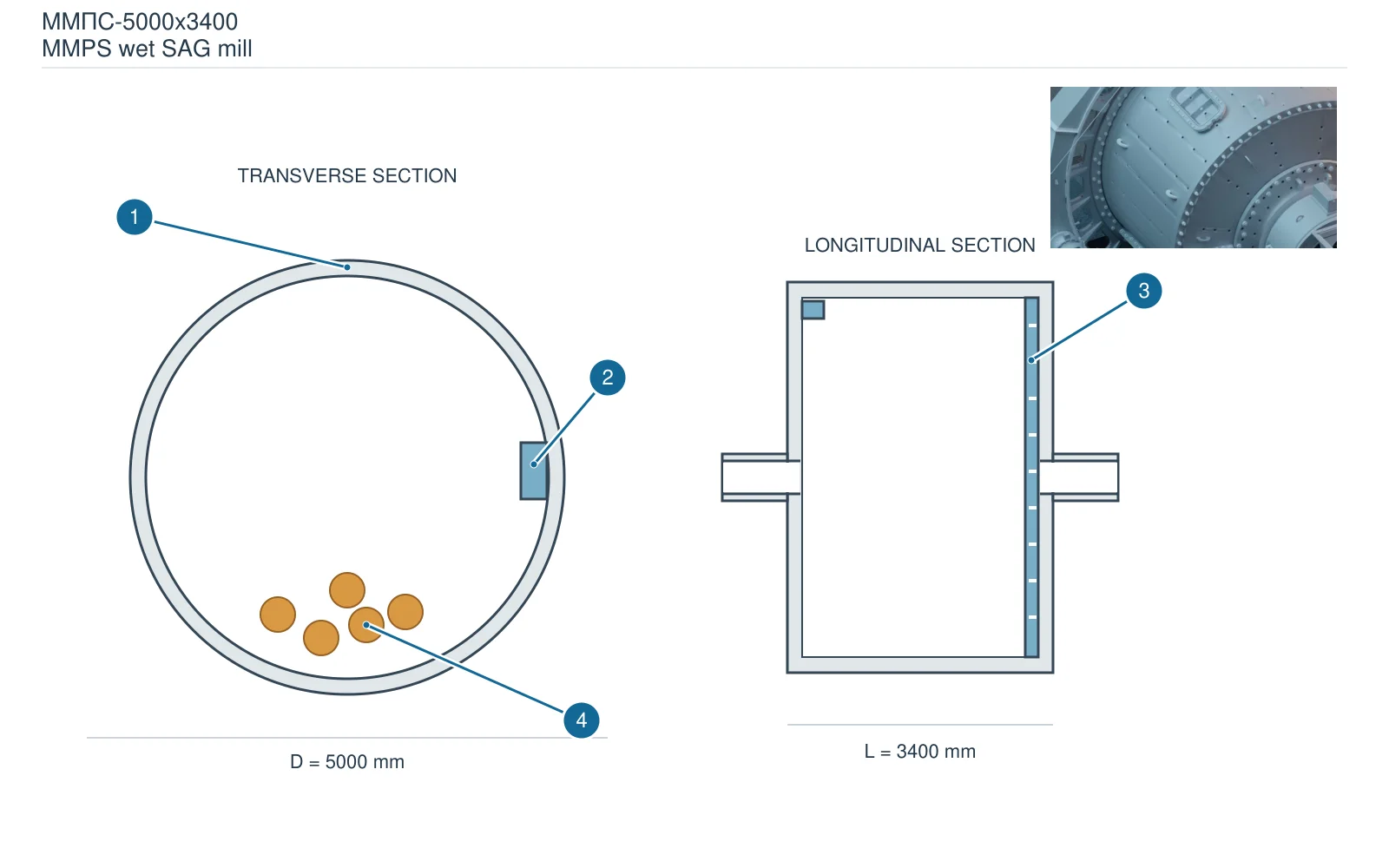

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Shell liner | Inner wall of the rotating drum | ММПС-5000х3400 |
| 2 | Lifter bar | Inward-projecting lifter on the shell lining | ММПС-5000х3400 |
| 3 | Discharge grid plate | Inside the discharge end | ММПС-5000х3400 |
| 4 | Steel ball | Grinding-media zone inside the drum | ММПС-5000х3400 |
Models with the same components are grouped together; select a group to open its component table.
| No. | Component |
|---|---|
| 1 | Shell liner |
| 2 | Lifter bar |
| 3 | Discharge grid plate |
| 4 | Steel ball |
The ММПС Semi-autogenous (SAG) mill is also documented under these designations: ММПС wet Semi-autogenous (SAG) mill, ММПС-5000х2300, ММПС-5000х3400, ММПС-7000х2300, ММПС-7000х3000, ММПС-7000х3500, ММПС-7000х4500, ММПС-9500х2900, ММПС-9500х4500, ММПС-9500х5400, ММПС-10500х5400, ММПС-10500х6400.
The ММПС Semi-autogenous (SAG) mill is listed under the Tyazhmash brand as: Semi-autogenous (SAG) mill. Period: 2026-10-03. Status: Historical model.
4 components are recorded, including: Shell liner, Lifter bar, Discharge grid plate, Steel ball. The full list with locations is in the components table on this page.
