2016 · 7 models
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| MIS | MIS3030; MIS4034; MIS4054 | 2016 | 5 |
| MJ / MJS | MJ1252; MJ2436; MJ3042; MJ3254; MJS3042; MJS3254; MSJ3042; MSJ3254 | 2016 | 5 |
| MSH | MSH5162; MSH5163; MSH6202; MSH6203; MSH7202; MSH8202; MSH8203 | 2016 | 4 |
| MSI / MSHA | MSI5142; MSI5143; MSI5162; MSI6203; MSI7203; MSI5163; MSI6162; MSI6163; MSI6202; MSI7202; MSI8202; MSI8203; MSHA8203 | 2016 | 4 |
| MTC | MTC36; MTC51; MTC66; MTC84x; MTC350 | 2016 | 4 |
| MTF | MTF4620; MTF5220; MTF5820; MTF4616 | 2016 | 5 |
| MTV | MTV85; MTV95; MTV65 | 2016 | 5 |

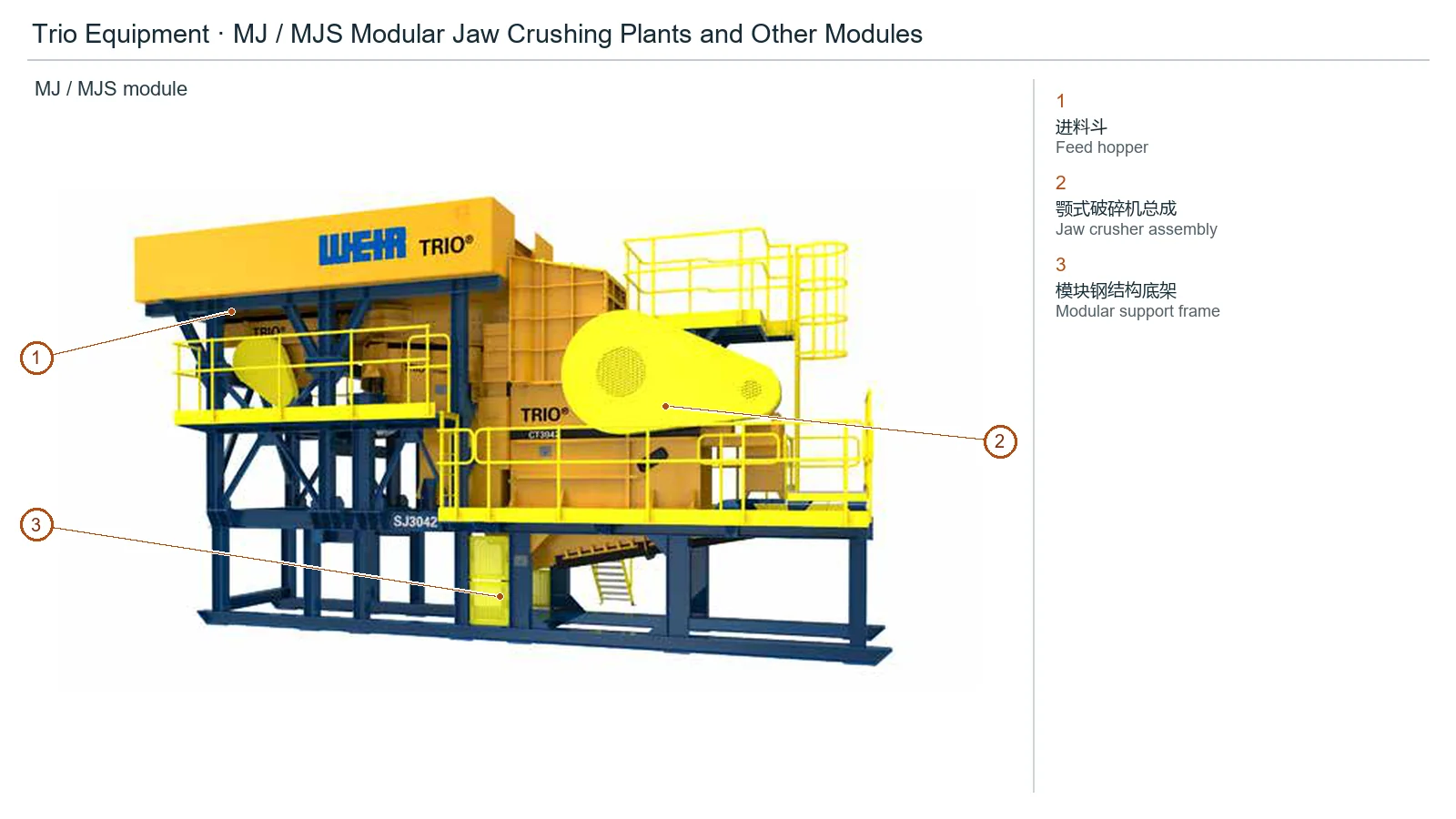

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Feed hopper | Visible feed hopper in MJ / MJS module | MJ;MJS |
| 2 | Jaw crusher assembly | Visible jaw crusher assembly in MJ / MJS module | MJ;MJS |
| 3 | Modular support frame | Visible modular support frame in MJ / MJS module | MJ;MJS |
Models with the same components are grouped together; select a group to open its component table.
Models: MSH, MSI / MSHA
| Component |
|---|
| Screen mesh |
| Model-specific component |
| Hopper liner |
| Chute liner |
| Component |
|---|
| Model-specific component |
| Impact liner |
| Model-specific component |
| Hopper liner |
| Chute liner |
| Component |
|---|
| Model-specific component |
| Swing jaw plate |
| Model-specific component |
| Hopper liner |
| Chute liner |
| Component |
|---|
| Feed trough liner |
| Support spring |
| Bar |
| Hopper liner |
| Chute liner |
| Component |
|---|
| Feed pipe |
| Feed disc |
| Model-specific component |
| Hopper liner |
| Chute liner |
| Component |
|---|
| Mantle |
| Concave |
| Hopper liner |
| Chute liner |
The MJ / MJS Modular Jaw Crushing Plants and Other Modules covers 7 models: MIS, MJ / MJS, MSH, MSI / MSHA, MTC, MTF, MTV. Former and renamed designations are listed in the models table on this page.
The MJ / MJS Modular Jaw Crushing Plants and Other Modules is also documented under these designations: MIS, MIS3030, MIS4034, MIS4054, MJ / MJS, MJ1252, MJ2436, MJ3042, MJ3254, MJS3042, MJS3254, MSJ3042, MSJ3254, MSH.
The MJ / MJS Modular Jaw Crushing Plants and Other Modules is listed under the Trio Equipment brand. Period: 2016. Status: Historical model.
18 components are recorded, including: Impact liner, Hopper liner, Chute liner, Swing jaw plate, Screen mesh, Mantle, Concave, Feed trough liner and more. The full list with locations is in the components table on this page.
